HANTENCNC’s 300W pulse laser stripper is a device designed for efficient surface cleaning and is suitable for various industries and applications.
Our pulse laser stripper tool can remove paint, coatings, oxides, dirt, and other contaminants. HANTENCNC’s laser derusting machine has extensive applications in automotive manufacturing, aerospace, ship maintenance, metal processing, construction, and cultural heritage preservation, among others.
Due to our pulse laser stripper’s efficiency, lack of chemical pollution, and environmental friendliness, it is increasingly favoured across different sectors.
300W Laser Derusting Machine Demonstration Video

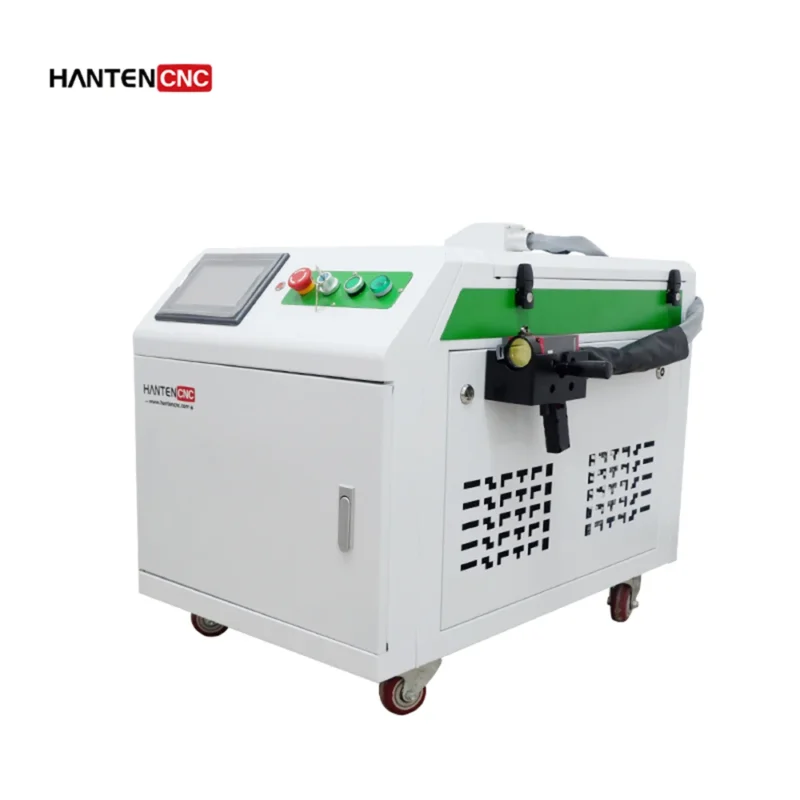

300W Pulse Laser Derusting Machine Display
Multimode Pulse Laser Derusting Machine Dimensions
Pulse Laser Cleaning Gun Composition and Dimensions
Pulse Laser Cleaning Machine Introduction
-
Non-contact cleaning
The 300w pulse laser cleaning machine is a newly designed product. This product uses non-contact cleaning, which can effectively degrease, rust, stain and paint the base material. It can be applied to metal, stainless steel and other materials.
Machine details
This Laser Derusting Machine is a self-developed pulse laser cleaning machine. The chassis is green and white, making it look more high-end. This product has the three primary characteristics of being lightweight, pushable, and safe, making it more convenient for laser cleaning operations.
Laser Cleaning Gun Details
Our laser cleaning gun has fast scanning speed and high accuracy, meeting various cleaning needs. Equipped with front-end control screen and focal length display screen, capable of measuring focal length and achieving high-precision cleaning.
Portable design: The cleaning hair is compact and portable, with a weight of less than 1.25kg.
Dust sealing design: prevents dust from entering the cleaning head and causing performance damage.
Anti interference design: Ensure stable operation of the laser cleaning gun in various complex environments and improve equipment reliability.
Assembly Details
We use button housings to protect the wiring. The material of these button housings is PVC+POM buttons, which are flame retardant and have passed SGS certification.
Pulse Laser Derusting Machine Details
-
Circuit Line
The machine is neat and uniform, with a concise and clear circuit line panel.
-
Water Cooler
The constant temperature of the water cooling system controls the heat generated by the laser cleaning system. It can better protect laser equipment to function correctly.
-
Display And Switches
The machine is capable of multifunctional display. It is equipped with a one-button start switch for easy use. The machine’s cleaning system is stable and efficient.
Laser Derusting Machine Application Fields
The laser derusting machine is a high-tech product. It has the advantages of high efficiency, environmental protection, no pollution, and low energy consumption. It is widely used in manufacturing, maintenance, moulding, the restoration of cultural relics, the stone industry, and other fields.
Manufacturing
Laser cleaner machine is mainly used for cleaning metal surfaces. Parts of cars, planes and railways are cleaned during manufacturing. Laser cleaning can effectively remove the rust, oxide layer, oil stains, and other elements that form on the metal surface. Traditional cleaning methods can cause damage to the substrate surface. Laser cleaning machines can quickly, efficiently and non-destructively clean metal surfaces.
Maintenance Industry
Cleaning laser machines are mainly used for equipment, tools, parts, etc. For example, mechanical equipment, aviation equipment, electronic equipment, etc. During equipment maintenance, corrosion, rust, and other contaminants often appear on the surface. Using conventional cleaning may wear down the surface of the equipment. The substrate is not damaged during laser cleaning. It is safety, environmental protection, and high efficiency.
Mold Industry
Contaminants such as oil stains and welding slag are often attached to the surface of the mould. These pollutants will affect the life of the mould and the use effect. Laser derusting machines can effectively avoid mould surface wear and reduce mould accuracy and other problems.
Heritage Restoration
Laser cleaners can help restore ancient artefacts with paint, stains, or other contaminants, such as stone carvings, steles, pottery, and metalware. Traditional cleaning methods may cause secondary damage to cultural relics. The laser cleaning machine can accurately control the energy and position of cleaning to avoid damage to cultural relics. In addition, the laser cleaning machine can also clean some difficult-to-clean parts, such as small sculptures or complex three-dimensional structures.
Stone Industry
Laser cleaning machines can clean building materials such as marble, granite, and concrete. Laser cleaning machines can clean large areas of stone more quickly. It can also avoid using chemical cleaning agents to pollute the environment. In addition, the laser cleaning machine can accurately control the depth and intensity of cleaning. It can prevent damage to the stone surface.
9 Cleaning Modes for Laser Derusting Machine
The operation interface of the HANTENCNC laser derusting machine offers 9 cleaning modes:
- Straight Line Mode
- Rectangular Mode 1
- Rectangular Mode 2
- Circular Mode
- Sinusoidal Mode
- Spiral Mode
- Free Mode
- Ring Mode
- Rotation Mode
You can switch between these derusting modes by clicking on the “Scanning Mode” option on the interface.
16 Supported Languages for Laser Derusting Machine
HANTENCNC’s 300W laser derusting machine currently supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 16 other languages.
You can easily switch between these language options directly on the laser stripper’s interface. If you require any other languages, we also provide customized language services.
Well-organized Internal Wiring
Organized internal wiring makes the positions of cables and connectors clear and easy for maintenance personnel to quickly locate and solve problems, reducing repair time and costs.
Pulse Laser Derusting Machine Cleaning Effects: Before vs. After
Laser Derusting Machine Parameters
| Laser power | HTCM300 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | 110/220V 50/60 HZ | |||||||||||
| Laser Working Mode | Pulse | |||||||||||
| Average Laser Power | ≥300W | |||||||||||
| Power Instability | ＜5% | |||||||||||
| Maximum Pulse Energy | 15mJ | |||||||||||
| Pulse Width | 2-500ns | |||||||||||
| Cooling Method | Water Cooling | |||||||||||
| Power Regulation Range（%） | 0-100( Gradient Adjustable) | |||||||||||
| Repeat Frequency（kHz） | 1-4000（Gradient Adjustable） | |||||||||||
| Fiber Cable Length | 5m | |||||||||||
| Cleaning Head Weight (including isolator) | ＜1.5Kg | |||||||||||
| Working Environment Humidity | ≤80% | |||||||||||
| Working Environment Temperature | 10℃～40℃ | |||||||||||
Laser Cleaning Head Parameters |
||||||||||||
| Cleaning Head Weight | ＜1.25Kg | |||||||||||
| Scanning Width | 0mm-145mm Optional | |||||||||||
| Scanning Frequency | Not Less Than 300Hz | |||||||||||
| Maximum Scan Line Speed | About 30m/s | |||||||||||
| Maximum Scanning Speed | 20000mm/s | |||||||||||
| Field Lens Focal Length | 210mm(160mm/254mm/330/420mm Optional) | |||||||||||
| Light Transmittance | ≥98% | |||||||||||
| Laser Power Adjustment | 10%-100% | |||||||||||
| Incident Spot Diameter | ≤10mm | |||||||||||
| Cable Length | Standard configuration of 10m | |||||||||||
