HANTENCNC’s 1000W pulse laser cleaning machines are designed for more complex, larger-scale, precision surface cleaning. They can thoroughly remove surface impurities such as metal oxides, rust, oil, paint, graffiti, and coatings without causing any damage to the base material.
Compared to traditional cleaning methods, HANTENCNC’s 1000W pulse laser cleaning machine offers advantages such as high efficiency, no consumables, preservation of the base material, precise cleaning, and eco-friendliness.
The 1000W pulse laser cleaning machine is highly suitable for industries with high cleaning standards, such as aerospace components, historical buildings, automotive frames, wheel hubs, rubber molds, food processing molds, etc.
Compared to 100-500W pulse laser cleaning machines, the 1000W pulse laser cleaning machines can possess greater cleaning power, making them especially suitable for handling more complex, larger-scale, and deeper cleaning tasks.
1000W Pulse Laser Cleaning Machine Demonstration Video

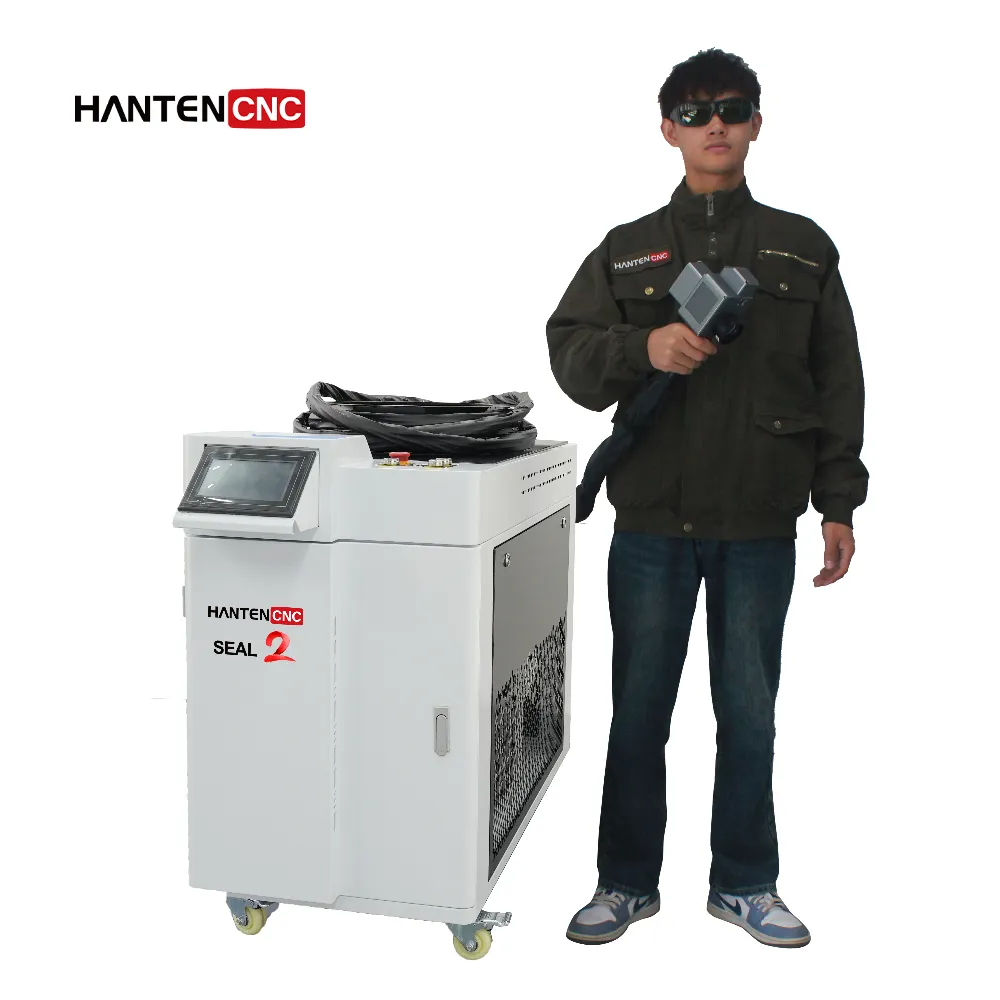

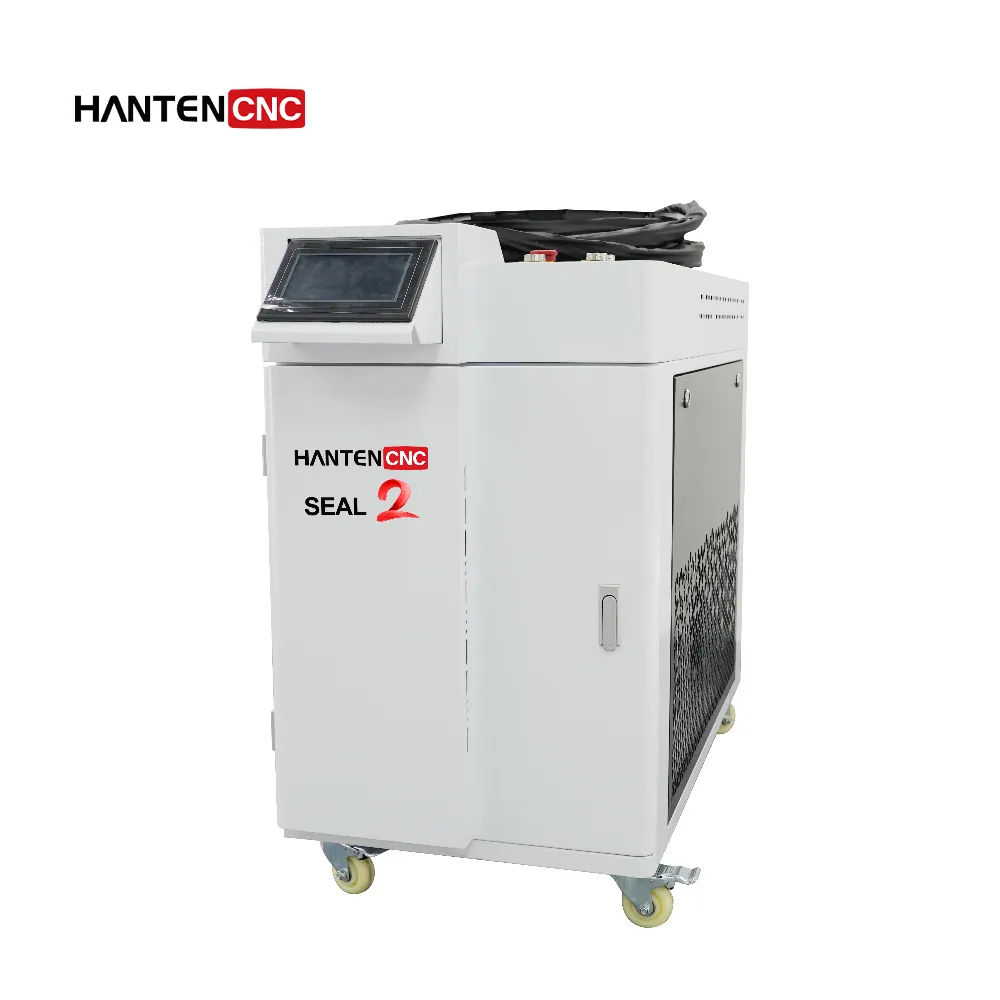

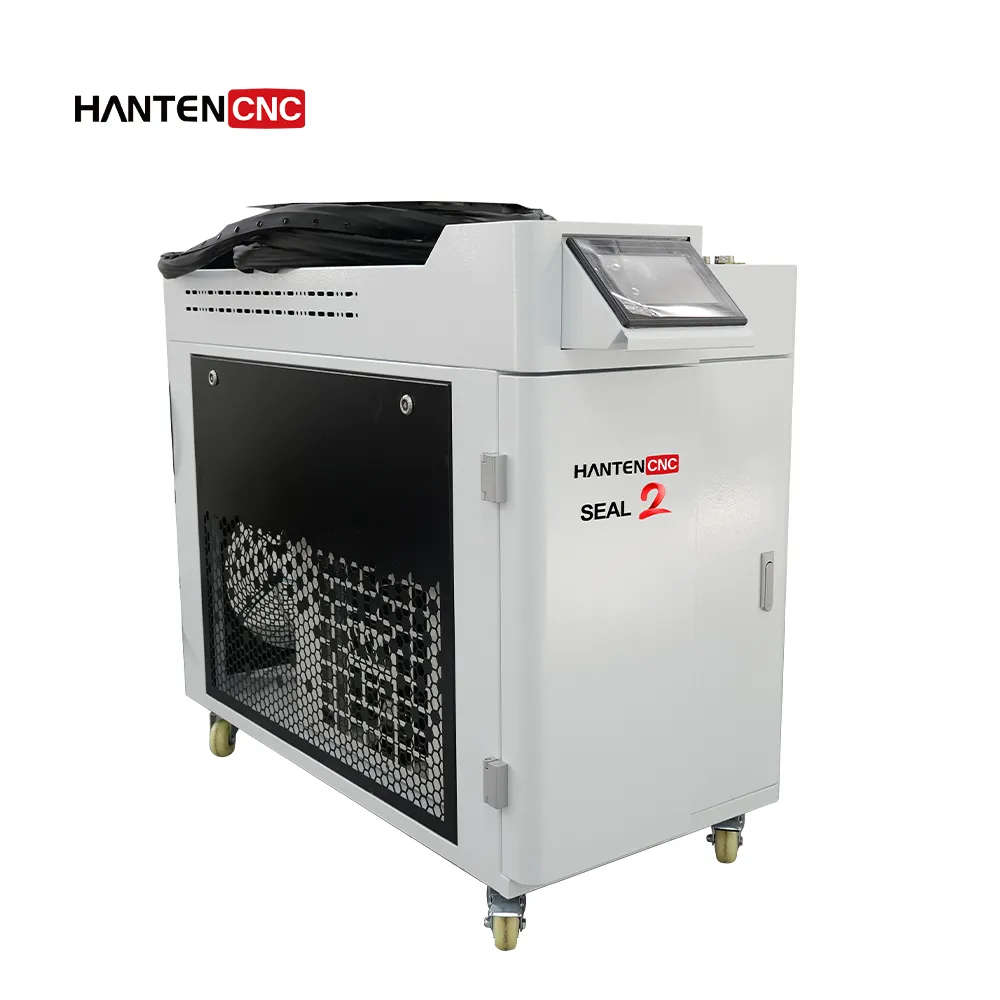

1000W Pulse Laser Cleaning Machine Display
HANTENCNC’s 1000W pulse laser cleaning machines are designed for cleaning precision parts. It’s easy to use, portable, and causes minimal damage to the substrate. It operates without chemicals, ensuring safety and environmental friendliness.
1000W Pulse Laser Cleaning Machine Components
JPT 1000W Pulse Laser Source

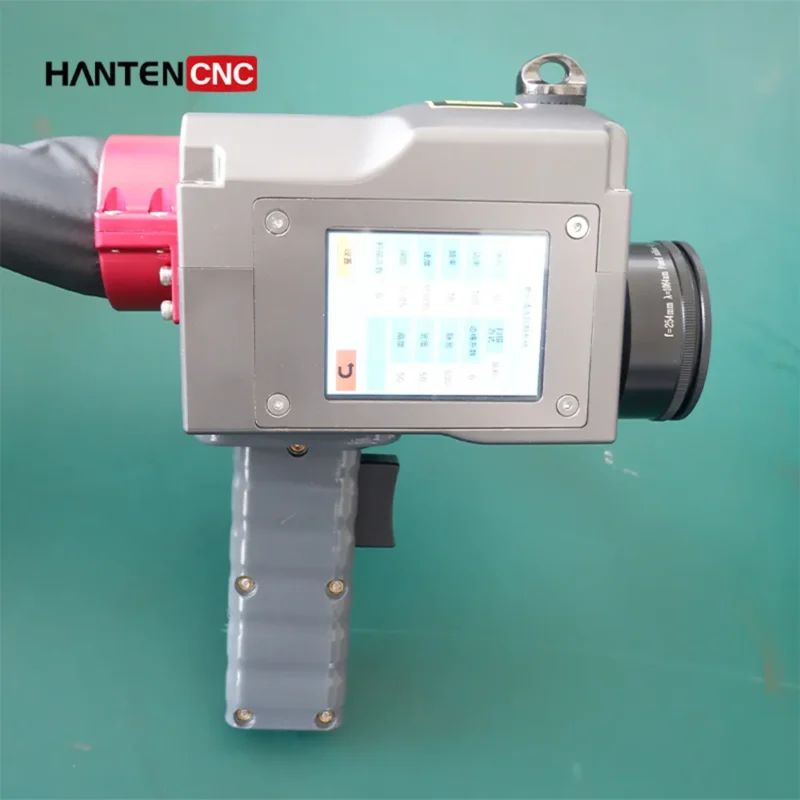

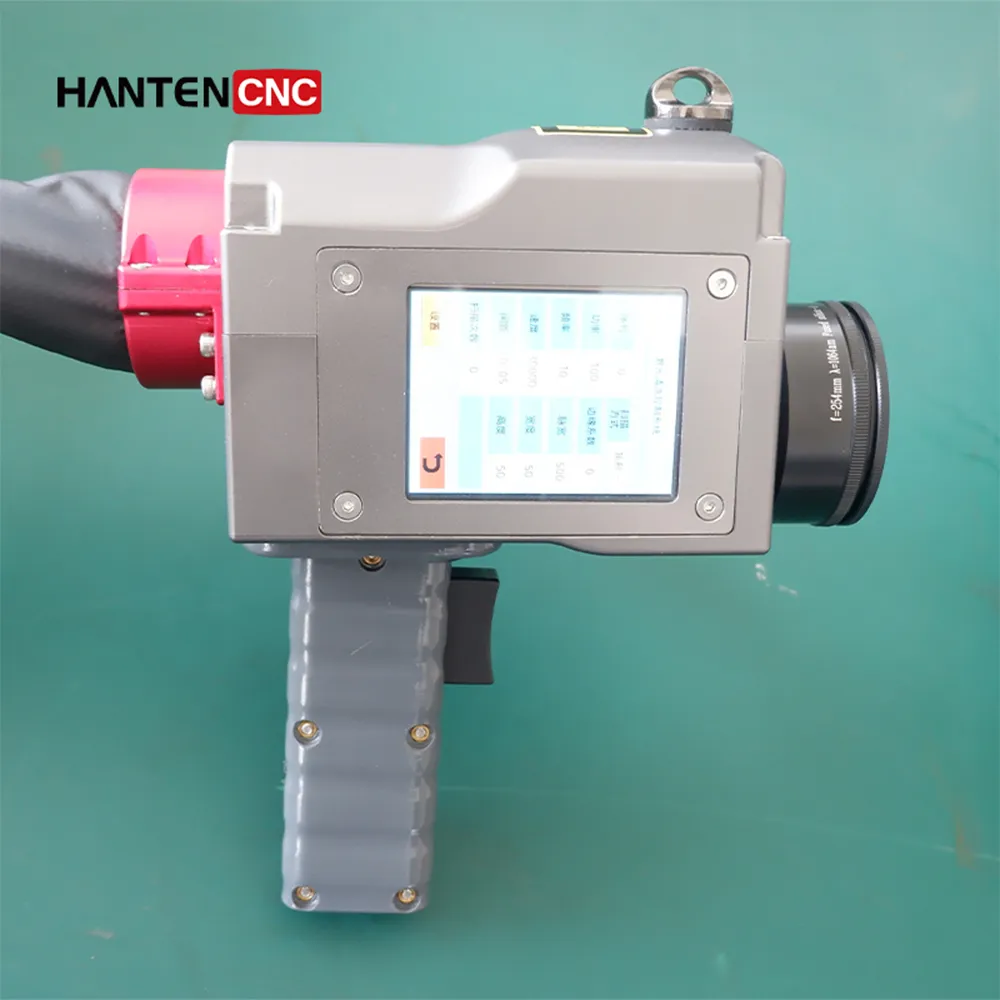

1000W Pulse Laser Cleaning Gun
Safety Lock
HANTENCNC’s pulse laser cleaning head is equipped with a safety lock to prevent accidental operation effectively.
The laser will only emit when the safety lock button is pressed. If the button is not pressed, the laser cannot be triggered, ensuring operator safety.
Laser Distance Sensor
The HANTENCNC’s 1000W pulse laser cleaning gun features a built-in laser distance sensor. The sensor detects the distance between the laser gun and the workpiece automatically.
When no object is detected in front of the cleaning head, the sensor displays “999”, and the laser will not emit even if the trigger button is pressed, preventing accidental activation and enhancing safety.
Focal Distance Display
HANTENCNC’s 1000W laser cleaning gun equips a digital focal distance display. The focal distance display shows the real-time distance from the laser head to the focal point.
After you place an order, our technicians will measure and provide you with the recommended focal distance before delivery. Once the machine arrives, the focal distance display shows real-time distance via the built-in sensor, helping you find the focus quickly and boost cleaning efficiency.
1000W Pulse Laser Cleaning System Accessories
1000W Pulse Laser Cleaning Machine Dimensions
1000W Pulsed Laser Cleaning Machine Parameters
| MODEL | HTCM1000 |
|---|---|
| Power Supply Voltage | Single Phase 220V±10%, 50/60Hz AC Power |
| Total Power Consumption | 5900W |
| Average Laser Power | ≥1000W |
| Laser Operation Mode | Pulsed |
| Laser Source | JPT |
| Pulse Width | 10-500ns adjustable |
| Maximum Single Pulse Energy | 15mJ-50mJ |
| Power Adjustment Range (%) | 0-100% |
| Frequency Adjustment Range (kHz) | 1-4000kHz |
| Cooling Method | Water-cooling |
| Scanning Width | Max 300mm*300mm |
| Maximum Scanning Speed | 20000mm/s |
| Maximum Scanning Frequency | Not Less Than 300Hz |
| Field Lens Focal Length (mm) | 210mm (Optional: 160mm/254mm/330mm/420mm) |
| Depth of Focus | Approximately 20mm |
| Fiber Cable Length | 10 meters (customizable) |
| Machine Dimensions | 1080mm*450mm*800mm |
| Machine Weight | 135kg |
| Package Dimensions | 1200mm*600mm*1060mm |
| Package Weight | 180kg |
| Operating temperature range | 0-40℃ |
| Operating Humidity | ≤80% |
9 Cleaning Modes of 1000W Pulse Laser Cleaning Machine
The operation interface of the HANTENCN’s 1000W pulse laser cleaning machine offers 9 cleaning modes:
- Straight Line Mode
- Rectangular Mode 1
- Rectangular Mode 2
- Circular Mode
- Sinusoidal Mode
- Spiral Mode
- Free Mode
- Ring Mode
- Rotation Mode
You can switch these modes by clicking on the “Scanning Mode” option on the interface.
Some cleaning modes are gentler, suitable for materials with higher surface requirements, and can reduce or eliminate traces after cleaning. Some cleaning modes are more powerful and ideal for removing stubborn dirt or coatings.
Choosing the right cleaning modes ensures minimal traces and enhances the appearance and quality of the product, which is especially crucial in industries like automotive manufacturing, aerospace, electronics, and more.
16 Supported Languages of 1000W Pulse Laser Cleaning Machine
HANTENCNC’s 1000W pulse laser cleaning macine currently supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 16 other languages.
You can easily switch between these language options directly on the machine’s interface. If you require any other languages, we also provide customized language services.
Applications of Pulse Laser Cleaning Machine
1000W Pulse Laser Cleaning Machines: Cleaning Performance

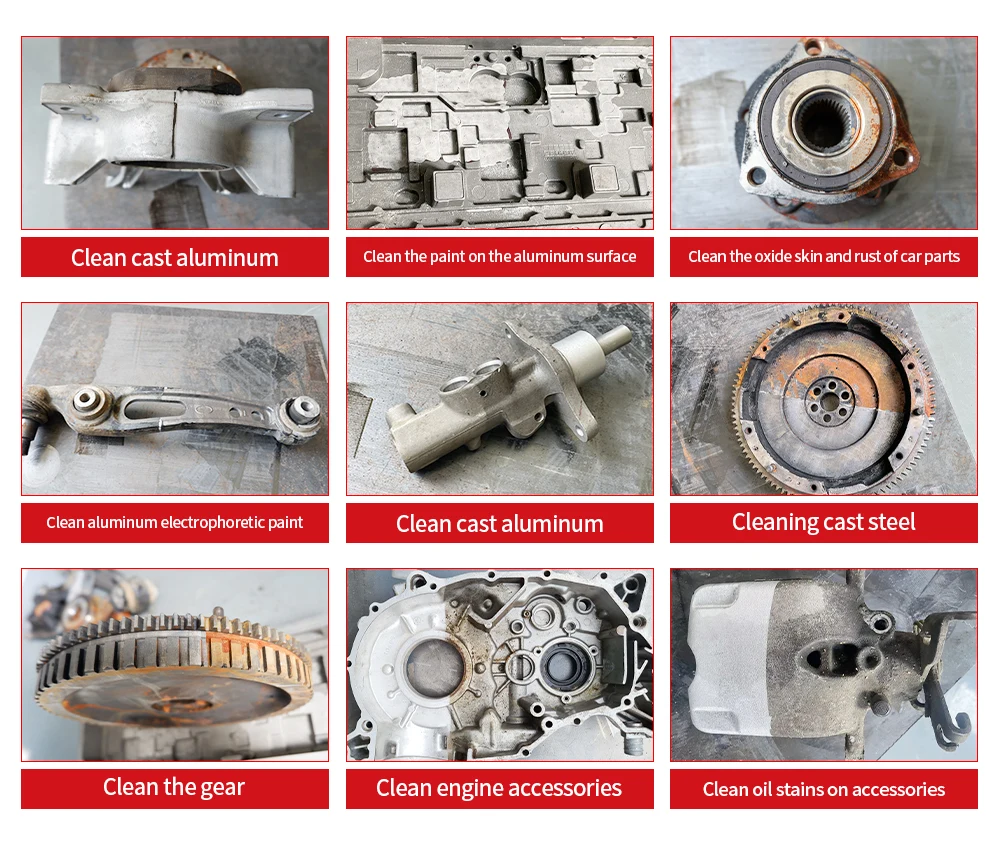

Laser Cleaning Effects: Before vs. After
HANTENCNC's 1000W Pulse Laser Cleaning Machine Certificates
Customer Visits
Customer Reviews
HANTENCNC Service
HANTENCNC provides full support services：
Before purchase, we provide free sample testing.
After purchase, we support a two-year laser warranty and 1-year machine warranty.
We respond quickly to all inquiries, ensuring timely support.
