Demonstration Video
Laser Cleaning Machine Display
Laser Cleaning Machine Parameters
Operating environment | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HTC200 | ||||||||||
| Supply voltage | Standard AC/DC 220V± 10% 、50/60Hz | ||||||||||
| Power consumption | ≤1500W | ||||||||||
| Working environment temperature | 5℃~40℃ | ||||||||||
| Working environment humidity | ≤80% | ||||||||||
Optical parameters | |||||||||||
| Average laser power | ≥200W | ||||||||||
| Power instability | ＜5% | ||||||||||
| Laser Working Mode | Pulse | ||||||||||
| Pulse width | 13-500ns | ||||||||||
| Maximum monopulse energy | 2mJ | ||||||||||
| Power regulation range (%) | 0- 100( Gradient Adjustable) | ||||||||||
| Repeat frequency (kHz) | 1-3000 (Gradient Adjustable ) | ||||||||||
| Fiber length | 5m | ||||||||||
| Cooling mode | Air cooling | ||||||||||
Cleaning Head Parameters | |||||||||||
| Cleaning mode | 8 types | ||||||||||
| Scanning speed | Max 12 m/s | ||||||||||
| Field mirror focal length (mm) | 210mm ( Optional 160mm/254mm/330mm/420mm) | ||||||||||
| Depth of focus | About 5 mm | ||||||||||
Mechanical parameters | |||||||||||
| Machine size (Length, width and height) | About 450mm*370mm*225mm | ||||||||||
| Machine Weight | About 18 Kg | ||||||||||
| Cleaning head weight | ＜0.75Kg | ||||||||||
| Mode of operation | Handheld | ||||||||||
Pulse Laser Cleaning Machine Details

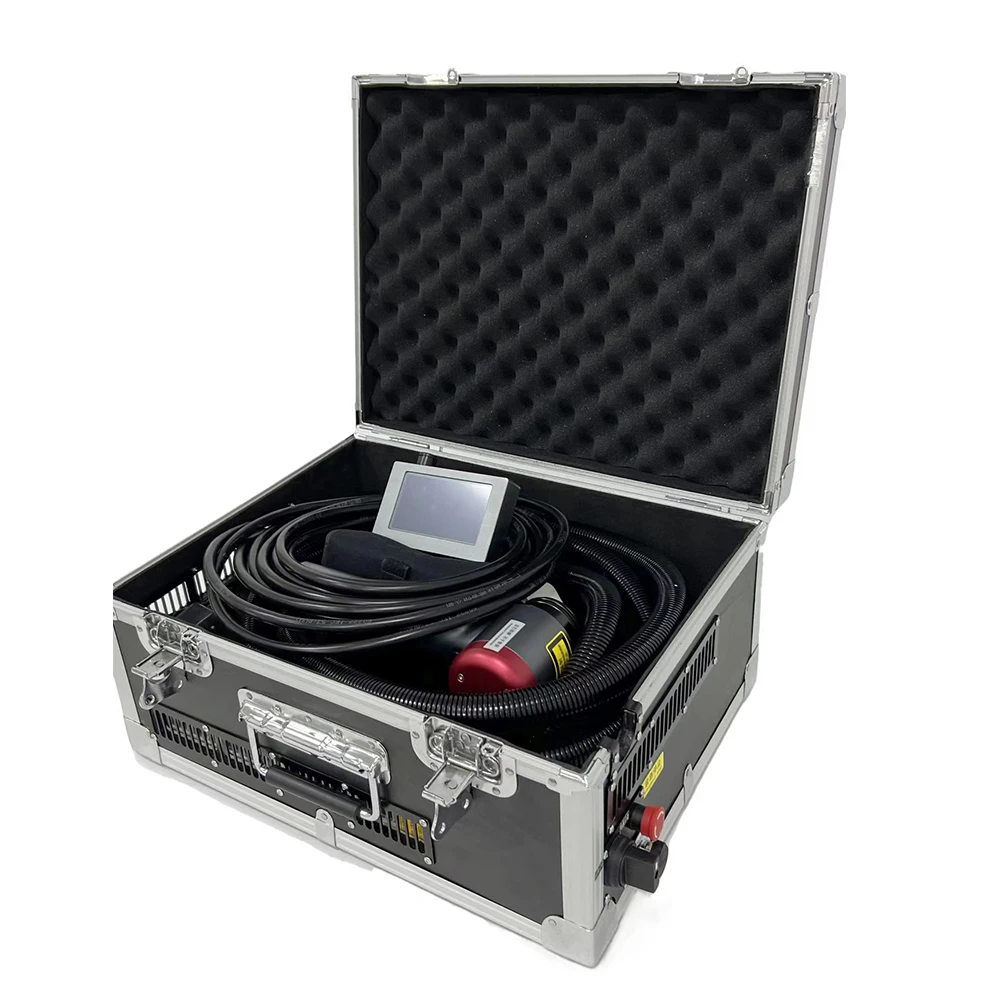

Suitcase style pulsed laser cleaner. Cleaning head weight < 0.75Kg. Hand-held design, suitable for long-term cleaning work. The main unit size (length, width and height) is about 450mm*370mm*225mm. The weight of the host (including the cleaning head) is about 18Kg. Small size, easy to move and carry.
Cleaning Mode
The operation interface provides 8 cleaning modes: straight line mode, rectangle 1 mode, rectangle 2 mode, circular mode, sine mode, spiral mode, free mode and circular ring.
Supported Languages
Language mode, currently supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French and other 9 kinds.
Application of Laser Cleaning Machine
There are many application materials for HANTENCNC laser cleaning. The following is a brief introduction to the application of our laser cleaning machine:
- It can quickly remove rust and floating rust on the metal surface. and various oxides;
- Remove oil, resin, glue layer, dust, graffiti, residues in production, etc.;
- Treatment of oxides before and after welding. Weld cleaning;
- Before and after the production of precision parts. Rust, degreasing, stain cleaning;
- Mold cleaning, such as tire rubber mold, industrial mold, food mold;
- Cleaning and restoration of cultural relics. rock clearing;
- Wall paint graffiti treatment. Paint and oil stain cleaning.
Laser Cleaning Machine Sample Display
Actual Cases And Customer Inspections
