HANTENCNC’s continuous laser cleaning machines, available in 1500W and 3000W options, can efficiently remove heavy paint, thick coatings, and severe rust from any hard surface. They are designed for high-speed and efficient rust removal.
Our continuous laser cleaning machines offer a maximum cleaning width of 300mm and can work at a distance of up to 800mm, allowing for faster cleaning tasks. They are ideal for various applications and provide reliable and effective cleaning solutions.
As a professional handheld laser cleaner manufacturer, HANTENCNC has provided laser cleaning solutions globally for over 19 years. Our expertise and dedication have established us as a reliable choice in the industry.
1500W-3000W Laser Cleaning Machine Demonstration Video

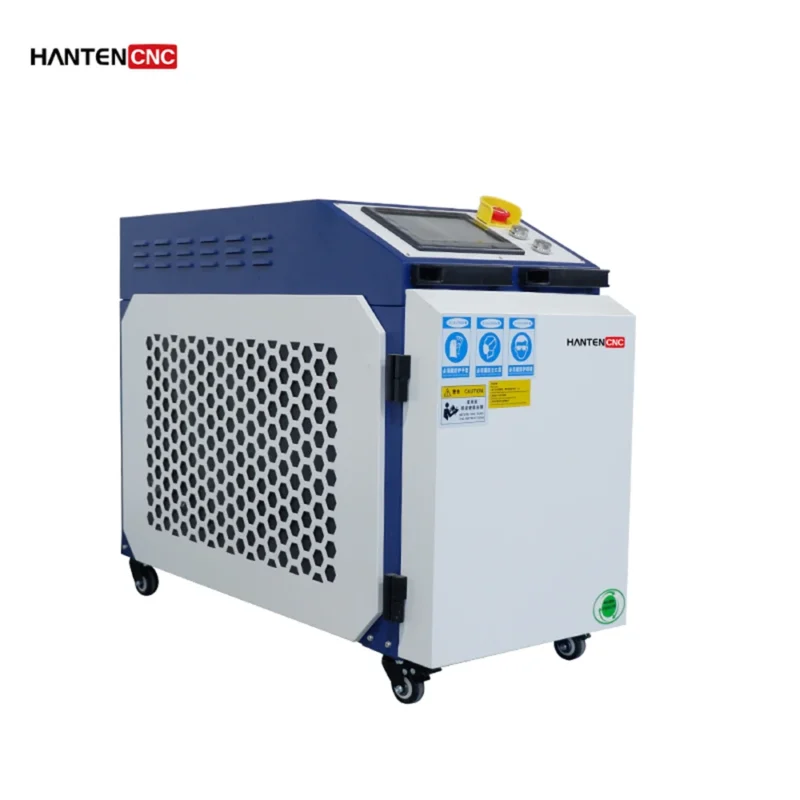

1500W 2000W Continuous Laser Cleaning Machine Display
-
Control Panel Display
The Continuous laser cleaners are user-friendly and have adjustable cleaning modes. They also provide the convenience of remote operation for enhanced efficiency.
Being handheld makes it easy to move and access different areas for cleaning.
-
Water-Cooling System
Utilizes a constant temperature, constant flow, and constant pressure refrigeration system to prevent overheating. Ensures the stability of the high-power handheld laser cleaning machine.
3000W Continuous Laser Cleaning Machine Display
Our 3000W laser cleaning machine has a maximum cleaning width of 300mm and can achieve a working distance of up to 800mm, making the cleaning process faster and more efficient.
-
Control Panel Display
Our 3000W laser cleaning machine, with its user-friendly design and adjustable cleaning modes, offers the convenience of remote operation for increased efficiency.
-
Water-Cooling System
Utilizes a constant temperature, constant flow, and constant pressure refrigeration system to prevent overheating. Ensures the stability of the high-power handheld laser cleaning machine.
1500W 2000W 3000W Continuous Laser Cleaning Gun
The handheld design and light weight of only 0.8 kg make them easy to operate and access various cleaning areas, ensuring comfort and convenience.
The protective lens are larger and easier to replace.
Additionally, our laser cleaning gun features a dual control system with a safety lock and trigger, providing multiple safety assurances for the user.
1500W 2000W Mini Handheld Laser Cleaner Dimensions
3000W Handheld Laser Cleaner Dimensions

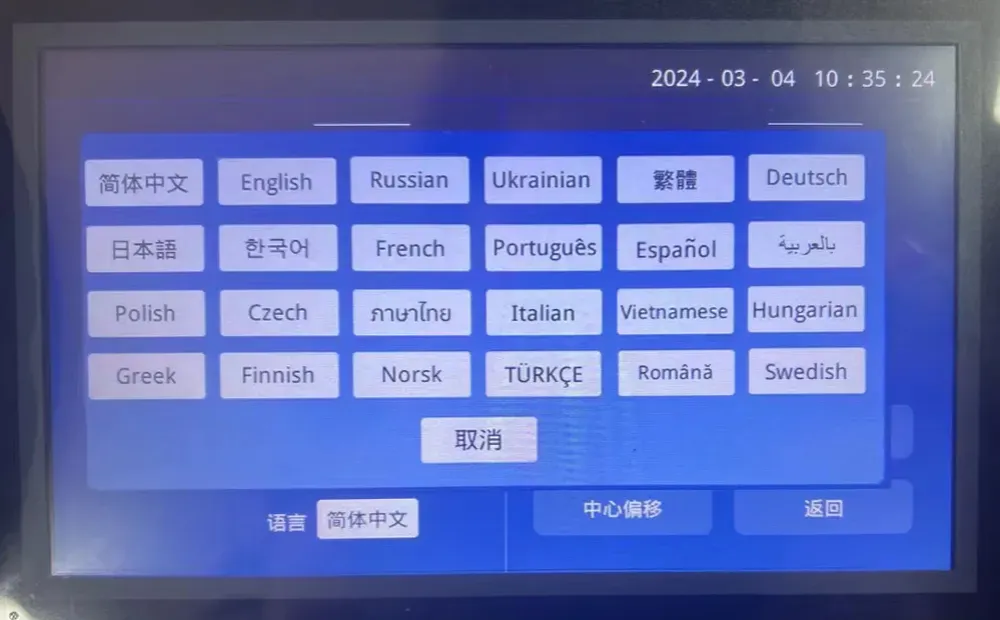

Handheld Laser Cleaner Supports 25 Languages
HANTENCNC’s laser cleaning machine supports 25 languages and provides customized language services, allowing you to choose the desired language.
Advantages of Handheld Laser Cleaning Machine
-
Environmental Cleaning
The laser cleaner machine does not need to use any chemicals or cleaning fluids. It can protect the environment and not pollute the environment.
-
Non-touch Cleaning
The surface of the object is cleaned by shining a light beam. The cleaning laser machine does not touch the object during the cleaning process and will not damage the raw materials. The machine is simple to operate. Turn on the power and cooperate with the robot to realize automatic cleaning.
-
High effectiveness
Competitive in cost, providing an efficient and economical solution for cleaning needs.
1500W-3000W Mini Laser Cleaning Machine Parameters
| MODEL | HTCL1500 | HTCL2000 | HTCL3000 | |
|---|---|---|---|---|
| Laser Source | Raycus / MAX / BWT | Raycus / MAX / BWT | Raycus / MAX / BWT | |
| Operating Mode | Continuous Cleaning | Continuous Cleaning | Continuous Cleaning | |
| Laser Power | 1500W | 2000W | 3000W | |
| Fiber Cable Length | 10M | 10M | 10M | |
| Clean Speed | ≤40 M²/Hour | ≤40 M²/Hour | ≤40 M²/Hour | |
| Cooling Method | Water cooling | Water cooling | Water cooling | |
| Voltage | 220V/2P | 380V/3P | 380V/3P | |
| Working Environment Temperature | 5-40℃ | 5-40℃ | 5-40℃ | |
| Machine Dimensions | 860mm*410mm*700mm | 860mm*410mm*700mm | 1120mm*600mm*1020mm | |
| Machine Weight | 75KG | 75KG | 149KG | |
| Package Dimensions | 1060mm*560mm*1100mm | 1060mm*560mm*1100mm | 1250mm*770mm*1350mm | |
| Package Weight | 120KG | 120KG | 200KG | |
PARAMETERS OF LASER CLEANING GUN |
||||
| Brand | Gefasst/Relfar | Gefasst/Relfar | Gefasst/Relfar | |
| Optical Interface | QBH | QBH | QBH | |
| Laser Wavelength | 1070nm | 1070nm | 1070nm | |
| Collimating Focal Length | 50mm | 50mm | 50mm | |
| Focusing Focal Length | 800mm | 800mm | 800mm | |
| Scanning Width | 300mm | 300mm | 300mm | |
| Scanning Speed | 10-20000mm/s | 10-20000mm/s | 10-20000mm/s | |
| Weight | 0.8kg | 0.8kg | 0.8kg | |
Laser Cleaning Effects: Before vs. After
