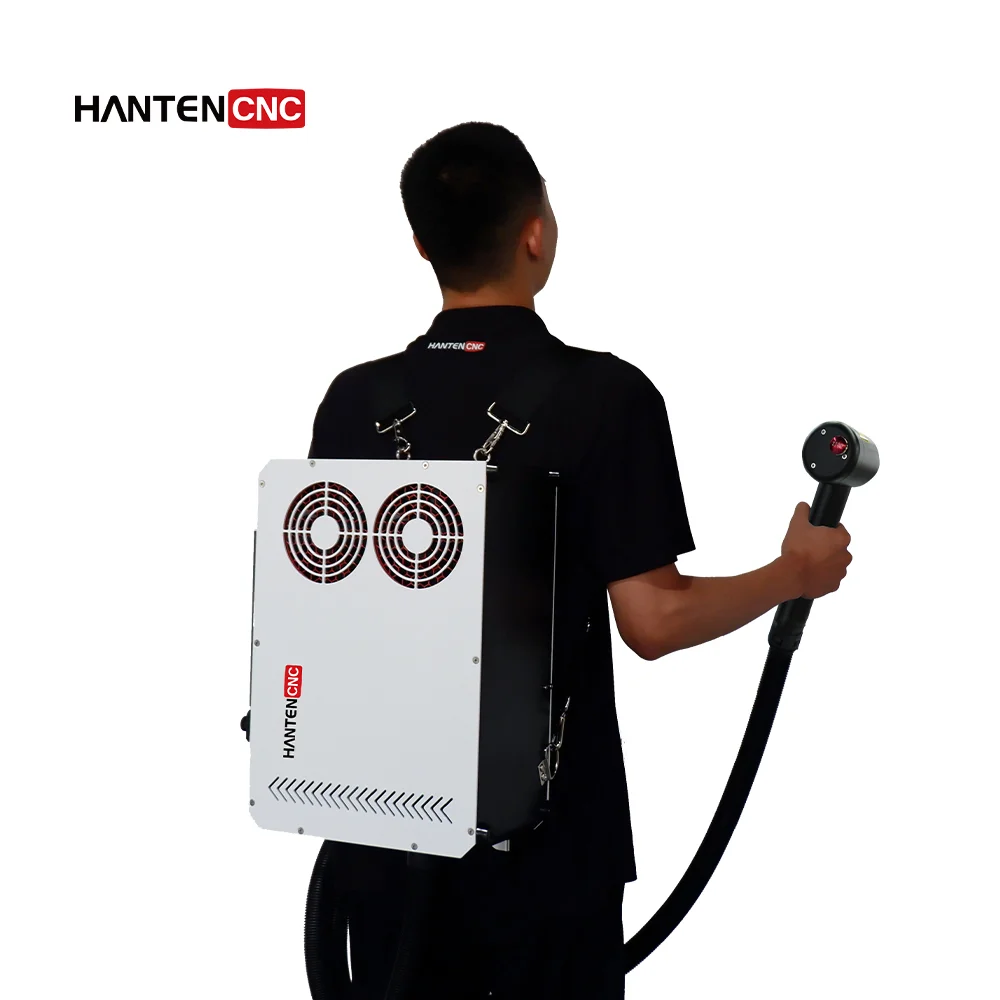

HANTENCNC’s 200W portable laser cleaning machine adopts a backpack design. It can be handheld, carried on the shoulder, or fixed at the workstation. This laser paint remover is suitable for various handheld cleaning scenarios, especially ideal for high-altitude operations and large workpieces.
The total weight of the HANTENCNC’s 200W pulse laser cleaning machine is 22 KG, which is compact, small, and lightweight. If the workplace doesn’t have power, the 200W pulse laser cleaning machine can be equipped with an optional mobile power supply.
200W Pulse Laser Cleaning Machine Demonstration Video

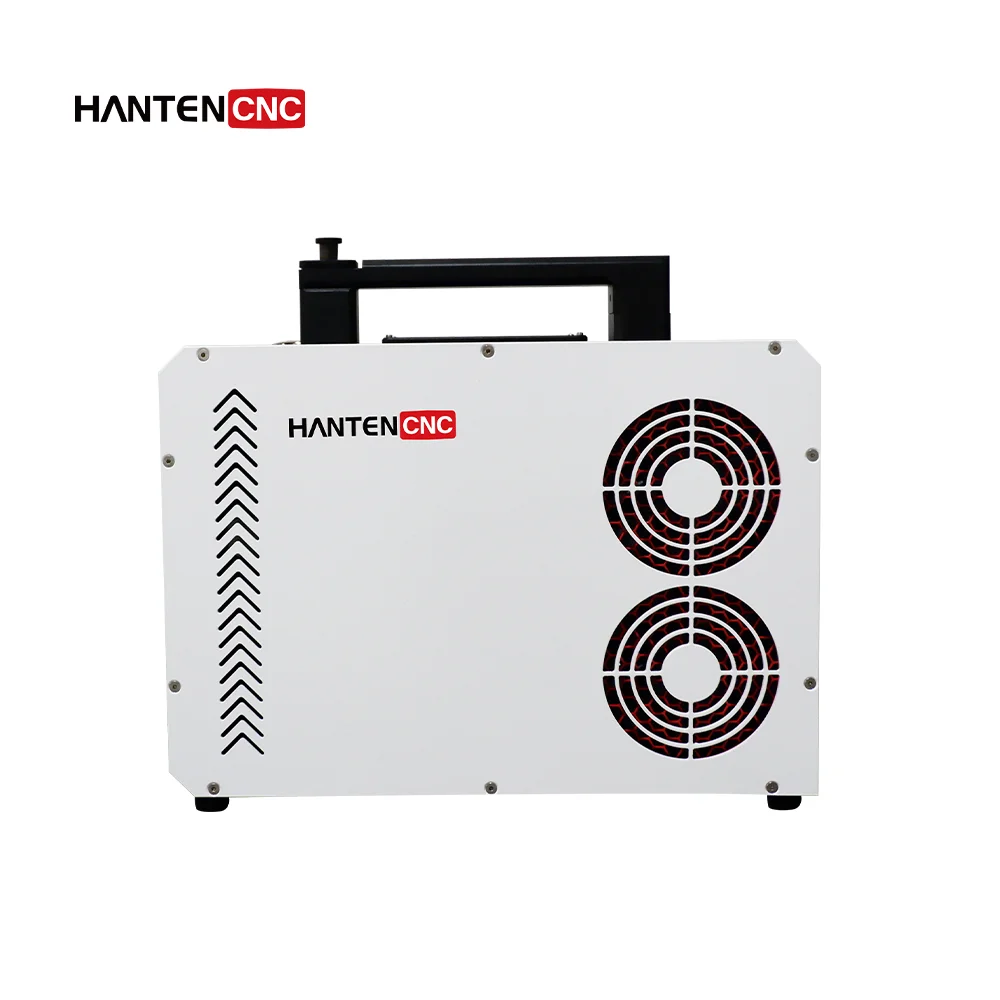

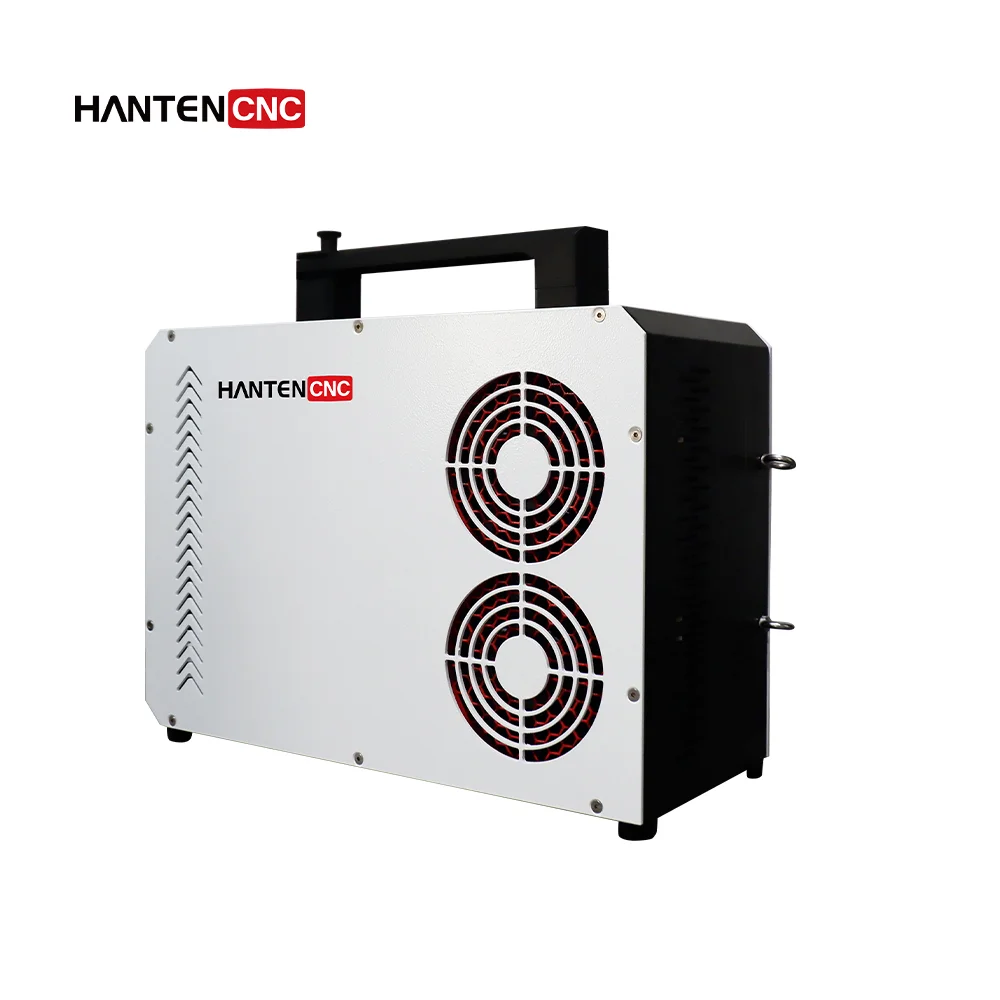

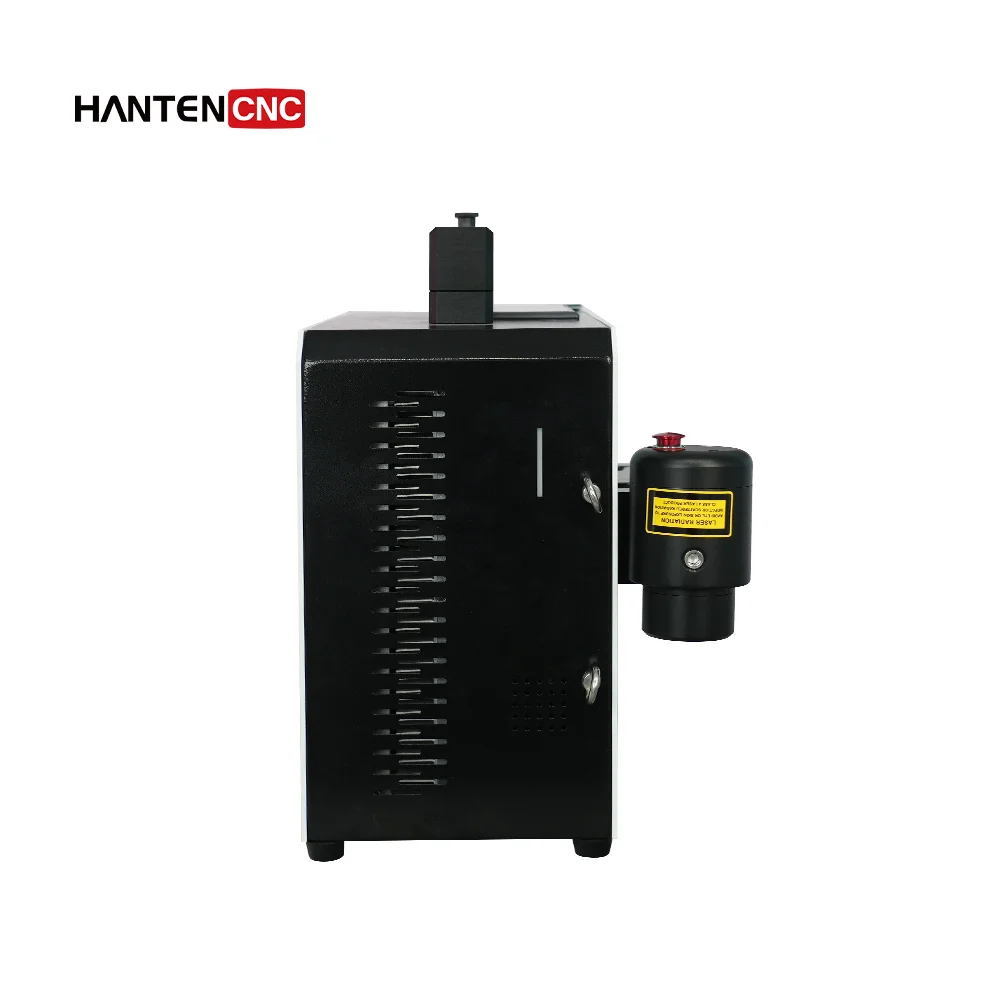

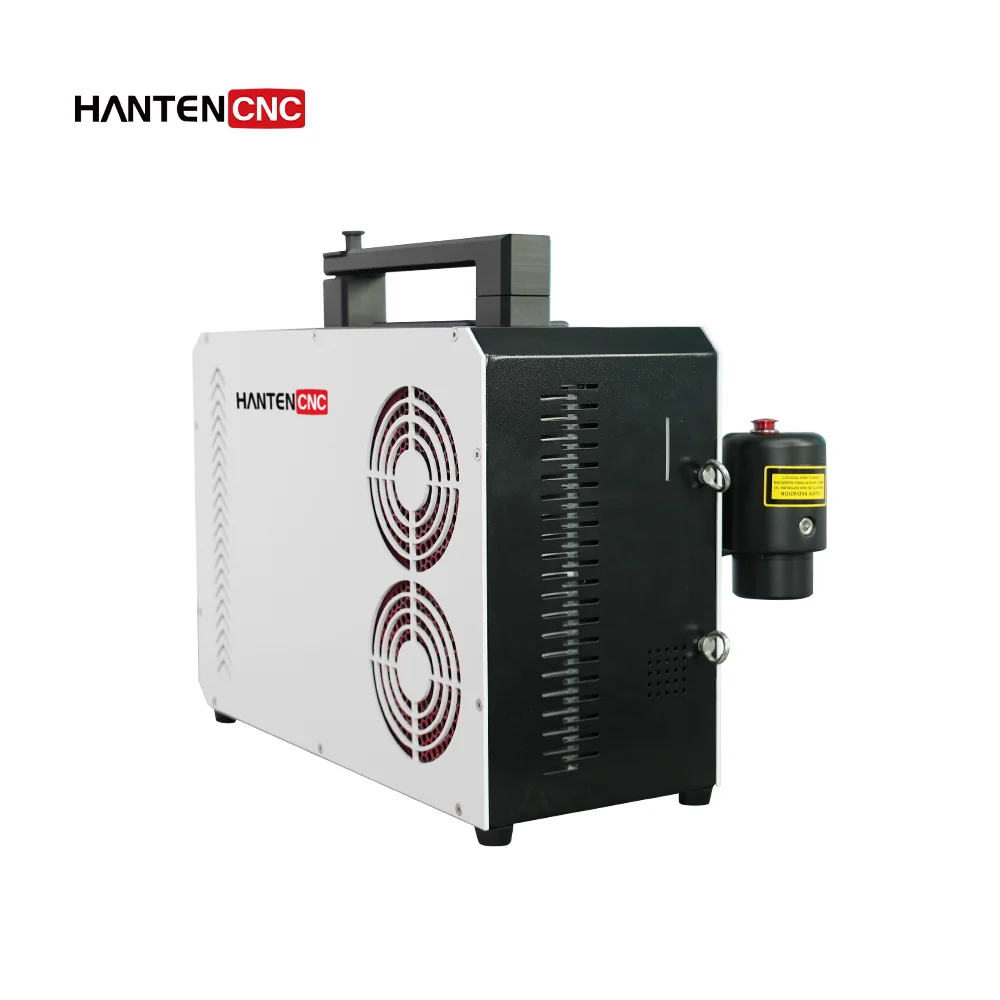

200W Backpack Pulse Laser Cleaning Machine Display
200W Pulse Laser Rust Remover Components
200W Backpack Pulse Laser Cleaning Machine Dimensions
100W Backpack Laser Cleaner Dimensions
vs.
200W Backpack Laser Cleaner Dimensions
200W Pulse Laser Cleaning Head
The cleaning head of HANTENCNC’s 200W pulse laser cleaning machine comes with lightweight and portable design, it weighs less than 0.75kg.
Dust-proof and anti-interference design to ensure stable and reliable operation in various environments.
Professional laser lens cleaning can meet a variety of laser cleaning applications.
Safety Lock
HANTENCNC’s 100W/200W pulse laser cleaning head is equipped with a safety lock to prevent accidental operation effectively.
The laser will only emit when the safety lock button is pressed. If the button is not pressed, the laser cannot be triggered, ensuring operator safety.
Faster scan speed – 25% improvement
We bumped the max scan speed from 30,000 to 40,000.
Maximum scan speed is now 40,000, which is a 25% increase.
Most other laser cleaning machines in China are still at 30,000.
At 40,000, job time is noticeably shorter.
Same cleaning result. Less time waiting.
Alarm Records for Troubleshooting
HANTENCNC’s laser cleaning system stores alarm records. Users can check historical alarm data at any time.
-
Chiller alarm – high temperature, low flow, compressor not starting, etc.
-
X-axis / Y-axis motor alarm – these two alarm types help HANTENCNC support technicians determine whether the issue is with the motor or the control system, speeding up fault resolution.
Power-on Time Tracking and Reset for Rental Use
The device automatically tracks and displays total power-on time.
This is designed for customers who rent out laser cleaning machines, often charging by the hour or day.
The power-on time serves as a billing reference.
Before renting the machine to the next customer, the user can enter a password to reset the timer to zero.
This makes it easy to track usage for different renters.
Screen lock – No More Accidental taps
Tapping the lock icon on the screen darkens and locks the display.
No operations are possible while locked.
This prevents accidental parameter changes or machine operation caused by unintended screen contact during work.
Automatic Laser Shut-off Timer
When the laser fires continuously for a set time (e.g., 30 seconds), the system automatically cuts the laser output.
This happens even if the trigger is still pressed.
This reduces equipment wear and safety risks from prolonged continuous output.
200W Pulse Laser Cleaning Machine Supports 13 Cleaning Modes
The operation interface of the HANTENCN’s 200W pulse laser cleaning machine offers 15 cleaning modes:
- Straight Line Mode
- Rectangular Mode 1
- Rectangular Mode 2
- Circular Mode
- Sinusoidal Mode
- Spiral Mode
- Free Mode
- Ring Mode
- Rotation Mode, etc.
You can switch these modes by clicking on the “Scanning Mode” option on the interface.
Some cleaning modes are gentler, suitable for materials with higher surface requirements, and can reduce or eliminate traces after cleaning. Some cleaning modes are more powerful and ideal for removing stubborn dirt or coatings.
Choosing the right cleaning modes ensures minimal residue and enhances the appearance and quality of the product, which is especially crucial in industries such as automotive manufacturing, aerospace, electronics, and more.
15 Supported Languages
HANTENCNC’s 200W pulse laser cleaning machine currently supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 15 other languages.
You can easily switch between these language options directly on the machine’s interface. If you require any other languages, we also provide customized language services.
200W Pulsed Laser Cleaning Machine Parameters
| Machine Model | HTCM200 |
|---|---|
| Supply voltage | Single Phase 110V/220V± 10%, 50/60Hz AC |
| Power | 200w |
| Fiber Cable Length | 5m |
| Average power output | >200w |
| Max pulse energy | 2mJ / 5mJ |
| Frequency adjustable range | 1-4000kHz |
| Pulse Width | 2-500ns |
| Output power uncertainty | <5% |
| Cooling mode | Air-cooled |
| Power regulation range | 0~100% |
| Operating temperature range | 0~40℃ |
| Weight | 22 kg |
| Machine Dimensions | 430*190*420mm |
| Package Weight | 44 kg |
| Package Dimensions | 660*560*530mm |
| Cleaning Head Weight | ＜0.75Kg |
| Scan Frequency | Not Less Than 300Hz |
| Scan Width |
|
| Scan Speed | 10-20000mm/s |
Pulse Laser Cleaning Machine Effects: Before vs. After
Real Customer Cases by HANTENCNC
Standard Accessories Included
The accessories included with the 200W pulsed laser cleaning machine are listed here. Actual configuration may vary depending on application requirements and order specifications.
Note: Standard accessories may be adjusted based on different markets, safety regulations, customer requirements, or HANTENCNC policy updates. Please confirm the final configuration with our sales team before ordering.
