Demonstration Video
Machine Details
Portable Laser Cleaner Parameter
| Model | HTC100 |
|---|---|
| Laser Power | 100W |
| Power adjustment range (%) | 10 ～ 100 |
| Maximum pulse energy | 1.6mj |
| Pulse Width | 150-190ns |
| Delivery cable length | Factory 3 meters |
| Laser wavelength | 1070nm |
| Cleaning head | Own brand |
| Control System | Own brand |
| Scan line diameter | 160mm/210mm/254mm/330mm/420mm（Optional） |
| Cooling system | Air cooling |
| Beam quality（M2) | ＜1.6 |
| Anti-reflective protection | Have |
| Power Requirements | 220V |
| Ambient temperature range | 10-40 Degrees |
| Package dimensions | 600*370*530mm |
| Gross weight | 25kg |
Laser Cleaner Portable Machine Features

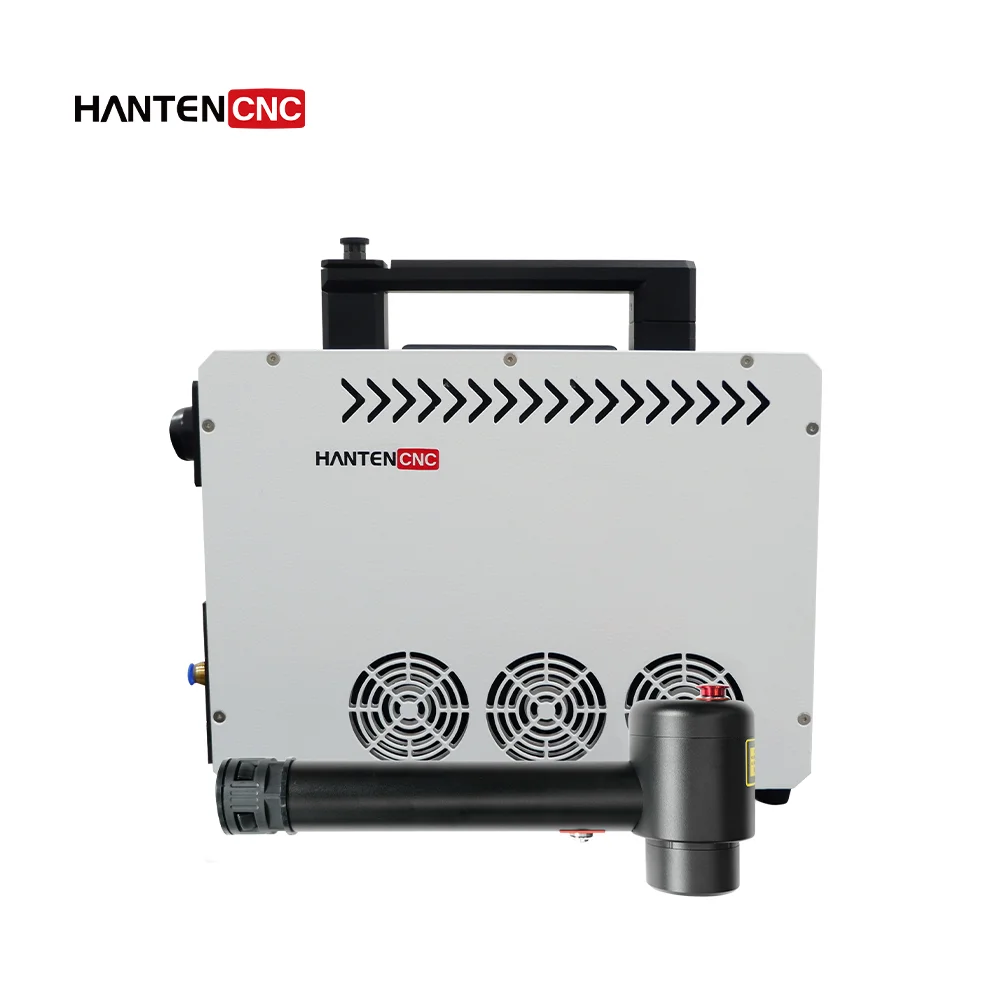

- High-performance Pulse Laser Cleaning Machine
The machine can quickly remove paint and thick coatings from metal or hard surfaces. Such as release, resin, glue, dust, stains, residue, and rough metal surfaces.

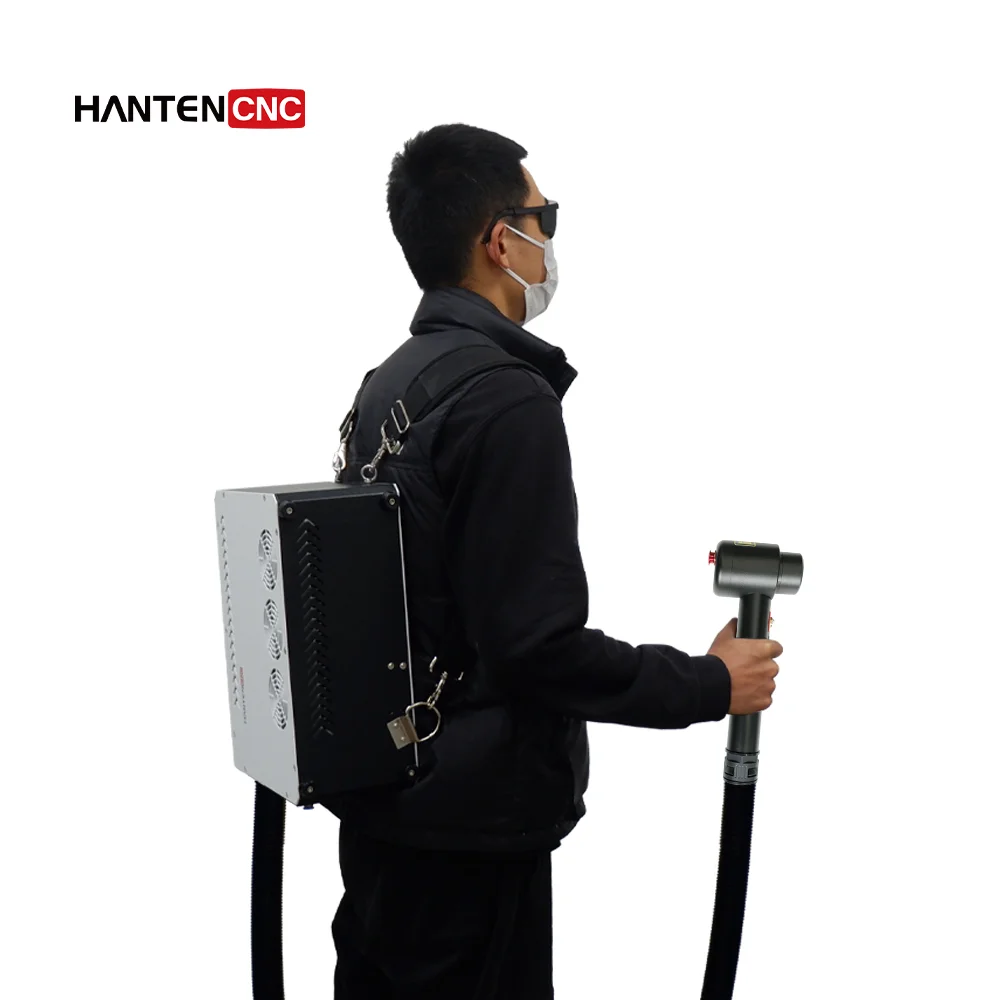

- Backpack Laser Cleaning Machine
The laser rust removal tool can also remove motor and edible oil stains, Non-destructive testing of post-welding oxides. It is convenient to carry out work and do outdoor cleaning.
Portable Laser Rust Removal Tool Advantages
Easy And Effortless

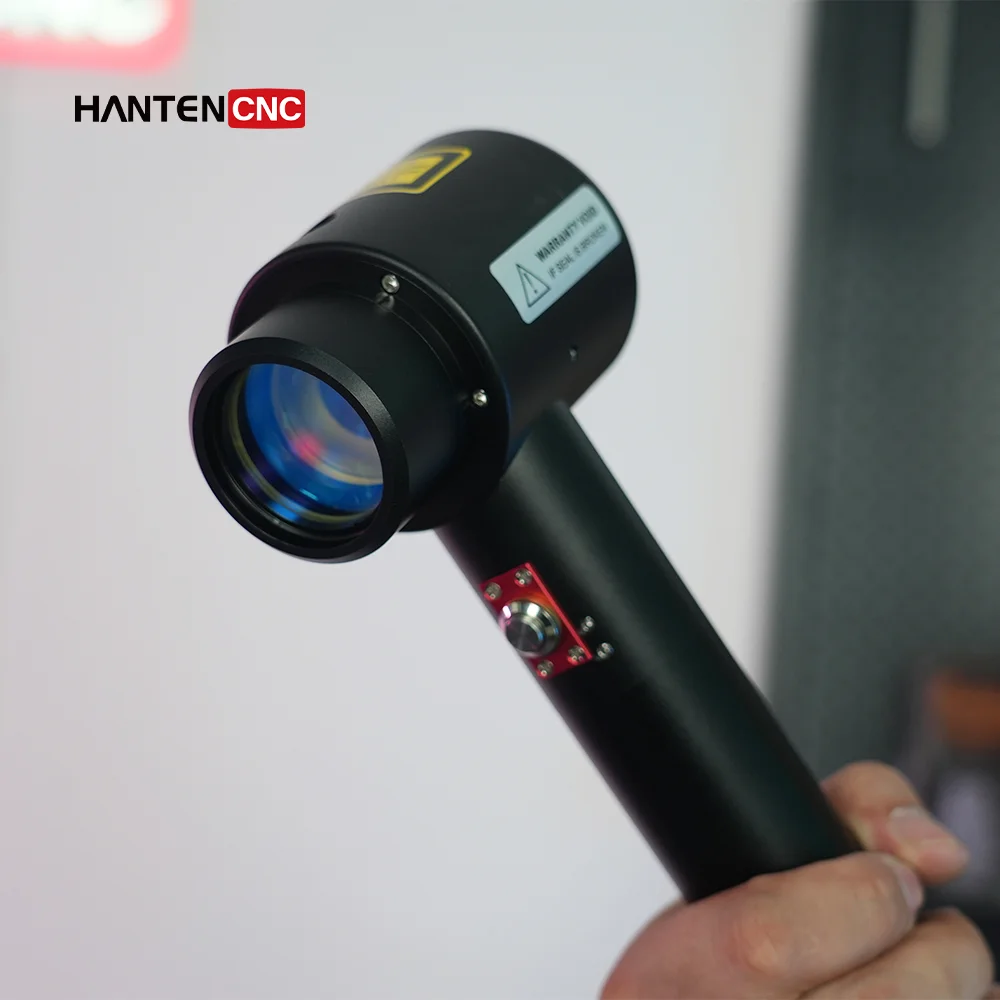

The case handle is made of aluminum alloy, which feels good. The handle can be rotated 350° left and right. It is light and durable.
Portable And Convenient
The chassis is equipped with a strap buckle, and the strap can be hung on the shoulders. The portable laser cleaner can free your hands. The shoulder strap is designed with a widened design to reduce the load. It makes the backpack laser cleaning machine more portable and convenient.
Machine Cleaning Mode
The laser cleaning system independently developed by HANTENCNC has the following characteristics:
The operation interface provides 7 cleaning modes. It can be switched by clicking the scan mode option on the interface (cycle switching):
- Linear mode
- rectangular mode
- circular mode
- sinusoidal mode
- double helix mode
- free mode
- circular
Standard Laser Cleaning System Supports Languages
The laser cleaning system independently developed by HANTENCNC supports 9 standard languages including Chinese, English, Traditional Chinese, Russian, Japanese, Spanish, German, Korean, and French. For other minor languages, please contact customer service to confirm whether it can be customized.
Sample Display
- Product: Iron Plate
- Material: paint removal (15-20)um
- Efficiency: 2.21M²/H
- Product: Auto Parts
- Material: remove coating (20-30um)
- Efficiency: 1.3M²/H
- Product: Channel Steel
- Material: rust removal (0.3-0.5mm)
- Efficiency: / (manual cleaning)
Display of Cleaning Results
Piston surface anti-friction coating cleaning
Degrease the differential before welding
Degrease the differential before welding
Clutch parts
Clutch parts
Transmission parts
Battery box electrolyte injection port cleaning
Copper alloy polymer cleaning and welding inspection
Comparison of battery box paint before and after cleaning
Cleaning before gluing of new energy vehicle parts
Before cleaning the paper tray mold
Paper tray mold after cleaning
Before weld cleaning
After seam cleaning
Before battery burr cleaning
After battery burr cleaning
Gold-plated mold before and after cleaning
Alloy steel before and after cleaning
Practical Cases And Customer Inspections
