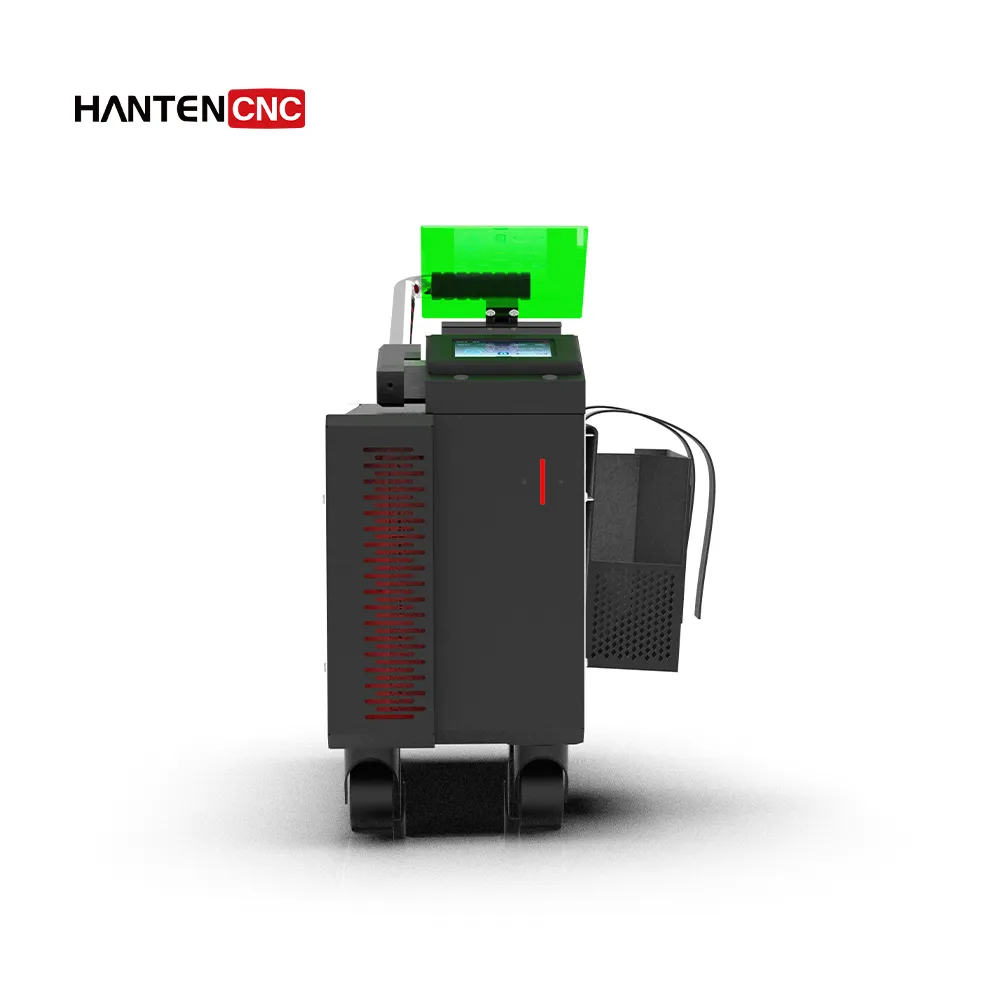

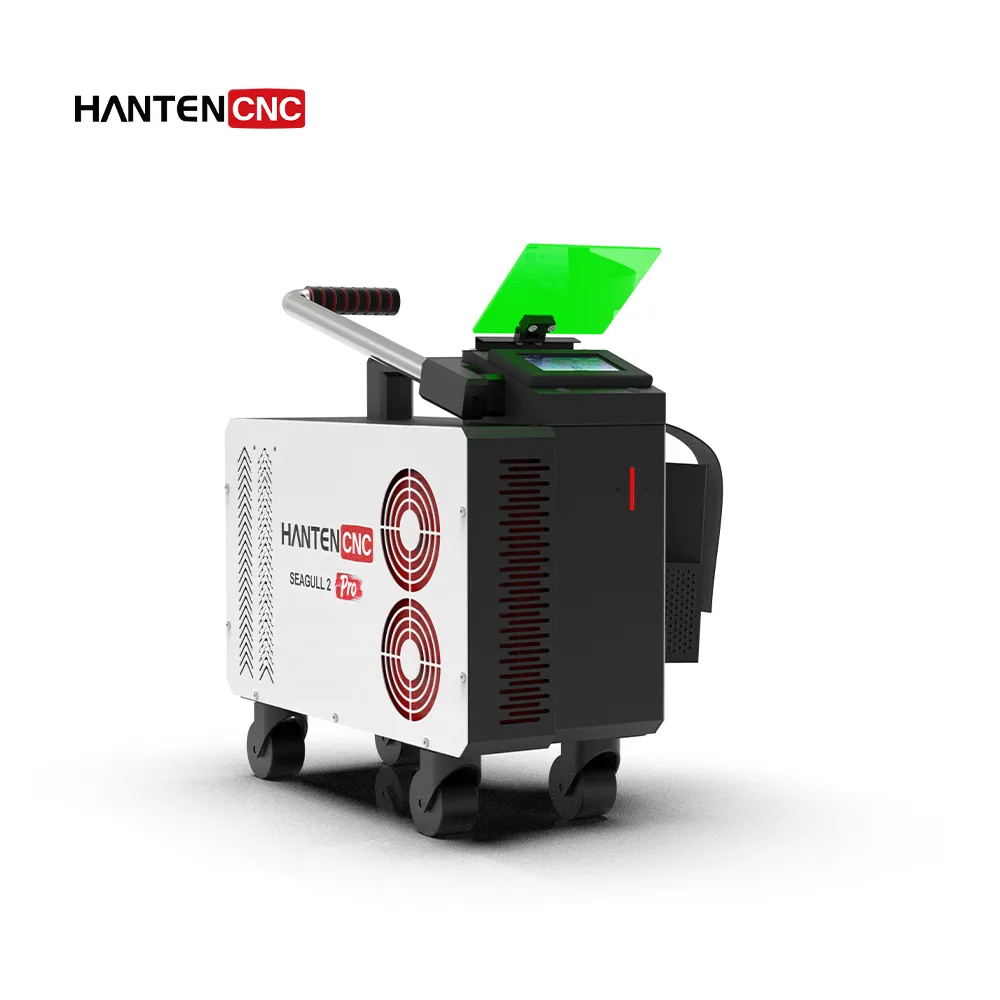

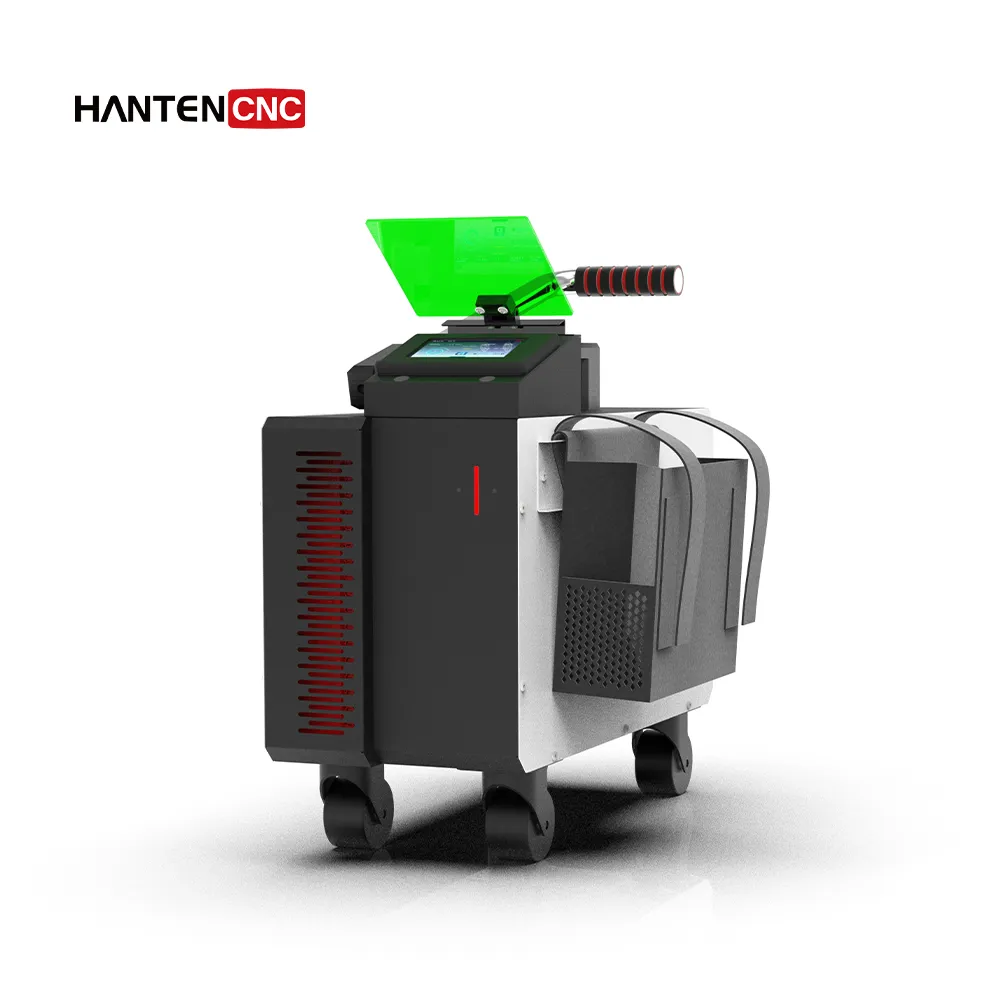

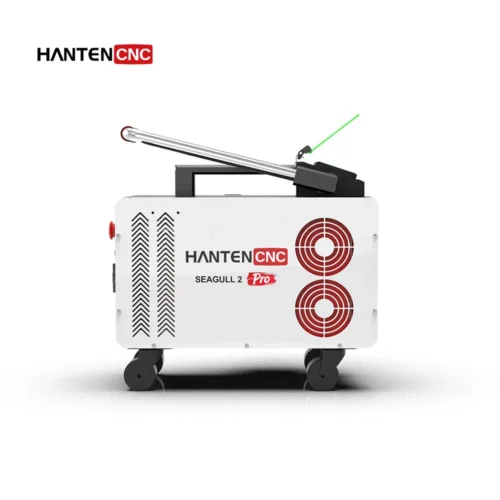

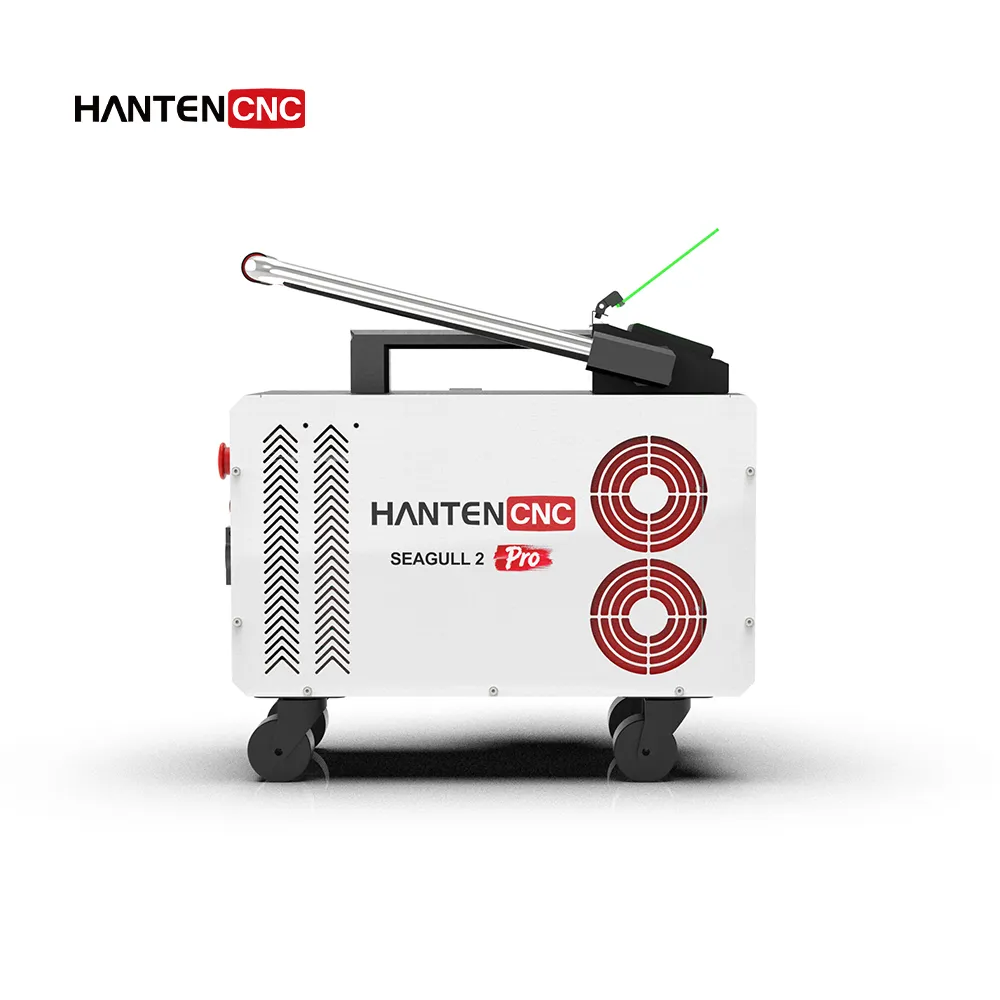

SEAGULL2™ Laser Rust Cleaning Machine | 200W & 300W
The SEAGULL2™ laser rust cleaning machines are equipped with reliable and effective JPT laser sources. They are suitable for removing rust, oil, paint, coating, and more, including in hard-to-reach areas.

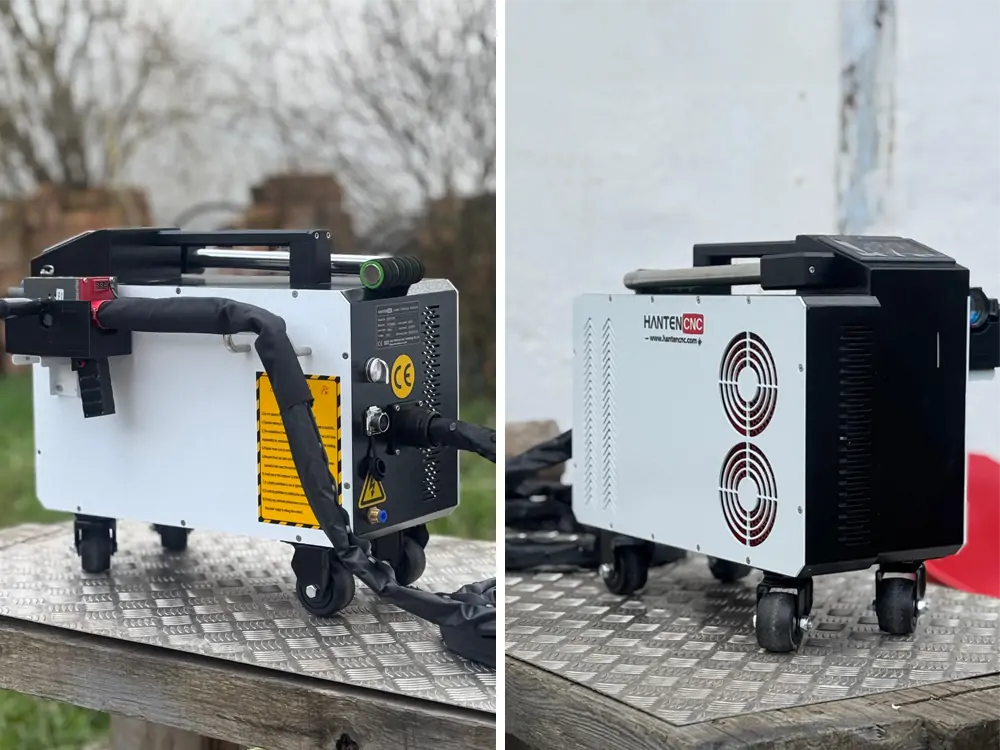

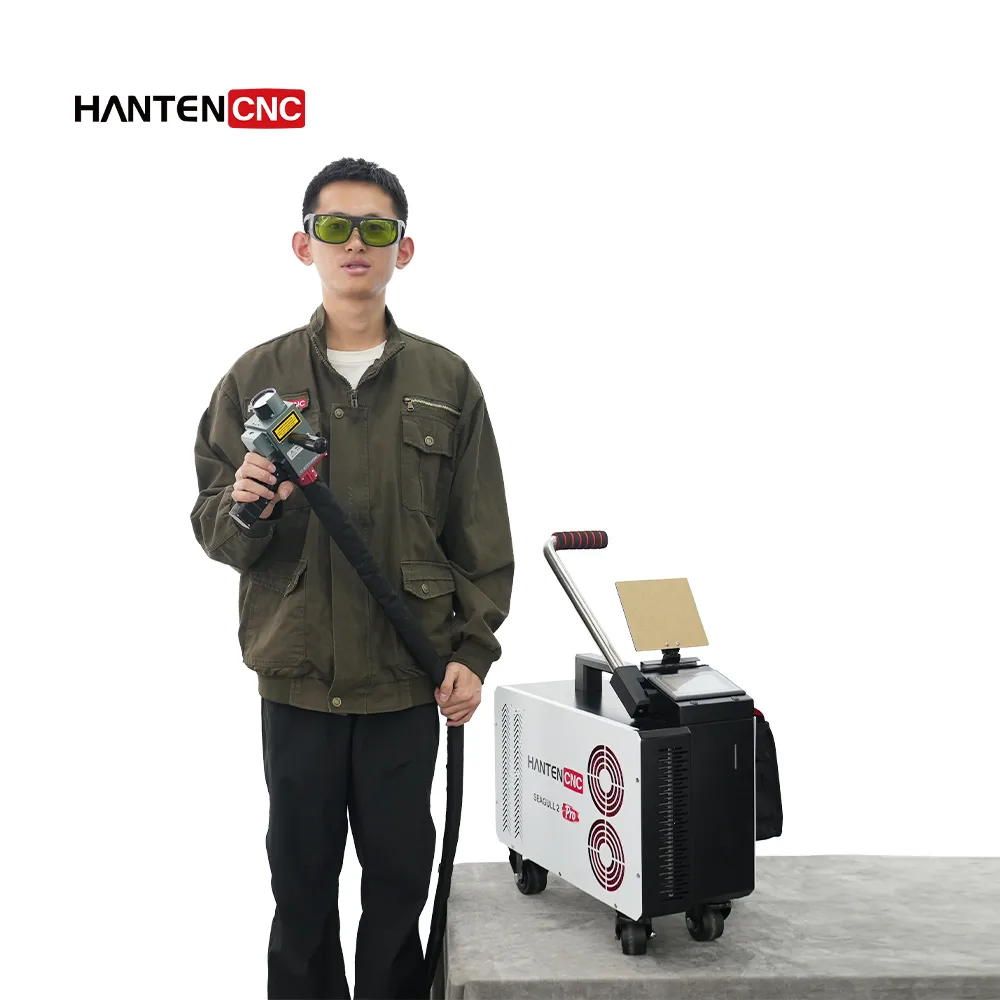

The machine’s luggage-type design, 30° tilted screen, rotating handle, caster wheels, wrist control screen, and 0.8KG cleaning head make it ideal for mobile work in workshops. It is particularly well-suited to various mobile cleaning tasks.
SEAGULL2™ Laser Rust Cleaning Machines Features
Enhanced User Experience with SEAGULL2™
Laser rust cleaning machine SEAGULL2™ features a screen relocated to the front of the cabinet with a 30° tilt design, enhancing user experience, which better fits users’ habits.
Enhanced Mobility and Safety Features
SEAGULL2™ has been upgraded with two sets of wheels equipped with brakes. These wheels can rotate in any direction, making the laser rust cleaning machine easy to move and position flexibly and precisely for cleaning.
The wheels with brakes make the wheels stay firmly and safely, ensuring safety and stability during operation.
Pulsed Laser Rust Cleaning Machine SEAGULL2™ Parameters
| Model | SEAGULL2-HTCM200 | SEAGULL2-HTCM300 |
| Supply voltage | Single Phase 110V/220V± 10%, 50/60Hz AC | Single Phase 220V± 10%, 50/60Hz AC |
| Laser source | JPT | JPT |
| Laser Power | 200w | 300w |
| Fiber cable length | 5m | 5m |
| Maximum pulse energy | 2mJ / 5mJ | 2mJ / 5mJ 15mj |
| Laser Pulse Frequency adjustable range | 1kHz-3000kHz | Continuous adjustable frequency from 1kHz to 3000kHz (customizable) |
| Pulse Width | 13-500ns | 13-500ns |
| Power regulation range | 0~100% | 0~100% |
| Operating temperature range | 0~40℃ | 0~40℃ |
| Storage temperature range | -10～60℃ | -10～60℃ |
| Central wavelength | 1064nm | 1064nm |
| Incident Beam Diameter | ≤10mm | ≤10mm |
| Focal length | 160mm/（210mm/254mm/330mm/420mm Optional） | 210mm/（160mm/254mm/330mm/420mm Optional） |
| Machine Dimensions | 560*240*485mm | 560*240*485mm |
| Operating mode | Handheld | Handheld |
| Laser pulse width adjustment function | Support | Support |
| Cooling system | Air-cooled | Air-cooled |
LASER CLEANING GUN PARAMETERS |
||
| Cleaning Head Weight | ＜0.75Kg | ＜1.25Kg |
| Scanning Width | 0mm-100mm | 0mm-145mm |
| Scanning Range | 105/140/160/185/300mm Optional | 105/140/160/185/300mm Optional |
| Scanning Frequency | 1-3000Khz | 1-3000Khz |
| Maximum Scan Line Speed | About 30m/s | About 30m/s |
| Maximum Scanning Speed | 20000mm/s | 20000mm/s |
Power Options: 200W VS 300W SEAGULL2™ Guns
200W Pulse Laser Rust Cleaning Gun
The 200W laser cleaning head has a lot of advantages, such as non-contact, more precise cleaning, no consumables, safety, environmental protection, etc.
Our portable laser cleaner uses a hand-held cleaning head and weighs less than 0.75Kg which is suitable for long hours of work. We also adopt a dust-proof sealed design, which can effectively prevent dust and maintain a clean working environment.
1. Air-blowing Fixture
The HANTENCNC 200W laser cleaning head is equipped with the Air-Blowing Fixture.
This fixture uses high-pressure airflow to remove dust, dirt, and leftover particles during laser cleaning, helping to improve cleaning results. It also protects the protective lens from dust and extends its lifespan. When used with inert gas, it can reduce oxidation on metal surfaces and keep them smooth. This helpful tool is popular among customers and improves the overall cleaning quality.
-
Remove dust and impurities:
During the cleaning process, the air-blowing fixture uses high-pressure airflow to blow away dust, contaminants, and residues to ensure that the surface is clean. This work is crucial to the effect of laser cleaning because if there is any dust or impurities on the surface of the workpiece, it will affect the cleaning and even lead to incomplete cleaning.
-
Protect protective lens:
When the laser cleans the materials, the dust generated by the laser beam will stick to the protective lens, which will cause contamination to the protective lens, affect the cleaning effect, and reduce the lifespan of the protective lens. In that case, HANTENCN’s air-blowing fixture can avoid dust contamination during the cleaning process.
-
Reduce oxidation reactions:
The air-blowing fixture can reduce oxidation reactions by jetting inert gas, creating a gas-protective film, which is very important for some metal materials that are easily oxidized, preserving the surface’s smoothness and quality. Many customers told us that they are satisfied with the upgraded cleaning machine’s cleaning effect.
2. Safety Lock
HANTENCNC’s 100W/200W pulse laser cleaning head is equipped with a safety lock to prevent accidental operation effectively.
The laser will only emit when the safety lock button is pressed. If the button is not pressed, the laser cannot be triggered, ensuring operator safety.
300W Pulse Laser Rust Cleaning Gun
Lightweight
The weight of the cleaning gun is less than 1.25kg, so you can use the laser cleaning gun for a long time effortlessly.
Front-end blowing dust curtain
The front-end blowing dust curtain design effectively protects the mirror from dust or oil pollution in the air.
Dust-proof sealing
The external light path is sealed with a dust-proof design, effectively preventing the entry of dust generated during cleaning.
Anti-interference
The cleaning head’s anti-interference ability is improved through measures such as signal reinforcement, signal shielding layer, galvanometer encapsulation, and metal shielding shell design.

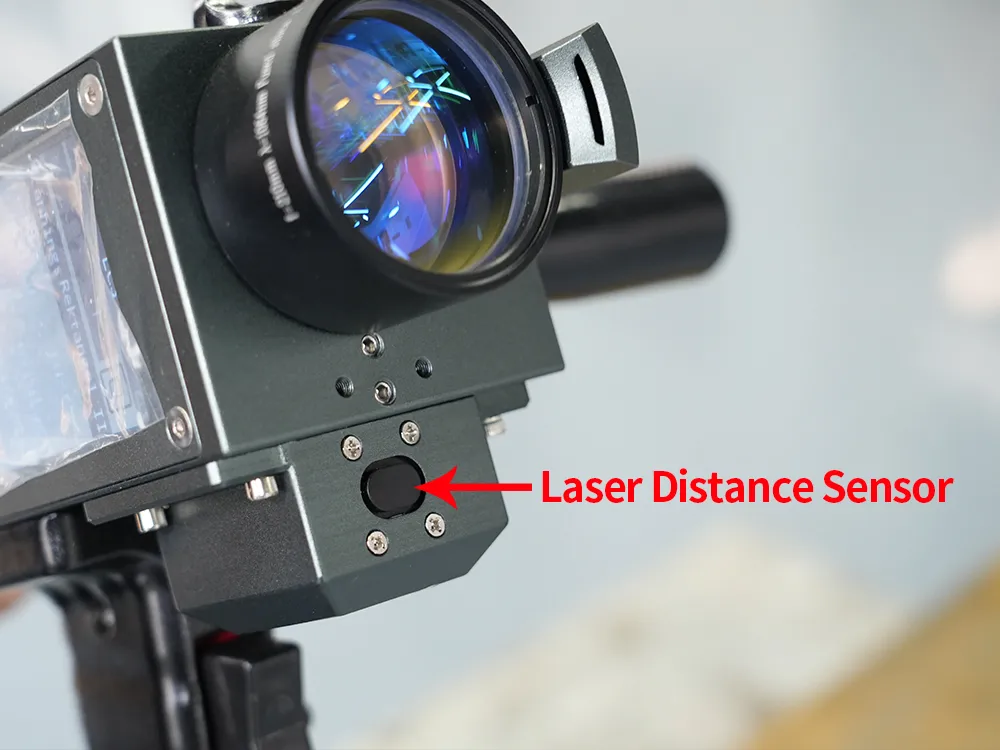

Laser Distance Sensor
The HANTENCNC’s 300W pulse laser cleaning gun features a built-in laser distance sensor. The sensor detects the distance between the laser gun and the workpiece automatically.
When no object is detected in front of the cleaning head, the sensor displays “999”, and the laser will not emit even if the trigger button is pressed, preventing accidental activation and enhancing safety.

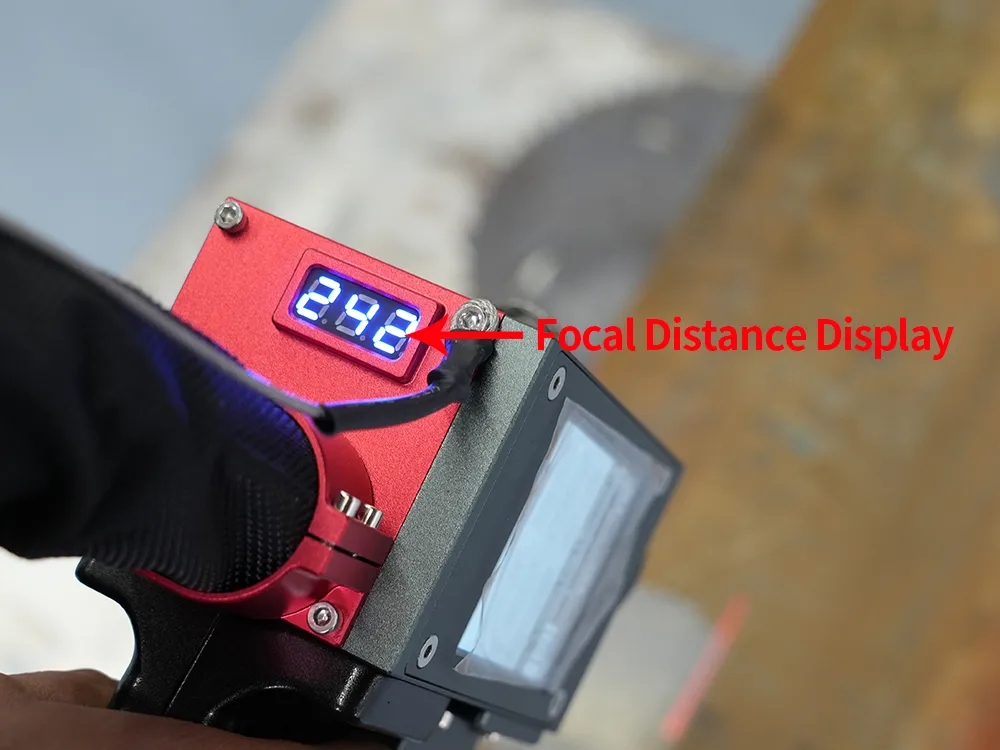

Focal Distance Display
HANTENCNC’s 300W laser cleaning gun equips a digital focal distance display. The focal distance display shows the real-time distance from the laser head to the focal point.
After you place an order, our technicians will measure and provide you with the recommended focal distance before delivery. Once the machine arrives, the focal distance display shows real-time distance via the built-in sensor, helping you find the focus quickly and boost cleaning efficiency.
SEAGULL2™ Laser Rust Cleaning Machine Video
SEAGULL2™ Laser Rust Cleaning Machines Components
SEAGULL2™ Laser Rust Cleaning Machine Dimensions
Compared with SEAGULL1™, SEAGULL2™ is 30mm shorter in height and 20mm longer in length, with the width remaining the same.
Laser Rust Cleaning Machine SEAGULL2™ Offers 9 Scanning Modes
SEAGULL2™ offers 9 different scanning modes for cleaning purposes. These include Straight Line Mode, Rectangular Mode 1, Rectangular Mode 2, Circular Mode, Sinusoidal Mode, Spiral Mode, Free Mode, Ring Mode, and Rotation Mode.
You can select a scanning mode by clicking on the “Scanning Mode” option on the interface. Each mode has its own unique features and is suitable for different cleaning requirements.
Some cleaning modes are gentler and are best suited for materials that require a higher surface finish with minimal traces left behind after cleaning. Other cleaning modes are more powerful and are ideal for removing stubborn dirt or coatings.
By choosing the right cleaning mode, you can ensure minimal traces and enhance the product’s appearance and quality. This is especially crucial in industries such as automotive manufacturing, aerospace, electronics, and more.
SEAGULL2™ Supports 16 Different Languages
HANTENCNC’s laser rust cleaning machine SEAGULL2™ supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 16 other languages.
You can switch these languages directly on the machine’s interface. We also provide customized language services if you require any other languages.
Pulse Laser Cleaning Effects: Before VS After

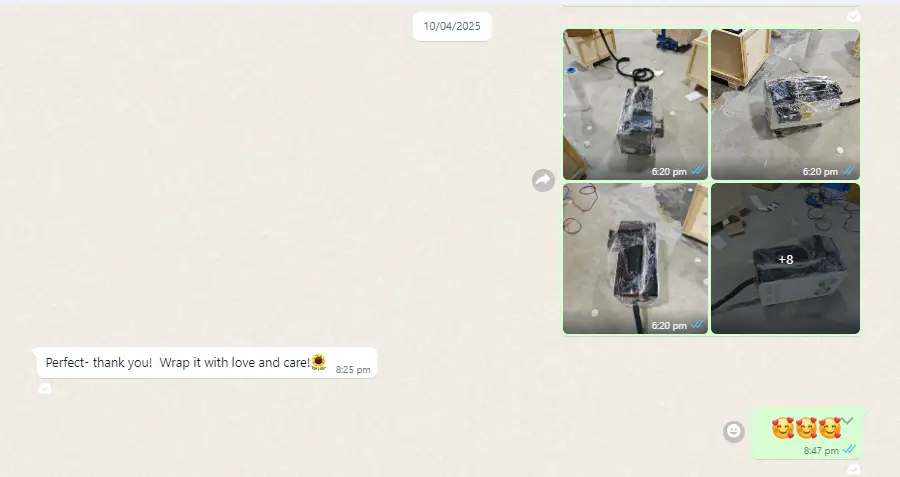

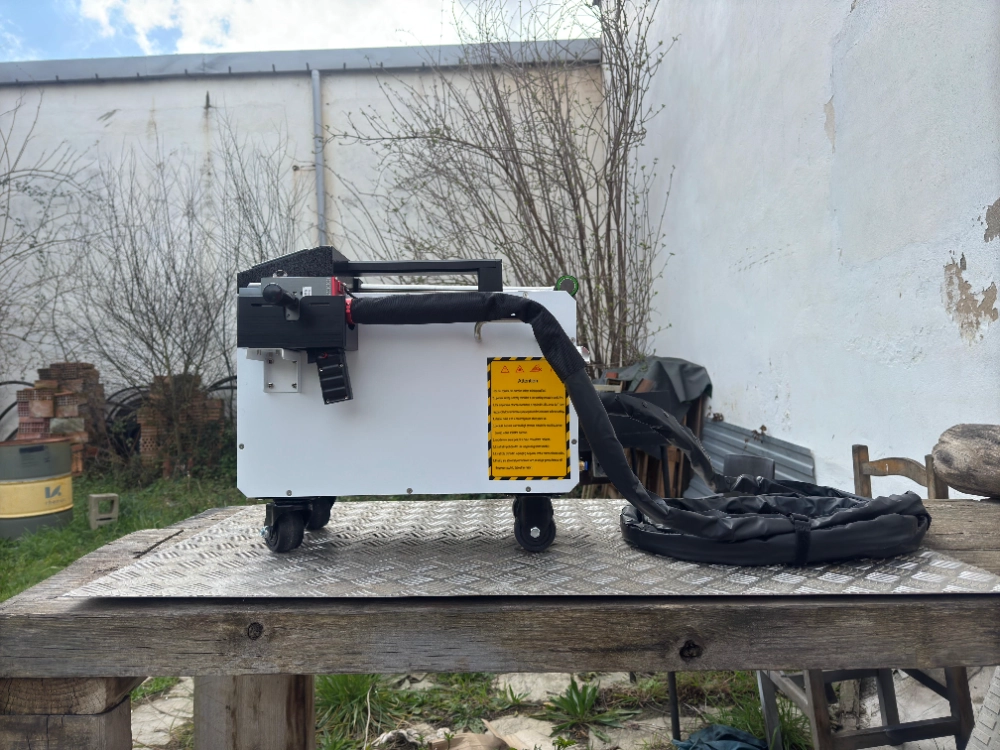

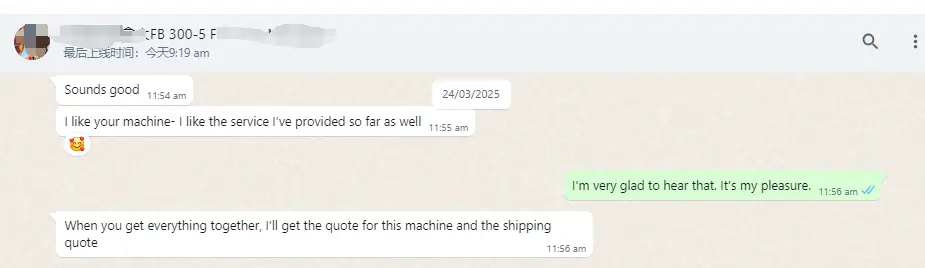

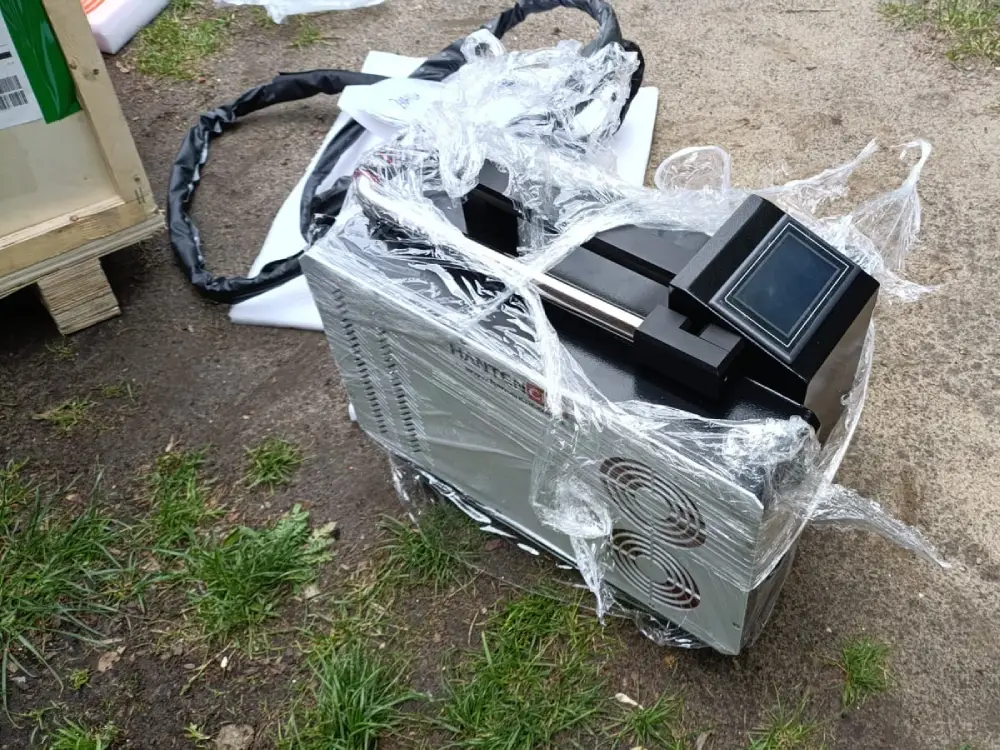

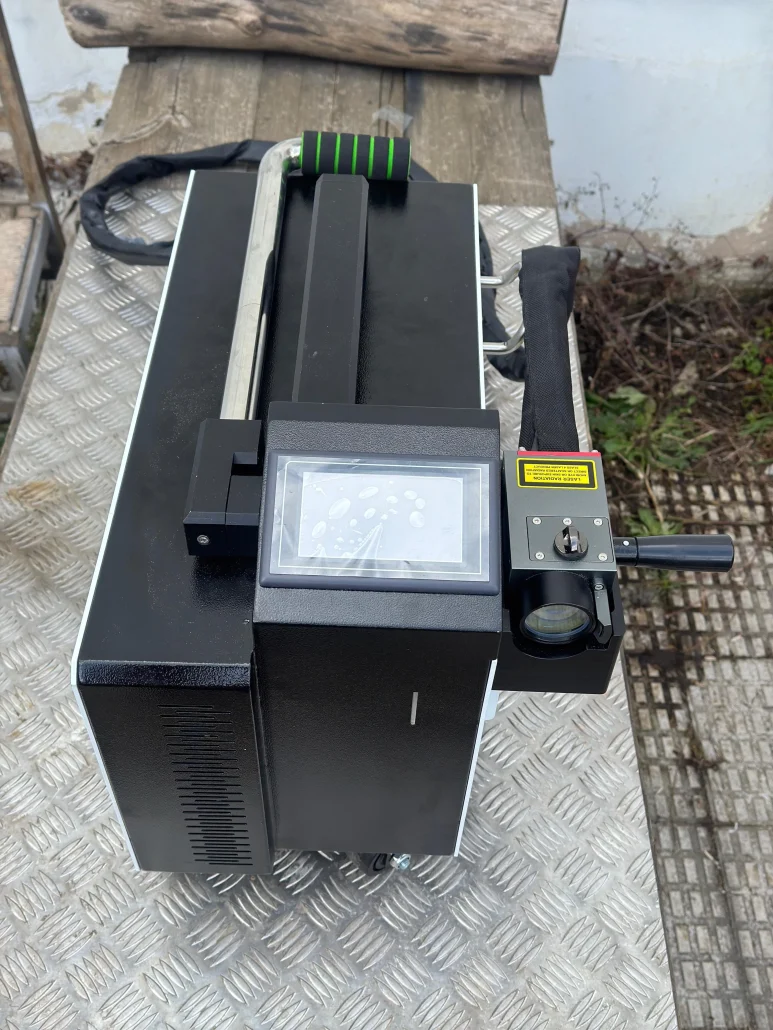

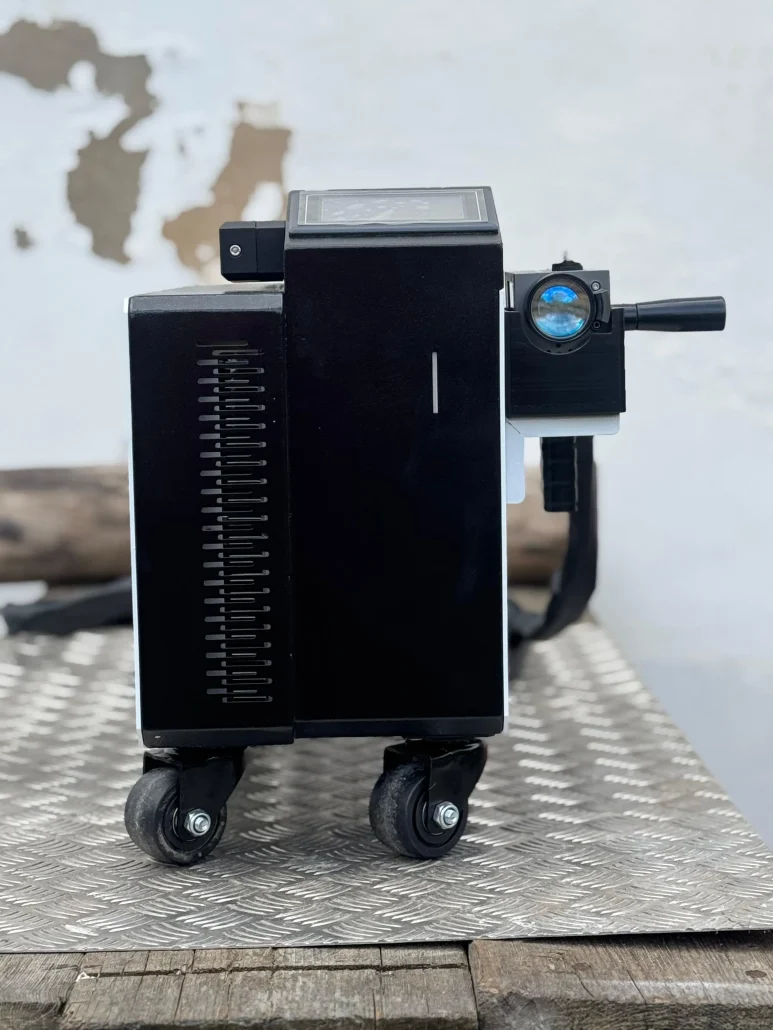

Customer Feedback: SEAGULL2™ Laser Cleaning Machines Delivered

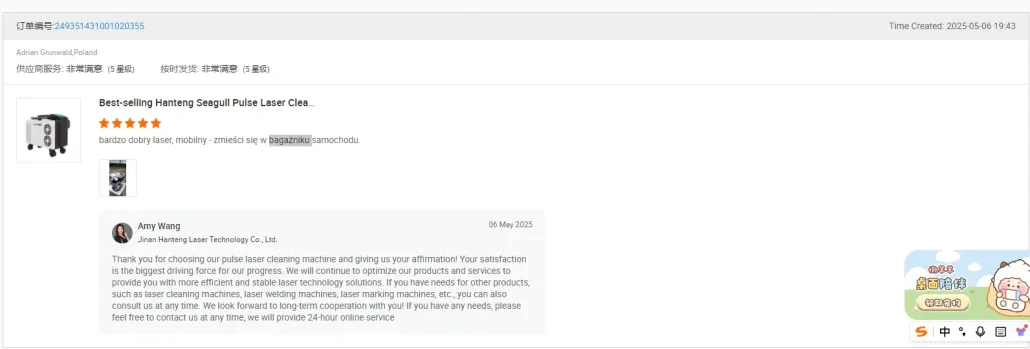

Customer Reviews
Certificates
HANTENCNC Partnerships
HANTENCNC Service
HANTENCNC’s laser cleaning machines are CE and FDA-certified. We offer a 2-year warranty for the laser source and a 1-year warranty for the whole machine, sample testing, OEM customization, remote guidance, and lifelong after-sales support.
