HANTENCNC’s 1000W-2000W pulse laser cleaning machine, DOLPHIN™, integrates a high-power nanosecond fiber laser and a water-cooling system. Compared to a 500W pulsed laser cleaner, it offers 2-3 times the cleaning efficiency.
Our high-power pulse laser cleaner is particularly suited for industries that demand high efficiency and high precision. It offers a faster, more advanced, and highly effective cleaning solution that meets the stringent cleaning requirements of precision industries, such as mold and cultural relic cleaning.
For industries with extremely high demands for cleaning quality and efficiency, our high-power pulse laser cleaning is the optimal choice. It ensures damage-free cleaning and provides a high-standard solution for businesses that prioritize top performance over cost.

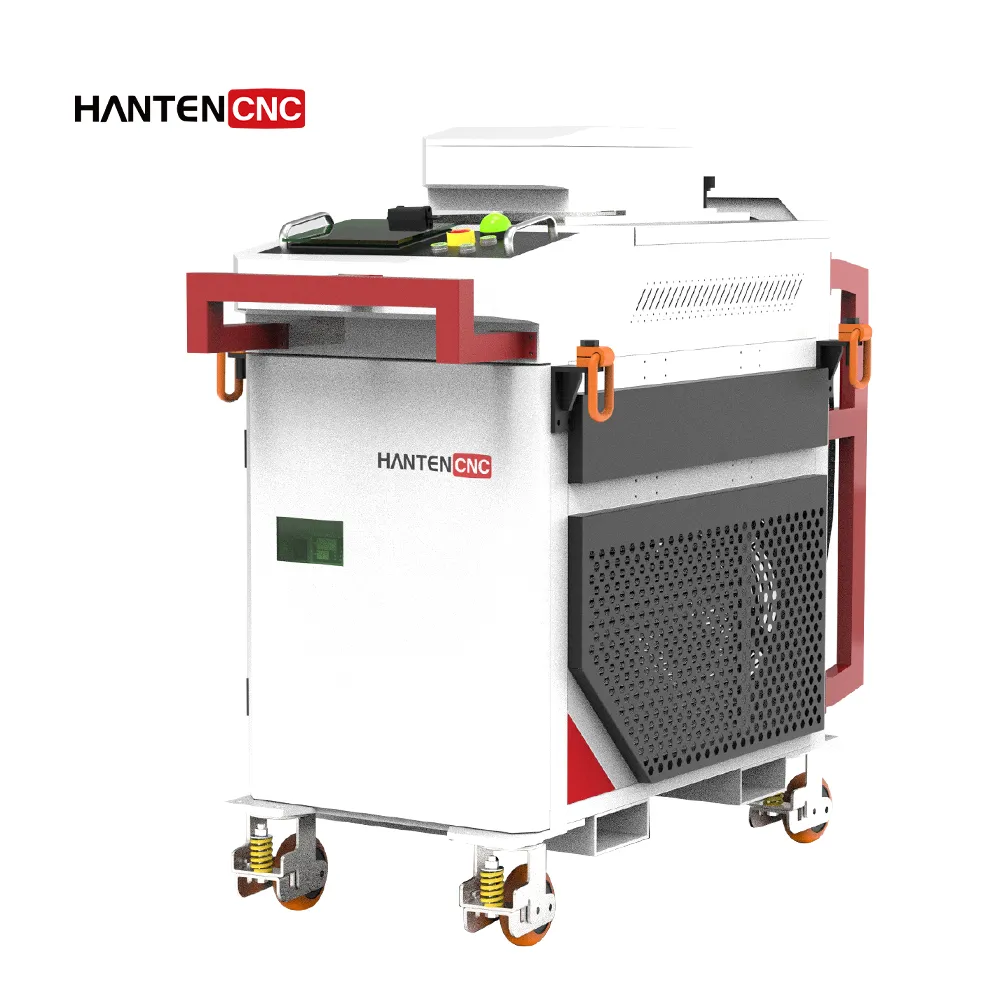

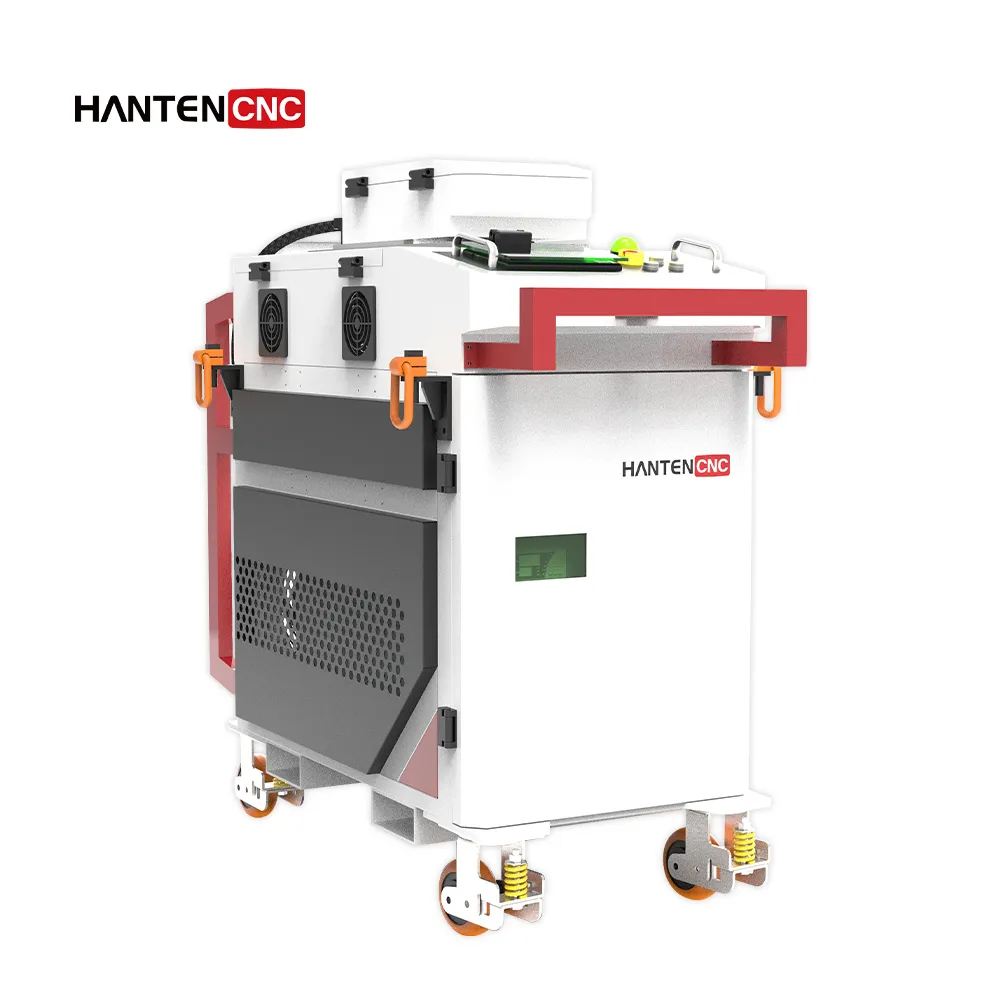

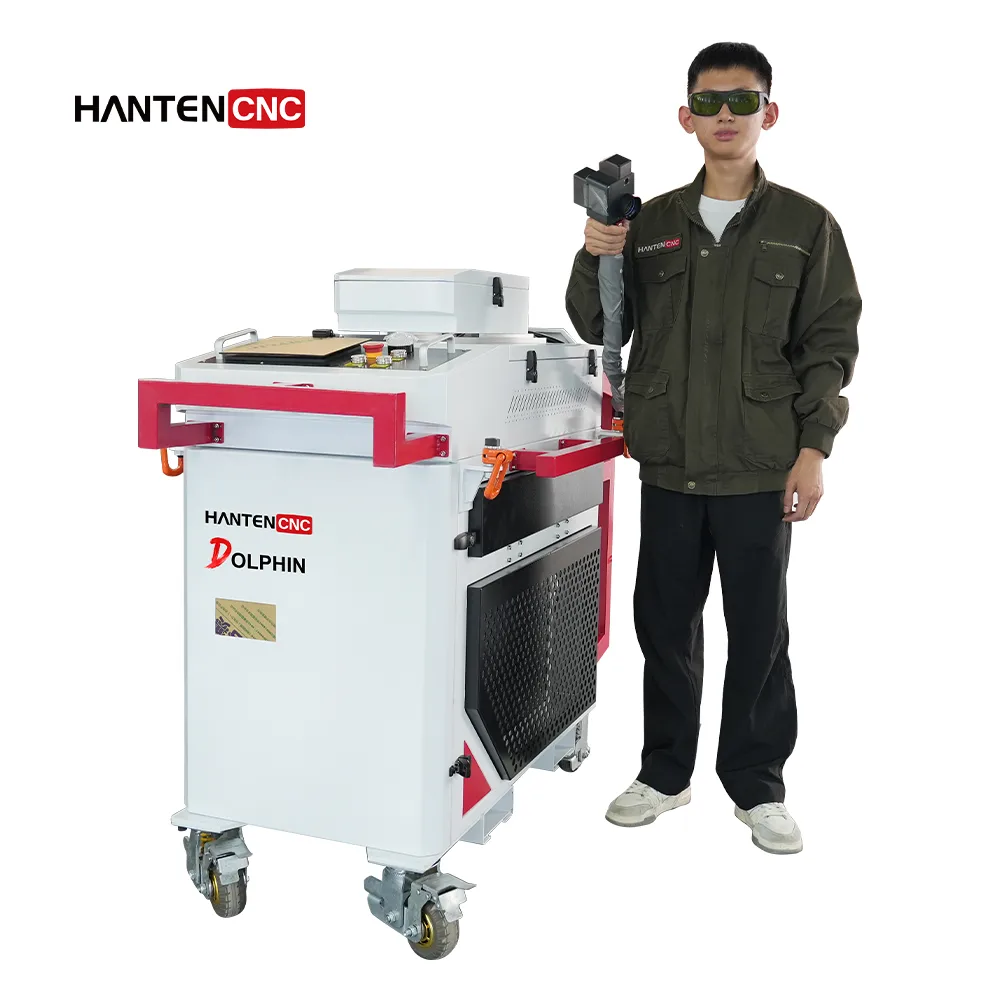

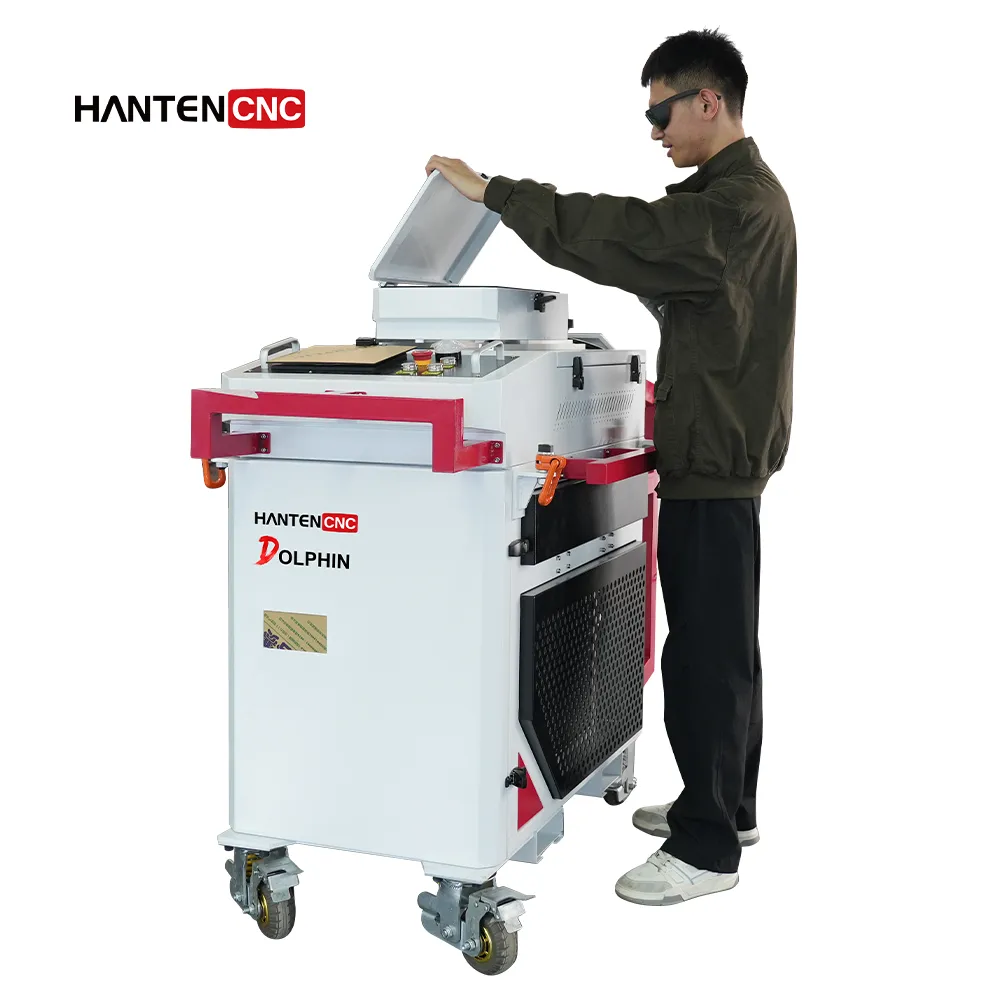

DOLPHIN™ High-power 1000W-2000W Pulse Laser Cleaner Display
Paint Removal Efficiency: 1000W 2000W DOLPHIN™ Advantage
The following is the paint removal efficiency data for the pulsed laser cleaning machine under standard conditions, measured by the HANTENCNC laboratory and covering different powers and coating thicknesses, for your reference.
In the paint removal operation, the pulse laser’s power directly affects the cleaning efficiency. The measured data show that when removing 100-200 micron paint layers, the efficiency of the 2000W pulsed laser cleaner DOLPHIN™ (10-15 m²/h) is about 2-3 times that of the 500W pulsed laser cleaner (4-6 m²/h).
The power advantage is more excellent in removing the ultra-thick coatings of more than 500 microns: the efficiency of a 2000W pulse laser cleaner (3-4 m²/h) can be more than twice that of a 500 W laser cleaner (1-2 m²/h), making it more effective in handling challenging operating conditions.
| Power | Paint Thickness 50–100 micrometer | Paint Thickness 100-200 micrometer | Paint Thickness 200-500 micrometer | Paint Thickness ＞500 micrometer |
|---|---|---|---|---|
| 100W pulse laser cleaning machine | 1-2m²/h | 0.5-1m²/h | 0.3-0.5m²/h | 0.1-0.3mm/h |
| 200W pulse laser cleaning machine | 4-6m²/h | 2-4m²/h | 1-2m/h | 0.5-1m/h |
| 300W pulse laser cleaning machine | 6-8m²/h | 3-4m²/h | 2-3m²/h | 0.5-1.5m²/h |
| 500W pulse laser cleaning machine | 6-10m²/h | 4-6m²/h | 2-3m²/h | 1-2m²/h |
| 1000W pulse laser cleaning machine | 10-15m²/h | 6-8m²/h | 3-5m²/h | 2-3m²/h |
| 2000W pulse laser cleaning machine | 15-20m²/h | 10-15m²/h | 5-8m²/h | 3-4m²/h |
Rust Removal Efficiency: 1000W 2000W DOLPHIN™ Advantage
The following is the rust removal efficiency data for the pulsed laser cleaning machine under standard conditions, measured by the HANTENCNC laboratory and covering different powers and coating thicknesses, for your reference.
In rust removal operations, the pulse laser’s power is directly proportional to its processing speed. Measured data show that when removing 50-100 micron rust layers, the efficiency of the 2000W pulsed laser cleaner DOLPHIN™ (22 m²/h) is nearly 4 times that of the 500W model (6 m²/h), and nearly 1.6 times that of the 1000W model (14 m²/h).
This power advantage is even more significant when dealing with extra-thick rust layers over 100 microns. The 2000W DOLPHIN™ maintains an efficiency of 15 m²/h, which is 5 times that of the 500W model (3 m²/h), making it much more effective at handling challenging, heavy-duty rust-removal tasks.
| Power | Rust thickness ≤50 micrometer | Rust thickness 50-100 micrometer | Rust thickness ＞100 micrometer |
|---|---|---|---|
| 100W pulse laser cleaning machine | 3㎡/h | 2㎡/h | 1㎡/h |
| 200W pulse laser cleaning machine | 6㎡/h | 3㎡/h | 1.8㎡/h |
| 300W pulse laser cleaning machine | 8㎡/h | 4㎡/h | 2㎡/h |
| 500W pulse laser cleaning machine | 12㎡/h | 6㎡/h | 3㎡/h |
| 1000W pulse laser cleaning machine | 25㎡/h | 14㎡/h | 7㎡/h |
| 2000W pulse laser cleaning machine | 30㎡/h | 22㎡/h | 15㎡/h |

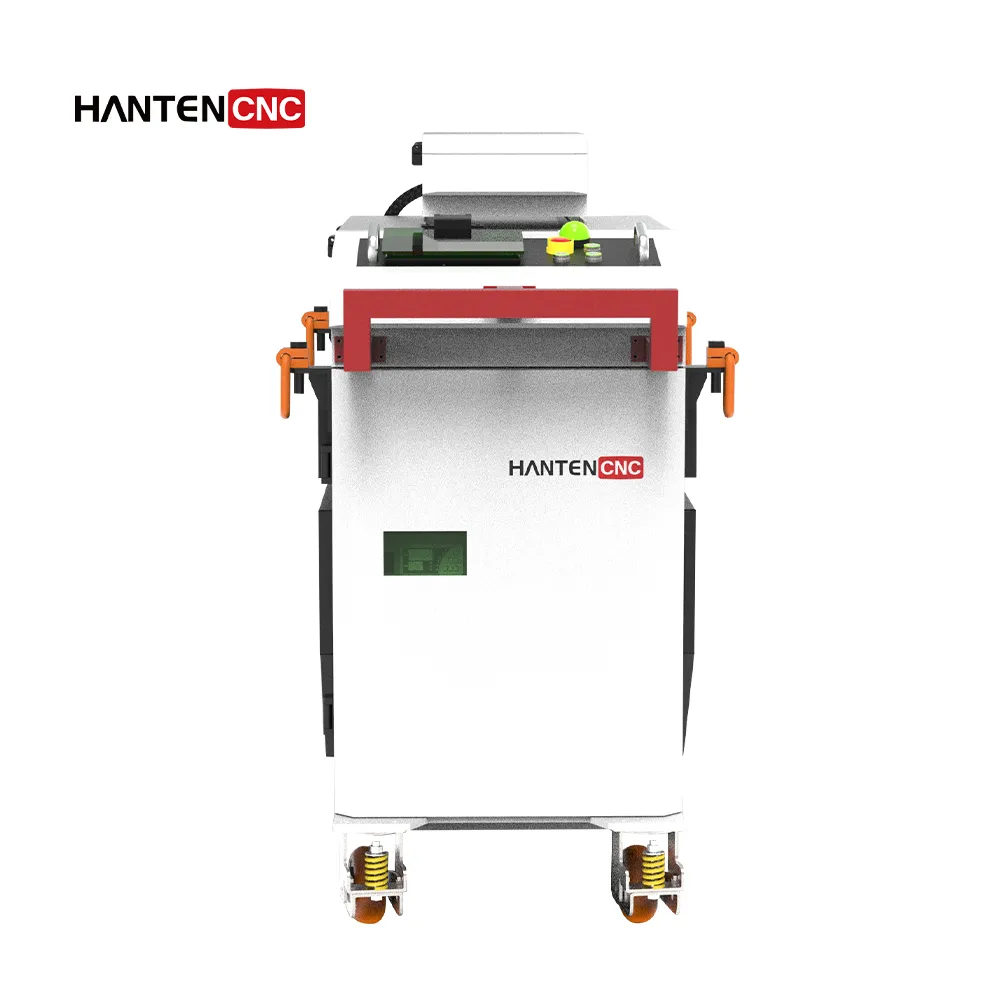

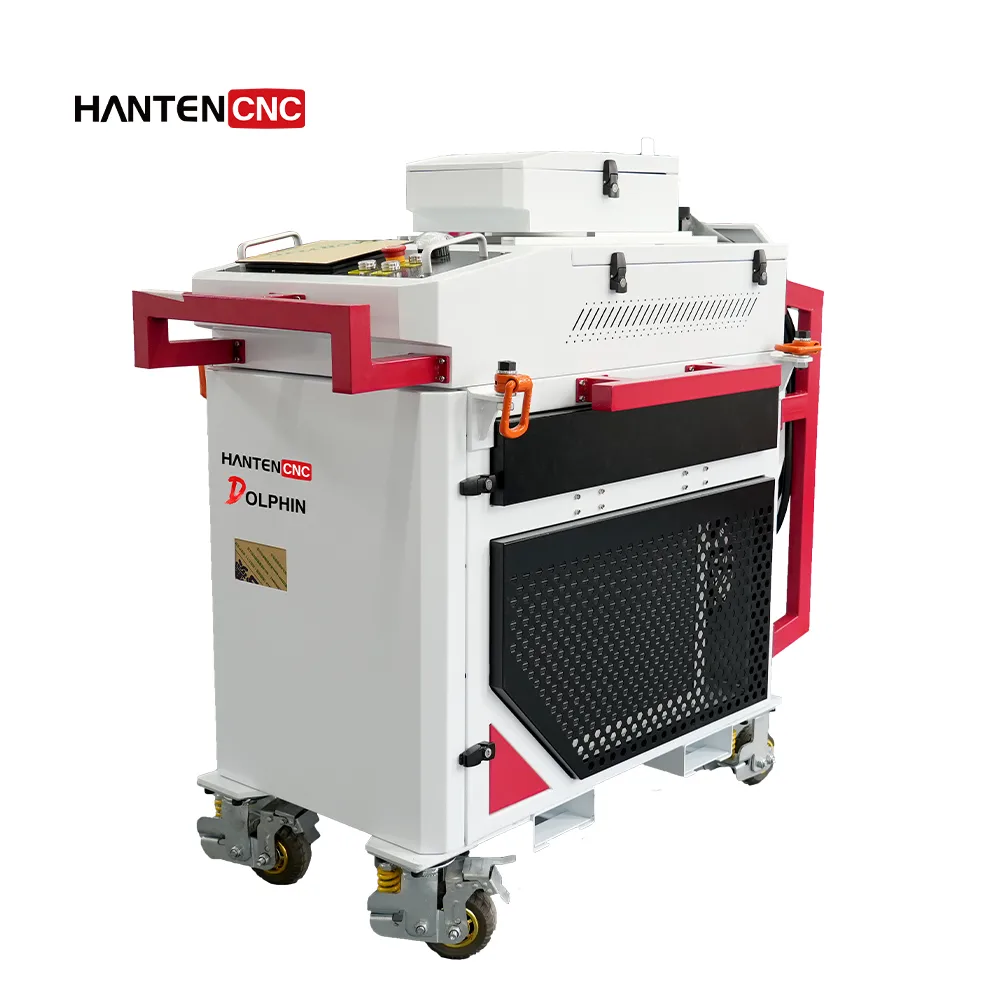

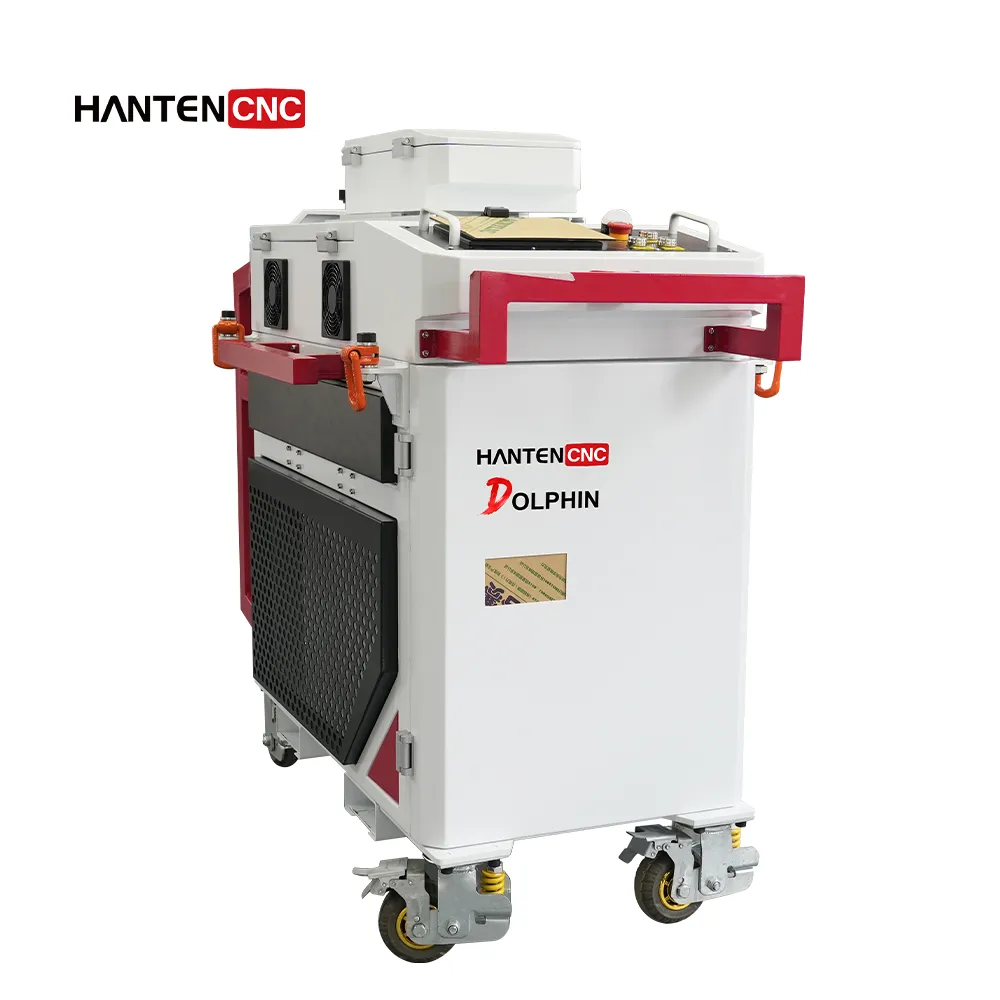

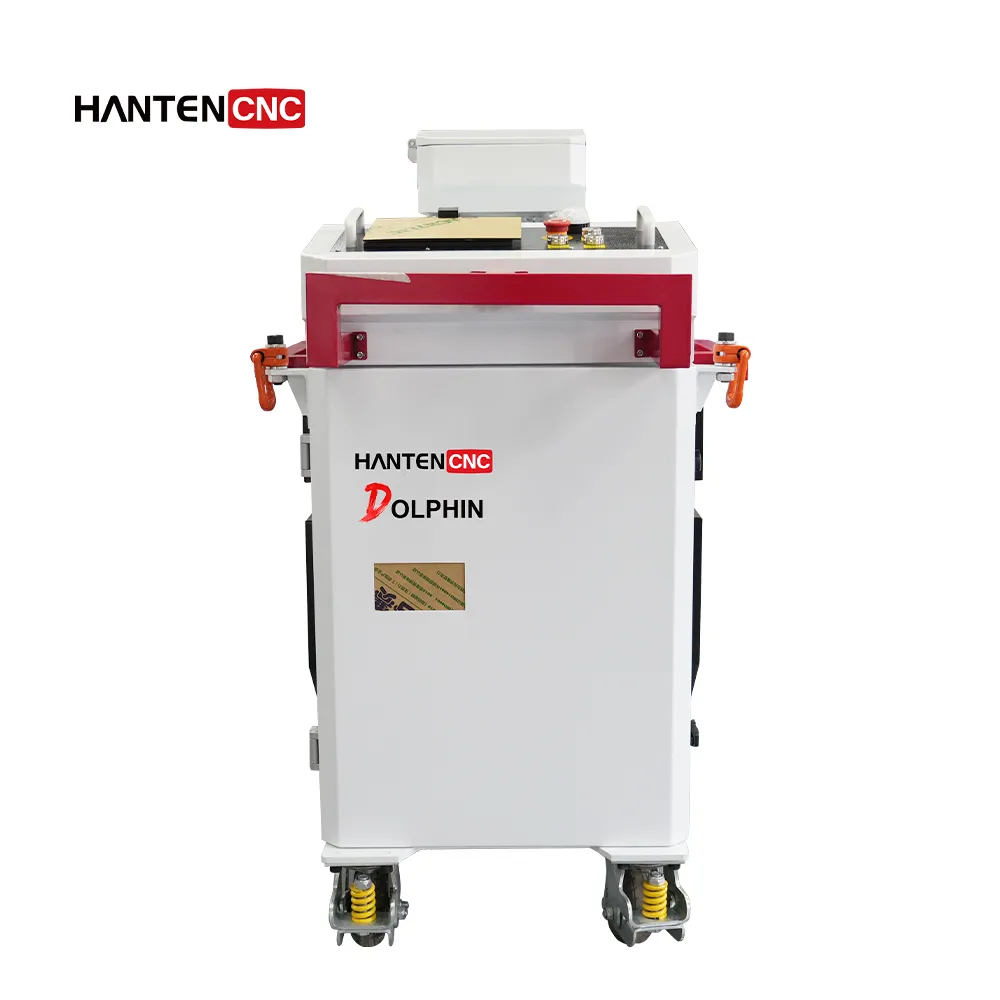

DOLPHIN™ High-power 1000W-2000W Pulse Laser Cleaner Display

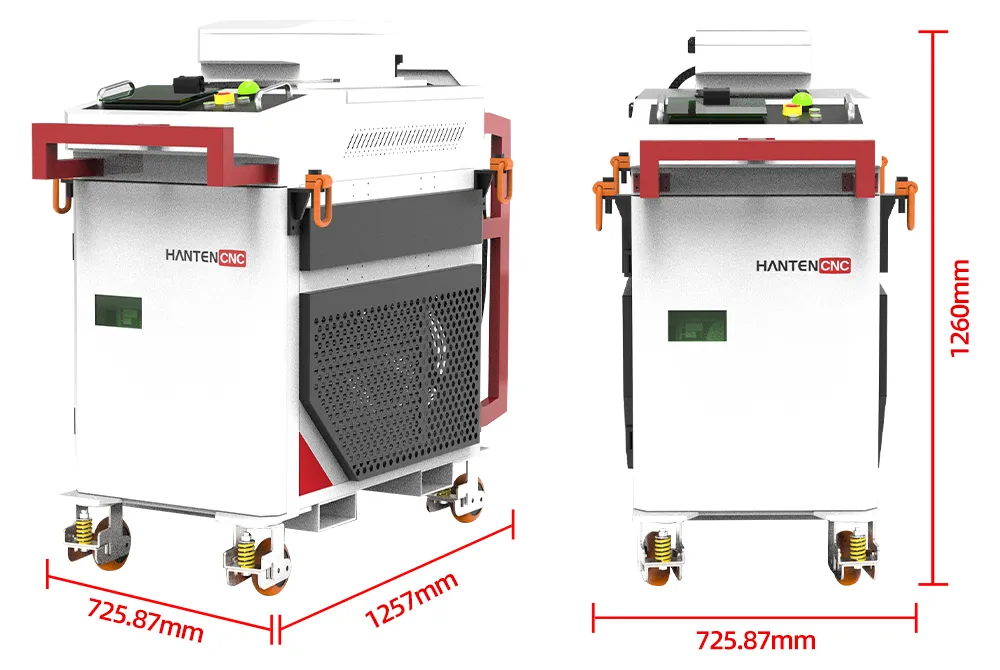

DOLPHIN™ High-power 2000W Pulse Laser Cleaning Machine Dimensions
DOLPHIN™ High-power 1000W-2000W Pulse Laser Cleaner Components
DOLPHIN™ High-power 2000W Pulse Laser Cleaner Features

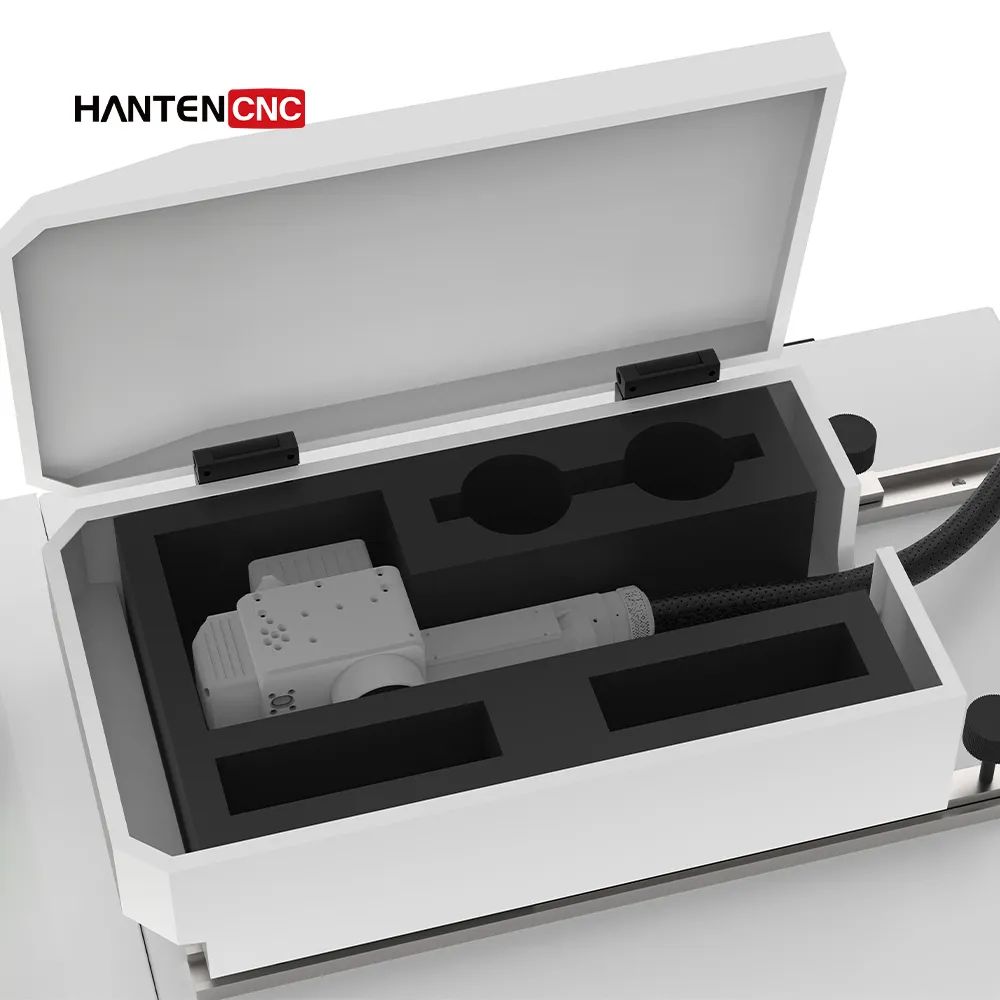

Laser Cleaning Head Storage and Protection Box
This pulse laser cleaning machine features a storage and protection box with a specialized structure designed to hold the laser cleaning gun securely.
The integrated storage for the laser cleaning gun, with high-density foam inside to hold the head securely. It keeps the equipment safe during transport or when not in use, and enhancing safety and organization.

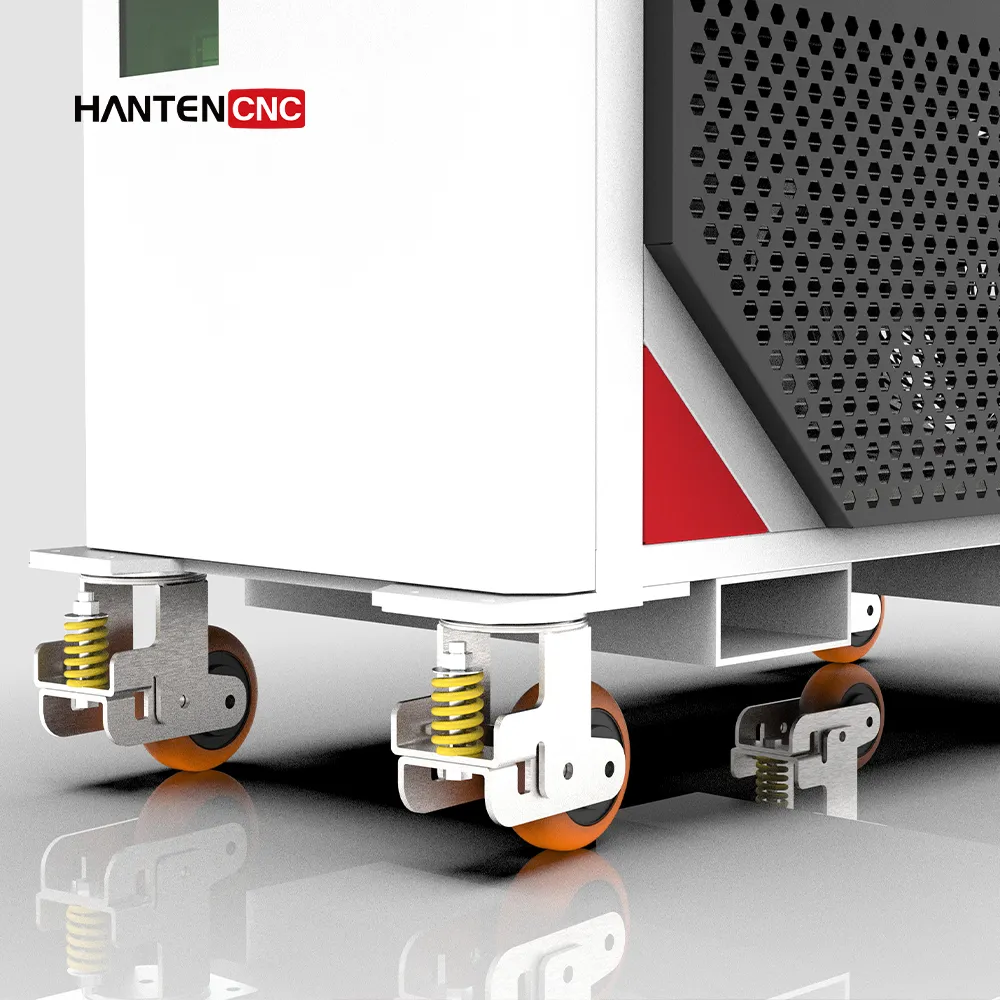

Caster Wheels
The caster wheels feature shock-absorbing springs, which allow the machine to move easily while maintaining stability during cleaning operations, thereby improving on-site work flexibility.

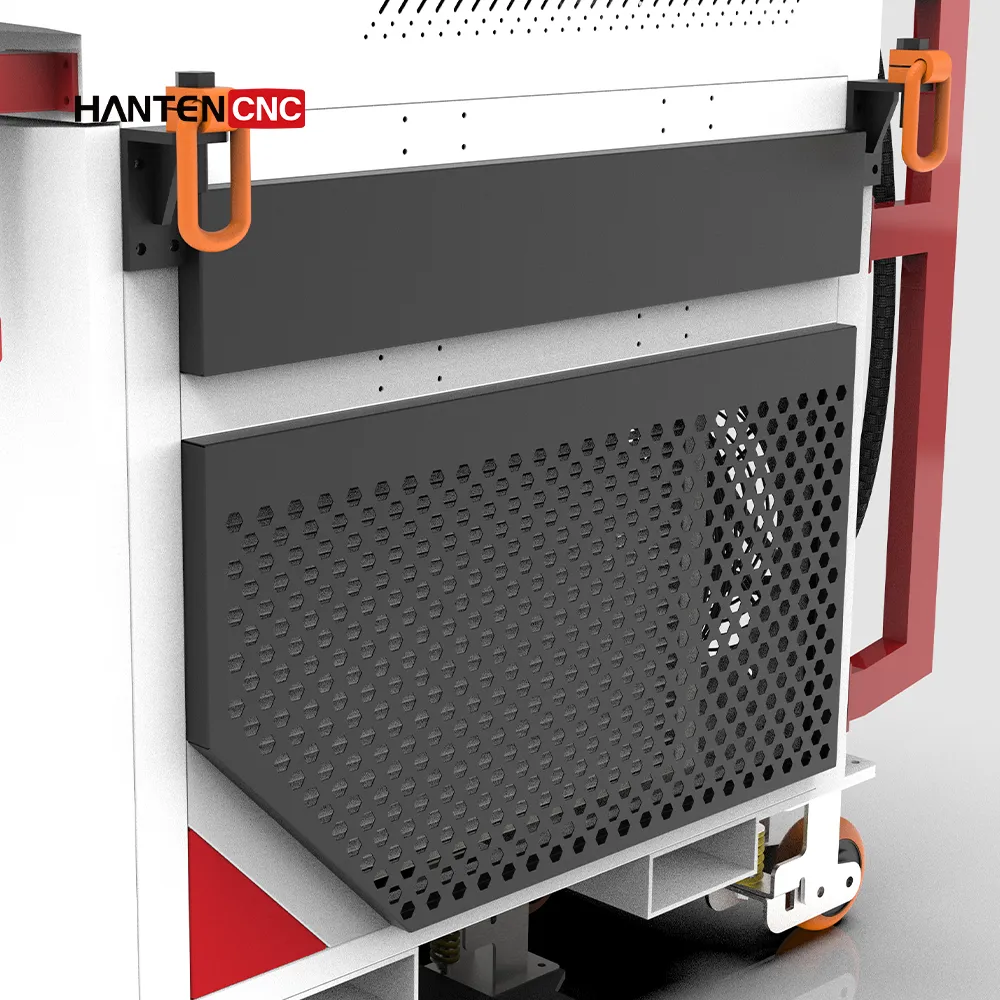

Heat Dissipation
The 1000W to 2000w pulse laser cleaning machine features a large vent area with a perforated metal panel to maintain proper airflow and cooling.
This large heat dissipation ensures stable, 24 non-stop operation and increases the pulse laser cleaner’s service life.
Dual-side Handles
The front and back of the 2000w pulse laser cleaner are equipped with handles for easier positioning.

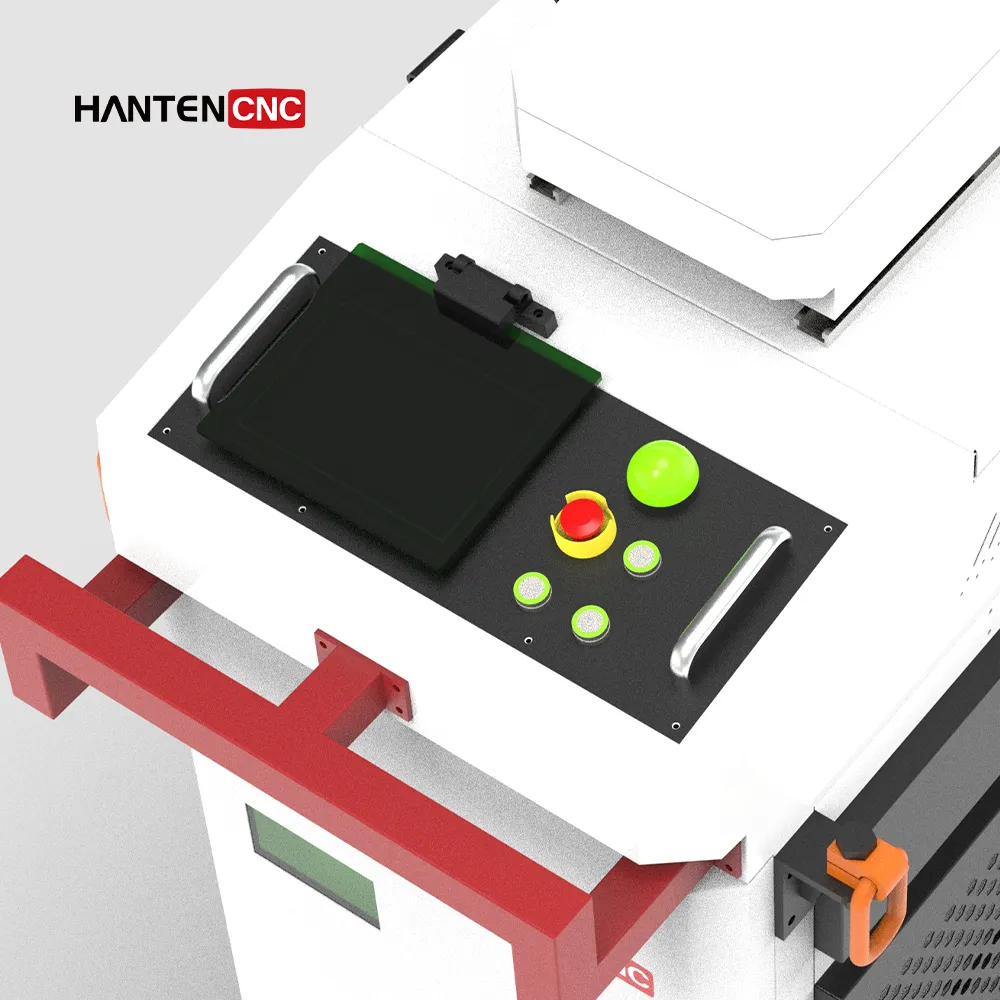

Large Touchscreen with Acrylic Protection
The pulse laser cleaner features a large touchscreen interface for intuitive and efficient operation. The screen is protected by a durable acrylic cover, which guards against scratches, dust, and impact during industrial use.
Industrial-Grade Lifting Ring
The lifting ring is an industrial-grade, rotatable lifting eye installed at the center of gravity of the laser cleaner machine.
It features safe hoisting and transport of the entire machine using cranes or lifting tools, either in a factory or on-site.
Made of high-strength alloy steel with an anti-rust coating, the ring ensures long-term durability and safety, meeting the demands of various operating environments.
Why Choose DOLPHIN™？
1000W-2000W DOLPHIN™ laser cleaning machine features spring-brake casters for easy movement and immediate locking in place, ensuring stability during operation. Its main structure consists of a four-side steel tube welded frame, which offers higher strength compared to traditional folded sheet metal, with strong load-bearing capacity and resistance to deformation under long-term heavy use.
DOLPHIN™ prioritizes safety and operability, equipped with CE-certified lifting rings on top for standard hoisting and transportation. The control system includes an interlock button safety system that complies with industrial safety standards, effectively preventing misuse.
At the core of DOLPHIN™ are a high-performance pulse laser and a dedicated cooling system, working together to ensure stable laser output and effective thermal management of key components, supporting reliable long-term continuous operation.
DOLPHIN™ High-power Laser Cleaning Gun
Advanced Laser Cleaning Optical Design:
Equipped with high-speed galvanometer scanners, high-transmission optics, and large depth-of-field field lenses, our 1000W-2000W pulse laser cleaning machine is engineered for long-duration operation under high-power laser cleaning conditions.
Dual-Screen Convenience:
Our high-power pulse laser cleaning gun is equipped with a secondary operational screen, allowing for real-time parameter adjustments and enhanced workflow efficiency.
User-Friendly Dedicated Software:
The 1000W-2000W pulse laser cleaning gun features a built-in database system capable of storing and editing up to 50 sets of process parameters. You can adjust laser parameters such as power and repetition frequency to meet diverse cleaning requirements.
Laser Distance Sensor
The HANTENCNC’s pulse laser cleaning gun features a built-in laser distance sensor. The sensor detects the distance between the laser gun and the workpiece automatically.
When no object is detected in front of the cleaning head, the sensor displays “999”, and the laser will not emit even if the trigger button is pressed, preventing accidental activation and enhancing safety.
Focal Distance Display
HANTENCNC’s laser cleaning gun equips a digital focal distance display. The focal distance display shows the real-time distance from the laser head to the focal point.
After you place an order, our technicians will measure and provide you with the recommended focal distance before delivery. Once the machine arrives, the focal distance display shows real-time distance via the built-in sensor, helping you find the focus quickly and boost cleaning efficiency.
DOLPHIN™ Pulse Laser Cleaner Offers 9 Scanning Modes
DOLPHIN™ laser cleaner offers 9 scanning modes to meet a variety of cleaning tasks. Each scanning mode has its unique features and is suitable for different cleaning requirements.
These scanning modes include straight line mode, rectangular mode 1, rectangular mode 2, circular mode, sinusoidal mode, spiral mode, free mode, ring mode, and rotation mode.
Some scanning modes are gentle, suitable for materials requiring a smooth surface with minimal residue after cleaning. Others are more powerful, suitable for removing tough dirt or coatings.
You can select the scanning mode by clicking on the “Scanning Mode” option on the interface.
By selecting the suitable cleaning mode, you can ensure minimal residue and enhance the product’s appearance and quality, which is especially crucial in industries such as automotive manufacturing, aerospace, electronics, and others.
DOLPHIN™ Supports 16 Different Languages
DOLPHIN™ supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish, and 16 other languages.
You can switch these languages directly on the machine’s interface. We also provide customized language services for any other languages you may require.
High-power 2000W Pulse Laser Cleaning Machine DOLPHIN™ Parameters
| MODEL | HTCM1000/HTCM1500/HTCM2000 |
|---|---|
| Power Supply Voltage | Three Phase 380V±10%, 50/60Hz AC Power |
| Average Laser Power | ≥2000W |
| Laser Operation Mode | Pulsed Cleaning |
| Laser Source | JPT |
| Pulse Width | 10-500ns adjustable |
| Maximum Single Pulse Energy | 15mJ / 50mJ |
| Power Adjustment Range (%) | 0-100% |
| Frequency Adjustment Range (kHz) | 1-4000kHz |
| Cooling Method | Water-cooling |
| Scanning Width | Max 300mm*300mm |
| Maximum Scanning Speed | 20000mm/s |
| Maximum Scanning Frequency | Not Less Than 300Hz |
| Field Lens Focal Length (mm) | 210mm (Optional: 160mm/254mm/330mm/420mm) |
| Depth of Focus | Approximately 20mm |
| Fiber Cable Length | 10 meters (customizable) |
| Machine Dimensions | 726*1257*1260mm |
| Machine Weight | About 290kg |
| Operating temperature range | 0-40℃ |
| Operating Humidity | ≤80% |
Standard Accessories Included
Standard Accessories Included with 2000W Pulsed Laser Cleaning Machine
The following accessories are included as standard with the 2000W pulsed laser cleaning machine. Actual configuration may vary depending on application requirements and order specifications.
Standard Accessories Included with 1000W Pulsed Laser Cleaning Machine
The following accessories are included as standard with the 1000W pulsed laser cleaning machine. Actual configuration may vary depending on application requirements and order specifications.
Note: Standard accessories may be adjusted based on different markets, safety regulations, or specific customer requirements. Please confirm the final configuration with our sales team before ordering.
