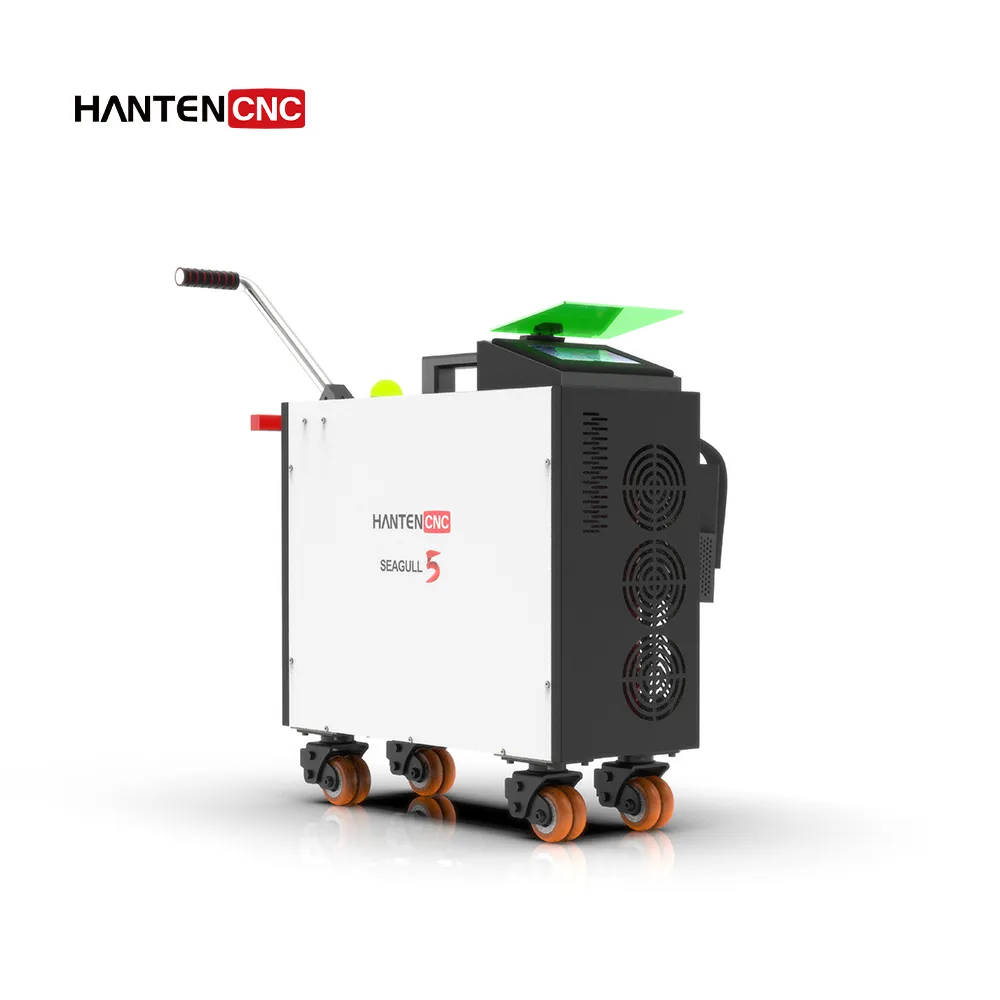

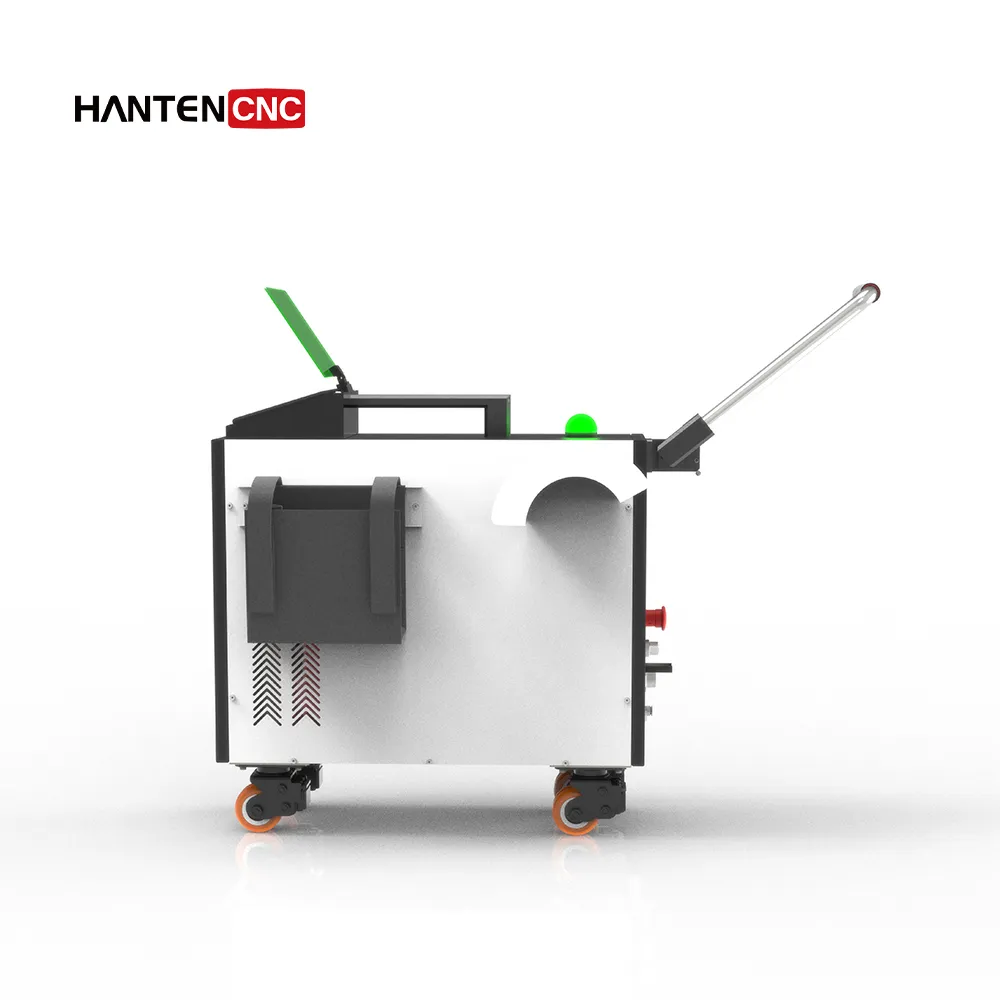

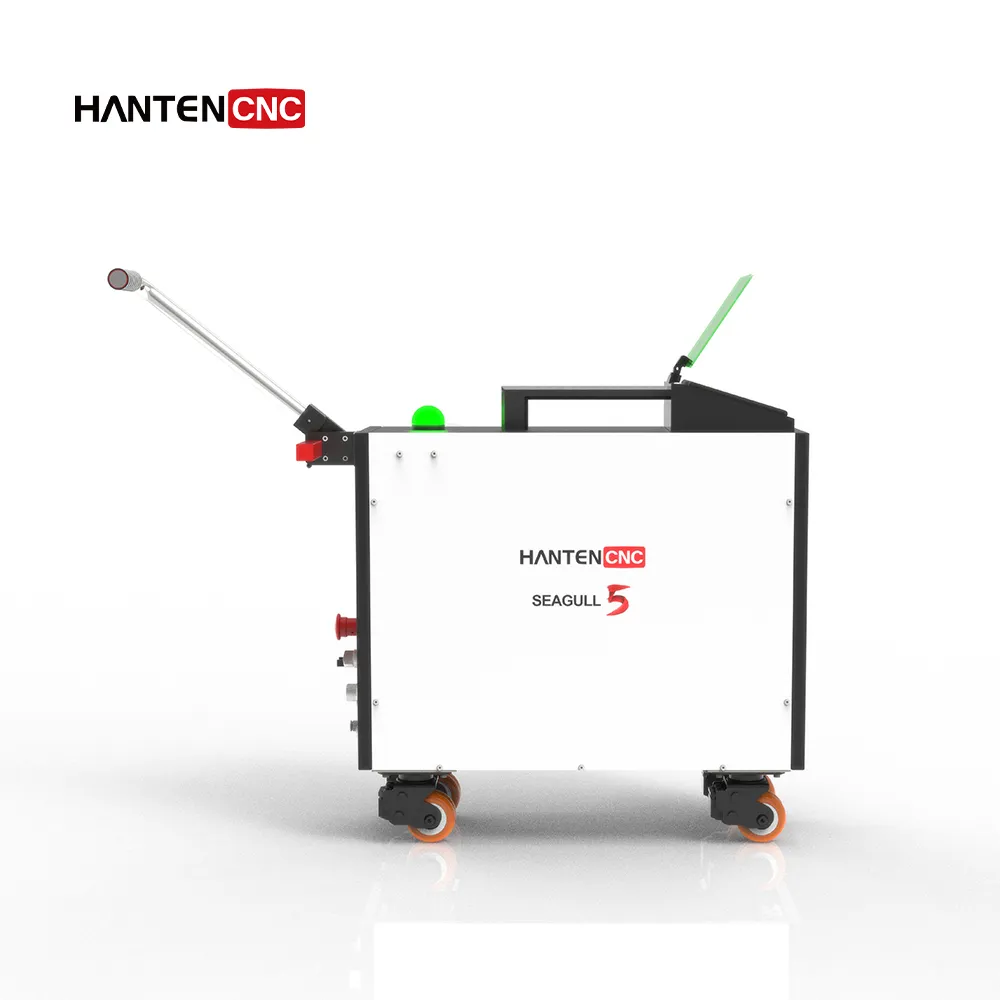

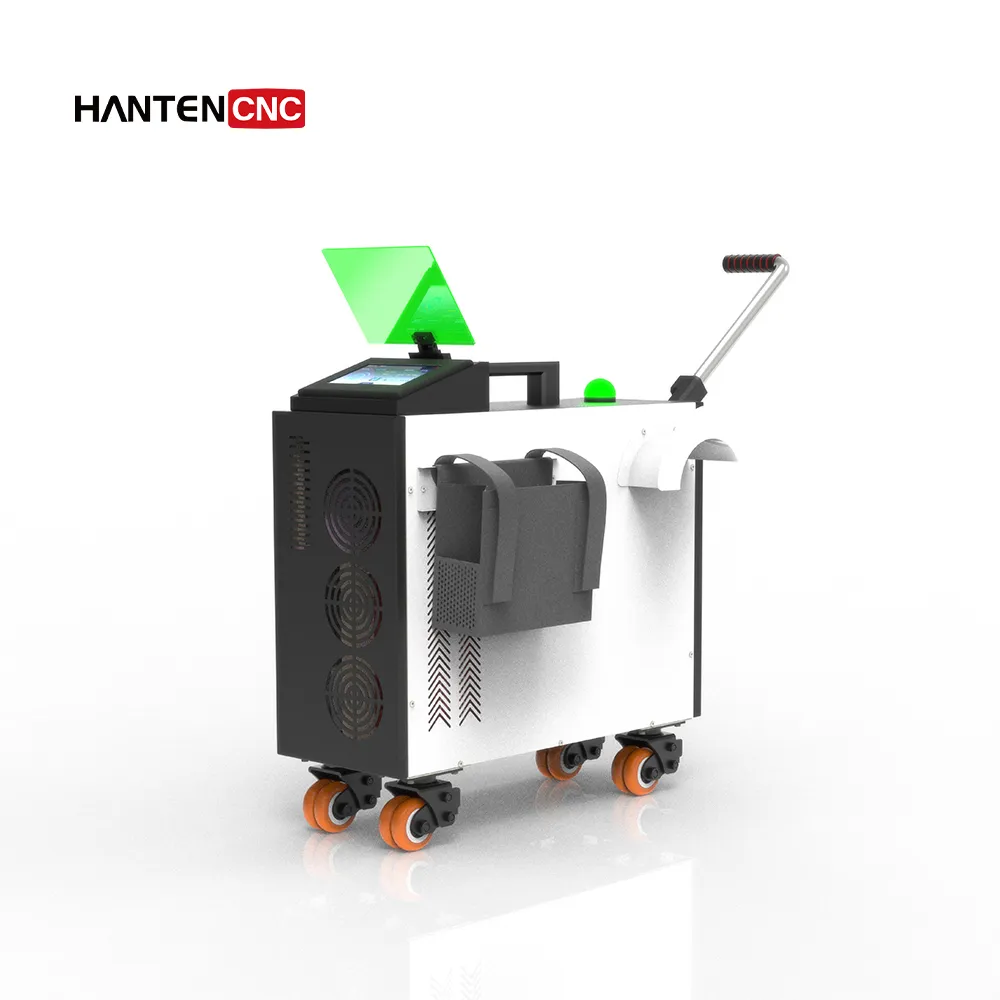

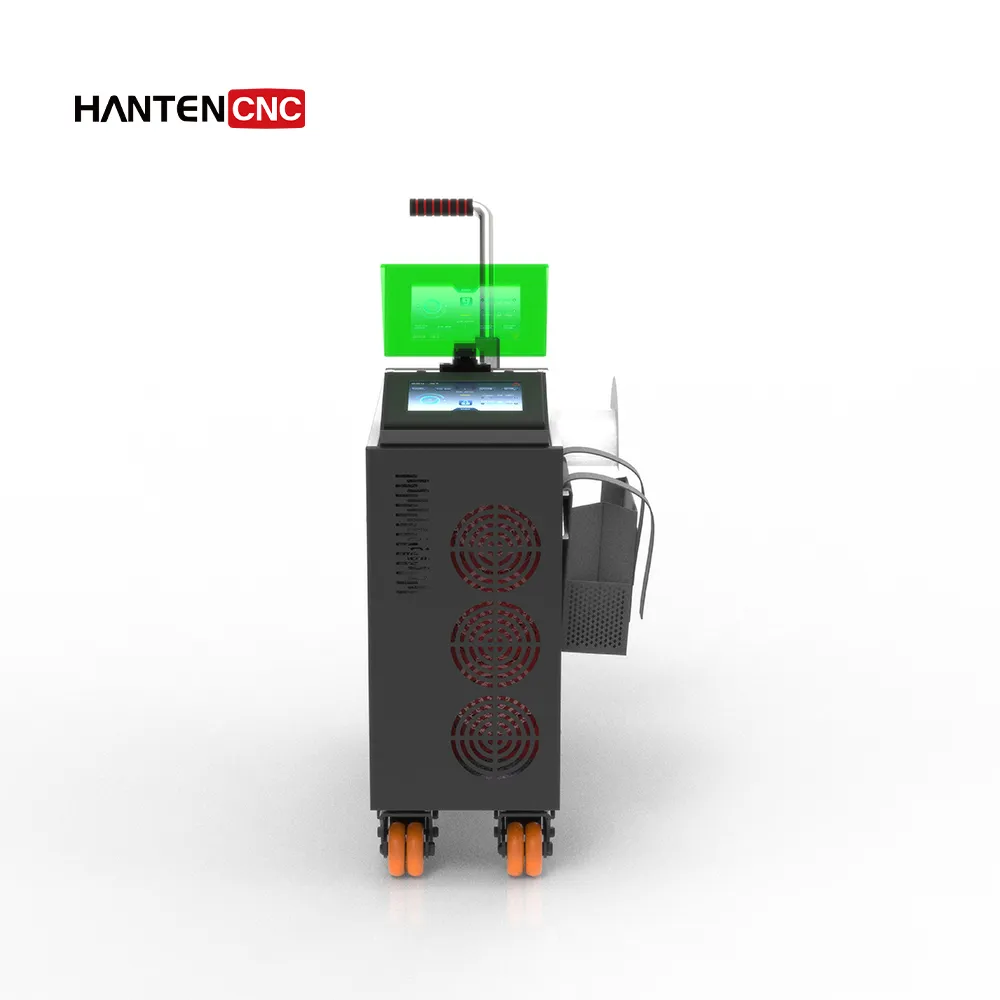

SEAGULL 5™ 1000W air-cooled pulsed laser cleaning machine is ideal for thick coatings and large-area cleaning. It removes rust at up to 25㎡/hour and paint at up to 15㎡/hour, completing thick coatings in one scan and cutting operation time by more than half. It handles industrial cleaning tasks and meets batch processing needs.
Compared with other 1000W pulsed laser cleaners on the market, 1000W water-cooled pulsed laser cleaners are bulky and heavy. They are also complex to maintain. The SEAGULL 5™ is the world’s first and only 1000W air-cooled pulsed laser cleaner. Its compact air-cooled system reduces its size by more than 50%.
SEAGULL 5™ features a trunk-style design and dual-brake wheels. Its cleaning head weighs under 2kg. One person can tow and operate it easily. No industrial electricity or water cooling is needed, ensuring true portability with minimal maintenance.
Designed for mobility, the machine fits in most vehicle trunks. It is easy to transport to any site. With a standard power supply, it delivers 1000W industrial-grade cleaning anywhere, from construction sites to workshops.
SEAGULL5™ 1000W Air-cooled Pulsed Laser Cleaning Machine Features
Effortless Mobility and Flexible Cleaning Solution
Industrial-Grade Cleaning Power
Minimal Substrate Damage with Pulse Technology
SEAGULL 5™ features 1000W pulsed laser power, specifically designed for heavy-duty industrial cleaning tasks: ship hulls, storage tanks, steel bridges, and heavy machinery.
Lower-power systems are suitable for light rust and maintenance cleaning; 1000W handles the toughest jobs.
World’s First 1000W Air-Cooled System
Anti-bumping | High Load Bearing | Strong Stability
SEAGULL5™ 1000W Air-cooled Pulsed Laser Cleaning Machine Parameters
| MODEL | HTCM1000 |
|---|---|
| Power Supply Voltage | Single Phase 220V±10%, 50/60Hz AC Power |
| Laser Source | JPT |
| Center Wavelength | 1064 ± 5 nm |
| Average Laser Power | ≥1000W |
| Power Consumption | >4000W |
| Laser Operation Mode | Pulsed Cleaning |
| Pulse Width | 30-500ns adjustable |
| Maximum Single Pulse Energy | 1.5mJ/ 5mJ / 15mJ / 50mJ |
| Power Adjustment Range (%) | 0-100% |
| Frequency Adjustment Range (kHz) | 1-4000kHz |
| Cooling Method | Air-cooling |
| Scan Width | F150 120mm F200 150mm F250 180mm F300 220mm F350 260mm F400 290mm F500 360mm |
| Scan Speed | 10-40,000mm/s |
| Maximum Scanning Frequency | Not Less Than 300Hz |
| Depth of Focus | Approximately 20mm |
| Fiber Cable Length | 5 meters/ 10 meters |
| Machine Dimensions | 745mm*357mm*710mm |
| Machine Weight | About 53kg |
| Operating Temperature Range | 0-40℃ |
| Operating Humidity | ≤80% |
| Fiber Optic Interface | QBH |
Pulse Laser Cleaning Effects: Before vs. After
Real Customer Cases Show of HANTENCNC
Standard Accessories Included with SEAGULL5™
The accessories included with the SEAGULL5™ 1000W pulsed laser cleaning machine are listed here. Actual configuration may vary depending on application requirements and order specifications.
Note: Standard accessories may be adjusted based on different markets, safety regulations, customer requirements, or HANTENCNC policy updates. Please confirm the final configuration with our sales team before ordering.
Optional Accessories for SEAGULL5™
The following accessories are optional accessories and are not included in the standard accessories package. Please select according to your needs.
Air Compressor
First, the air compressor produces compressed air, which then passes through the oil-water separator, which removes moisture and oil, producing dry, oil-free air. Finally, the clean, dry air is delivered to the laser cleaning gun and blown across the protective lens to keep it free of dust, moisture, oil, and debris, helping the protective lens last longer.
Smoke Purifier
The smoke purifier removes dust and fumes from the air. Keeps your workspace healthier and your laser beam clear.
Protective Kit
Protective kit includes an apron, gloves, and shoe covers. It protects the operator from scattered laser light and spatter.
For high power, heavy dust, or continuous use, HANTENCNC recommends using both the air compressor and the oil-water separator. Fewer protective lens damages. Less downtime. Less hassle.
