Advanced JPT Pulse Laser Technology
Our SEAGULL3™ laser rust removers use JPT pulse lasers. These lasers are reliable and effective. They offer high beam quality, excellent stability, and a long lifespan.
The pulse laser sends out intense energy in quick bursts. This method cleans effectively and precisely. It won’t harm the material’s surface, making it perfect for cleaning wood and metal.
Engineered for Mobility & Durability

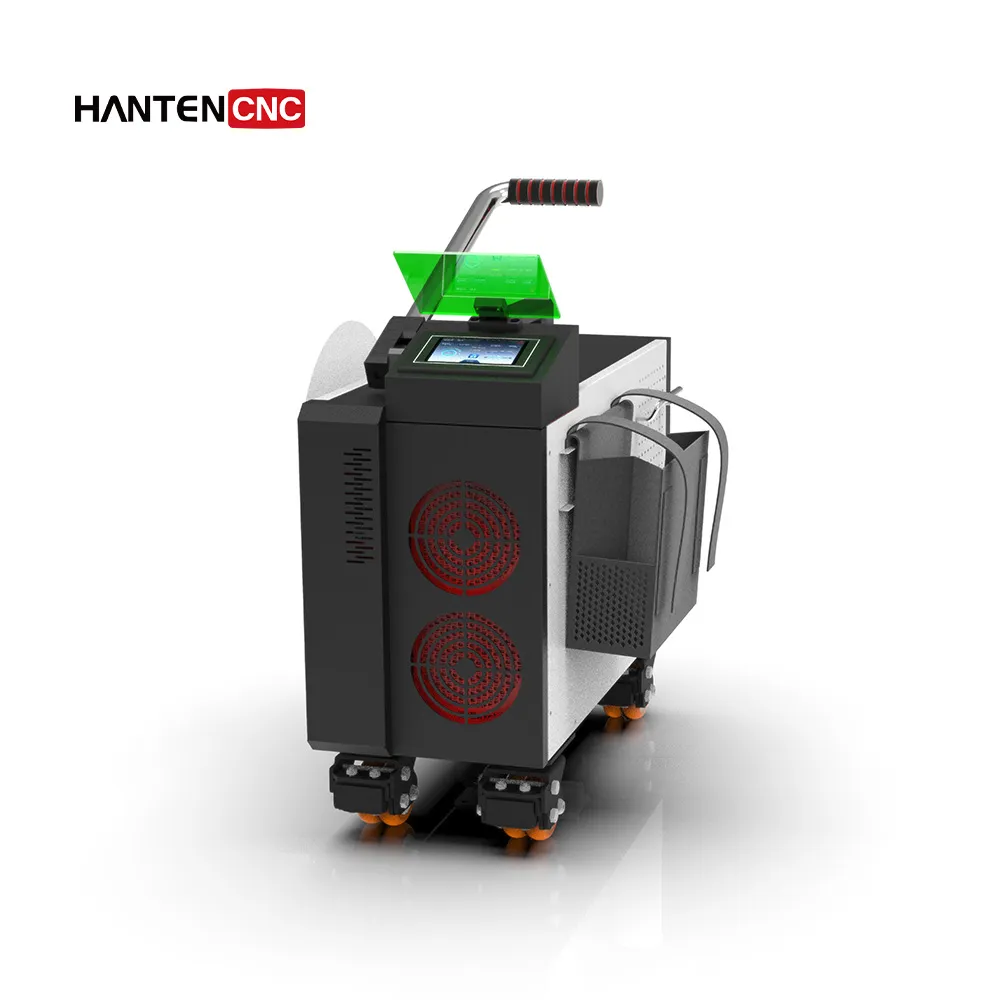

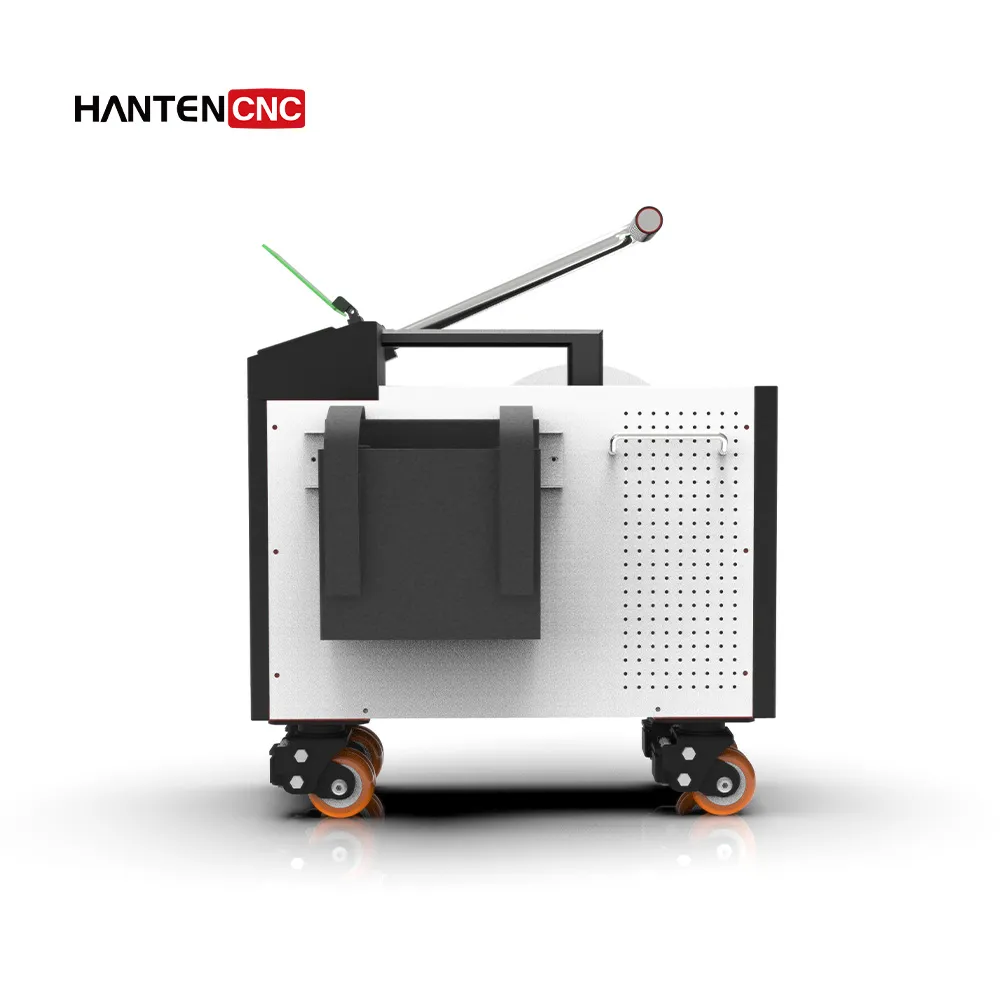

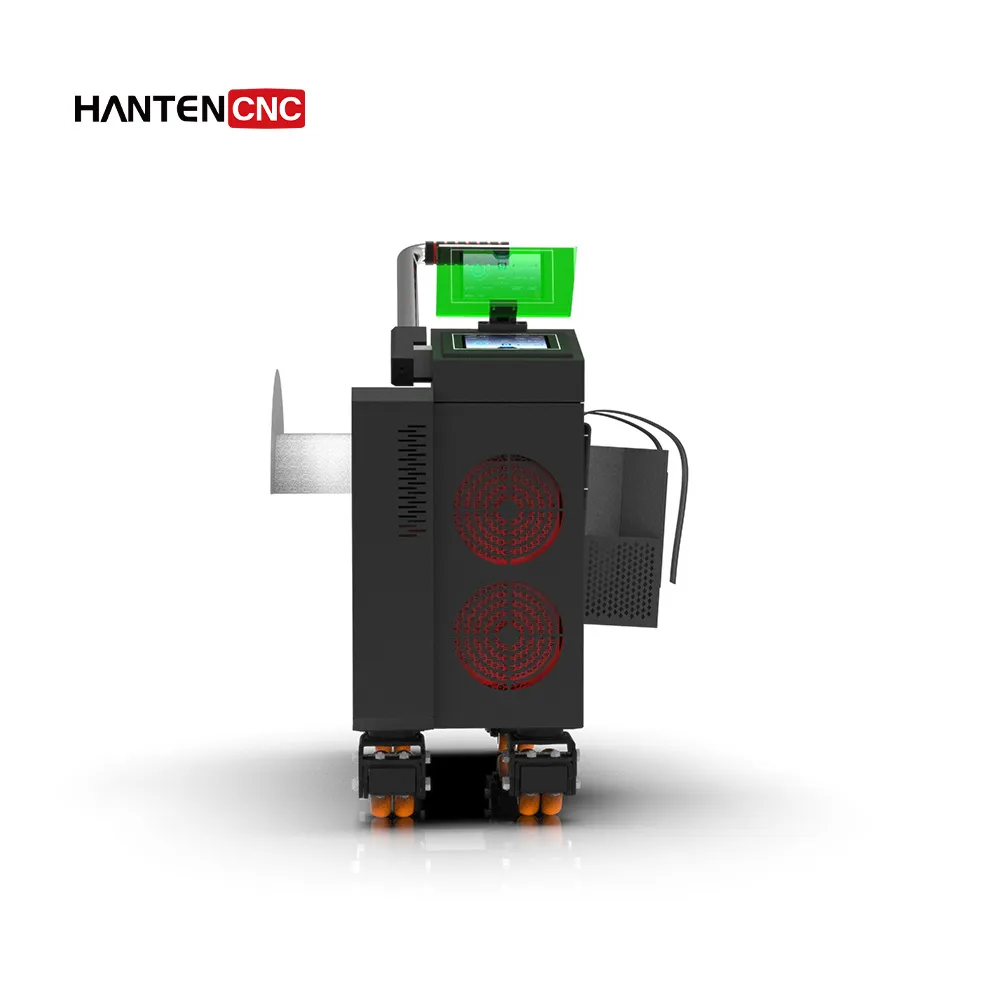

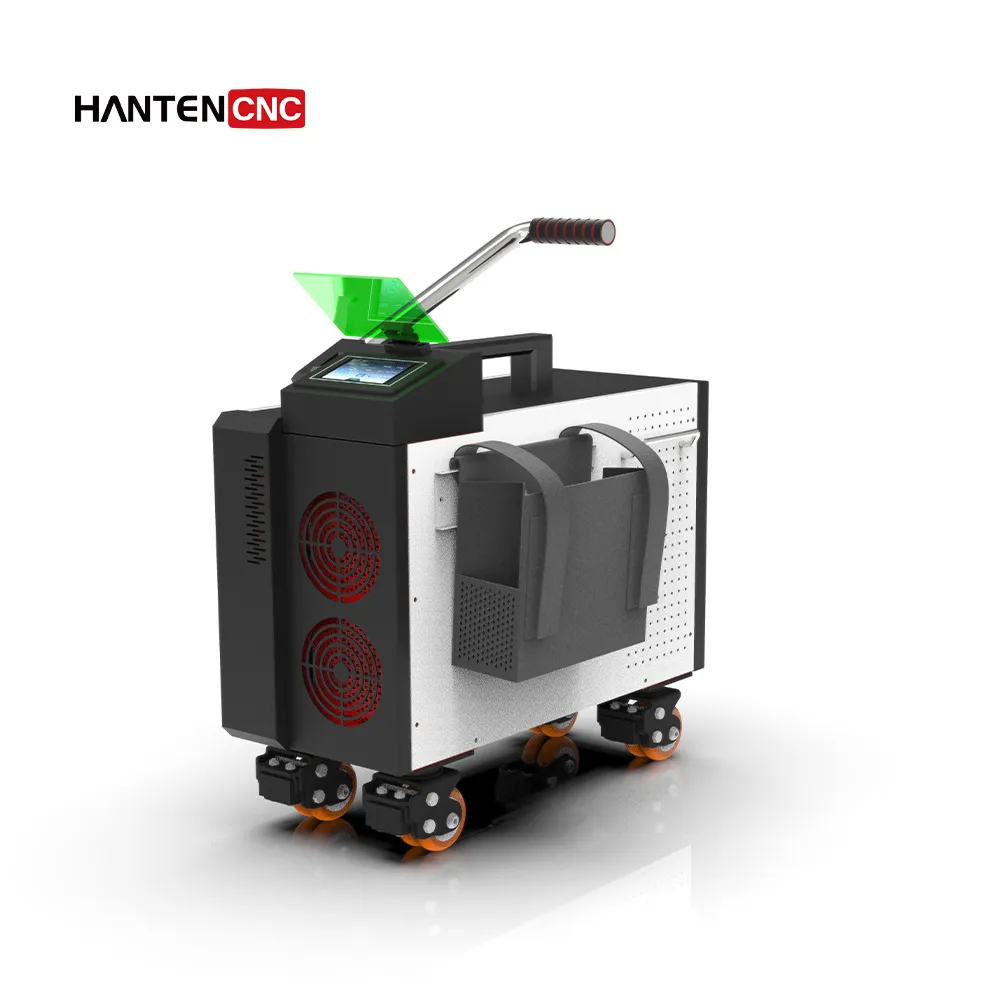

Our SEAGULL3™ features a luggage-type design, a 30° tilted screen, a rotating handle, four dual-swivel wheels, a control screen on the cleaner’s head, and a 1.5 kg cleaning gun. These features make it highly suitable for mobile work in a variety of environments, such as workshops and construction sites, where flexibility and movement are essential.
It is also well-suited for transportation in vehicles, offering durability and stability even during bumpy rides, ensuring safe and secure transit to any worksite.
500W High-Power Performance
With its 500W high-power laser system, the SEAGULL3™ delivers faster, more efficient cleaning, allowing it to handle a wider variety of materials and tasks, making it perfect for both heavy-duty and precise cleaning applications on-site.
SEAGULL3™ 500W Handheld Laser Rust Removal Features
Effortless Mobility and Flexible Cleaning Solution
The SEAGULL3 features an air-cooling system instead of a water-cooling system. It’s compact and adaptable. Cabinet ventilation aligned to laser heat dissipation standards delivers even better cooling.
SEAGULL3™ features a luggage-type design, a rotating handle, and four dual-swivel wheels, making it easy and safe to move seamlessly. These features ensure convenient, portable, and flexible cleaning operations without compromising efficiency.

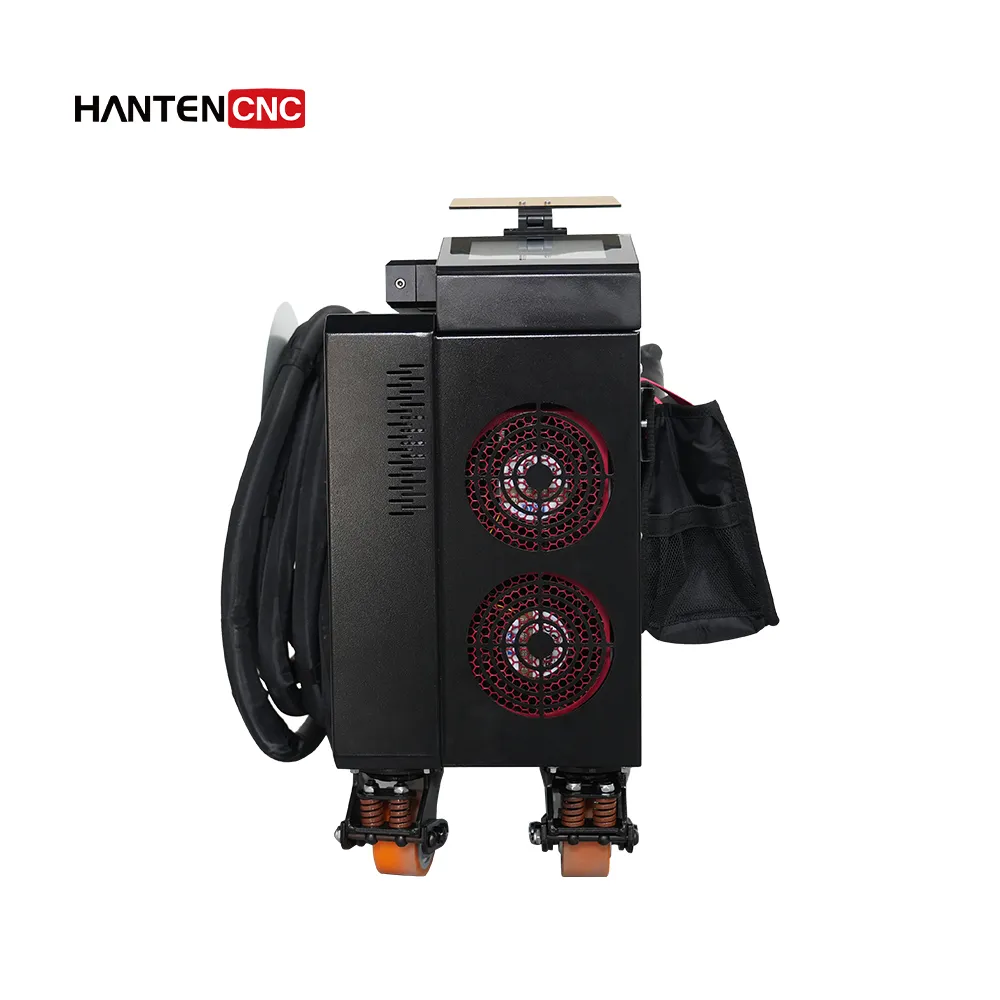

Efficient Air Cooling
To manage heat effectively, the SEAGULL3 features an advanced air-cooling system. Test data shows that after 30 minutes of continuous operation, the core temperature remains in a safe range.
This eliminates the need for bulky water-cooling systems, maintaining both compactness and reliability.
Improved Control and an Easy-to-Use Design
The SEAGULL3™ has two control screens: one on the machine and the other on the laser cleaning gun.
The machine’s control screen is positioned at the front of the cabinet and has a 30° tilt design. This offers an improved user experience that better aligns with user habits.
This screen has a 3 mm acrylic panel. It helps protect against damage.
Anti-bumping | High Load Bearing | Strong Stability
SEAGULL3™ is equipped with dual swivel wheels, which can effectively reduce vibrations, and the wheels with brakes make the wheels stay firmly and safely, ensuring safety and stability during operation.
The dual-wheel design minimizes the turning radius. This allows for easy movement in tight spaces.
Also, 4 dual-swivel wheels can bear the weight of the machine and adapt to long-term bumpy transportation. It is designed to adapt to uneven or rough ground for stable movement.
Portable and Lightweight for Long Use
Our 500W laser cleaning Gun is lightweight and portable, under 1.5 kg. It’s perfect for long-term handheld cleaning.
Its portable design lets it fit various shapes, sizes, and workpiece locations easily.
Also, the portable design makes it suitable for on-site cleaning or hard-to-reach areas.
Our laser cleaning machine, SEAGULL3™, features high-damage threshold galvanometer lenses and high-transmittance field lenses.
That ensures reliable long-term operation for high-power laser cleaning applications.
Non-Damaging Cleaning
Pulse laser releases high energy in a very short time and quickly removes target substances such as rust, paint, etc.
Due to the small heat accumulation, it can avoid thermal deformation and changes in materials and does not damage the substrate.
Our 500w pulse laser rust removal is very suitable for precise cleaning of material surfaces.
Faster Cleaning | Higher Efficiency | Deeper Cleaning
The higher power, 500W, means faster cleaning of tougher contaminants, such as heavy rust and paint, reducing overall cleaning time.
With 500 watts of power, our laser rust removal can handle larger surface areas more efficiently, which is ideal for large-scale cleaning tasks.
500W portable laser cleaner, SEAGULL3™, enables better penetration. It’s more effective at removing stubborn and deeply embedded contaminants.
Robust Frame Design
The SEAGULL3 features a new frame structure design. This improves stability and allows for easier customization compared to older enclosed models. Its sturdy frame supports heavy loads and vibrations. This ensures reliable performance over time, even in tough conditions. It also provides excellent protection.
Universal Voltage Compatibility (110V/220V)
SEAGULL3™ supports both 110V and 220V universal voltage.
It works seamlessly in most regions worldwide that use 220V and is also compatible with 110V power standards in countries like the United States and Canada.
There is no need additional transformer, it is allows for direct power connection and hassle-free operation.

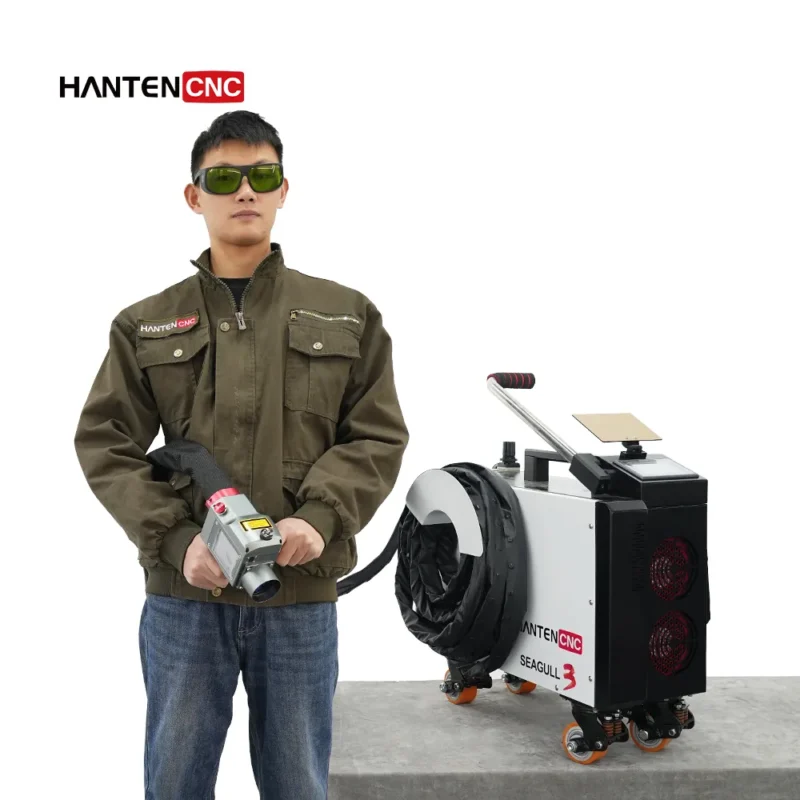

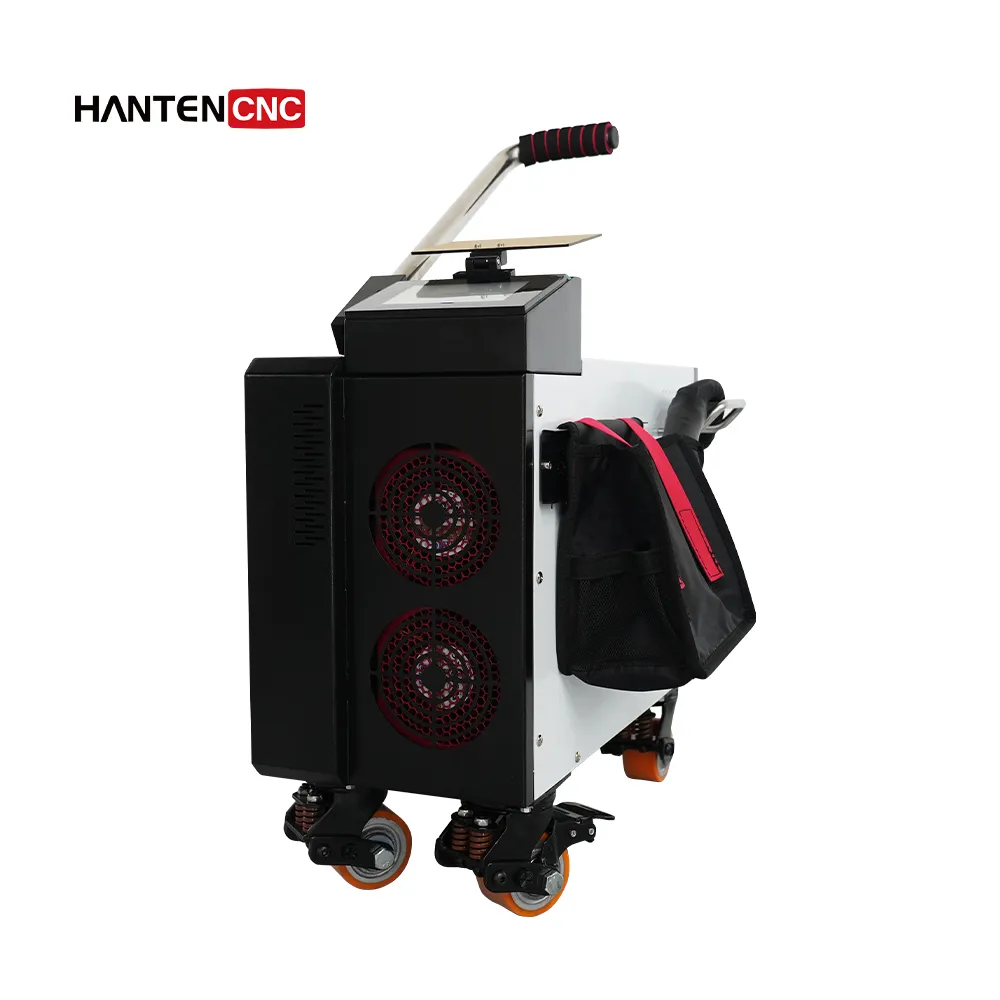

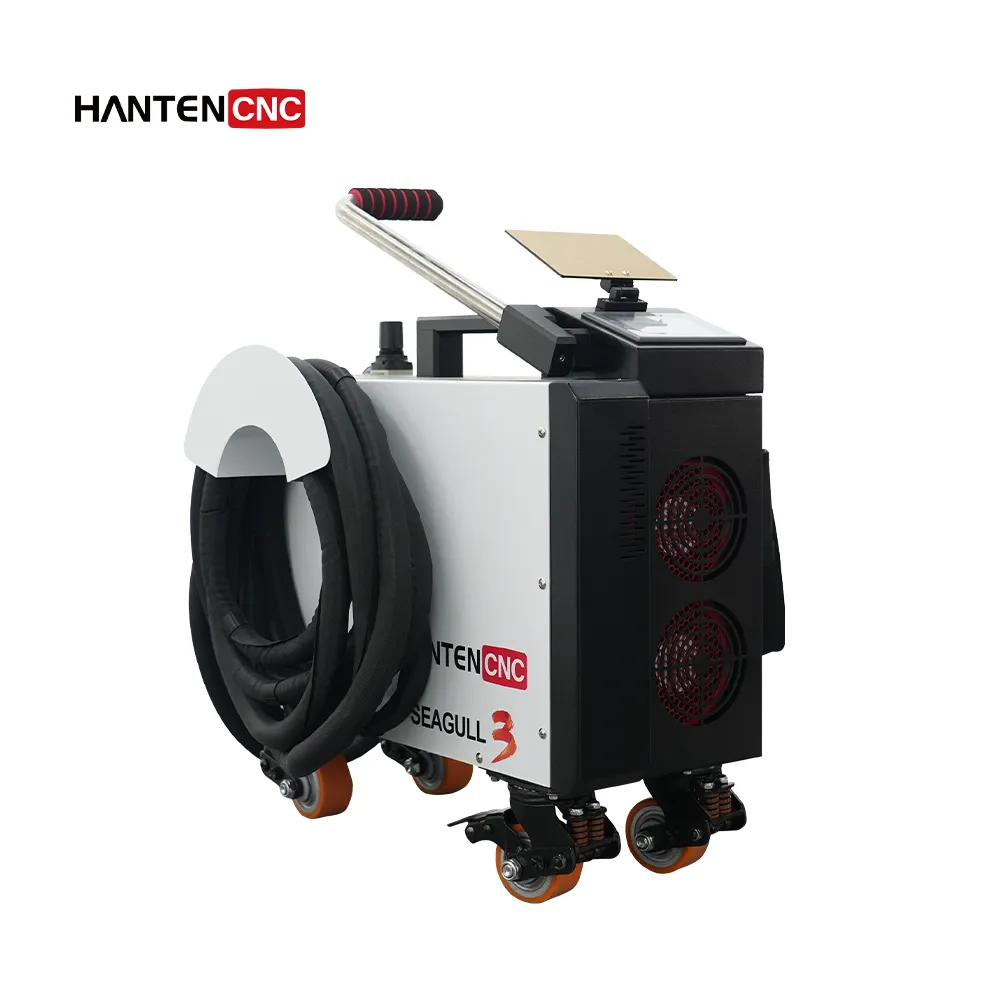

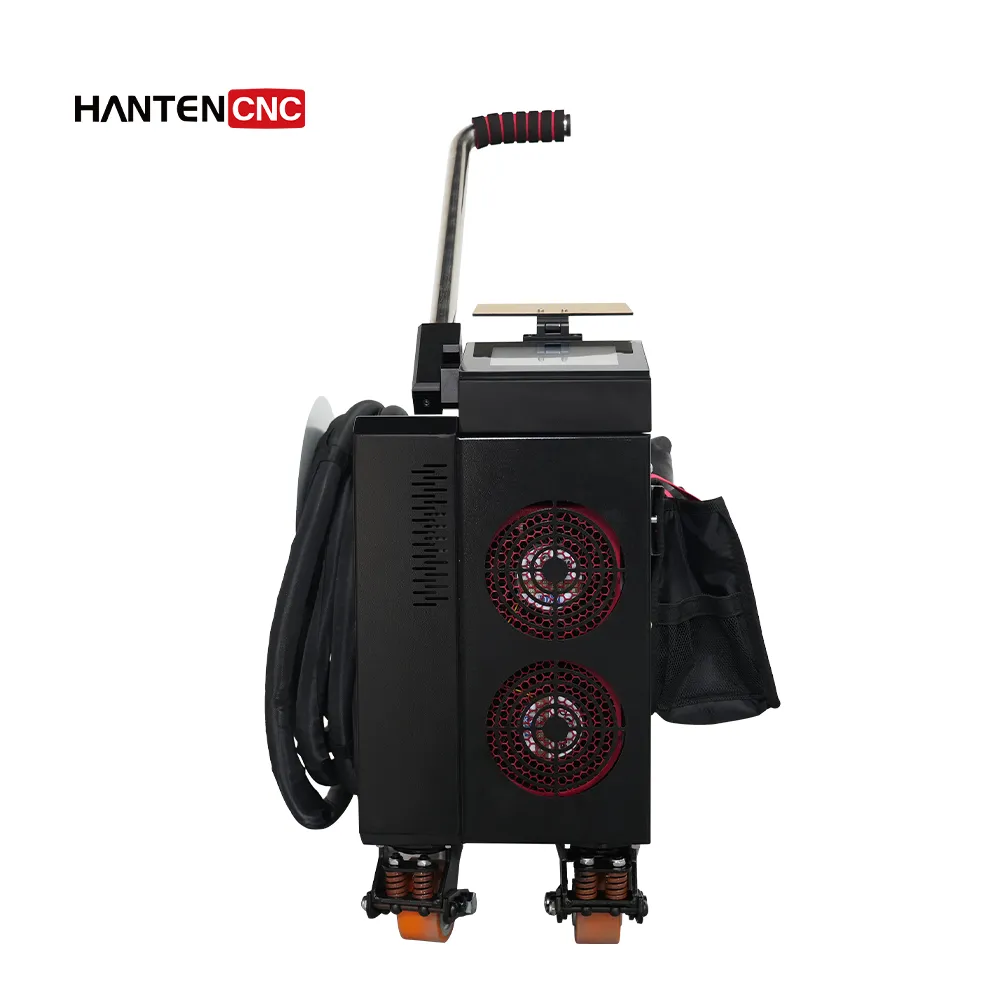

SEAGULL3™ 500w Handheld Laser Rust Removal Machine Display
SEAGULL3™ Handheld Laser Rust Removal Components
SEAGULL3™ Handheld Laser Rust Removal Dimensions
SEAGULL3™ 500W Pulse Laser Cleaning Gun
Our 500w laser cleaning gun adopts a built-in database system; it can save and edit 100 sets of process data.
The process data include parameters like laser power, frequency, pulse duration, cleaning speed, and beam focus, which can tailored to suit different materials (e.g., metal, plastic) or contaminants，such as metal, wood, rust, paint, etc.
For various cleaning tasks, saved process data allows for a quick transition between different jobs without needing to reconfigure the system. For instance, one set of process data can be optimized for laser rust removal, while another can be specifically designed for gentle paint cleaning.
Our laser cleaning head adopts the design of sealing dust prevention for the external optical path and blowing air curtain at the front end of the field lens.
That effectively prevents dust and impurities generated during the cleaning process from entering the laser cleaning head, reduces equipment downtime caused by impurity interference, and thus achieves continuous and efficient cleaning.
SEAGULL3™ Laser Rust Removal Offers 9 Scanning Modes
SEAGULL3™ laser rust removal offers 9 scanning modes to meet various types of cleaning tasks. Each scanning mode has its unique features and is suitable for different cleaning requirements.
These scanning modes include straight line mode, rectangular mode 1, rectangular mode 2, circular mode, sinusoidal mode, spiral mode, free mode, ring mode, and rotation mode.
Some scanning modes are gentle, suitable for materials requiring a smooth surface with minimal residue after cleaning. Others are more powerful, suitable for removing tough dirt or coatings.
You can select the scanning mode by clicking on the “Scanning Mode” option on the interface.
By choosing the suitable cleaning mode, you can ensure minimal traces and enhance the product’s appearance and quality, which is especially crucial in industries such as automotive manufacturing, aerospace, electronics, and more.
SEAGULL3™ Supports 16 Different Languages
SEAGULL3™ supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 16 other languages.
You can switch these languages directly on the machine’s interface. We also provide customized language services if you require any other languages.
SEAGULL3™ Pulsed Laser Rust Removal Parameters
| Model | HTCM500 |
|---|---|
| Laser source | JPT |
| Supply voltage | AC 110V/220V 50/60Hz, No Transformer Required |
| Laser power | 500W |
| Pulse frequency range | 1-4000khz |
| Maximum pulse energy | 1.5mJ / 15mJ |
| Fiber cable length | 10 Meters |
| Laser wavelength | 1064nm |
| Operating temperature | 5℃~40℃ |
| Working environment humidity | ≤80% |
| Laser working mode | Pulse |
| Cooling system | Air cooling |
| Scanning width | 0-145mm Optional |
| Machine Dimensions | 495mm*353mm*608mm |
| Laser Cleaning Gun Weight | <1.5Kg |
| Machine Weight | 50kg |
| Operation Mode | Handheld |
Pulse Laser Cleaning Effects: Before vs. After
Customer Visits
Customer Reviews
Certificates
HANTENCNC Partnerships
HANTENCNC Service
HANTENCNC’s laser cleaning machines, SEAGULL3™, are CE and FDA-certified. We offer a 2-year warranty for the laser source and a 1-year warranty for the whole machine, sample testing, OEM customization, remote guidance, and lifelong after-sales support.
