HANTENCNC’s laser rust removal machine can efficiently clean rust, resin, paint, graffiti, oil, dirt, coatings and oxide layers from the object’s surface without causing any damage.

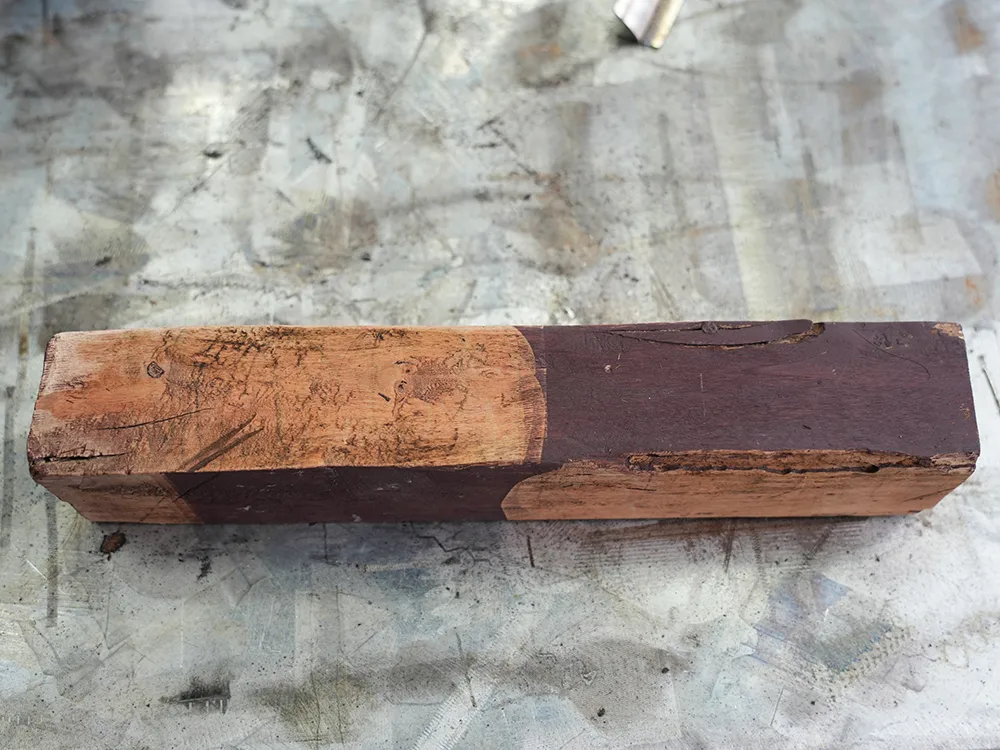

With a specialized paint removal function tailored for wood surfaces, our laser stripping machine for wood ensures thorough cleaning.
HANTENCNC’s laser rust removal machine offers advantages such as efficiency, minimal environmental impact, enhanced safety features, and seamless automation, making it the ideal choice for your surface cleaning needs.
Laser Rust Removal Machine Demonstration Video

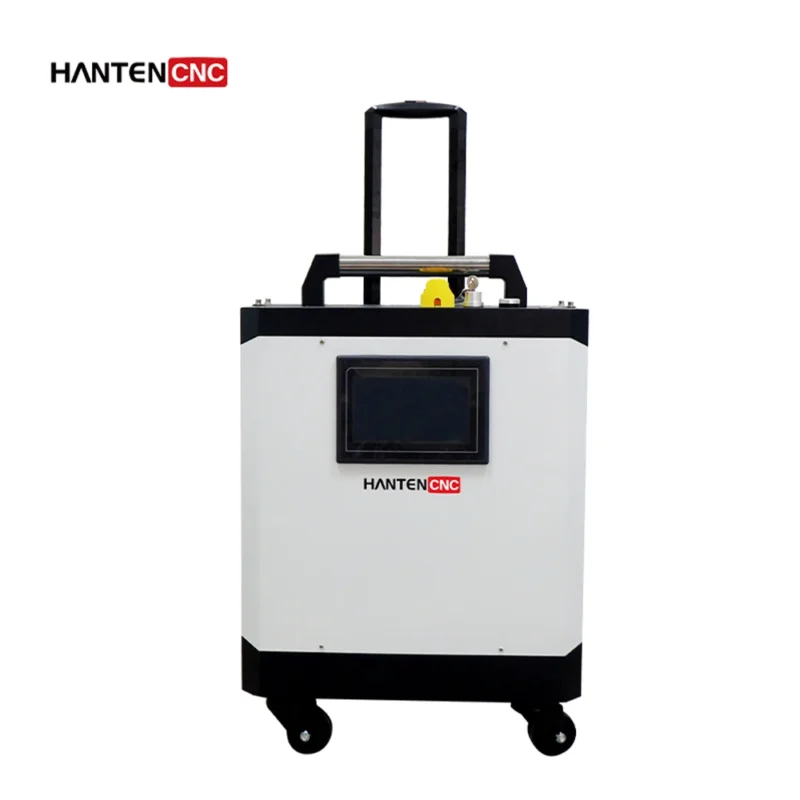

The Display of Laser Rust Removal Machine
Component Details Display of Laser Rust Cleaning Machine
Dimensions of Laser Rust Removal Machine
200W Laser Rust Removal Gun
The 200W laser cleaning head has a lot of advantages, such as non-contact, more precise cleaning, no consumables, safety, environmental protection, etc.
Our portable laser cleaner uses a hand-held cleaning head and weighs less than 0.75Kg which is suitable for long hours of work. We also adopt a dust-proof sealed design, which can effectively prevent dust and maintain a clean working environment.
Air-blowing Fixture
The HANTENCNC 200W laser cleaning head is equipped with the Air-Blowing Fixture.
This fixture uses high-pressure airflow to remove dust, dirt, and leftover particles during laser cleaning, helping to improve cleaning results. It also protects the protective lens from dust and extends its lifespan. When used with inert gas, it can reduce oxidation on metal surfaces and keep them smooth. This helpful tool is popular among customers and improves the overall cleaning quality.
-
Remove dust and impurities:
During the cleaning process, the air-blowing fixture uses high-pressure airflow to blow away dust, contaminants, and residues to ensure that the surface is clean. This work is crucial to the effect of laser cleaning because if there is any dust or impurities on the surface of the workpiece, it will affect the cleaning and even lead to incomplete cleaning.
-
Protect protective lens:
When the laser cleans the materials, the dust generated by the laser beam will stick to the protective lens, which will cause contamination to the protective lens, affect the cleaning effect, and reduce the lifespan of the protective lens. In that case, HANTENCN’s air-blowing fixture can avoid dust contamination during the cleaning process.
-
Reduce oxidation reactions:
The air-blowing fixture can reduce oxidation reactions by jetting inert gas, creating a gas-protective film, which is very important for some metal materials that are easily oxidized, preserving the surface’s smoothness and quality. Many customers told us that they are satisfied with the upgraded cleaning machine’s cleaning effect.
Safety Lock
HANTENCNC’s 100W/200W pulse laser cleaning head is equipped with a safety lock to prevent accidental operation effectively.
The laser will only emit when the safety lock button is pressed. If the button is not pressed, the laser cannot be triggered, ensuring operator safety.
300W Laser Rust Removal Machine Gun
Laser Distance Sensor
The HANTENCNC 300W pulse laser cleaning gun features a built-in laser distance sensor. The sensor detects the distance between the laser gun and the workpiece automatically.
When no object is detected in front of the cleaning head, the sensor displays “999”, and the laser will not emit even if the trigger button is pressed, preventing accidental activation and enhancing safety.
Focal Distance Display
HANTENCNC’s 300W laser cleaning gun equips a digital focal distance display. The focal distance display shows the real-time distance from the laser head to the focal point.
After you place an order, our technicians will measure and provide you with the recommended focal distance before delivery. Once the machine arrives, the focal distance display shows real-time distance via the built-in sensor, helping you find the focus quickly and boost cleaning efficiency.
laser Rust Removal Gun
Hand-held design, in line with ergonomics. This laser rust removal gun is suitable for long hours of work.
Laser Rust Removal Machine Features
-
Control Switch
The laser metal cleaner can be turned on with one button. It is easy to operate and saves time.
-
Multi-function Display
The laser machine to remove rust is digitally designed. The machine is easy to set up and supports multi-language customization.
-
Universal Wheel
There are 4 universal wheels on the bottom of the chassis, which are both portable and drawable.
Pulse Laser Rust Stripper Advantages
High-efficiency
HANTENCNC’s laser paint and rust remover can remove rust with a laser on the surface of objects in a very short time. The cleaning speed is fast, and the efficiency is high.
Environment-friendly
The rust cleaning laser machine does not require any chemicals during the cleaning process. It will not produce waste gas, wastewater, and other pollutants during the cleaning process.
Our laser rust removal machine has good energy-saving and environmental protection effects.
Does Not Damage to Base Material
The pulse laser cleaning can precisely control the cleaning depth without causing any damage to the surface of the object.
The pulse laser cleaning machine can be used to clean various materials, including metal, wood, ceramics, stone, and so on.
9 Cleaning Modes of Laser Rust Removal Machine
The operation interface of the HANTENCN’s pulse laser rust removal machine offers 9 cleaning modes:
- Straight Line Mode
- Rectangular Mode 1
- Rectangular Mode 2
- Circular Mode
- Sinusoidal Mode
- Spiral Mode
- Free Mode
- Ring Mode
- Rotation Mode
You can switch these modes by clicking on the “Scanning Mode” option on the interface.
Some cleaning modes are gentler, suitable for materials with higher surface requirements, and can reduce or eliminate traces after cleaning. Some cleaning modes are more powerful and ideal for removing stubborn dirt or coatings.
Choosing the right cleaning modes ensures minimal traces and enhances the appearance and quality of the product, which is especially crucial in industries like automotive manufacturing, aerospace, electronics, and more.
Laser Rust Removal Machine Support 16 Languages
HANTENCNC’s laser rust removal machine currently supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 16 other languages.
You can easily switch between these language options directly on the machine’s interface. If you require any other languages, we also provide customized language services.

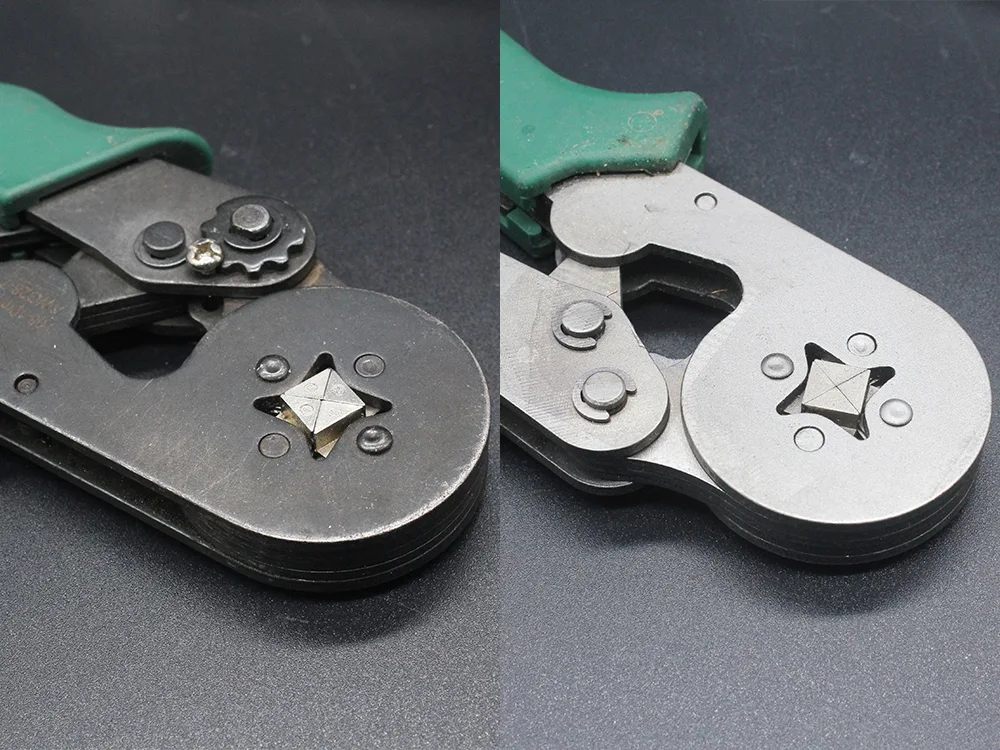

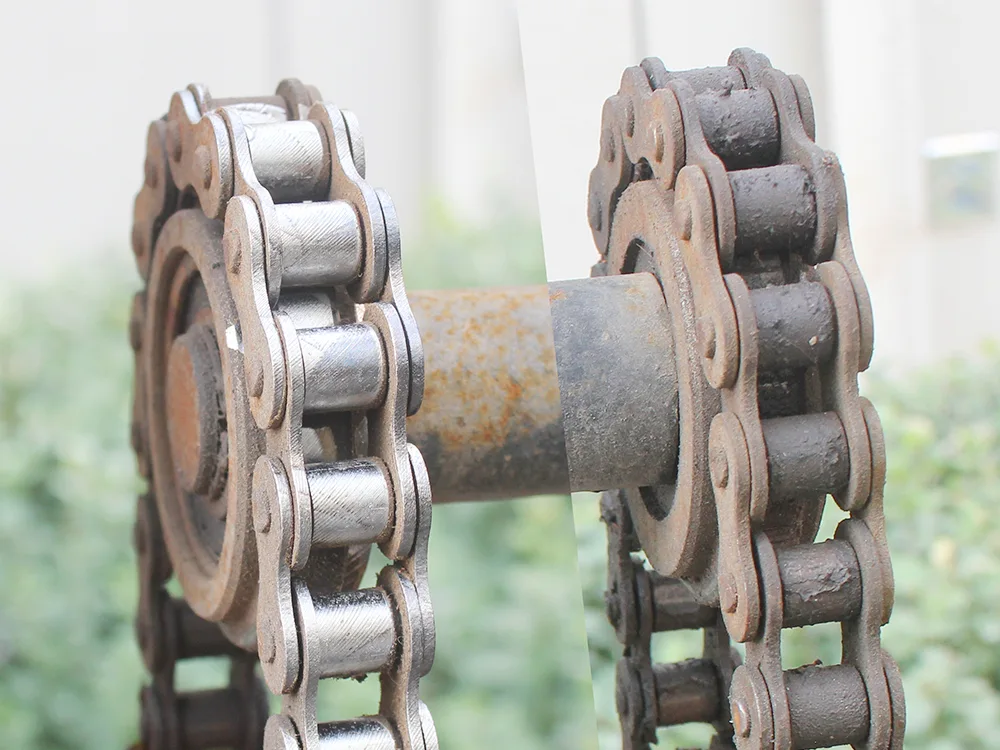

Laser Rust Cleaner Machine Effects: Before vs. After
Applications of Laser Cleaning Machines
Laser Rust Cleaning Machine Parameters
Laser Cleaning Head Parameters
Model | HTCM200 | HTCM300 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Laser Power | 200W | 300W | ||||||||||
Pulse frequency range | 1-4000khz | 1-4000khz | ||||||||||
Maximum pulse energy | 1.5mJ / 5mJ | 1.5mJ / 5mJ / 15mJ | ||||||||||
Pulse Width | 2-500ns | 2-500ns | ||||||||||
Fiber Cable Length | 5 meters | 5 meters | ||||||||||
Central Wavelength | 1064nm | 1064nm | ||||||||||
Cleaning head | Own brand | Own brand | ||||||||||
Control System | Own brand | Own brand | ||||||||||
Cleaning range | 105*105mm
140*140mm 160*160mm 185*185mm 300*300mm (Optional) |
105*105mm
140*140mm 160*160mm 185*185mm 300*300mm (Optional) |
||||||||||
Power Consumption | 800W | 1200W | ||||||||||
Power Supply Voltage(DC) | 48V | 48V | ||||||||||
Cooling Method | Air-cooled | Air-cooled | ||||||||||
Anti-reflective protection | Have | Have | ||||||||||
Power Requirements | Single Phase 110V/220V± 10%, 50/60Hz AC | Single Phase 110V/220V± 10%, 50/60Hz AC | ||||||||||
Ambient temperature range | 10-40 °C | 10-40 °C | ||||||||||
Package dimensions | 560*640*1000mm | 570*650*1030mm | ||||||||||
Machine net weight | 58kg | 57kg | ||||||||||
Laser Cleaning Head Parameters |
||||||||||||
Cleaning Head Weight | <0.75Kg | <1.25Kg | ||||||||||
Scanning Width | 0nm-100nm Optional | 0nm-145nm Optional | ||||||||||
Scanning Frequency | Not Less Than 300Hz | Not Less Than 300Hz | ||||||||||
Maximum Scan Line Speed | About 30m/s | About 30m/s | ||||||||||
Maximum Scanning Speed | 20000mm/s | 20000mm/s | ||||||||||
Field Lens Focal Length | 210mm | 210mm(160mm/254mm/330/420mm Optional) |
