Demonstration Video
Backpack Laser Cleaning Machine Details

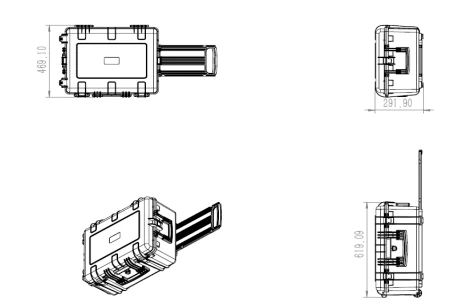

Machine Dimensions

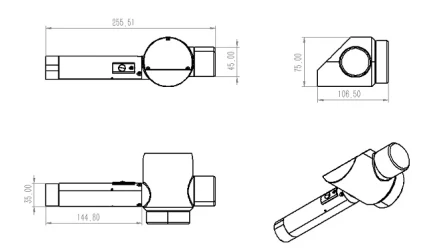

Laser Cleaner Head Size
Handheld Fiber Laser Cleaning Machine Parameters
| Model | HTC100 |
|---|---|
| Laser Power | 100W |
| Pulse frequency range | 1-4000khz |
| Maximum pulse energy | 1.5mj |
| Pulse Width | 2-500ns |
| Delivery cable length | Factory 5 meters |
| Laser wavelength | 1070nm |
| Cleaning head | Own brand |
| Control System | Own brand |
| Scan line diameter | 160mm/210mm/254mm/330mm/420mm（Optional） |
| Cooling system | Air cooling |
| Beam diameter | 4.0±0.5mm |
| Anti-reflective protection | Have |
| Power Requirements | 220V |
| Ambient temperature range | 10-40 Degrees |
| Machine size | 740*380*530mm |
| Net weight | 33kg |
Key Function Description
- 220V AC power interface
- The power switch, that is, the power-on and power-off buttons of the washing machine
- Emergency stop knob
- Trigger switch
- Power-on indication
- Foot switch
- Handle button, when the indicator light is green, it means that the laser can be emitted
Fiber Laser Rust Cleaning Machine Features
- It can work and run offline, and it can be cleaned when it is powered on.
Laser collimation output (4mm spot) - The laser cleaning head is extremely lightweight, weighing only 620g (without the armored cable). The fiber laser rust cleaning machine can be operated by hand for a long time.
- Patented red light-assisted focusing technology. It can adjust the focus position according to different field lenses.
- Wireless control, parameter setting, and light control can be realized remotely. And parameters can be updated anytime.
- In the portable trolley case design, the weight of the whole machine is 28kg. It can be checked by high-speed rail or air.
- Super integrated injection molding chassis, cushioning design, stable structure, wear-resistant, shockproof, and drop-resistant.
- The cleaning head, lens, and control can all be put into the box. It can reduce external friction and better protect the cleaning head and lens.
Handheld Fiber Laser Cleaning Machine Advantages
8 Cleaning Modes
The operation interface provides 8 cleaning modes, which can be switched by clicking the scan mode option on the remote control:
① Linear mode
② Rectangular mode
③ Circular mode
④ Sine mode
⑤ Double chord mode
⑥ Text mode
⑦ Lissa mode
⑧ Archimedes spiral
Different Supports Languages
The laser cleaning system independently developed by HANTENCNC supports Chinese, English and Japanese.
Samples Display
Main Industry Applications of Laser Machine Market
Actual Cases and Customer Inspections
