HANTENCNC’s 1000W-3000W continuous laser cleaning machines utilize laser beams to remove rust, paint, oxide layers, and contaminants from surfaces without causing damage. They are widely used in various applications such as manufacturing, automotive, electronics, etc.
Powered by continuous laser technology and a lightweight double pendulum cleaning head and featuring eight customizable modes, HANTENCNC’s continuous laser cleaning machines adapt easily to different tasks, meeting all your cleaning needs effortlessly.
HANTENCNC’s continuous laser cleaning machines utilize advanced technology, ensuring easy operation, rapid performance, cost-effectiveness, and precise cleaning capabilities. All of HANTENCNC’s 1000W-3000W laser cleaning machines are certified by CE and FDA certificates.
As a professional laser cleaning machine manufacturer, HANTENCNC has provided laser cleaning solutions globally for over 19 years. Our expertise and dedication have established us as a reliable choice in the industry.
Trust in HANTENCNC, your dependable partner in laser cleaning solutions! If you have a purchasing need for continuous laser cleaning machines, feel free to contact us anytime!
Demonstration Video of Continuous Laser Cleaning Machine
Components of the Continuous Laser Cleaning Machine
Continuous Laser Cleaning Machine Display
Continuous Laser Cleaning Machine Dimensions
Laser Cleaning Head Display
6 Cleaning Modes of Laser Cleaning Machine
Different cleaning modes can cover different cleaning areas and methods. Choosing the most suitable cleaning method can thoroughly clean dirt and improve cleaning quality.
The six cleaning modes are:
1.Straight Line
2.Vertical Line
3.Ellipse
4.Rotate Fill Circle
5.Straight Filled Rectangle
6.Line Filled Circle
24 Languages for Laser Cleaning Machine
Supports 24 languages and provides customized language services, allowing you to choose the desired language，HANTENCNC’s laser cleaning machine currently supports：
Chinese, Traditional, English, Türkiye, Russian, German, Czech, French, Thai, Arabic, Portuguese, Spanish, Korean, Japanese, Polish, Italian, Hungarian, Vietnamese, Greek, Ukrainian, Finnish, Norwegian, Croatian, Slovenian 24 languages and you can choose the desired language.

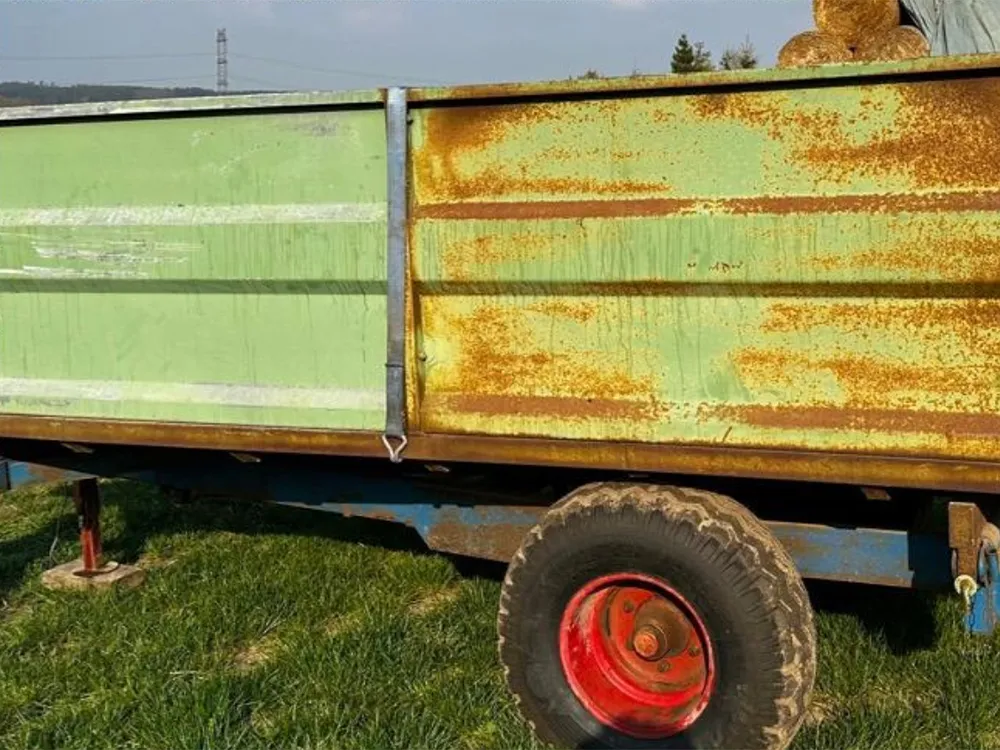

Continuous Laser Cleaning Effects: Before and After
Applications of Laser Cleaning Machine
Continuous laser cleaning machines are designed to clean a wide range of surfaces, effectively removing dirt, rust, and oil.
Continuous laser cleaning machines are versatile tools across many industries, offering precise and efficient cleaning solutions.
They can be widely used in industries such as aerospace, maritime, high-speed rail, automotive, mold manufacturing, nuclear power, marine engineering, hardware tools, and precision electronics.
HANTENCNC’s Continuous Laser Cleaning Machines are suitable for small-scale and large-scale operations, and the cleaning process can be automated.
Their advantages include:
- Fast cleaning
- Precise cleaning
- Without causing damage to the surface
- Environmentally friendly
Parameters of Continuous Laser Cleaning Machine
| MODEL | HTCL1000 | HTCL1500 | HTCL2000 | HTCL3000 |
| Laser source | Raycus / MAX / BWT | Raycus / MAX / BWT | Raycus / MAX / BWT | Raycus / MAX / BWT |
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Fiber cable Length | 10M | 10M | 10M | 10M |
| Clean Speed | ≤40 M²/Hour | ≤40 M²/Hour | ≤40 M²/Hour | ≤40 M²/Hour |
| Cooling Method | Water cooling | Water cooling | Water cooling | Water cooling |
| Warranty Period | 1 year | 1 year | 1 year | 1 year |
| Operating Voltage | 220V, Single Phase | 220V, Single Phase | 220V, Single Phase | 380V, Three Phase |
| Working Environment Temperature | 5-40℃ | 5-40℃ | 5-40℃ | 5-40℃ |
| Power Adjustment Rang | 0-1000W | 0-1500W | 0-2000W | 0-3000W |
| Dimensions | 1050*560*1060mm | 1050*560*1060mm | 1050*560*1060mm | 1050*560*1060mm |
| Weight | 165KG | 165KG | 165KG | 170KG |
PARAMETERS OF LASER CLEANING GUN |
||||
| Brand | Relfar | Relfar | Relfar | Relfar |
| Optical Interface | QBH | QBH | QBH | QBH |
| Laser Wavelength | 1070nm±20nm | 1070nm±20nm | 1070nm±20nm | 1070nm±20nm |
| Power | ≤3000W | ≤3000W | ≤3000W | ≤3000W |
| Collimating Focal Length | 50mm | 50mm | 50mm | 50mm |
| Focusing Focal Length | 800mm | 800mm | 800mm | 800mm |
| Scanning Width | Length 300mm * Width 300mm | Length 300mm * Width 300mm | Length 300mm * Width 300mm | Length 300mm * Width 300mm |
| Scanning Speed | 10-20000mm/s | 10-20000mm/s | 10-20000mm/s | 10-20000mm/s |
| Auxiliary Air Pressure | 20.5-0.8Mpa | 20.5-0.8Mpa | 20.5-0.8Mpa | 20.5-0.8Mpa |
| Same Optical Aperture | Ø22 | Ø22 | Ø22 | Ø22 |
| Weight | 0.96KG | 0.96KG | 0.96KG | 0.96KG |
Customer Visits
Customer Reviews
HantenCNC Service
Company Information
HANTENCNC has been specializing in designing and manufacturing CNC laser cleaning machines since 2005. We provide direct-factory sales and 24/7 online after-sales support for customers. If you need a laser cleaner, feel free to contact us anytime.
