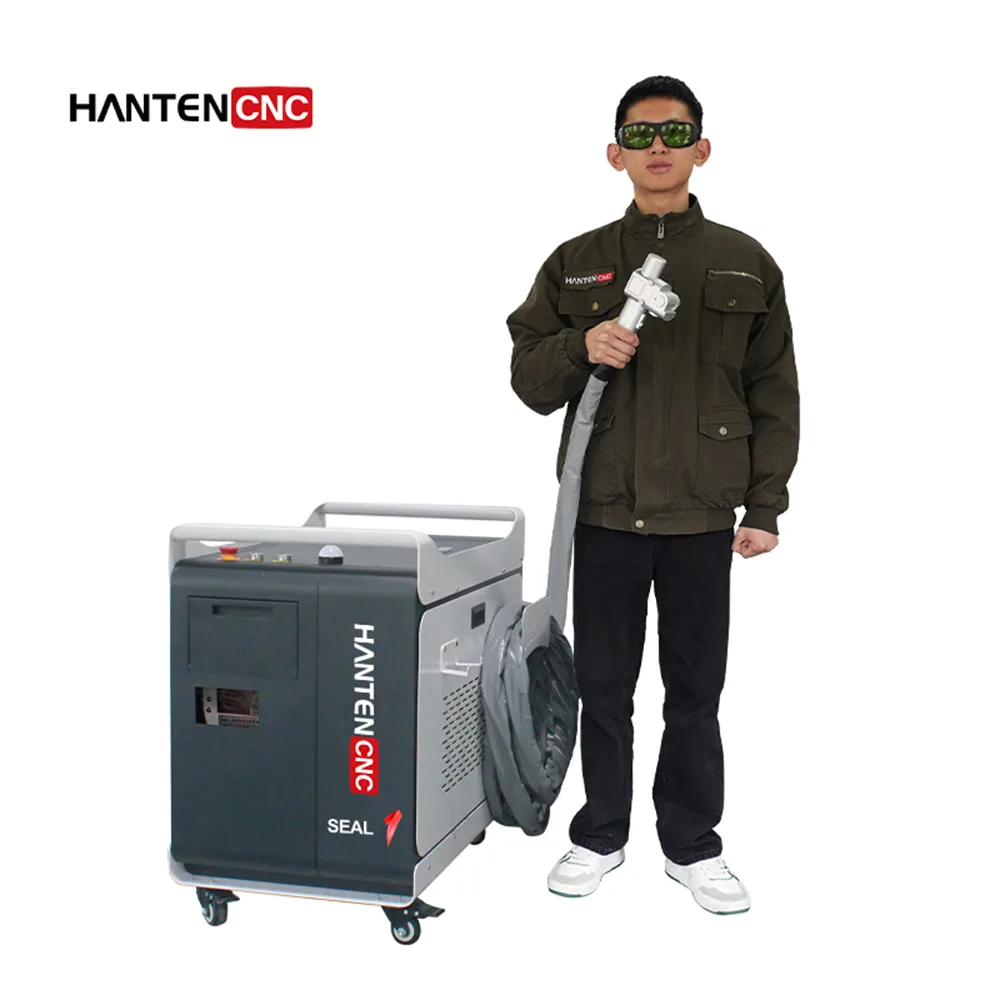

HANTENCNC’s continuous laser rust removal tool, SEAL1™, with power options of 1500W and 2000W, is designed for various types and thicknesses of rust, painting, oil, coating, etc.
SEAL1™ is ideal for massive and robust, non-conductive industrial materials.
SEAL1™ is perfect for most large-example jobs.
SEAL1™ has a large working area, non-contact cutting, non-heat, non-pollution, low noise, simplicity of operation, and safe and reliable characteristics.
SEAL1™ has extensive area scanning to complete a big job in a short time, which can effectively improve efficiency; SEAL™ can be carried out on steel structures, ships, bridges, and other large-scale jobs.
Continuous Laser Rust Removal Tools SEAL1™ Video

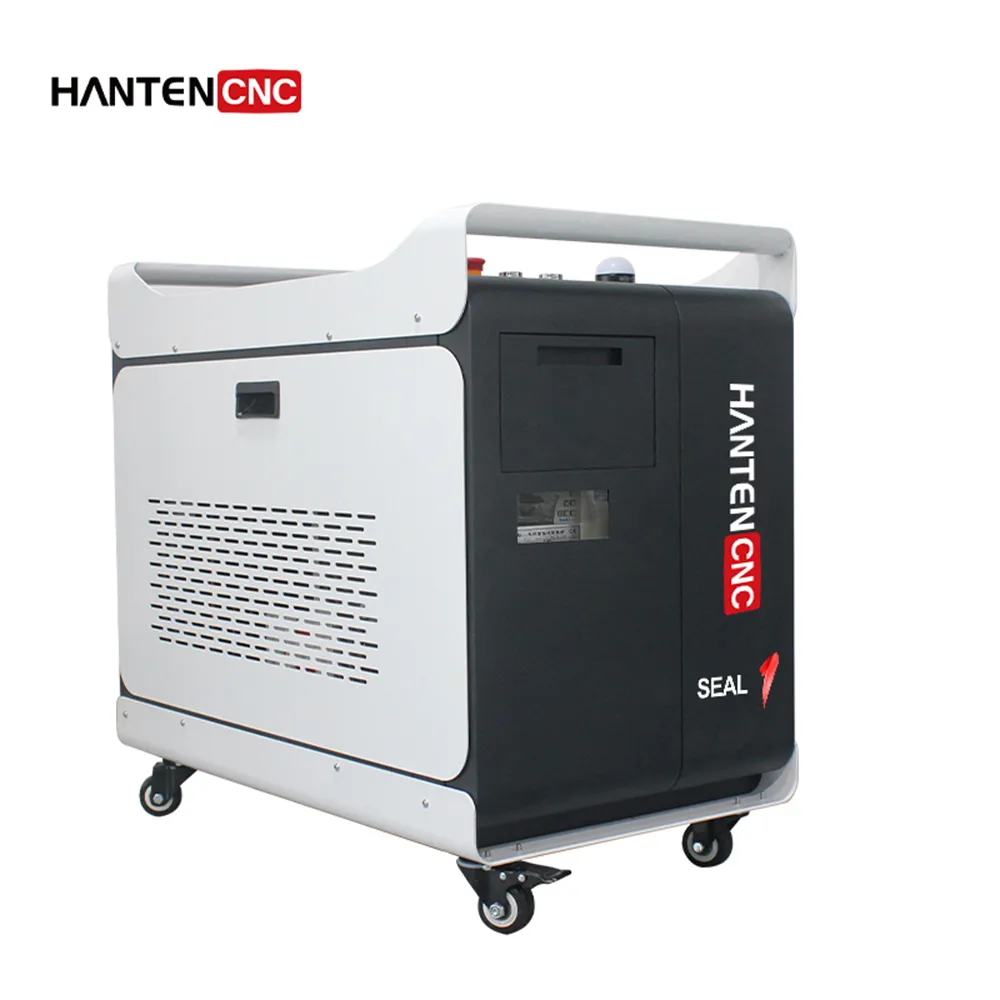

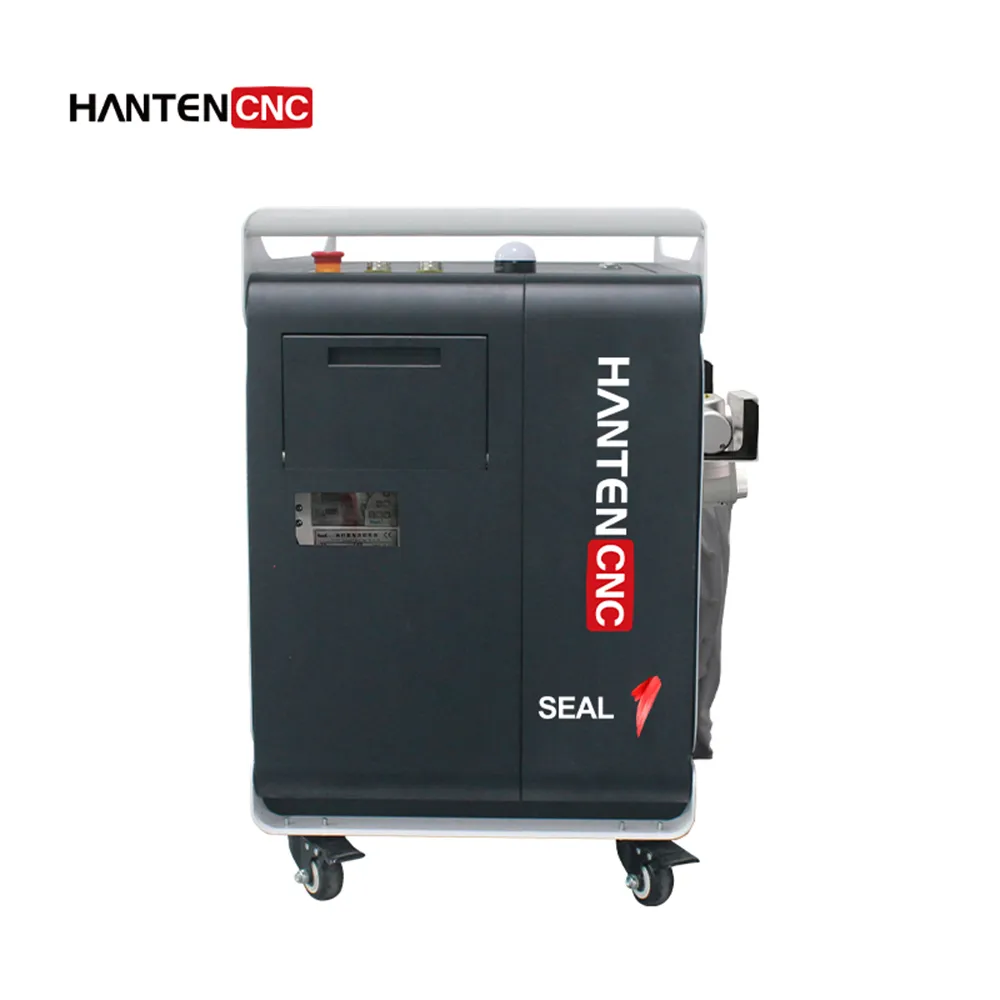

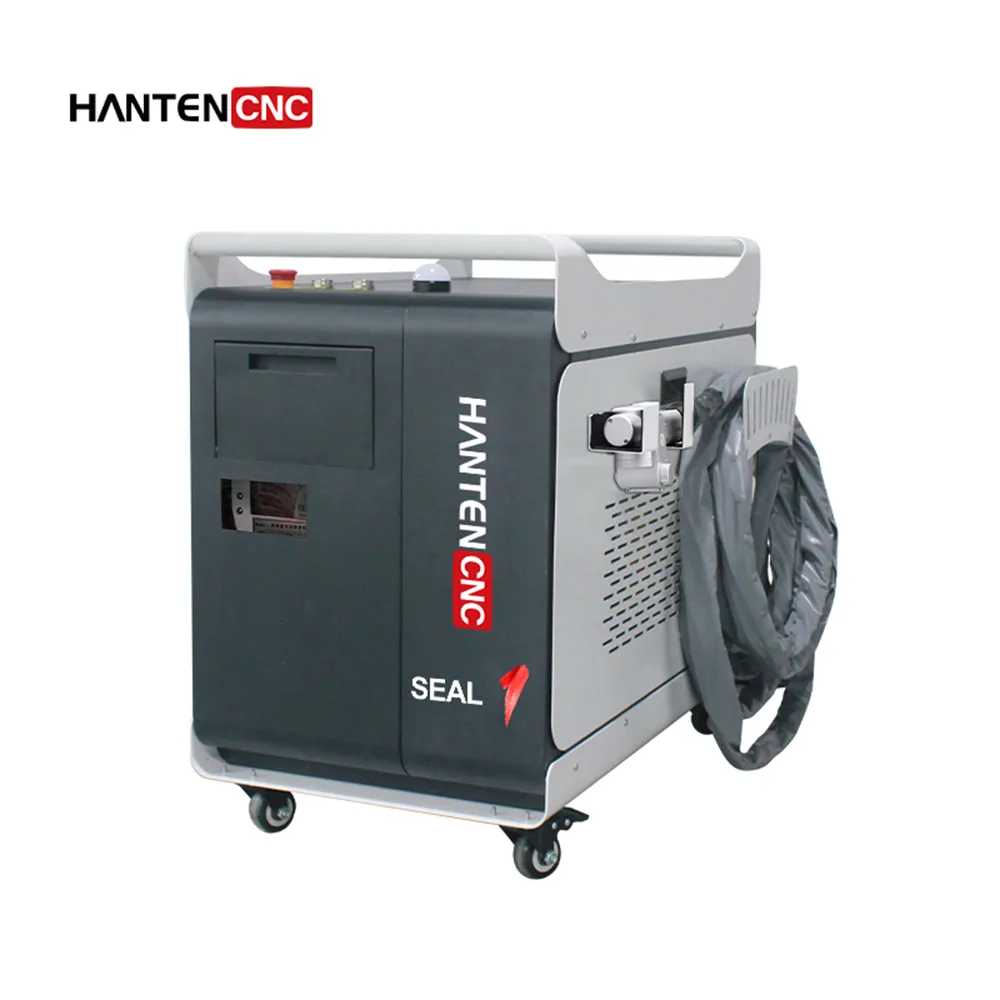

Mini Laser Rust Removal Machine - SEAL1™ Features
Mini, Compact, Flexible and Easy-to-carry
Our laser rust removal tool SEAL1™ is small and convenient, measuring 970 mm* 595 mm* 825 mm, and has two carrying handles on the top of the box for easy carrying.
This small, portable laser rust removal tool is suitable for customers who have large-scale metal cleaning tasks at various locations and require a flexible, easy-to-carry tool to meet their needs.
Space-saving, Durable, Suitable for Different Environments
The small retractable touchscreen can be folded into the machine’s cabinet, saving space. Another advantage of the retractable touchscreen is the screen itself is well-protected,
Thanks to the retractable touchscreen, which protects it from external damage, our laser rust remover SEAL1™ is durable and suitable for various environments.
Easy Maintenance, Stable Operation
Our laser rust removal tool, SEAL1™, adopts an internally integrated L-shaped water cooling unit that can be easily disconnected for maintenance if necessary.
The water cooling unit keeps the operation of the laser rust removal tool stable for a long time, even in tropical countries.
Well-organized Internal Wiring
Well-organized internal wiring minimizes the risk of electrical shorts or malfunctions, ensuring smooth and reliable operation.
Organized wiring simplifies maintenance tasks, making it easier for technicians to identify and address any issues that may arise.
Observation Window for Real-Time Chiller Monitoring
The SEAL™ laser cleaning machine has a special observation window so users can easily check the status of the built-in water chiller without opening the machine. Through this viewing window, users can clearly monitor:
* Real-time water temperature
Displays the actual circulating water temperature inside the chiller
* Alarm indicators
Automatically displayed when abnormal conditions occur.
Continuous 1500W 2000W Laser Rust Removal Display
Laser Rust Removal Machine SEAL1™ Components
Handheld Laser Rust Removal Dimensions
RelFar Dual-axis Laser Cleaning Gun – Option 1
The RelFar laser cleaning gun is built for efficient, large-scale industrial cleaning. It offers faster speeds and wider coverage.
High Efficiency | High Speed | Lightweight Design
Equipped with a high-performance optical scanning system, the RelFar laser cleaning gun delivers an exceptional 300mm × 300mm scan area, greatly reducing handling time for large-scale cleaning tasks.
Its rapid 20,000 mm/s scanning speed ensures uniform laser energy distribution across the target surface, effectively preventing striping artifacts and delivering a consistent finish.
Rated for up to 3000W CW laser power, it is fully capable of removing heavy rust and thick industrial coatings with ease.
It is engineered with a lightweight 0.96kg chassis and an ergonomic grip, greatly reducing operator fatigue and enabling comfortable, prolonged handheld operation.
9 Cleaning Modes Supported
You can choose the appropriate cleaning mode independently to achieve precise and efficient cleaning effects, and improve work efficiency. The 9 cleaning modes are:
1.Straight Line
2.Vertical Line
3.Ellipse
4.Rotate Fill Circle
5.Straight Filled Rectangle
6.Line Filled Circle, etc,.
30 Languages Supported
The RelFar laser rust removal gun provides customized language services in 30 languages, and you can easily switch between them directly on the machine interface.
RelFar laser rust removal gun currently supports：
Chinese, Traditional, English, Türkiye, Russian, German, Czech, French, Thai, Arabic, Portuguese, Spanish, Korean, Japanese, Polish, Italian, Hungarian, Vietnamese, Greek, Ukrainian, Finnish, Norwegian, Croatian, Slovenian, etc.
SUP32C Single-axis Laser Cleaning Gun – Option 2
Cost-effectiveness | Lightweight Design | Safety Lock
Cost-effectiveness: single-axis structure reduces overall equipment costs.
Ultra-Light (0.9kg): Mini QBH lock design. Lightweight and easy to maneuver in any angle.
Built-in Safety: Self-developed safety lock with single/double-click trigger modes. No accidental laser emission.
Flexible Air Blow: Sync/Async blowing modes. Saves gas and adapts to different surfaces.
Continuous 1500W 2000W Laser Rust Removal - SEAL1™ Parameters
| MODEL | HTCL1500 | HTCL2000 |
|---|---|---|
| Laser Source | Raycus / MAX / BWT | Raycus /BWT |
| Laser Power | 1500W | 2000W |
| Operational Voltage | Input Current | 220V | 220V | 29A |
| Rated Power | 6300W | |
| Operating Mode | Continuous Cleaning | Continuous Cleaning |
| Fiber Cable Length | 10 Meters (Customization Available) | 10 Meters (Customization Available) |
| Dimensions | 970mm*595mm*825mm | 970mm*595mm*825mm |
| Cooling System | Water-cooled | Water-cooled |
| Power Adjustment Rang | 0-1500W | 0-2000W |
| Laser Cleaning Gun | Relfar/SUP32C | Relfar/SUP32C |
| Optical Interface | QBH | QBH |
| Laser Wavelength | 1070nm±20nm | 1070nm±20nm |
| Collimating Focal Length | 50mm | 50mm |
| Focusing Focal Length | 800mm | 800mm |
| Scanning Width | Length 300mm * Width 300mm | Length 300mm * Width 300mm |
| Scanning Speed | 10-20000mm/s | 10-20000mm/s |
| Auxiliary Air Pressure | 20.5-0.8Mpa | 20.5-0.8Mpa |
| Same Optical Aperture | Ø22 | Ø22 |
| Machine Weight | 125kg | 134kg |
| Laser Cleaning Gun Weight | 0.96KG | 0.96KG |
Standard Accessories Included with SEAL1™
The accessories included with the SEAL1™ are listed here. Actual configuration may vary depending on application requirements and order specifications.
Note: Standard accessories may be adjusted based on different markets, safety regulations, customer requirements, or HANTENCNC policy updates. Please confirm the final configuration with our sales team before ordering.
Optional Accessories for SEAL1™
The following accessories are optional accessories and are not included in the standard accessories package. Please select according to your needs.
Air Compressor + Oil-Water Separator
First, the air compressor produces compressed air, which then passes through the oil-water separator, which removes moisture and oil, producing dry, oil-free air. Finally, the clean, dry air is delivered to the laser cleaning gun and blown across the protective lens to keep it free of dust, moisture, oil, and debris, helping the protective lens last longer.
Smoke Purifier
The smoke purifier removes dust and fumes from the air. Keeps your workspace healthier and your laser beam clear.
Protective Kit
Protective kit includes an apron, gloves, and shoe covers. It protects the operator from scattered laser light and spatter.
Tool Kit
The tool kit is a basic tool for daily maintenance, protective lens replacement, and electrical troubleshooting.
For high power, heavy dust, or continuous use, HANTENCNC recommends using both the air compressor and the oil-water separator. Fewer protective lens damages. Less downtime. Less hassle.
