100w Laser Cleaning Machine Video
Pulse Laser Cleaning Machine Display

Cleaning Laser Machine Features
- HANTENCNC independent design laser cleaning control card and program. Can control the laser parameters and scanning system parameters at the same time.
- Can be controlled wirelessly, and can achieve parameter setting and light control from a distance, and update parameters at any time.
- Support offline operation, power on can be cleaning work.
- Integrated design of key and handle, easy to use.
- Built-in scanning system adopts small high-speed motor and drive, the main body is integrated processing molding. strong. Dustproof and stable and durable.
- Can be downloaded in the mobile phone APP, and Apple mobile phone connection, through the phone debugging parameters.
- Multiple mode selection, support multiple languages.

Machine Cleaning Mode




Portable Laser Rust Removal Tool Advantages
- Easy to Carry and Move

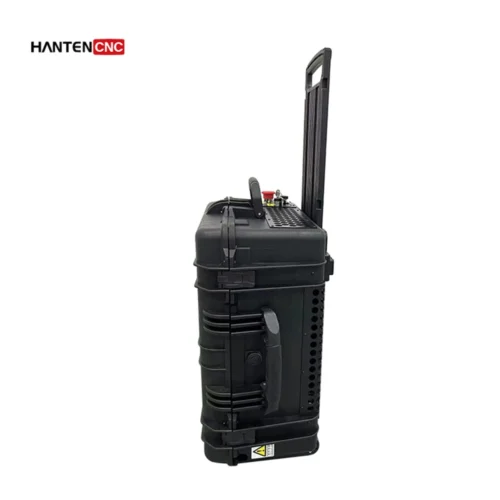

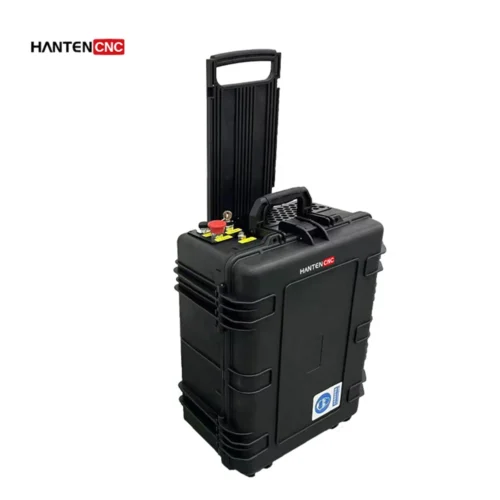

HANTENCNC independent research and development of mini small trolley laser cleaning machine. The chassis with black and white, more high-end atmosphere, handle using aluminium alloy material feel good. Front and rear respectively 2 handles.Lightweight at the same time solid and durable and convenient to move. Handle without angular design to make the handheld more energy-saving.


- Handheld and Trolley Use
Thickened aluminium alloy trolley design with directional wheels at the bottom of the case. portable and trolley for dual use, making the small mini pulse laser cleaner more portable and convenient.


- Handheld Design
HANTENCNC’s JPT pulsed laser cleaning head: weighing only 620g (without armouring), it can be hand-held for long periods of time.Patented red light assisted focusing technology. Which allows the focus position to be adjusted to the different field mirrors.The patented red light assisted focusing technology allows the focus to be adjusted to the different field mirrors. The laser collimation output (4mm spot) facilitates long hand-held operation .


Portable Laser Cleaning Machine Parameters
Model | HTC100 |
---|---|
Laser Power | 100W |
Pulse frequency range | 1-4000khz |
Maximum pulse energy | 1.5mj |
Pulse Width | 2-500ns |
Delivery cable length | Factory 5 meters |
Laser wavelength | 1070nm |
Cleaning head | Own brand |
Control System | Own brand |
Scan line diameter | 160mm/210mm/254mm/330mm/420mm(Optional) |
Cooling system | Air cooling |
Beam diameter | 4.0±0.5mm |
Anti-reflective protection | Have |
Power Requirements | 220V |
Ambient temperature range | 10-40 Degrees |
Machine size | 740*380*530mm |
Net weight | 33kg |
Laser Rust Cleaning Machine Advantages
- HANTENCNC self-developed trolley case small pulse laser cleaning machine. Has many advantages such as portable and lightweight. Flexible and adjustable parameters, wireless control. etc.. It can efficiently remove rust. stains. Oil and plating from the surface of the workpiece. Which can be applied to mechanical processing. Restoration of cultural relics. mould cleaning. Food processing. Electronic circuits and other industries. Using the characteristics of precise positioning to meet the processing of a variety of shape workpieces. And Achieve efficient cleaning effect.
- This model with Jephte MOPA cleaning type pulsed fibre laser source. With pulse width and frequency independently adjustable features. In the case of pulse width and frequency changes can still maintain a high and stable peak power output, to adapt to a wider range of cleaning scenarios.
- The HANTENCNC . Self-developed trolley case small pulse laser cleaning machine.Control system. Uses Jephte’s self-designed laser cleaning control card. And program.which can simultaneously control the laser parameters and. Scanning system parameters, and is equipped with a handheld wireless control card . The control card is connected to the cleaning machine by wireless means and can achieve remote control of the scanning shape. Scanning length, laser output power, frequency, pulse width and other parameters. The power supply interface is a standard three-plug type 220V AC power supply, which can be powered on for cleaning.
- HANTENCNC self-developed trolley case small pulse laser cleaning machine. For portable integrated design. Super integrated injection molding case, Cushion design, anti-crush anti-drop wear-resistant. Trolley case, can be carried by high-speed rail and airline check-in.
Sample Display

Main Industry Applications of Laser Cleaning Market



Practical Examples and Customer Inspections
