HANTENCNC’s integrated arm-type laser welding machine is a precision tool designed for repairing, restoring, and reinforcing injection, die-casting, and stamping molds. Its integrated swing-arm design allows for flexible welding, particularly in confined or hard-to-reach areas.
This machine supports both QCW and 1500W continuous laser sources：
-
200W/300W QCW laser
The QCW laser is ideal for welding heat-sensitive and easily deformable materials, such as 0.1–0.2mm thin iron plates. The QCW laser provides fine laser spots for high-precision welding without deformation.
-
1500W continuous laser
The 1500W continuous laser, enables deeper, faster welding for more demanding tasks.
An advanced control system ensures stable performance and high welding accuracy, making it well-suited for industries such as moulds, aerospace, and automotive manufacturing.

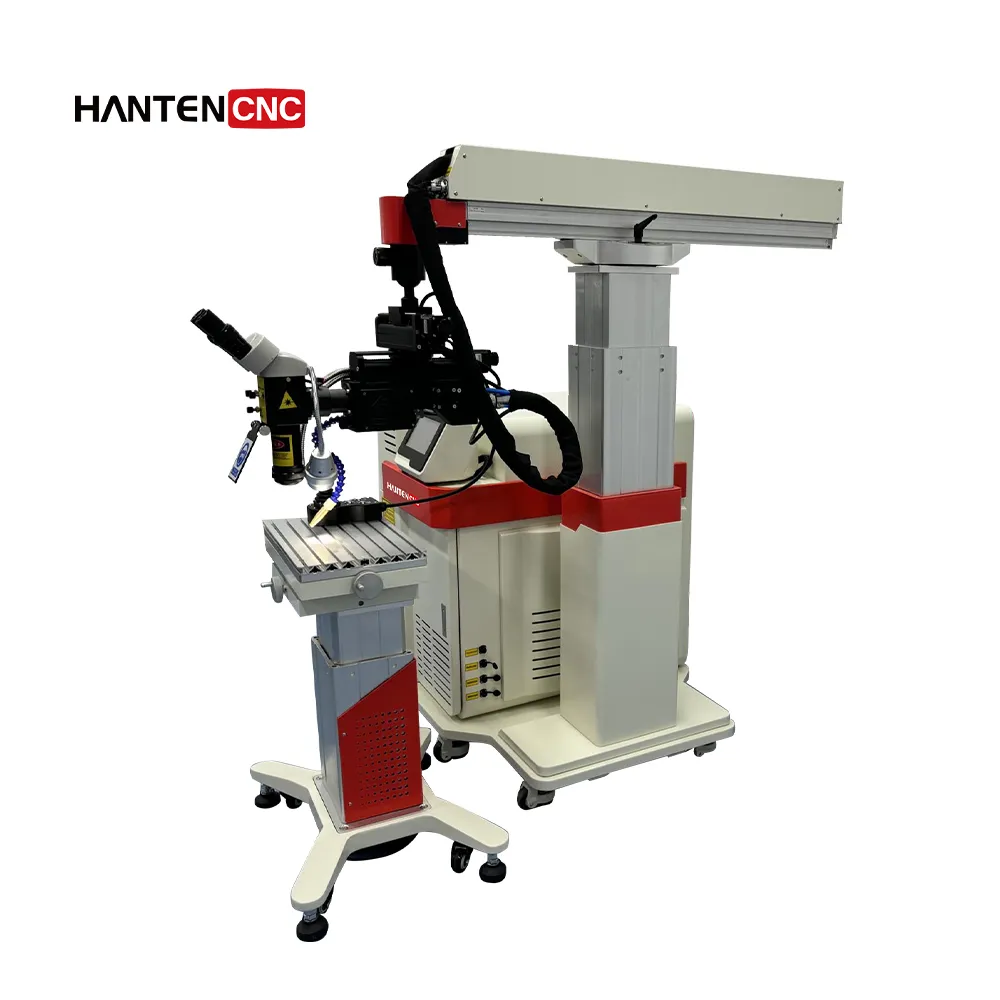

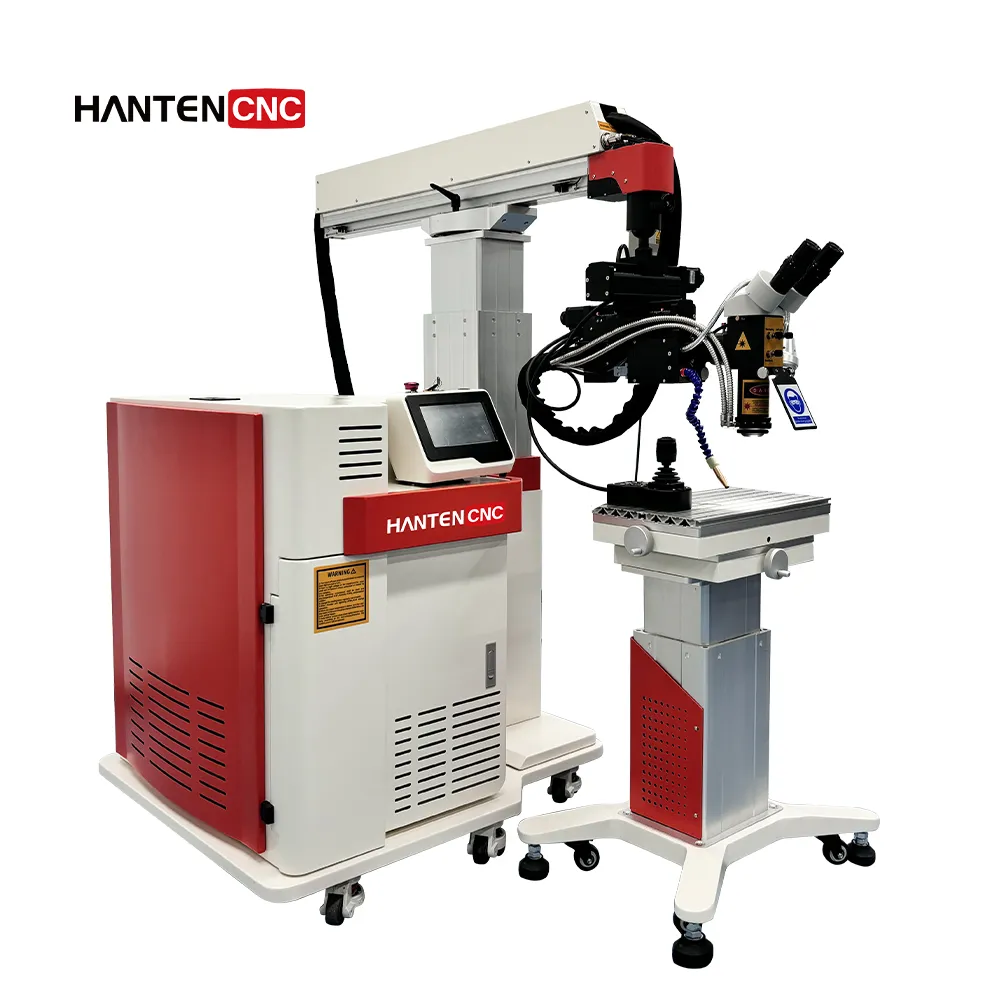

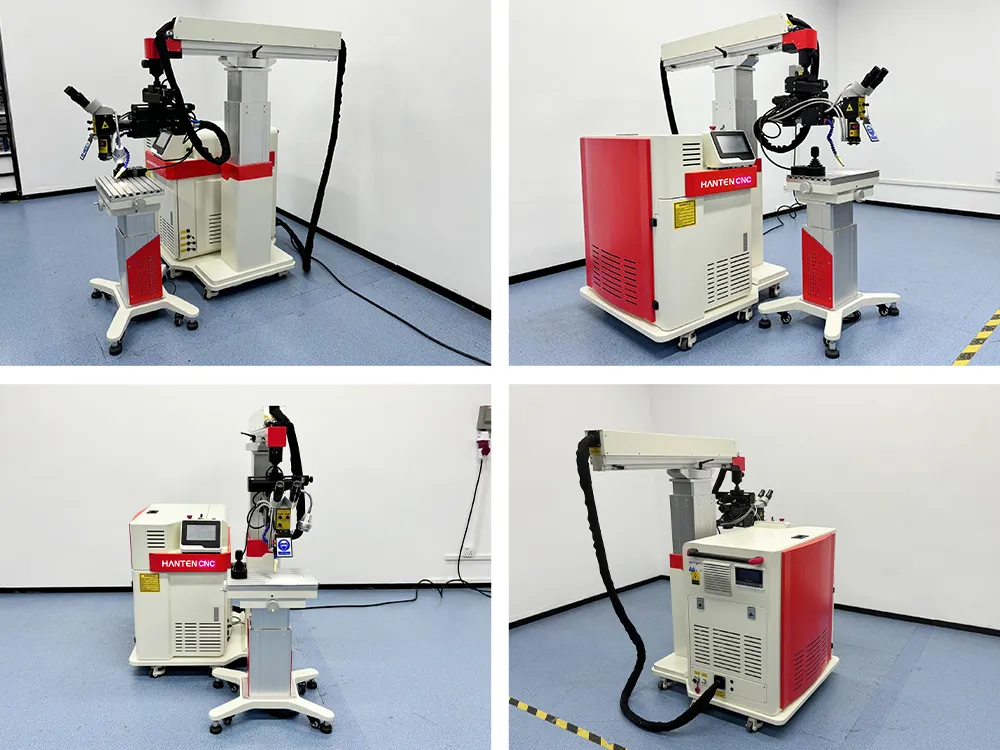

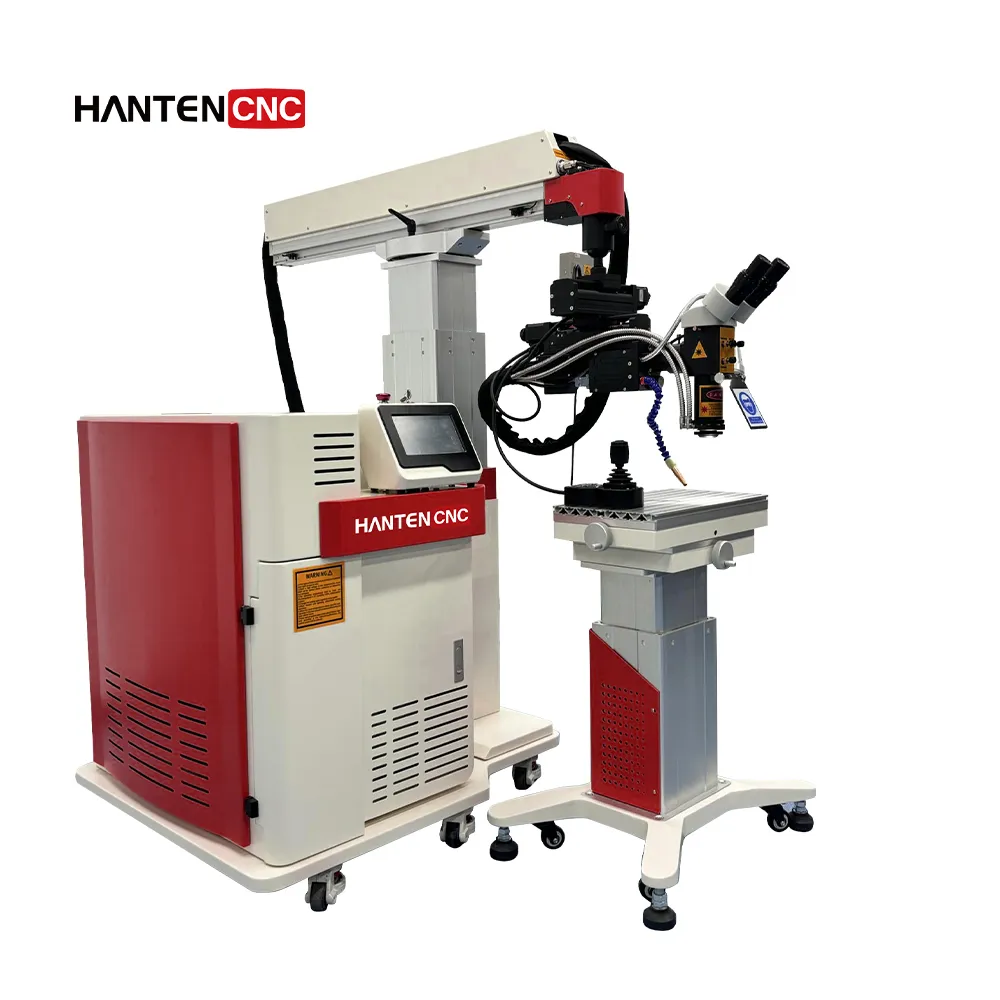

Arm-type Laser Welding Machine Display

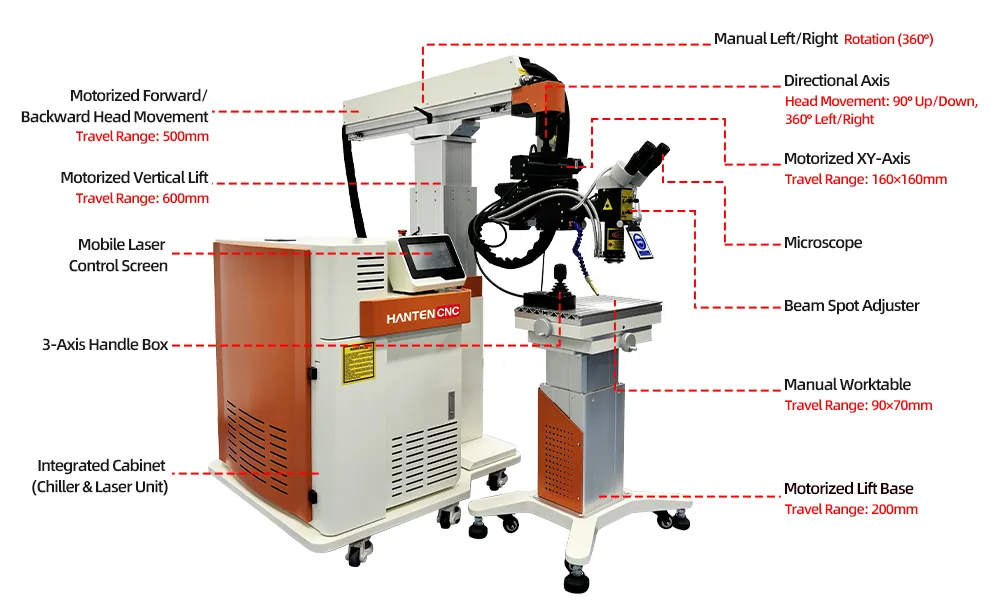

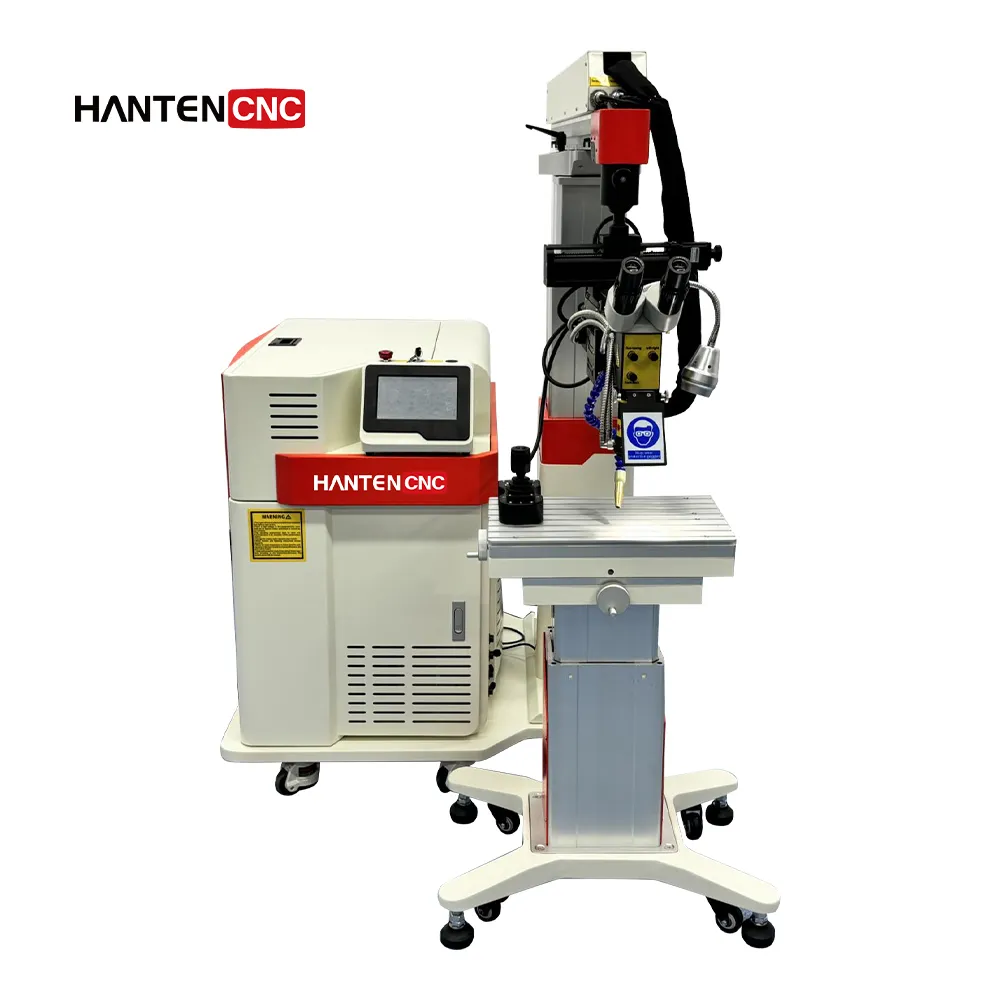

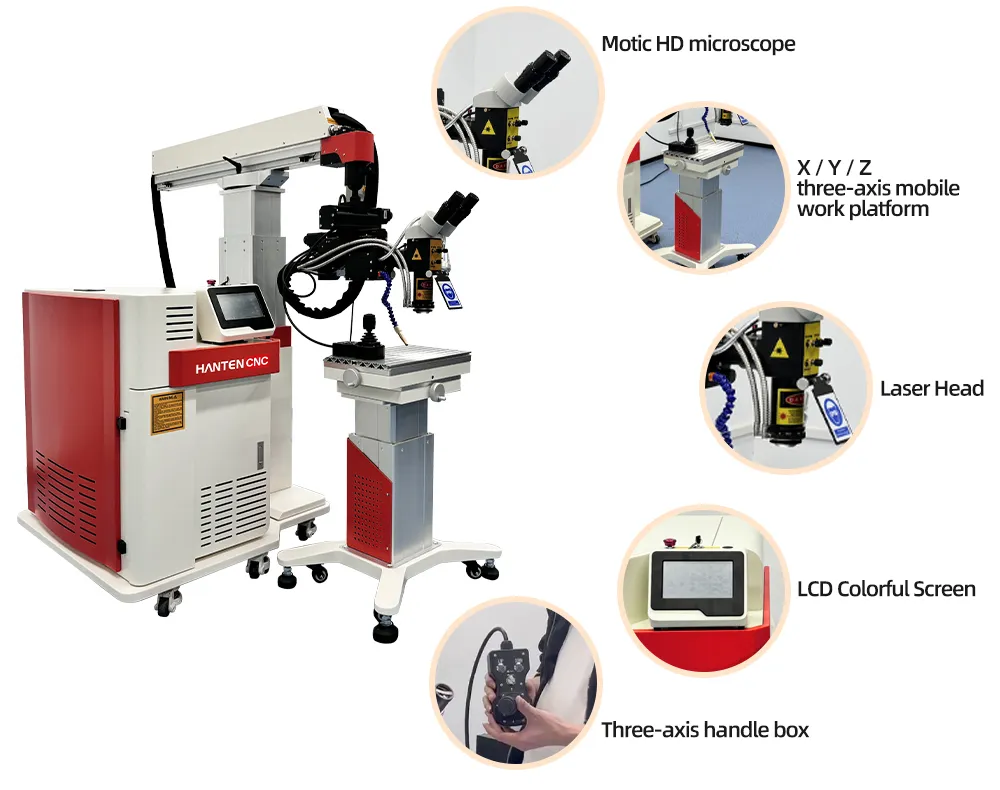

Arm-type Laser Welding Machine Components

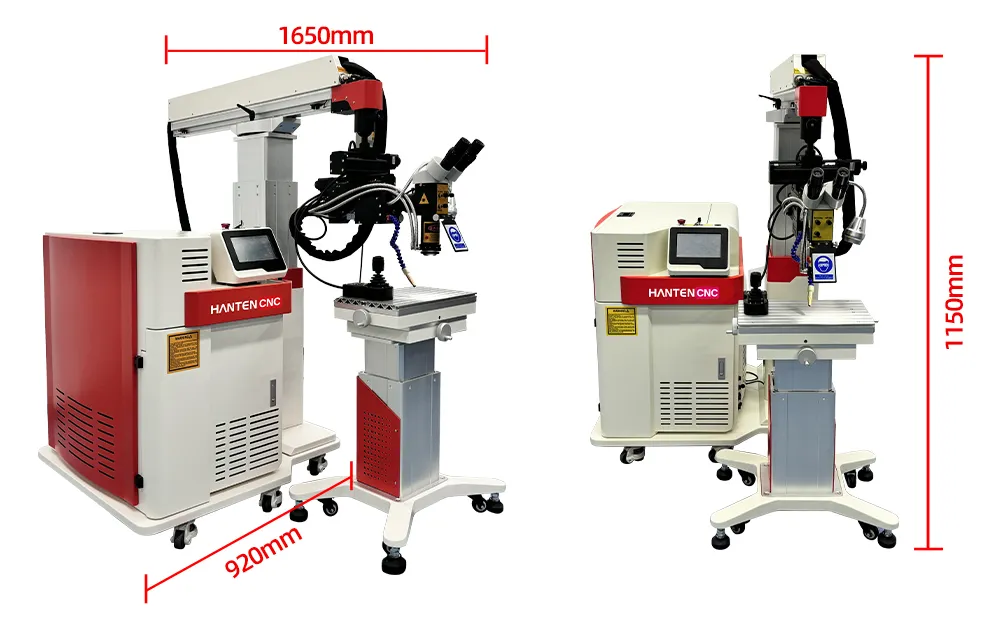

Arm-type Laser Welding Machine Dimensions
Arm-type Laser Welding Machine Features
High-Precision Welding Machine
This arm-type laser welding machine is equipped with a high-resolution microscope and beam spot adjuster for precise weld targeting and real-time quality inspection.
It is very suitable for welding thin or heat-sensitive materials such as 0.1–0.2mm iron sheets.
User-Friendly & Simple Operation

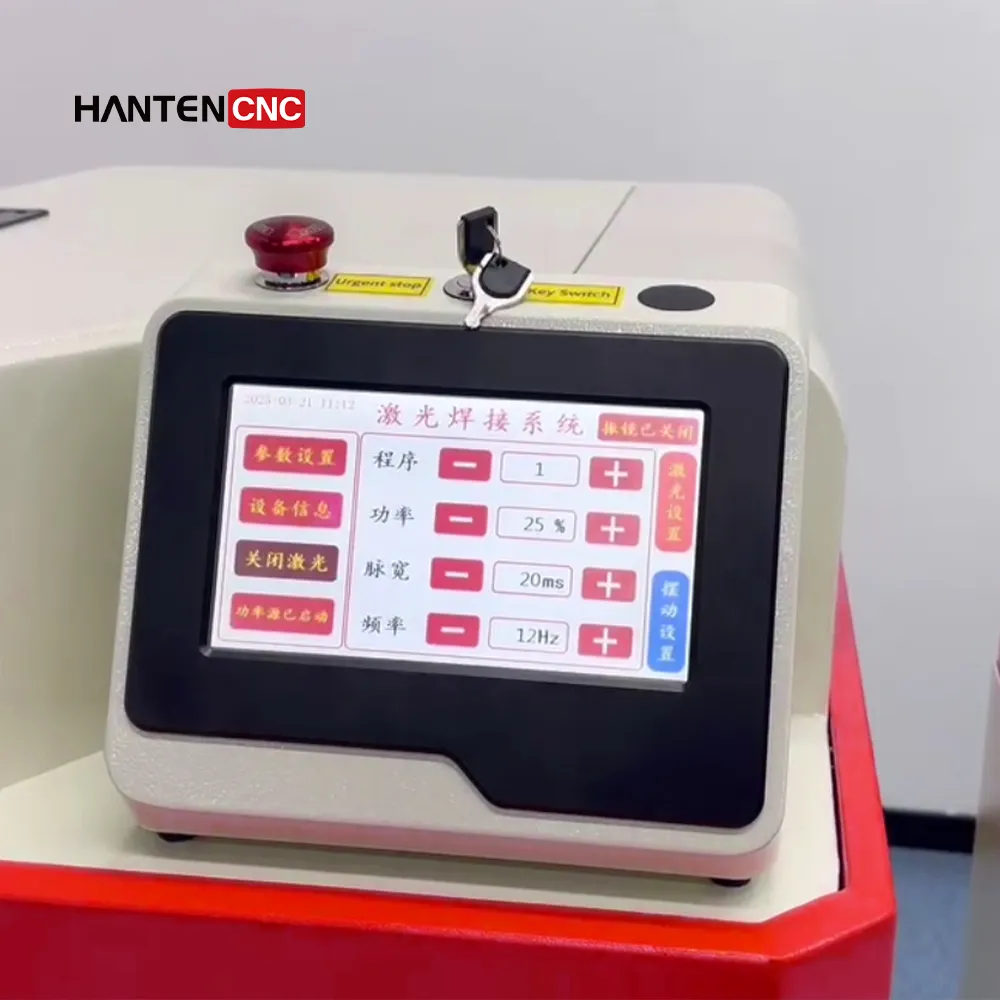

HANTENCNC‘s laser welding machine features a 3-axis joystick handle for smooth manual control and a mobile laser control screen for real-time parameter adjustment.

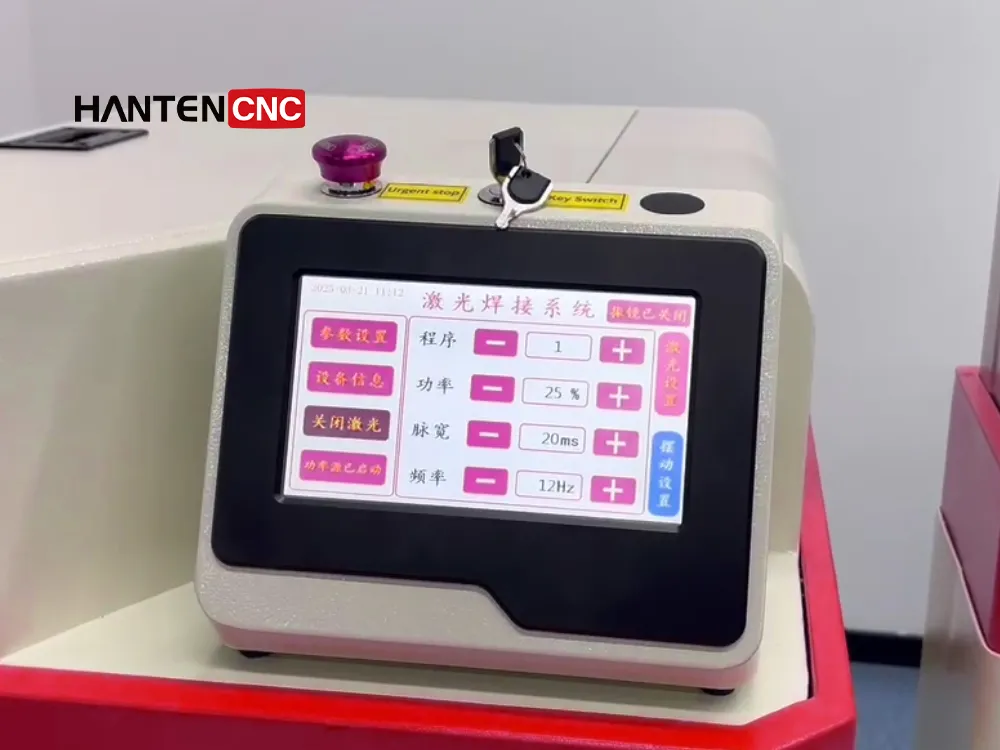

Mobile laser control screen allows real-time parameter tuning in real time.
Flexible Welding Positioning

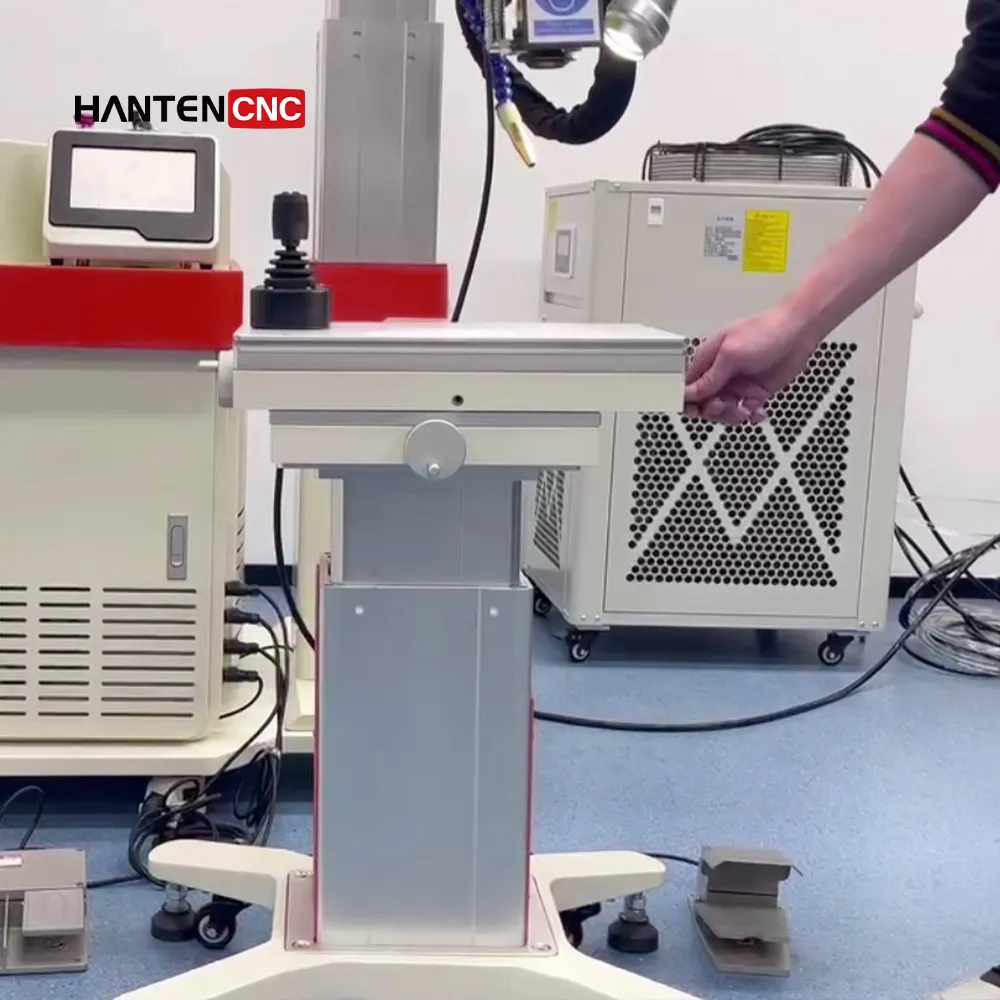

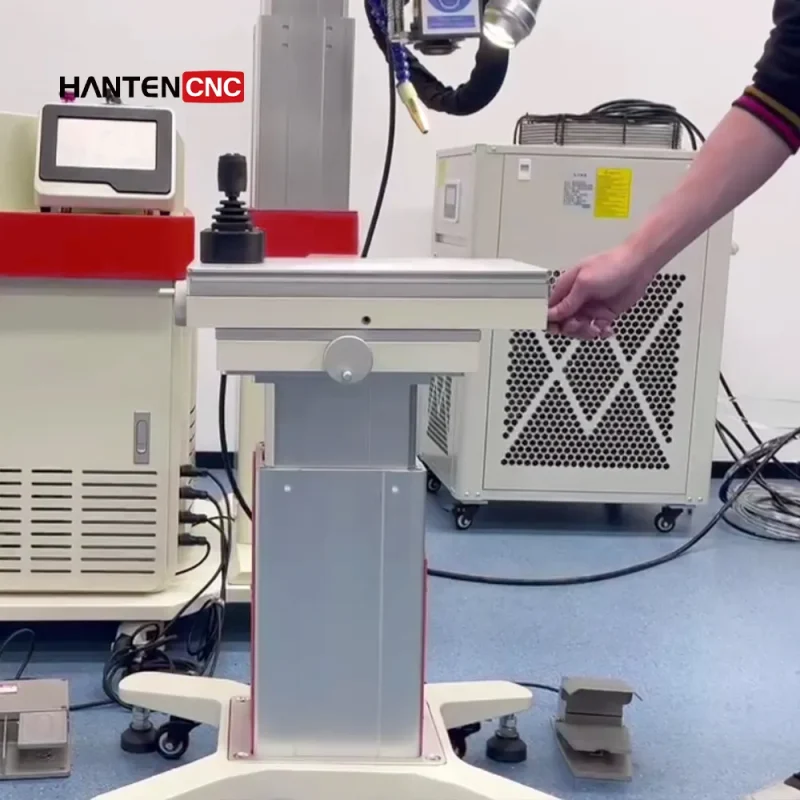

The arm-type laser welding machine offers motorized XY-axis adjustment (100×100mm) for accurate positioning, 600mm forward/backward head movement for extended reach, and vertical lift (550mm) with a 200mm lift base for flexible height adjustments in various welding scenarios.
360° Welding Flexibility
Manual 360° rotation + directional adjustment (90° up/down, 360° left/right) for seamless access to complex mold geometries.
Mechanical tilt function allows for multi-angle welding in confined or hard-to-reach areas
Simple Parameter Settings
This arm-type laser welding machine supports five languages: Chinese, English, Turkish, Russian, and Korean, with simple parameter settings.

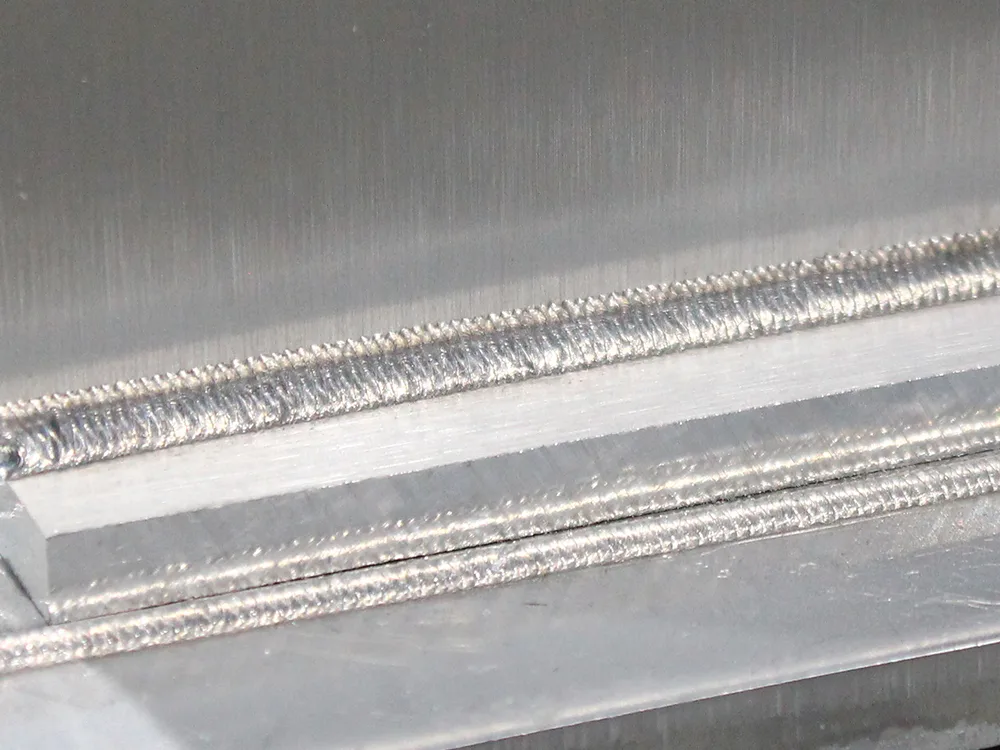

Precision Mould Welding Samples Using QCW Laser
This process uses a QCW (Quasi-Continuous Wave) laser to weld molds with high precision.
The QCW laser delivers powerful, controlled bursts of energy, ensuring that the weld is clean and strong. This is perfect for repairing or joining molds used in manufacturing, where accuracy is critical.
QCW lasers can focus on very small areas, which results in a smooth, high-quality finish that meets the exact specifications needed for the mold.
Precision Welding Samples Using 1500W Continuous Laser
The 1500W Continuous Laser is a high-power laser used for welding metal parts with great accuracy.
The continuous laser works by emitting a constant, steady beam of light, which melts the metal to create a strong, durable weld.
The 1500W power ensures that even thicker materials can be welded quickly and effectively.
The 1500W continous laser welding is perfect for industries that require strong and precise welds, such as automotive, aerospace, and heavy machinery manufacturing.
Arm-type Laser Welding Machine Parameters
| Model | HTW200 | HTW300 | HTW1500 |
|---|---|---|---|
| Laser Type | QCW laser (Quasi Continuous Wave) | QCW laser (Quasi Continuous Wave) | Continuous laser |
| Max Laser Power | 150W | 300W | 1500W |
| Laser Wavelength | 1080 ± 10nm | 1080 ± 10nm | 1080 ± 10nm |
| Laser Fiber Length | 10M | 10M | 10M |
| Pulse Frequency | 1–30Hz | 1–30Hz | 1–25Hz |
| Pulse Width | 1–20ms | 1–20ms | 1–60ms |
| Spot Size Range | 0.2–3mm | 0.2–5mm | 0.2–5mm |
| Aiming | Microscope (Optional Camera System) | Microscope (Optional Camera System) | Microscope (Optional Camera System) |
| Cooling System | Water Chiller | Water Chiller | Water Chiller |
| Chiller Power | 0.4P | 0.4P | 0.4P |
| Rated Power Consumption | 2.5KW | 3KW | 7KW |
| Power Supply | 220V ±5V 50Hz / 60A | 220V ±5V 50Hz / 60A | 220V ±5V 50Hz / 60A |
| 3D Workbench Load Capacity | 50kg | 50kg | 50kg |
| Machine Weight | 300kg (including water chiller) | 300kg (including water chiller) | 300kg (including water chiller) |
| Machine Dimensions | 1650 × 920 × 1150mm | 1650 × 920 × 1150mm | 1650 × 920 × 1150mm |
| 3D Workbench Dimensions | 600 × 450 × 600mm | 600 × 450 × 600mm | 600 × 450 × 600mm |
Customer Visits
Laser Welder Machine Certificates
HANTENCNC owns trademark registration certificates, utility patent certificates, software copyright certificates, etc.
HANTENCNC’s laser welder machines are CE and FDA-certified, ensuring high quality and safety.
You can trust HANTENCNC and HANTENCNC’s laser welding machines, which are backed by these certificates.
Customer Reviews
HANTENCNC Partnerships
Our Service
HANTENCNC provides free sample testing, a 2-year warranty for the laser source, a 1-year warranty for the whole machine, and ODM services.
