PORTABLE LASER SPOT WELDING MACHINE
FOR THIN PLATES AND SMALL PARTS WELDING
PRECISION FOR SMALL PARTS
The portable laser spot welding is a high-precision welding device that integrates QCW fiber laser technology. It solves the problem that fiber laser welding machines are not suitable for welding thin plates and small precision parts.
Its handheld design is compact and lightweight, providing a combination of flexibility and industrial-grade performance. This laser spot welder is optimized for precision tasks in complex scenarios, making it ideal for thin-plate welding, advertising sign welding, lighting product laser welding, and DIY crafting projects.

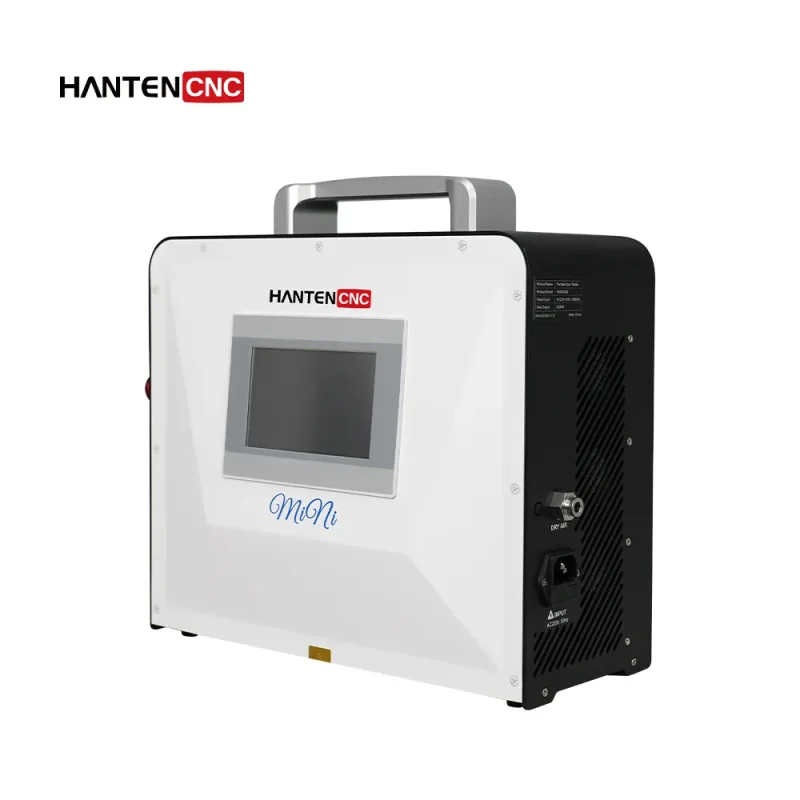

Portable Laser Spot Welding Machine Structure Diagram
Why Choose HANTENCNC’s Laser Spot Welder?
High Precision Welding
Delivers stable QCW laser output for fine, clean welds with minimal deformation—perfect for delicate or miniature parts.
Compact and Portable
Briefcase-size design for easy transport and on-site repair work.
Flexible Applications
Supports multiple metal materials and up to 19 customizable welding programs.
Portable Laser Spot Welding Machine Specifications
| Model | HTW300 |
|---|---|
| Laser Type | QCW Fiber Laser |
| Average Power | 300 W |
| Peak Power | 600 W |
| Wavelength | 1080 ±5 nm |
| Pulse Frequency | 1–5000 Hz |
| Max Single-Pulse Energy | 6 J |
| Cooling Method | Air-cooled |
| Fiber Length | 2–3 m |
| Display | 5-inch Touch Screen |
| Dimensions | 374.5 × 191 × 330 mm |
| Weight | 12 kg |
Portable Laser Spot Welding Machine – Main Interface
Main Interface Overview
Welding Number: Indicates the currently selected program number. Users can configure and store parameters for different welding processes. The system supports up to 19 custom program libraries.
Laser Power: Sets the laser output power for the current program, adjustable from 10% to 100%.
Frequency: Configures the pulse frequency of the current program, such as the number of laser pulses emitted per second.
Pulse Time: Defines the pulse duration of the current program, controlling the laser emission time under single-point energy output.
Modulation Frequency: Adjustable from 1 to 20,000 Hz, used to set the base frequency of the PWM modulation signal.
Duty Cycle: Provides stepless adjustment from 1% to 100%, enabling precise control of the modulation duty cycle for laser power.
Parameter Setting Interface
Front Shutter: Configures pre-lasing safety shielding (requires interlock with laser shutter). This function is inactive in this series and requires no user configuration.
Rear Shutter: Configures post-lasing safety shielding (requires interlock with laser shutter). This function is inactive in this series and requires no user configuration.
Open Air: Sets the delay time (ms) between the trigger signal and the actual laser output, with protective gas pre-flow to ensure adequate weld zone coverage.
Off Gas: Sets the duration (ms) for protective gas to remain activated after laser cessation, ensuring sufficient protection of the solidified weld.
Language: Switches interface language (Options: Simplified Chinese/English/Other).
Shutter: Enables or disables the optical safety shutter interlock function.
Air Valve: Manually activates or deactivates the protective gas supply.
Portable Laser Spot Welding Gun Details
Portable Laser Spot Welding Gun Structure
The portable laser spot welding gun features a compact and ergonomic design, ensuring stable operation and comfortable handling during precision welding.
It integrates key components such as the laser emission button, copper nozzle, protective window assembly, fiber connector, and gas outlet, forming a highly efficient and user-friendly welding tool.
Portable Laser Spot Welding Gun Maintenance (Cleaning)
The protective window and optical path components can be easily disassembled for cleaning or replacement, ensuring reliable performance and long-term stability during continuous operation.
Ideal for Precision Welding of Thin Metal Sheets
The 300W QCW Laser Spot Welder is specially designed for precision welding of thin metal sheets. It delivers stable laser energy with minimal heat distortion, making it ideal for fine and detailed-welding applications.
This model is primarily suitable for materials up to 2 mm thick, including stainless steel, carbon steel, mild steel, and galvanized steel.
It also performs excellently on materials up to 1 mm thick, including aluminum, aluminum alloys, copper, brass, red copper, and nickel.
Its high beam quality and adjustable pulse energy ensure smooth, clean, and reliable welds on delicate components—perfect for precision manufacturing, signage production, and electronic assembly.
