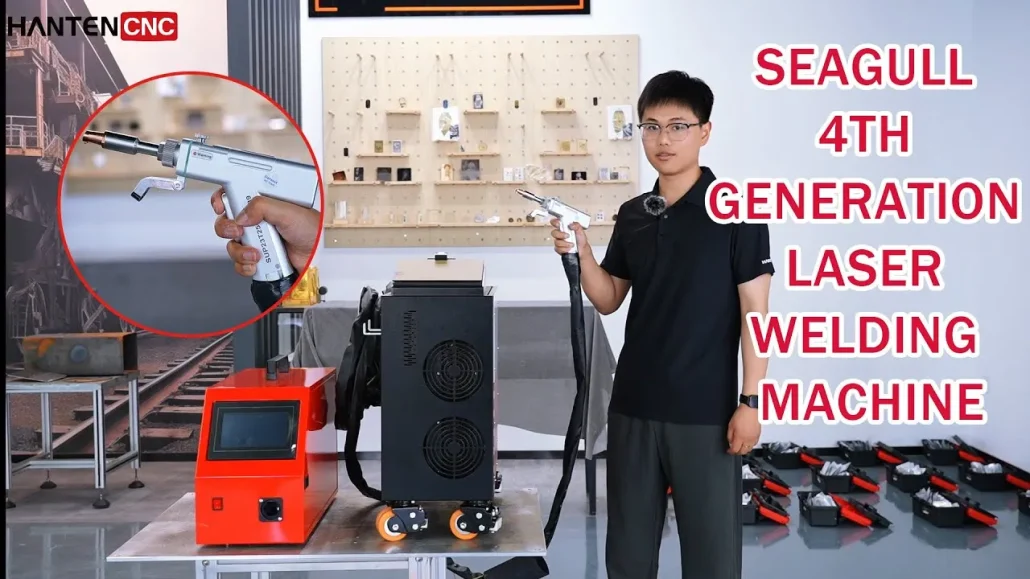

HANTENCNC’s Handheld Laser Welder – Powerful, Portable, Practical
This air-cooled laser welding machine delivers 800W–1500W output, easily welding 1–5mm steel and other metals—no water chiller needed.
Built for Easy Movement
-
Suitcase-style design with 4 shock-absorbing wheels for smooth transport
-
Tilted touchscreen for comfortable use in tight spaces
-
Rotating handle and lightweight 0.75 kg gun for flexible welding in any position
-
Durable, impact-resistant body for tough work environments
Perfect for:
On-site repairs, construction sites, and places where large machines can’t reach.
800W-1500W Handheld Laser Welding Machine Display
800W-1500W Handheld Laser Welding Machine Components
800W-1500W Handheld Laser Welding Gun
This handheld laser welding head and control system are developed based on a proven, mass-produced previous model. It features improvements in insulation, stability, and ease of maintenance.
The system ensures safer operation by being enhanced with multiple safety features, including smart alarms and an automatic laser shut-off.
With a dual-layer protective lens and real-time lens temperature monitoring, the welding head is now more compact, lighter in weight, and even more reliable.
-
Advanced Safety Detection System
The welding head is designed for welding metals 0–5mm thick, and it uses multiple safety alarms and status lights. It reacts instantly to any abnormal condition to protect the operator.
-
Enhanced System Stability
All parameters are shown in real time, making it easy to monitor the machine and catch problems early. This ensures stable, reliable operation.
-
Revolutionary Structural Design
Weighing just 0.75 kg, the welding head is easy to handle and operate. Its one-piece design is dustproof, durable, and resistant to interference, which helps reduce failures and makes maintenance easier.
-
User-Friendly Maintenance
Drawer-style lens design allows fast replacement—saving time and keeping your work running smoothly.
Handheld Laser Welding Machine Features
Effortless Mobility | Flexible Solution| Smooth Transport
It features a luggage-style design with a rotating handle, foldable trolley rod, and four dual-swivel wheels with dual shock-absorbing functions, making transportation and handling easier and safer.
These features provide convenient, portable, and flexible welding operations without compromising efficiency.
Anti-bumping | High Load Bearing | Strong Stability
This handheld laser welding machine uses the same wheels as AGV robots and has a two-stage shock absorption system. The rubber layer handles up to 30 kg, while the spring layer activates above 80 kg. This greatly reduces vibration and protects internal components, even on bumpy surfaces.
The dual-wheel differential design makes turning smooth and flexible, even in narrow spaces.
Efficient Air-Cooling | Compact Design
The laser welding machine uses an advanced air-cooling system for efficient heat dissipation.
The unique cooling design ensures the machine’s stable performance even in high temperatures. It can operate continuously for 24 hours in temperatures ranging from -10°C to +40°C.
This eliminates the need for bulky water-cooling systems, maintaining both compactness and reliability.
User-Friendly Interface | Tilted Design | Durable Protection
The handheld laser welding machine’s control screen is at the front of the cabinet. It features a 30° tilt design, which offers an improved user experience that better aligns with user habits.
This screen has a 3 mm acrylic panel, which helps protect against damage and ensure maximum screen safety in complex environments.
800W-1500W Handheld Laser Welding Machine Dimensions
Handheld Laser Welder Machine Parameters
| Model | HTW800 | HTW1200 | HTW1500 |
|---|---|---|---|
| Laser Source Brand | JPT / MAX | JPT / MAX | JPT / MAX |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Laser power | 800W | 1200W | 1500W |
| Working voltage | 220V Single Phase | 220V Single Phase | 220V Single Phase |
| Fiber length | 10M/15M/Maximum20M | 10M/15M/Maximum20M | 10M/15M/Maximum20M |
| Operating Mode | Continuous Welding | Continuous Welding | Continuous Welding |
| Operating System | Handheld Welding System | Handheld Welding System | Handheld Welding System |
| Working environment temperature range | 10-40℃ | 10-40℃ | 10-40℃ |
| Welding Thickness | 0-5 mm (carbon steel/stainless steel) | 0-5 mm (carbon steel/stainless steel) | 0-5 mm (carbon steel/stainless steel) |
| Scanning Speed | 2-6000 mm/s | 2-6000 mm/s | 2-6000 mm/s |
| Scanning Width | 0-8 mm | 0-8 mm | 0-8 mm |
| Cooling system | Air-cooling | Air-cooling | Air-cooling |
| Welder dimensions | 680*363*697mm | 680*363*697mm | 680*363*697mm |
| Laser Welding Machine Weight | 60KG | 60KG | 60KG |
| Net Weight (Welding Gun Body) | 0.7KG | 0.7KG | 0.75KG |
Welding Results Display
Customer Visits
Laser Welder Machine Certificates
HANTENCNC owns trademark registration certificates, utility patent certificates, software copyright certificates, etc.
HANTENCNC’s laser welder machines are CE and FDA-certified, ensuring high quality and safety.
You can trust HANTENCNC and HANTENCNC’s laser welding machines, which are backed by these certificates.
