6000W LASER WELDING MACHINE
FASTER, DEEPER & MORE EFFICIENT
PRECISION AT THE CORE

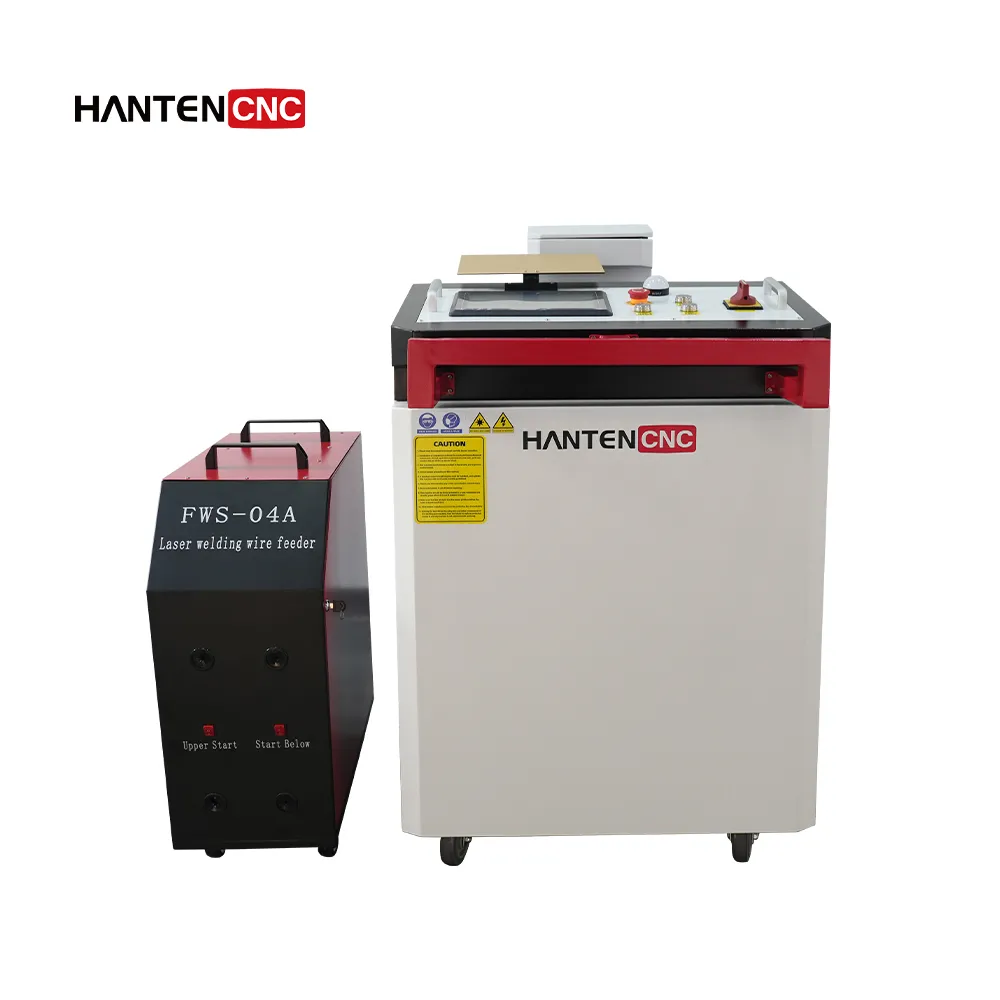

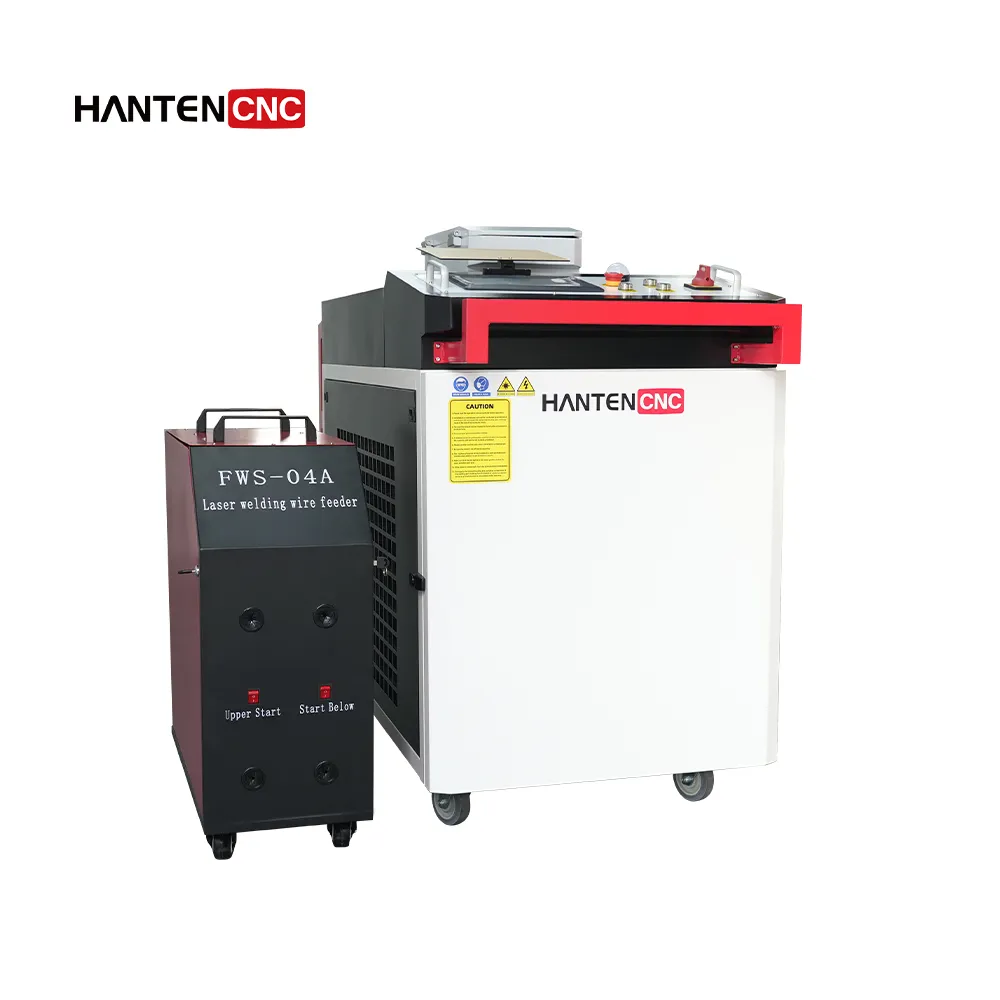

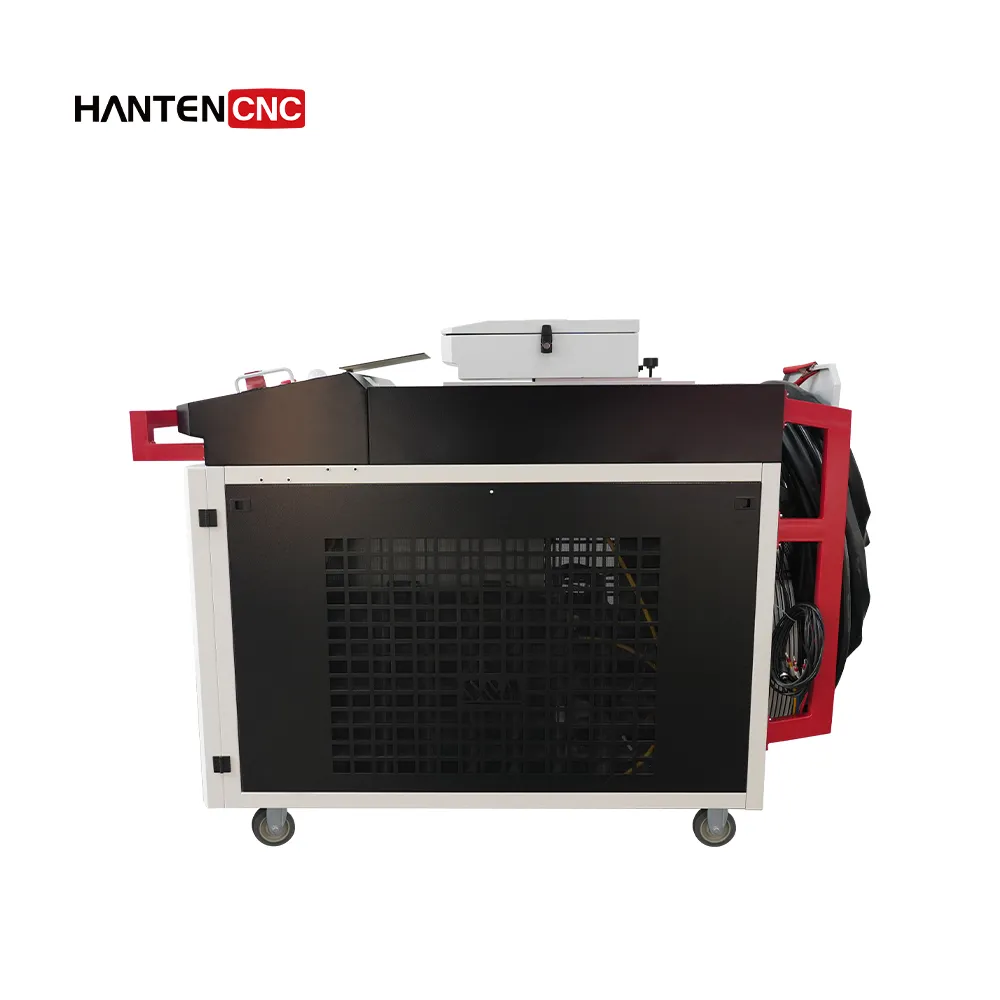

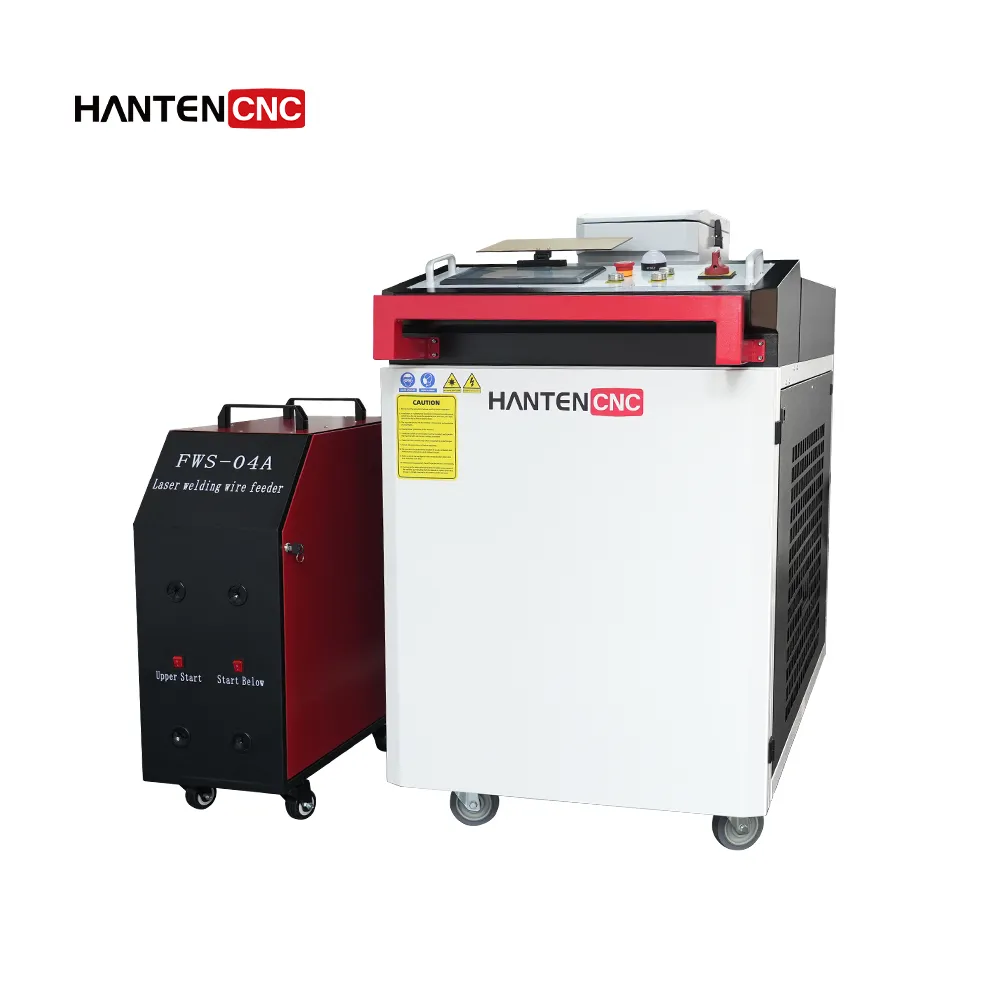

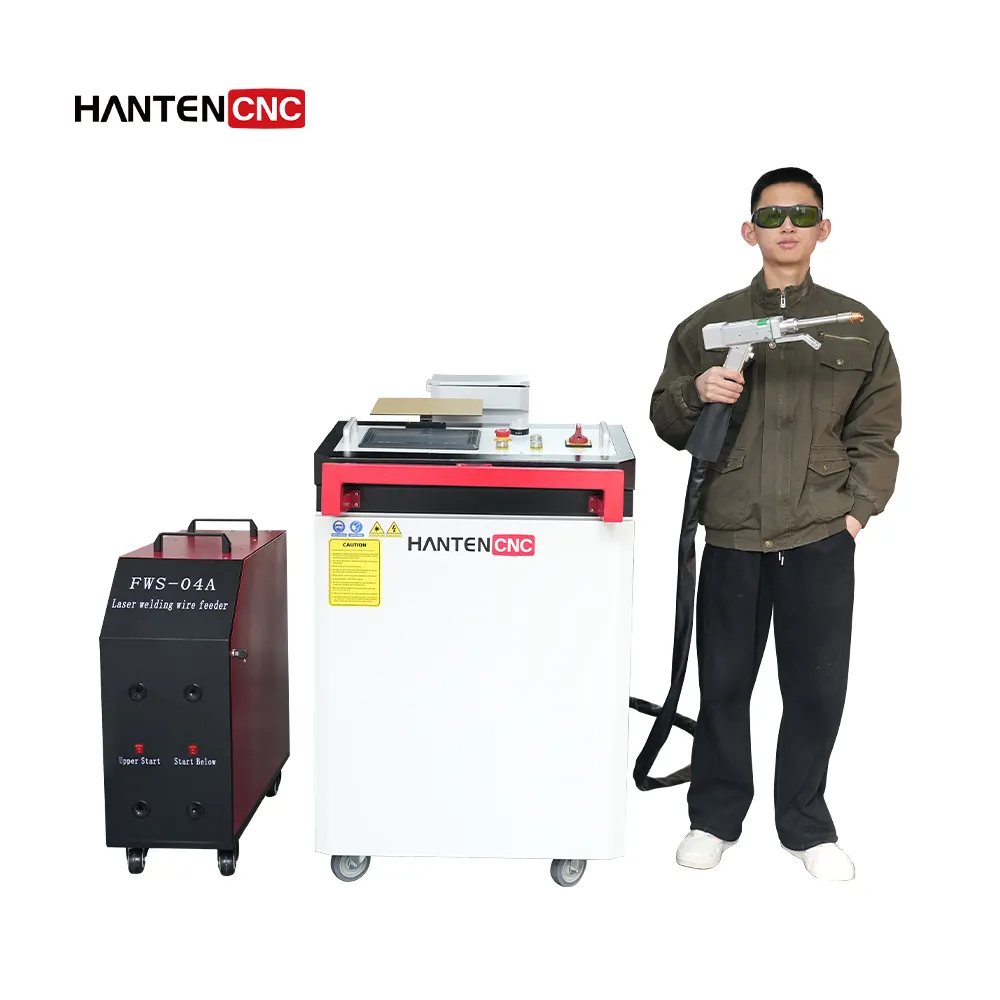

HANTENCNC’s 6000W handheld laser welding machine is designed for heavy-duty industrial welding, offering deep penetration, stable performance, and high efficiency. Equipped with a single-swing welding head and a four-wire feeder system, it supports wider weld seams, and delivers excellent welding quality on thick plates.
WHY CHOOSE THE HIGH-POWER 6000W LASER WELDING MACHINE?
Weld Carbon Steel / Stainless Steel Up to 14mm Thick
with Precision and Strength.
Achieve smooth, high-quality welds on carbon steel or stainless steel up to 14mm.
Effortless Weld Aluminum Up to 10mm
Unlock the full potential of the high-power 6000W laser welding machine for handling tough materials.
FOUR WIRE FEEDER
FOR ENHANCED WELDING PERFORMANCE
HANTENCNC® four-wire feeder significantly improves welding efficiency and quality. Equipped with a high-torque stepper motor, HANTENCNC’s four-wire feeder ensures smooth and stable operation even in high-speed and heavy-load conditions.
The precise position control, accurate to the millimeter, guarantees synchronized wire feeding for consistent welds.
It supports wire diameters ranging from 1.2 mm to 2.0 mm, providing versatility for different materials and welding requirements.
Ultimate Solution For Heavy-Duty Welding
This four-wire feeder can feed either two or four wires simultaneously, allowing for wider weld seams up to 12 mm with excellent bead fullness.
Enabling high-quality and efficient welding on thick materials.
SMART, STABLE & SAFE
SINGLE-SWING 6000W LASER WELDING HEAD
The 6000W handheld laser welding head is equipped with an intelligent protection system, providing real-time status feedback through both a mobile app and PC monitoring. Every welding process is tracked for stability, safety, and precision. High-threshold optical components can deliver better beam quality and smoother, more consistent welds.
Multiple safety locks ensure higher operational safety and prevent accidental triggering.
Full water-cooling design maintains optimal temperature and guarantees long-term stability during continuous operation.
The ergonomic design enables it to be lightweight and comfortable to hold, allowing effortless control during extended use.
Specifications
| Model | HTW6000 |
|---|---|
| Laser Power | 6000W |
| Laser Power Adjust Range | 10% – 100% |
| Laser Source | Max / BWT |
| Max Power Consumption | 24 kW |
| Laser Wavelength | 1070nm±20nm |
| Working Voltage | 380V, 50/60Hz |
| Focusing lens | F250 |
| Focusing Focal Length | 250 mm (F250 focusing lens) |
| Length of Laser Fiber Cable | 25m or Customized |
| Laser Type | Continuous Fiber Laser |
| Language Support | 30+ Languages (Customizable) |
| Optimal Working Environment Temperature | 10-40℃ |
| Maximum Weld Bead Width | 12 mm |
| Maximum Welding Thickness | Carbon steel up to 14 mm Stainless steel up to 14 mm Aluminum up to 10 mm |
| Touch Screen | 10-inch HD Display |
| Fiber Compatibility | QBH, 50 μm core |
| Wire Feeder | Four-wire feeder |
| Cooling system | Water-cooled |
| Handheld Welding Head Weight | 1.3 KG |
| Machine Dimensions | 1420*740*1220mm |
| Package Dimensions | 1570*910*1600mm |
| Machine Weight | 241KG |
| Package Weight | 330KG |
Welding Effects Display
Customer Visits
HANTENCNC Partnerships
Certificates
HANTENCNC owns trademark registration certificates, utility patent certificates, software copyright certificates, etc.
HANTENCNC’s laser welding machines are CE and FDA-certified, ensuring high quality and safety.
You can trust HANTENCNC and HANTENCNC’s fiber laser welding machines backed by these certificates.
HANTENCNC's Services
HANTENCNC provides free sample testing, a 2-year warranty for the laser source, a 1-year warranty for the whole machine, and ODM services.
