Fiber optic laser welders are non-contact tools that need low maintenance and can operate at a fast speed. The laser beam can be focused to a very small dimension and has very low thermal input, resulting in less damage to the material without deforming.
SEAL™ is known for its cost-effectiveness, ease of operation, high precision, high efficiency, and perfect welding effects, which can meet various efficient and precise welding requirements. Which can improve efficiency, enhance productivity and precision, ensure superior quality, save your cost, and save space.
Not only as a laser welding machine, SEAL™ also support 3 in 1 and 4 in 1 customization services.
If you only need the basic welding function, SEAL™can be used only as a fiber optic laser welder. If you need a 3-in-1 or 4-in-1 laser welding machine, we can configure it according to your needs. Feel free to contact our sales manager to consult.
SEAL™ 3-in-1 fiber optic laser welder integrates three functions into a single laser welding machine, aiming to perform welding, cleaning and cutting by using one machine,
SEAL™ 4-in-1 fiber optic laser welder integrates four functions into a single laser welding machine, aiming to perform welding, cleaning, cutting and seam cleaning by using one machine.

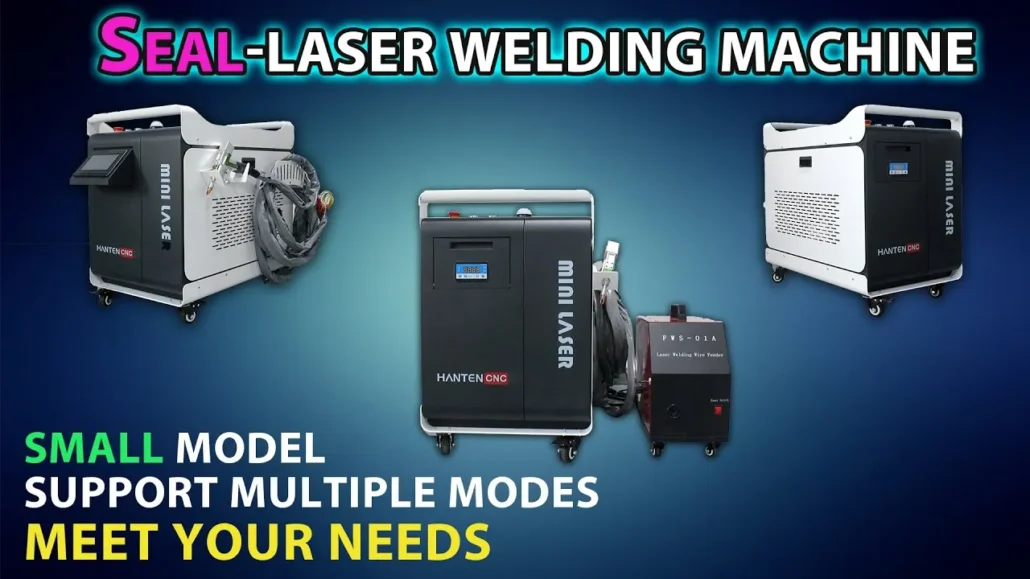

SEAL™ Fiber Optic Laser Welder
SEAL™ Fiber Optic Laser Welder Details
Component Details Display of SEAL™
Laser Welding Gun of SEAL™
Safety protection system:
Multi-alarm safety protection to ensure safety and stable operation.
Lightweight:
Compact size, lightweight, making flexible operation and easy handling.
Strong welding strength and quality:
Minimal deformation and deep penetration ensure high welding effects.
More Choices: Welding Guns of 3 in 1 Fiber Laser Welder SEAL™
SEAL™ supports various hardware configurations, including the laser welder machine, the 3-in-1 laser welder machine, the 4-in-1 laser welder machine, or even the 5-in-1 laser welder machine.
If you only need a basic welding function, you can only buy the laser welding machine.
You have the flexibility to select the hardware configurations according to your budget and needs.
Fiber Optic Laser Welder SEAL™ Dimensions
Fiber Optic Laser Welder SEAL™ Parameters
| Model | HTW1000 | HTW1500 | HTW2000 |
|---|---|---|---|
| Laser source | Raycus / MAX / BWT | Raycus / MAX / BWT | Raycus / MAX / BWT |
| Laser power | 1000W | 1500W | 2000W |
| Power Adjustment Range | 0-1000W | 0-1500W | 0-2000W |
| Operational Voltage | 220V/2P for 1000W and 1500W | 220V/2P for 1000W and 1500W | 380V/3P380V/3P for 2000W |
| Laser wavelength | 1080nm | 1080nm | 1080nm |
| Fiber length | 12 Meters (Customization Available) | 12 Meters (Customization Available) | 12 Meters (Customization Available) |
| Operating Mode | Continuous Welding | Continuous Welding | Continuous Welding |
| Speed range | 0-120mm/s | 0-120mm/s | 0-120mm/s |
| Operating System | Handheld Welding System | Handheld Welding System | Handheld Welding System |
| Cooling System | Water-cooled | Water-cooled | Water-cooled |
| Working environment temperature range | 10-40℃ | 10-40℃ | 10-40℃ |
| Humidity range Operating environment | < 70% non-condensing | < 70% non-condensing | < 70% non-condensing |
| Welding gap requirements | ≤0.5mm | ≤0.5mm | ≤0.5mm |
| Welder Dimensions | 970*595*825mm | 970*595*825mm | 970*595*825mm |
| Machine Weight | 125kg | 125kg | 134kg |
Welding Effects Display
Customer Visits
Certificates
HANTENCNC owns trademark registration certificates, utility patent certificates, software copyright certificates, etc.
HANTENCNC’s laser welding machines are CE and FDA-certified, ensuring high quality and safety.
You can trust HANTENCNC and HANTENCNC’s fiber laser welding machines backed by these certificates.
HANTENCNC's Services
HANTENCNC provides free sample testing, a 2-year warranty for the laser source, a 1-year warranty for the whole machine, and ODM services.
