With its compact size, HANTENCNC’s 4-in-1 handheld metal laser welding machine serves as a versatile metalworking solution, offering capabilities for metal welding, cleaning, cutting, and weld seam cleaning.
Why choose us?
1. High Precision: No additional processing or trimming is required, saving time and labor costs.
2. Safety and Efficiency: Reduce direct contact, reduce risks and hidden dangers, and improve production efficiency.
3. Multifunctionality: Welding, cleaning, cutting, and weld cleaning to meet different process requirements.
4. Energy Conservation and Environmental Protection: Low consumables, reducing material waste, and meeting the requirements of energy conservation and environmental protection.
4 in 1 Handheld Metal Laser Welding Machine Demonstration Video

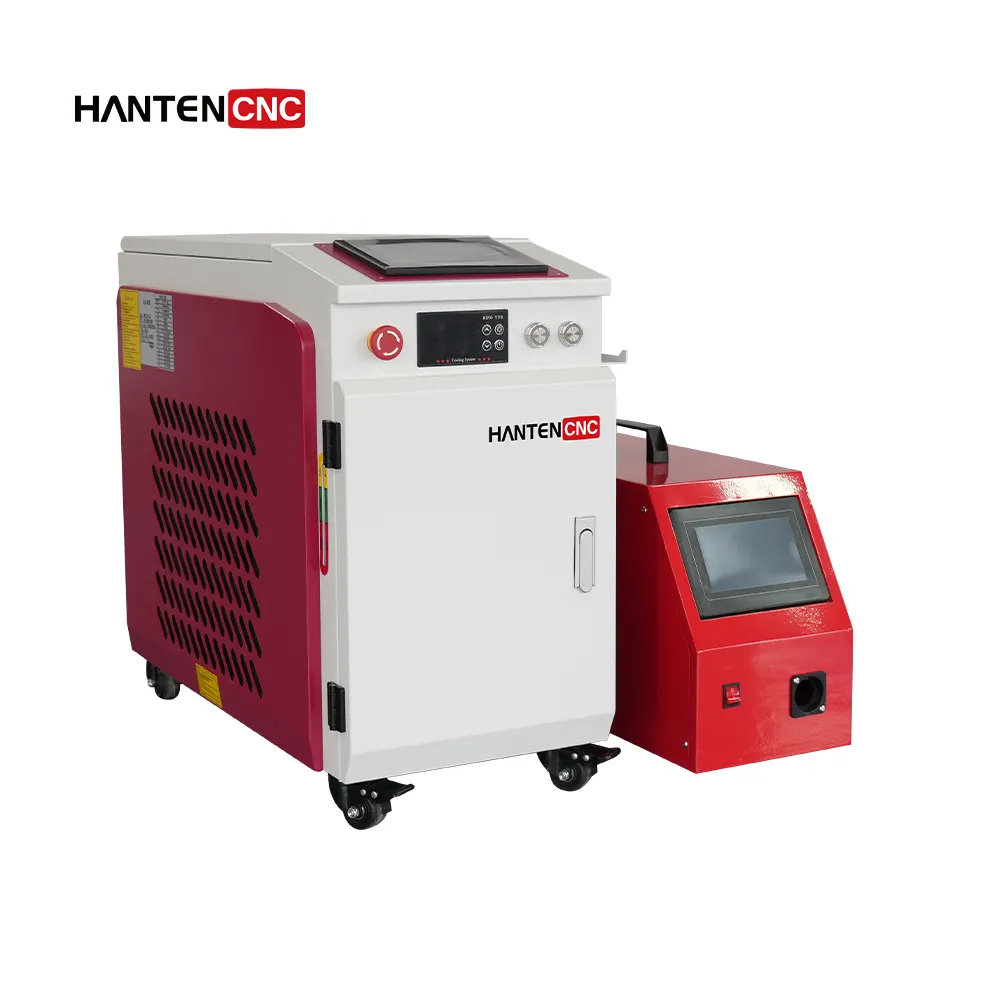

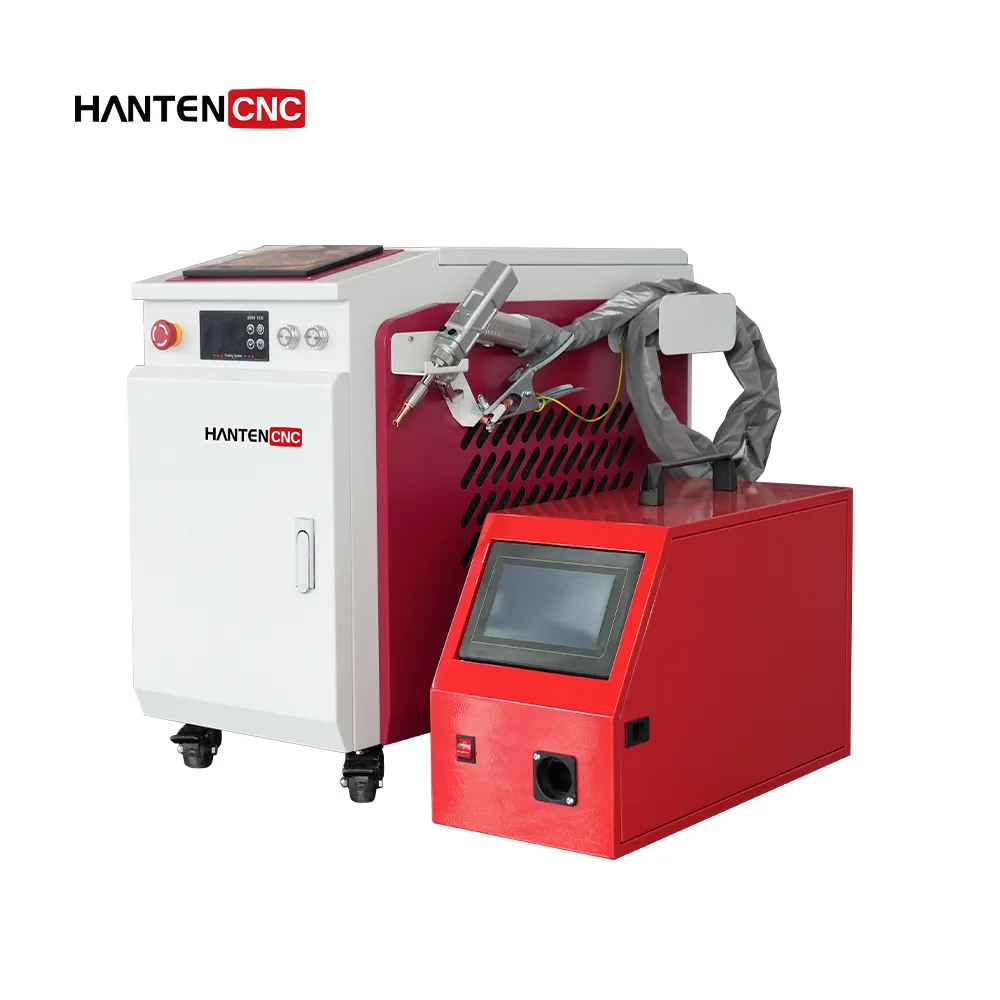

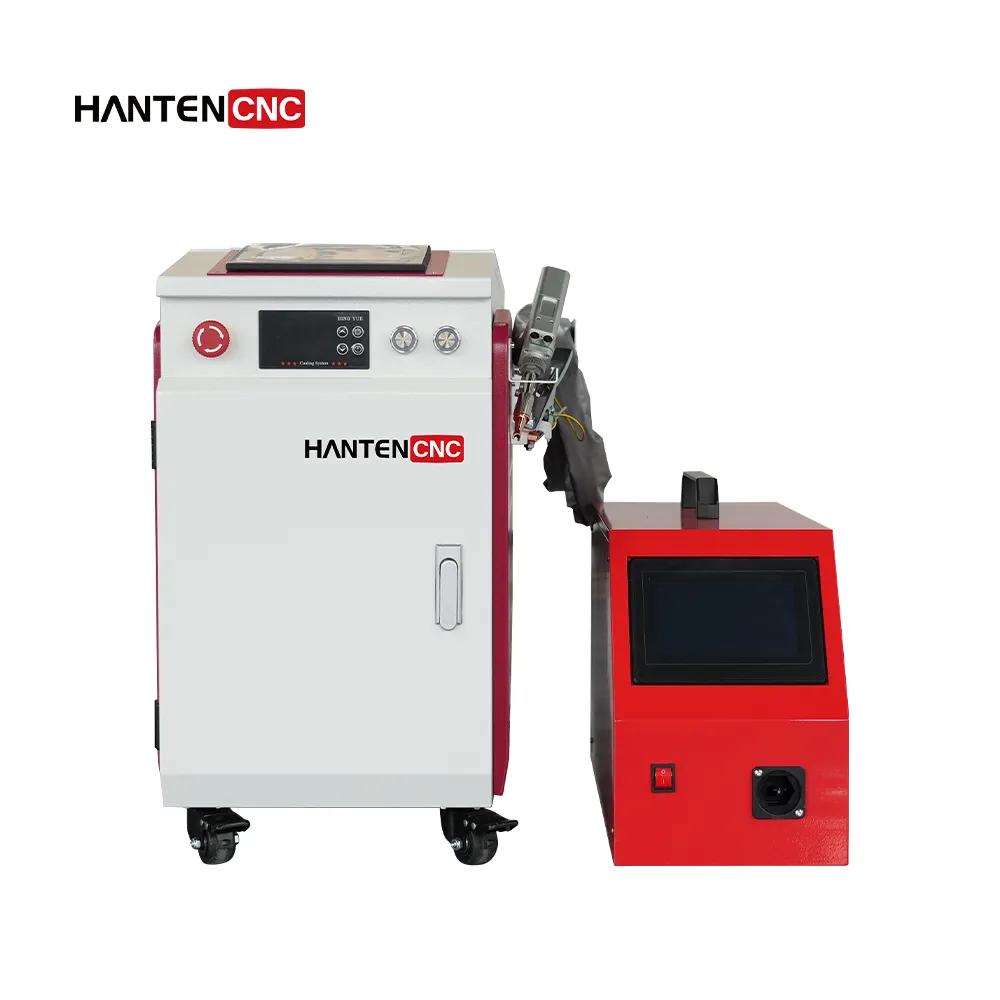

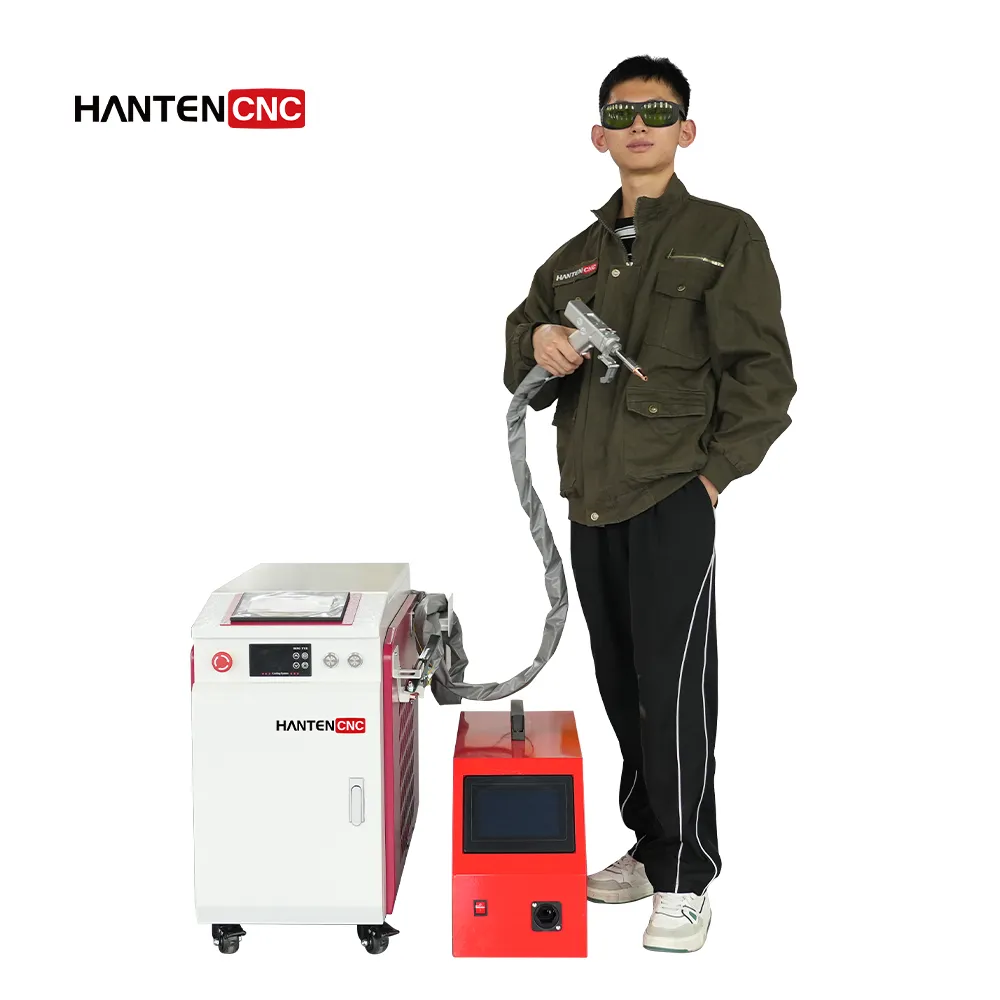

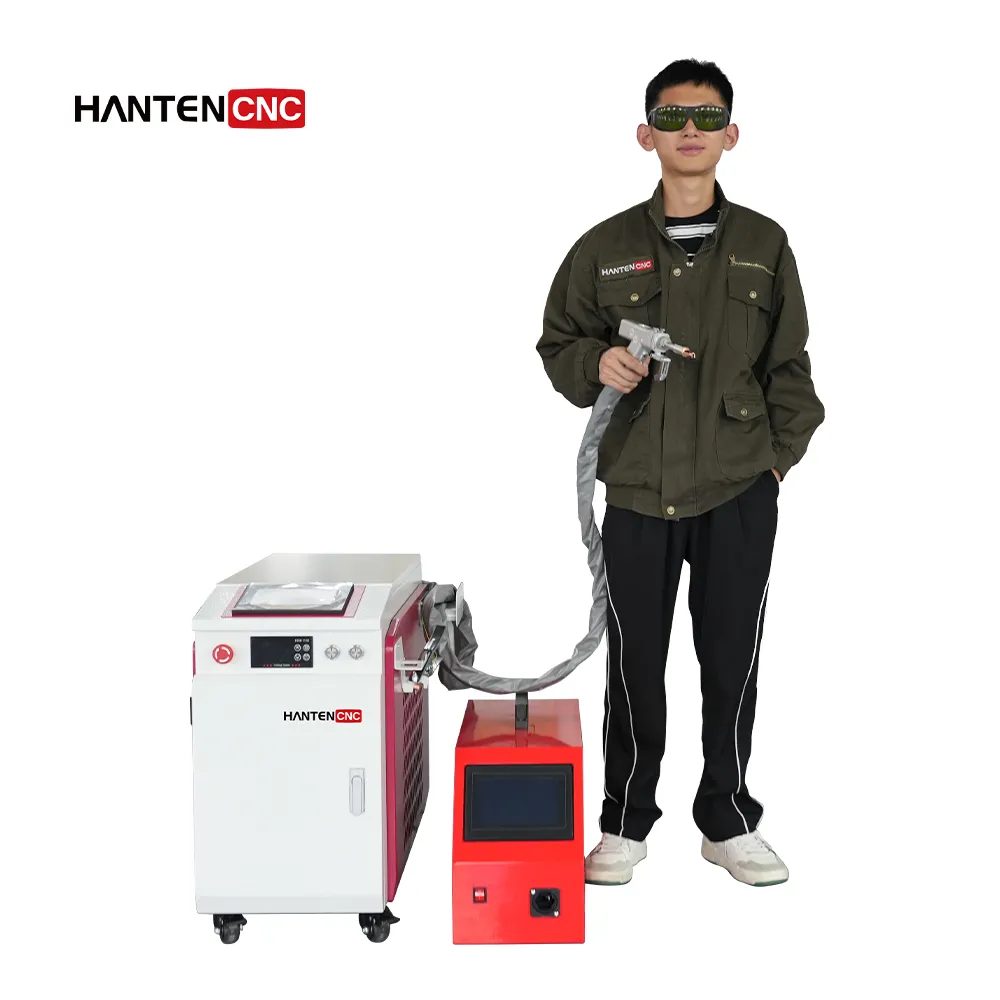

4 in 1 Handheld Metal Laser Welding Machine Display
The handheld metal laser welding machine is equipped with wheels, which are lightweight, mobile and flexible, and can be moved to different workstations for operation. Effectively utilize space to make the workspace cleaner and more organized.
4 in 1 Handheld Metal Laser Welding Machine Dimensions
Component Details Display of 4 in 1 Metal Laser Welding Machine
4 in 1 Handheld Metal Laser Welding Machine Parameters
| Model | HTW1500/1500/2000/3000 |
|---|---|
| Laser wavelength | 1080nm |
| Fiber length | 10M/12M/15M/Maximum20M |
| Operating mode | Continuous Welding |
| Maximum oscillation speed | 20000mm/s |
| Laser power | 1500W/1500W/2000W/3000W |
| Operating system | Handheld Welding System |
| Cooling | Water-cooling |
| Optimal working environment temperature range | 10-40℃ |
| Humidity range operating environment | < 70% non-condensing |
| Welding gap requirements | ≤0.5mm |
| Working voltage | 1000W-2000W is 220V/2P 3000W is 380V/3P |
| Welder dimensions | 400*950*710mm |
| Package dimensions | 620*1470*1060mm |
| Welder net weight | 109.2KG |
| Package net weight | 146KG |
4 in 1 Handheld Metal Laser Welding Machine Introduction
Laser Weld Function: Wide range of welding application materials. It can be used for welding metal, carbon steel, iron plate, aluminum, stainless steel, and other materials.
Features: handheld operation, ergonomic, suitable for long hours of work.
Laser Clean Function: Rapid rust removal, removes grease, resin, glue, dust, stains, and production residue.
Features: No direct contact with the workpiece is required. Easy and flexible to use.
Laser Cut Function: Commonly used for cutting metal sheet materials. Mainly used in hardware, electrical appliances, sheet metal manufacturing, and other industries.
Features: Easy to operate, flexible, and fast.
Weld Cleaning Function: De-rusting, degreasing, oxides after soldering.
Features: Low power, simple and flexible. No consumables.
Well-organized Internal Wiring
Well-organized internal wiring can extend the service life of equipment, accurately locate problems, reduce maintenance costs, improve work efficiency, and enhance the stability and reliability of equipment.
More Four-in-one Options
This is another 4-in-1 handheld laser welder machine model of HANTENCNC. Our machine can be customized according to your needs, with a minimum order of one piece.
Sample Effects Display
Laser Welding Samples
Laser Cleaning Samples
Laser Cutting Samples
Laser Cleaning Weld Samples
