50W 80W 100W Mini 3D Fiber Laser Marking Machines

HANTENCNC’s 3D fiber laser marking machines adopt the high-quality FEELTEK F10 galvanometer, which can be used for distortion-free marking on 3D curved surfaces, steps, cones, slopes, and other objects.

Our 3D mini fiber laser marking machines can focus the laser beam on a tiny point to realize fine engraving, marking, and cutting on the surface of the workpiece.

Price:USD $8,450-USD $33,897

Send Inquiry Chat Now

Description

HANTENCNC’s 3D fiber laser marking machine is a mini-split laser marker with advanced 3D marking capabilities. Our mini 3D fiber laser marking machine is designed for high-precision 3D marking, engraving, and carving on various material surfaces, including brass, carbon steel, mould steel, stainless steel, SIC, and more.

The galvo head of our 3D fiber laser marking machine adopts the 3D FEELTEK F10; it applies dynamic focus control technology, breaks the limitation of traditional marking, and can do no distortion marking on 3D surface steps, cone surfaces, slope surfaces, large-scale surfaces, and other objects. The dynamic axis works together with the XY axis, allowing the scan head to achieve intricate relief in deep engraving and texture etching easily.

HANTENCNC’s self-developed LenMark software is specifically for dynamic focus control. LenMark 3DS is a user-friendly dynamic focus system software. With its intuitive 3D interface, users can easily import, edit, and map 3D images, ensuring accurate processing control over 3D surfaces.

Our 3D fiber laser marking machine cabinets are designed with metal sheets that can be put on the table. For the 3D fiber laser marking machines, we recommend choosing a power of over 50W; which ensures stronger marking ability, wider application, enhanced efficiency, deeper marking depth, and long-term reliability to meet your marking requirements.

3D Fiber Laser Marking Machine Demonstration Video

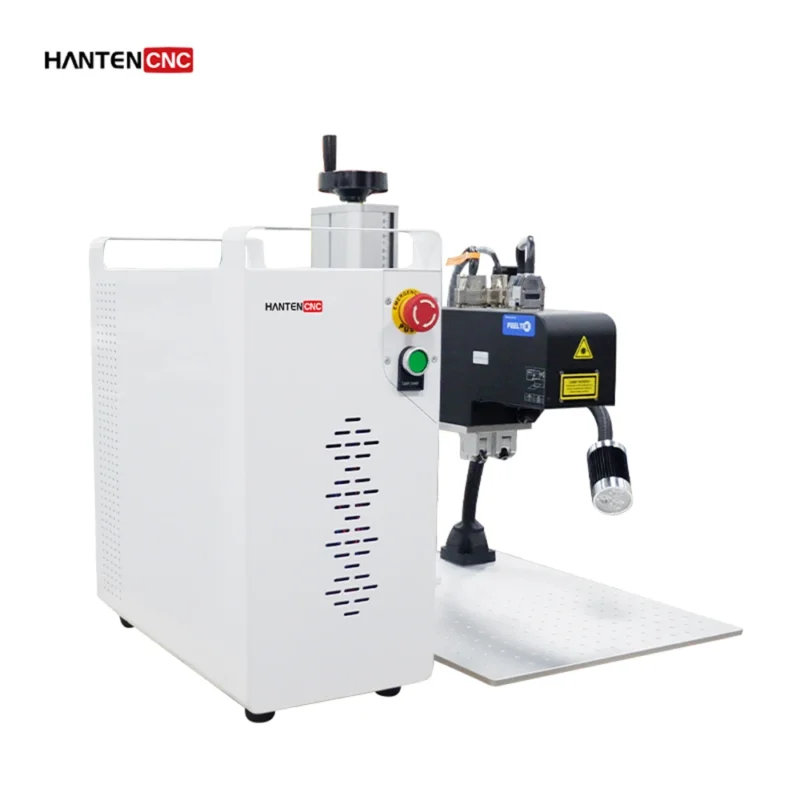

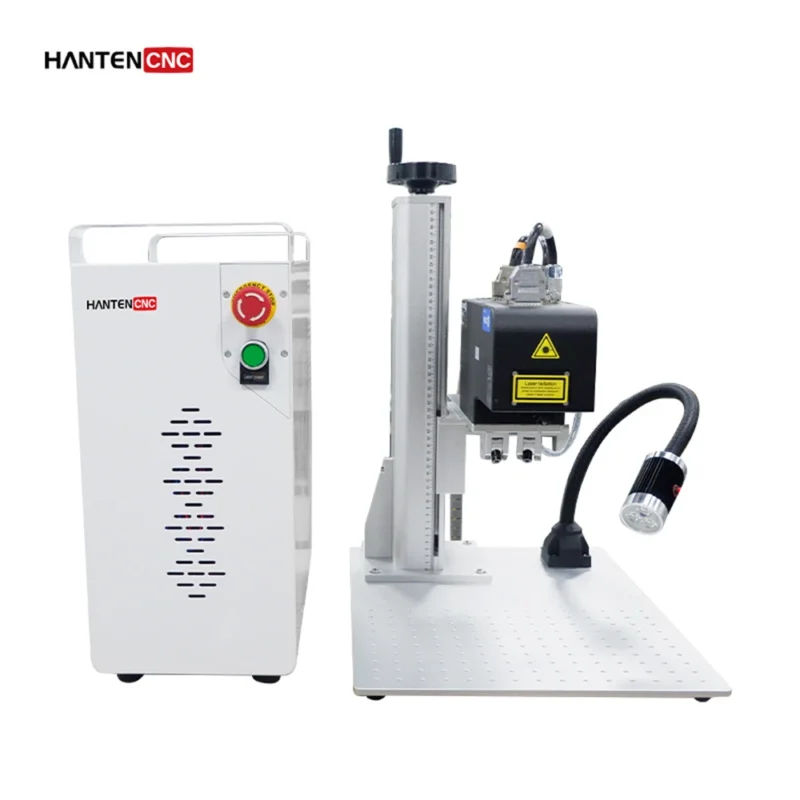

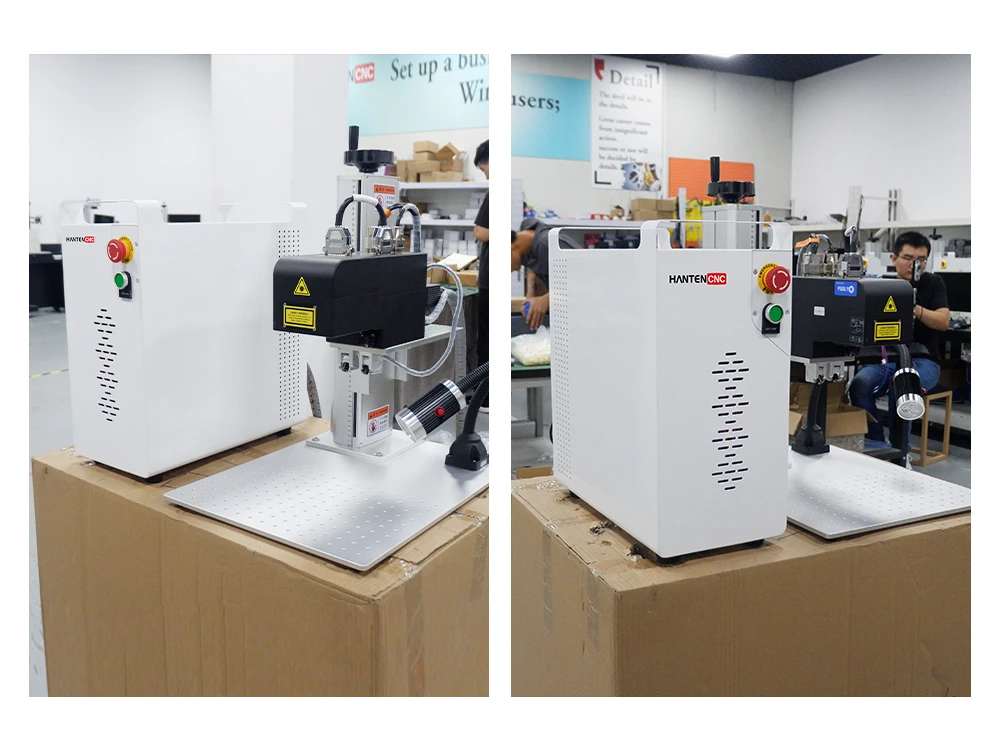

3D Fiber Laser Marking Machine Display

50W 80W 100W Mini 3D Fiber Laser Marking Machines 1

3D Fiber Laser Marking Machine Components

3d mini fiber laser marking machine black details

Dimensions of Mini 3D Fiber Laser Marking Machines

3d mini fiber laser marking machine black dimensions

3D Desktop Laser Marking Machines Parameters

Operating Environment
Model	HTF50	HTF60	HTF80	HTF100
Supply voltage	110V/220V、50/60Hz	110V/220V、50/60Hz	110V/220V、50/60Hz	110V/220V、50/60Hz
Overall Power Consumption	550W	760W	640W	700W
Optical Parameters
Output Power	50W	60W	80W	100W
Galvo Head	3D FEELTEK F10	3D FEELTEK F10	3D FEELTEK F10	3D FEELTEK F10
Marking Area	200mm*200mm (Max)	200mm*200mm (Max)	200mm*200mm (Max)	200mm*200mm (Max)
Marking Linewidth	0.01mm-0.1mm	0.01mm-0.1mm	0.01mm-0.1mm	0.01mm-0.1mm
Minimum Character Size	0.15mm	0.15mm	0.15mm	0.15mm
Power Adjustment Range(%)	0-100(Gradient Adjustable)	0-100(Gradient Adjustable)	0-100(Gradient Adjustable)	0-100(Gradient Adjustable)
Marking Speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Fiber Cable Length	3m	3m	3m	3m
Laser Wavelength	1064nm	1064nm	1064nm	1064nm
System Software	LenMark 3DS	LenMark 3DS	LenMark 3DS	LenMark 3DS
Cooling Method	Air-cooled	Air-cooled	Air-cooled	Air-cooled
Machine Parameters
Machine Dimensions	700mm500mm550mm	700mm500mm550mm	700mm500mm550mm	700mm500mm550mm
Machine Weight	About 55Kg	About 55Kg	About 55Kg	About 55Kg

3D Fiber Laser Marking Machine Features

FEELTEK F10: Dynamic Focus System

The FEELTEK F10 dynamic focus system controls the galvo head of the 3D fiber laser marking machine. It breaks through the dimension and format limitations of traditional marking. Our 3D fiber laser marking machine can be used for distortion-free marking on large-format, 3D curved surfaces, steps, cones, slopes, and other objects.

High-Precision LenMark Software

HANTENCNC’s self-development LenMark software is specific for dynamic focus control. The dynamic axis and the XY axis galvanometer are controlled cooperatively. High-precision engraving applications such as layered relief, deep engraving, and texture etching can be easily realized.

Integrated Aluminium Workbench

Integrated workbench design. High-precision and practical multi-functional work surface. There are multiple flexible screw holes on the workbench. It is convenient to install the special fixture platform. Aluminium workbench ensures stability, efficient heat dissipation, and durability.

Well-organized Internal Wiring

Minimizes the risk of electrical shorts or malfunctions, ensuring smooth and reliable operation. Secondly, organized wiring simplifies maintenance tasks, making it easier for technicians to identify and address any issues that may arise.

Advantages of the Mini Laser Fiber Marking Machine

1. Precise Optical Path Adjustment

Self-dimming center light bench is optional. It can effectively solve the problem of beam eccentricity of the laser’s built-in collimation isolation interface. One proofreading, precise alignment.

2. Compact Design For Easy Integration

HANTENCNC’s 3D laser marking machines adopt One-piece structure, dustproof and shielding design. They are small and compact, not limited by the use of space, and very easy to integrate.

3. Easily Switch Formats

Our 3D laser fiber marking machine can change different processing formats easily. The switching of different processing formats can be realized by adjusting the knob. No parts need to be replaced.

4. Stereo Surface Etching

A dynamic focus system controls the mini laser fiber machines. They can engrave and mark large-format, 3D curved surfaces, steps, cones, bevels, and other objects.

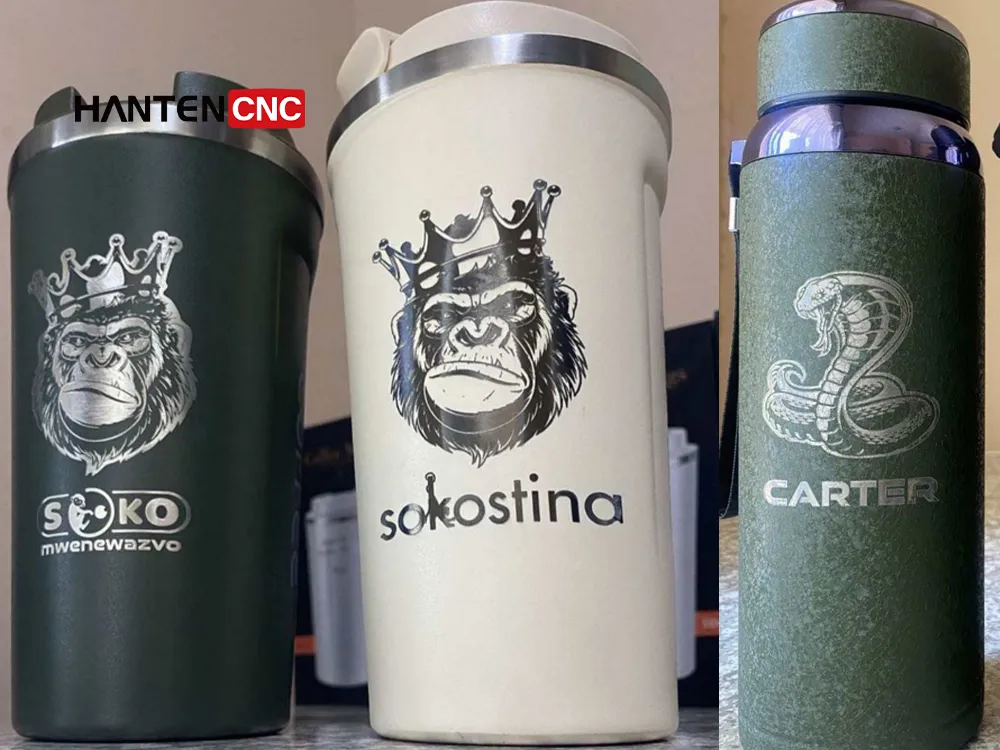

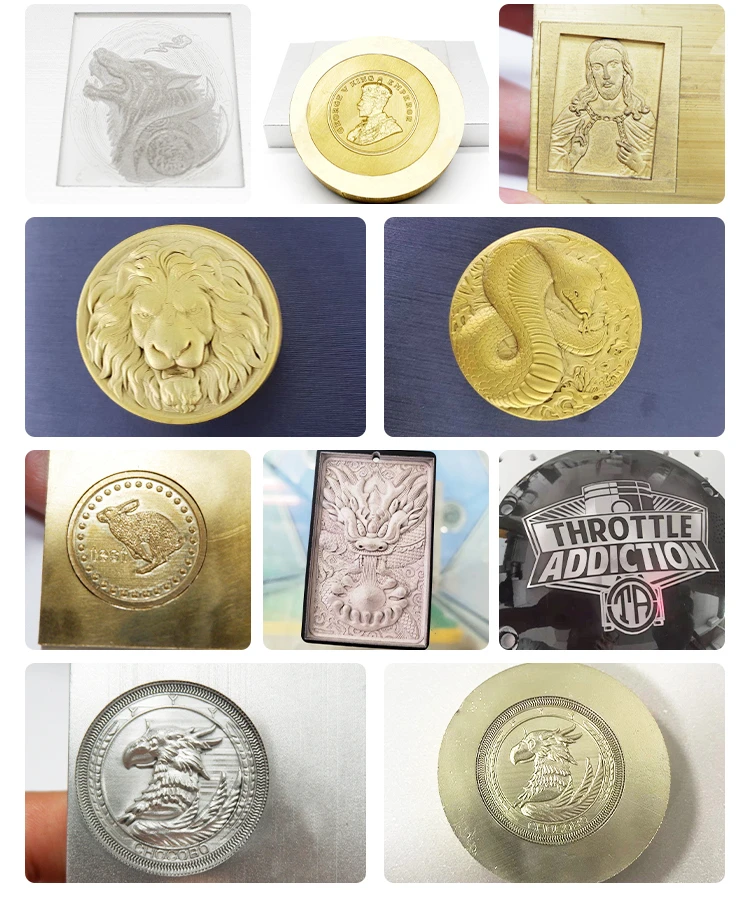

3D Fiber Laser Marking Machine Sample Display

The 3D fiber laser marking machine can be used to engrave or mark anything on steel, aluminium, titanium, nickel, copper, tin, iron, gold, ceramics, ABS, and much more other material.

For the users who practice flat marking, it is advisable that power be within 50W; for the users who work by deep carving & relief engraving, power shall above 50W.
