Laser Machine For Marking 2.5D Laser Head

Flying Laser Marking Machine 20W-100W Fiber Laser Marker

HANTENCNC’s flying laser marking machine can mark products during their movement and are suitable for industries with large-scale production, such as food packaging, beverage bottles, electronic components, etc.

Our laser marking machine is equipped with a touch screen control panel, which is easy to operate; Equipped with an independent water cooling system to ensure that the laser maintains a suitable temperature; Equipped with a high-precision Sino RC1001 galvanometer system, it can quickly respond and adjust the direction of the laser beam.

Price:USD $2,400-USD $8,100

Send Inquiry Chat Now

Description

The Advantages Of HANTENCNC’s Flying Laser Marking Machine

1.Our laser marking machine adopts a split design, equipped with sliding wheels and touch screen, making it easy to move and operate, with high flexibility.

2.We use high-quality field lens, lasers, and independent water coolers, which can significantly improve the performance, reliability, and service life of laser marking machines.

3.The marking range is wide, and it can be applied to almost all metal surfaces (such as gold, silver, copper, iron, aluminum, etc.), as well as some plastics (ABS, PVC), materials with paint or coating on the surface.

Flying Laser Marking Machine Demonstration Video

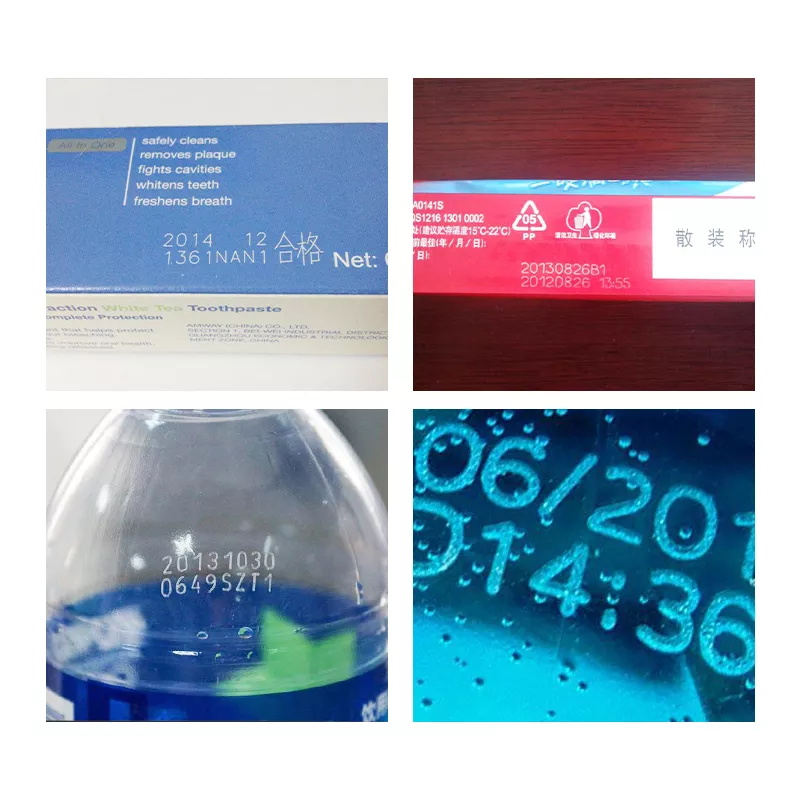

Flying Laser Marking Machine Display

Component of Flying Laser Marking Machine

Dimension of Flying Laser Marking Machine

Flying Laser Marking Machine Parameter

Model	HTF-20	HTF-30	HTF-50	HTF-60	HTF-100
Galvanometer	Sino RC1001	Sino RC1001	Sino RC1001	Sino RC1001	Sino RC1001
Cooling method	Water-cooling	Water-cooling	Water-cooling	Water-cooling	Water-cooling
Machine weight	90kg	90kg	90kg	90kg	90kg
Machine dimensions	9807401360mm	9807401360mm	9807401360mm	9807401360mm	9807401360mm
Laser Parameters
Power	20W	30W	50W	60W	100W
Laser source	JPT/MAX/Raycus	JPT/MAX/Raycus	JPT/MAX/Raycus	JPT	JPT
Laser quality	＜1.5m²	＜1.5m²	＜1.8m²	＜1.5m²	＜1.4m²
Chain cable length	2m	2m	3m	3m	3m
Average output power	＞20W	＞30W	＞50W	＞60W	＞100W
Maximum pulse energy	0.8mJ	0.8mJ	1.25mJ	1.5mJ	1.5mJ
Frequency range	1-600kHz	1-600kHz	1-600kHz	1-4000kHz	1-4000kHz
Marking area	110mm-110mm	110mm-110mm	110mm-110mm	110mm-110mm	110mm-110mm
Supply voltage	24V	24V	24V	24V	48V
Supply current	＞5A	＞7A	＞10A	＞13A	＞8A
Maximum power consumption	＜110W	＜150W	＜220W	＜300W	＜400W
Center wavelength	1064nm	1064nm	1064nm	1064nm	1064nm
Beam diameter	7±0.5mm	7±0.5mm	7±0.5mm	7±0.5mm	7±0.5mm
Power regulation range	0-100%	0-100%	0-100%	0-100%	0-100%

Flying Laser Marking Machine Details

RC1001 Galvanometer

Our flying laser marking machine adopts a galvanometer system imported from the United States, which is small in size, high in accuracy, fast in marking speed, and reliable in performance.

RC1001 has overload, overcurrent, and reverse protection functions, stable galvanometer performance, strong anti-interference ability, and can achieve high-precision marking.

Field Lens

The field lens adopts Wuhan Hansel Technology, which focuses the collimated laser beam on a smaller area of focus, improves the energy density of the laser beam, and enhances the ability and efficiency of laser processing.

Our field lens are made of high-quality materials and advanced manufacturing processes, with very high positioning accuracy and scanning speed, which can meet the requirements of high-precision processing and fast scanning.

Touch Control Screen

The surface of the touch screen is flat and smooth, easy to wipe and clean, and the operation is fast. You can directly operate it with your fingers.

Through the touch screen, you can quickly input commands and adjust parameters, display the marking process and system status in real time, and the display effect is clear and bright.

Well-organized Internal Wiring

Well-organized internal wiring not only makes maintenance and repair more convenient, but also helps to reduce electrical interference and short circuit risks.
