Demonstration Video
Metal Laser Marking Machine Details

CNC Laser Engraving Machine Parameters
Model | HTF20/30/50 |
---|---|
Laser source | MAX/Raycus/JPT |
Laser wavelength | 1064nm |
Laser power | 20W/30W/50W |
Frequency | 20kHz~80kHz |
Marking speed | 0-7000mm/s |
Resolution | 0.001mm |
Repeat positioning accuracy | 0.003mm |
Marking area | 110mm/150mm/175mm/200mm/300mm |
Minimum line width | 0.01mm |
Minimum character height | 0.1mm |
Cooling system | air cooling |
Working voltage | 0.5KW/AC220V/50Hz(option) 110V voltage can be customized |
Working environment | 0~35°C humidity≤90% |
Galvo head/galvanometer | Sino galvo head |
Field Lens | Hansel/Opex field lens |
Software | EZCAD2/BSL |
Introduction to Laser Marker Machines
The HTF20/HTF30/HTF50 desktop laser marking machine has stable output power, good optical mode. Excellent beam quality, high efficiency. Simple operation, no consumables. Low energy consumption; the mark is more fine and clear. In the field of depth, smoothness, fineness requirements have irreplaceable advantages.

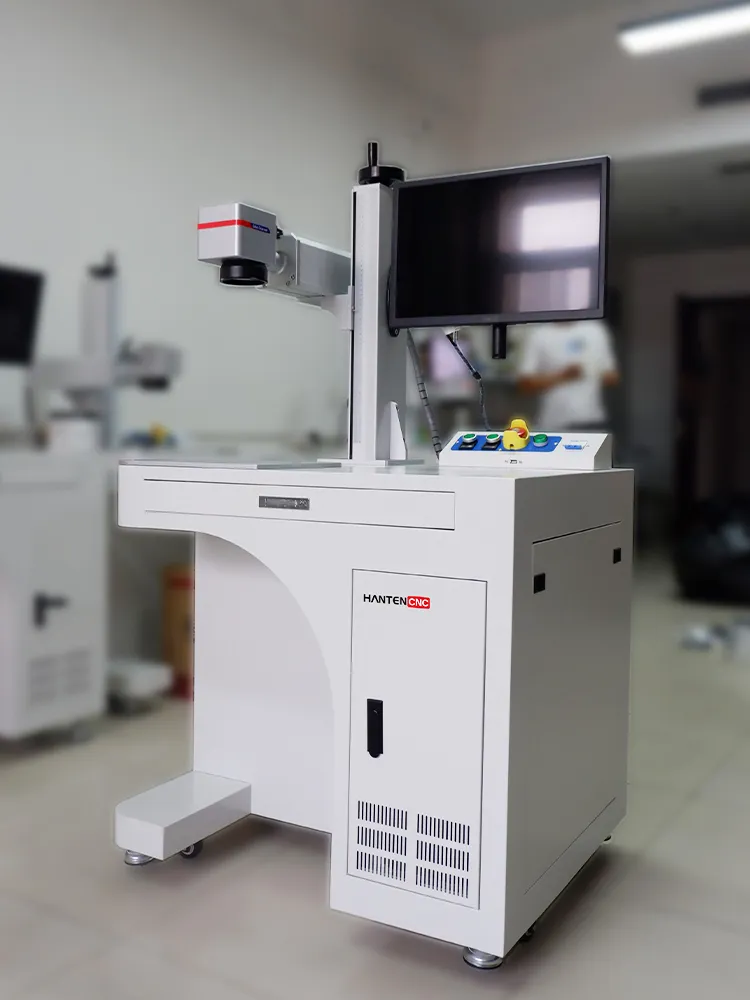

- The design of this cabinet with wheels eliminates the need for an extra table to put the machine on, just leave space for the machine. Which comes with space for legs to sit and use the machine, saving time and effort.

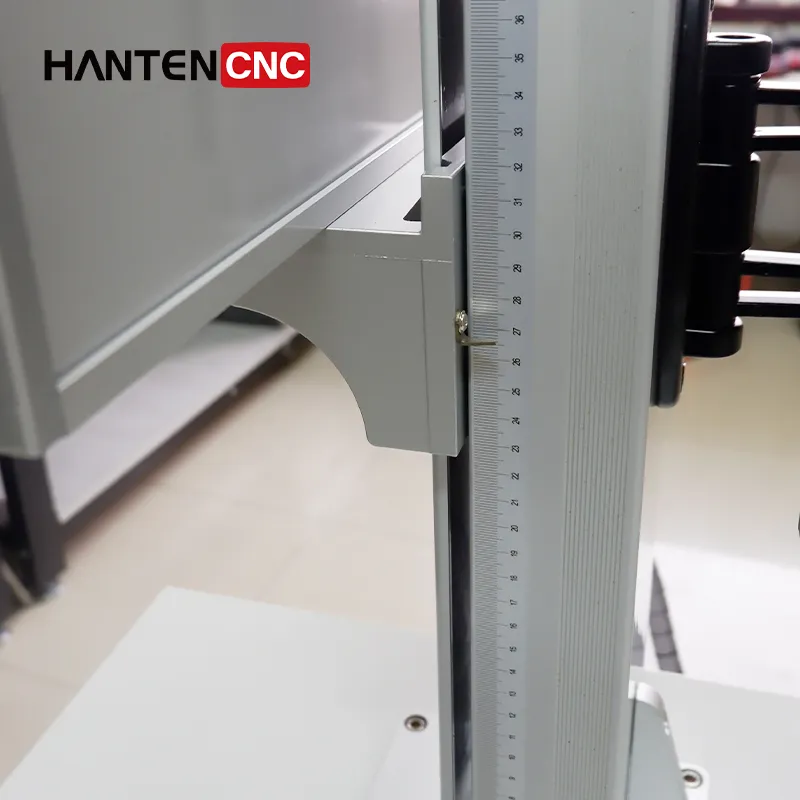

- The column scale is clear.

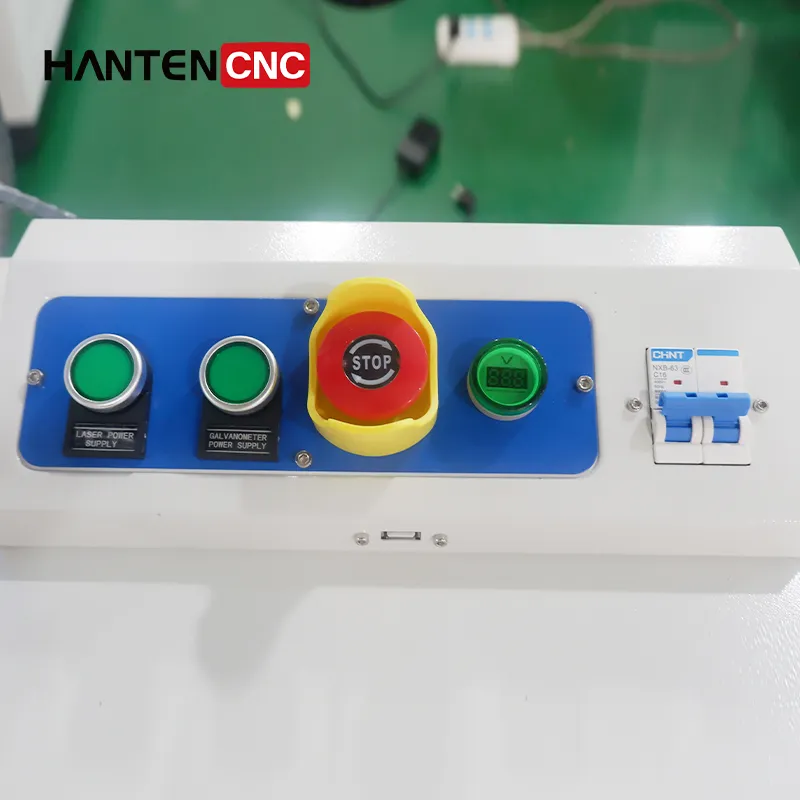

- Control panel for easy operation.

Fiber Laser Marking Machine Features
- Non-contact marking, the marked material is not damaged or deformed, and can be marked with graphics, text, LOGO, codes, etc.
- Computer drawing and typesetting, easy to operate.
- The marking effect is permanent and the anti-counterfeiting performance is strong.
- The marking effect is permanent and the anti-counterfeiting performance is strong.
- High marking accuracy, beautiful, with strong appreciation.
Machine Accessories
The laser marking machine mainly consists of an oscillating mirror, field mirror, column and fibre laser. The following is a detailed description of each of the machine’s accessories.
- Vibroscope for 2d machines, mainly with RC1001 and RC7110. (Customised on request)


RC1001
RC7110
- Field mirror working area: 110mm×110mm / 150mm × 150mm / 175mm × 175mm / 200mm × 200mm / 300mm × 300mm. You can choose the right field mirror according to the marking material.

- The core component of the machine is the laser, HANTENCNC’s lasers are Rekor, Chuangxin and JPT.
The lasers of Rike are: 20w 30w 50w 60w 100w
The HANTENCNC lasers are: 20w 30w 50w
JPT lasers: 20w 30w 50w 60w 100w
If you would like to choose a higher power machine, please ask us and we can customise it to suit your needs.
Raycus laser

MAX laser

JPT laser

In addition to the core accessories, we also offer you different machine accessories to help you perform your work better.
If you want to use it for ring and bracelet marking, you can choose our 50mm or 69mm swivel axis.
Swivel axis


50mm
69mm
If you want to use it for marking water cup options, or for marking objects with larger diameters, you can choose from our other styles of rotary axes, e.g.



80mm rotary axis
100mm rotary axis
200mm rotary axis

Customised swivels according to your material.
If your material is more complex, please consult us and we will provide you with the right solution.
- If you want to mass produce work you can choose from the following tools (which can be customised to your needs).
Disc Tooling

Bespoke Workwear

- Custom fountain pen workwear conveyor belt.

- If you need to fix the material, you can choose our metal clip.

- Other free accessories for the machine.

More Models to Choose From



Laser marking machine with positioning cover
Laser machine for the inside of cylinders
Laser marking machine with acrylic shield



Laser marking machine plus die transfer
Laser marking machine plus 3m conveyor belt
Laser marking machine with pen conveyor
20 Watt Laser Marking Machine Applications
- It is suitable for marking and engraving of various metal materials and some non-metal materials.
- Electronic and communication products, integrated circuit chips, computer accessories and electrical appliances.
- Various precision parts, automobile and mechanical parts. Hardware tools, instruments and meters, aerospace devices.
- Jewellery, clocks and watches, gifts, office supplies, trademark signs, sanitary ware.
Marking Laser Machine Sample Display
Metal Marking

Non-metallic Marking

Personalisation

Deep Engraving and Cutting of Metal

Practical Examples and Customer Inspections
