PRODUCT INTRODUCTION:
HANTENCNC’s laser marking machine for metal is small in size, foldable and light in weight. Machines are generally used in jewellery processing and other industries. The marking range supports 110*110mm, 150*150mm is optional. The lifting column of this machine can rotate left and right, and the up and down stroke is 400mm, using it will be very convenient.
APPLICATION AREA:
The laser marking machine portable is suitable for the marking of graphics and text in many fields such as tool accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace components, various auto parts, home appliances, hardware tools, moulds, wires and cables, jewellery, as well as mass production lines.
Demonstration Video Of Laser Marking Machine For Metal
Display Of Laser Marking Machine For Metal
Component Details of Laser Marking Machine For Metal
Dimensions of Laser Marking Machine For Metal
Parameter Of Laser Marking Machine For Metal
| Model | HTF20 | HTF30 |
|---|---|---|
| Laser Source | MAX/Raycus/JPT | MAX/Raycus/JPT |
| Machine Dimensions | 680mm*420mm*380mm | 680mm*420mm*380mm |
| Machine Weight | About 21Kg | About 21Kg |
| Supply voltage | 110V/220V、50/60Hz | 110V/220V、50/60Hz |
| Overall Power Consumption | 460W | 490W |
Optical Parameters |
||
| Output Power | 20W | 30W |
| Maximum Pulse Energy | 0.8mJ | 0.8mJ |
| Marking Area | 100*100mm-150*150mm | 100*100mm-150*150mm |
| Beam Diameter | 7±0.5mm | 7±0.5mm |
| Marking Speed | 0-1000mm/s | 0-1000mm/s |
| Power Adjustment Range(%) | 10-100% | 10-100% |
| Fiber Cable Length | 3m | 3m |
| Laser Wavelength | 1064nm | 1064nm |
| Cooling Method | Air-cooled | Air-cooled |
Characteristics Of Laser Marking Machines For Metal
Rotatable Design
By rotating vertically 90 ° and horizontally 360 °, the laser marking machine for metal can mark at different angles, and you can achieve more flexible and accurate marking and carving.
By rotating at different angles, you perform multiple marking tasks, there is no need to move the machine or adjust the position of the product, improving the quality of the marking.
Galvanometer System
The galvanometer system adopts advanced control technology and design, it can maintain stable working performance for a long time and has a fast response speed. You can realize high-precision and high-speed marking, with a spot diameter of up to 0.02mm.
The SINO galvanometer system adopts high-quality materials and manufacturing processes, it has passed strict quality control and testing verification, so has a long service life and high reliability.
Folding Design
The folding design of the laser marking machine for metal not only saves your space but also convenient for transportation and improves flexibility. Due to its foldable nature, it can be easily transported to different work sites.
Laser marking machine portable are small size and lightweight, so operators to use the equipment more easily, improving work efficiency and production quality.
Other Optional Laser Marking Machines For Metal
This laser marking machine for metal is a red light laser marking machine, and the computer and machine are integrated, saving space.
This laser marking machine portable is commonly used in jewellery processing and other industries. It is suitable for various parts, household appliances, hardware tools, moulds, wires and cables, food packaging, jewellery and other graphic and character markings.
Power: 20W/30W
Marking area:100-200mm
Net weight: 31kg
Machine size: 580 * 340 * 420mm
Well-organized Internal Wiring
Clearly marked circuits and equipment can help staff avoid incorrect connections or operations, save operating time, and improve production efficiency.

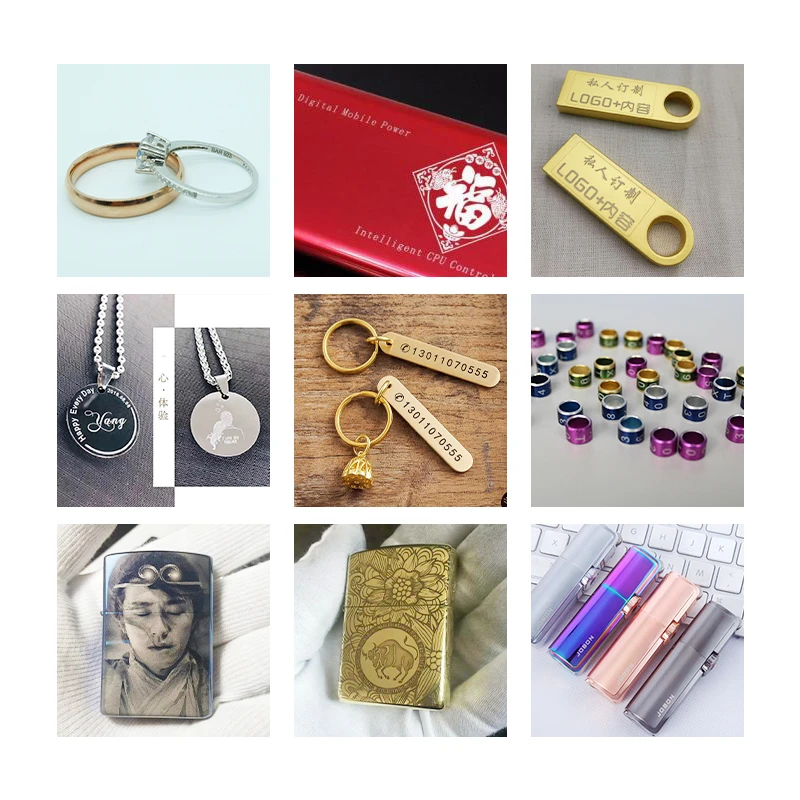

Laser Marking Machine for Metal Sample Display
Included Accessories of Laser Marking Machine For Metal
Accessory Selection Of Laser Marking Machine For Metal
