The 2.5D laser machine for marking can achieve marking at different depths on the material surface by adjusting the focus of the laser. Split design, lightweight, compact, movable, and convenient to use.
The 2.5D fiber laser marking machine is suitable for industries such as electronic components, automotive manufacturing, medical equipment, jewelry and watches, molds, packaging, etc.
Laser Machine for Marking Demonstration Video
Laser Machine for Marking Display
Component of Laser Machine for Marking
Dimensions of Laser Machine for Marking
Laser Machine for Marking Parameters
| Model | HTF30 | HTF50 |
| Operating voltage | 110V/220V、50/60Hz | 110V/220V、50/60Hz |
| Machine dimensions | 700*680*780mm | 700*680*780mm |
| Machine weight | About 50kg | About 50kg |
| Cooling method | Air-cooled | Air-cooled |
Laser Parameters |
||
| Power | 30w | 50w |
| Laser source | Raycus/JPT | Raycus/JPT |
| Galvo head | RC 1001 | RC 1001 |
| Marking speed | 0-1000mm/s | 0-1000mm/s |
| Center wavelength | 1060-1085nm | 1060-1085nm |
| Spot diameter | 6-8mm | 6-8mm |
| Beam quality | ＜1.6M² | ＜1.6M² |
| Repetitive frequency | 40-60kHz | 50-100kHz |
| Power regulation range | 10-100% | 10-100% |
| Fiber optic cable length | 3m | 3m |
| working voltage | 24±1VDC | 24±1VDC |
| Power dissipation | ＜200w | ＜340w |
| Work temperature | 0-40℃ | 0-40℃ |
| Working humidity | ≤80% | ≤80% |

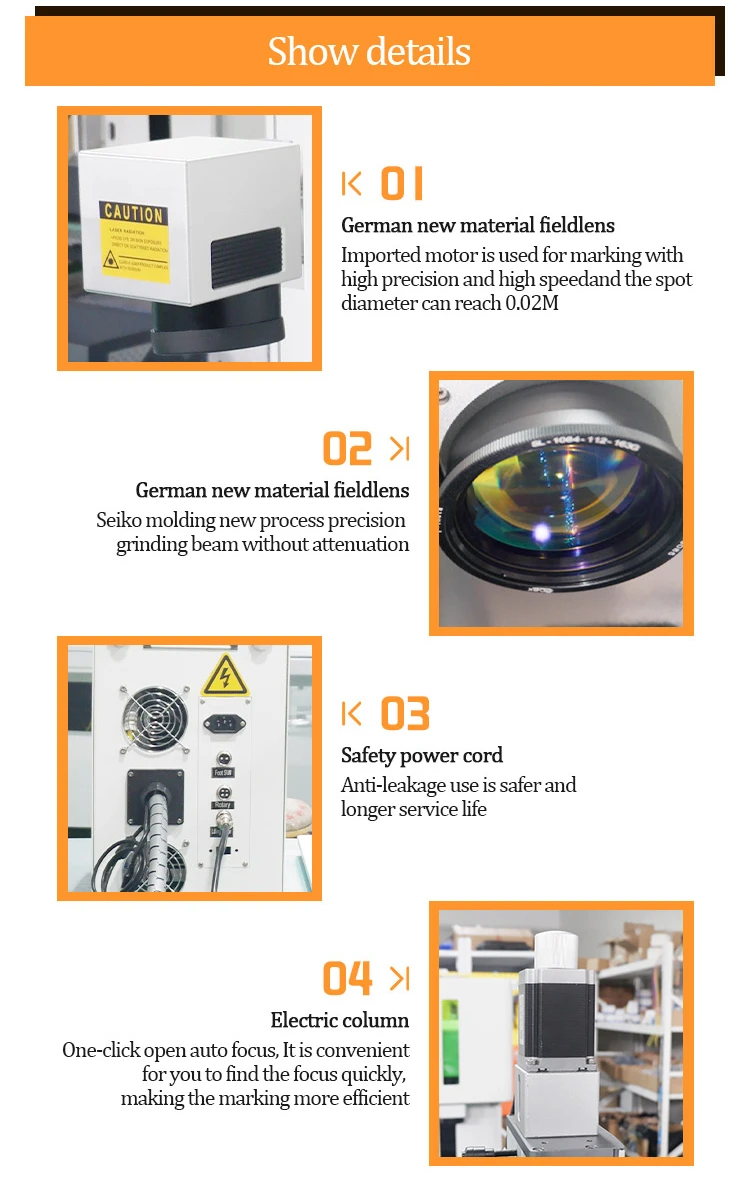

Advantages of Laser Machine for Marking
Electric Lifting Column
An electric lifting column of laser machine for marking is used to adjust the height of the marking head, which helps to achieve automation of the marking process and improve production efficiency.
The electric lifting column can accurately adjust the height, allowing the laser marking machine to always maintain the optimal focusing distance, thus improving the accuracy and consistency of the marking.
Galvo Scanner
Our RC1001 galvanometer system is lightweight, compact in design, and weighs only 900g. It has fast marking speed, high accuracy, and strong anti-interference ability, with very stable performance.
The RC1001 galvanometer system driver has a position and speed advance detection function, which improves scanning speed. The internal wiring is clearly marked for easy installation.
Aluminum Operation Table
Aluminium is relatively lightweight, which helps reduce the overall weight of the operating table. And is equipped with many small circular hole designs, that can help you locate.
The small circular hole on the operation table can reduce the reflection of the laser beam, protecting the safety of the laser and you.
Well-organized Internal Wiring
The internal wiring of the laser machine for marking is clearly marked and arranged in an orderly manner, it not only reduces the probability of machine failure, but also facilitates later maintenance, reduces the number of trials and errors, and saves maintenance time.
2.5D Laser Marking Machine - 2.5D Laser Marking Samples
The 2.5D laser marking machine is mainly suitable for flat and shallow depth marking. Suitable for metal nameplates, electronic components, tools, jewelry, etc.
The following is the sample of 2.5d laser marking:
