Our 4-in-1 handheld laser welding equipment features a variety of multi-purpose nozzle options to fulfil four different functions: welding, cleaning, cutting, and weld seam cleaning.
Our handheld laser welding machine can be a laser welding machine, a 3-in-1 laser welding machine, or a 4-in-1 laser welding machine. You can choose the equipment according to your budget and needs.
700W to 2000W 4-in-1 Laser Welding Equipment Componnents
700W to 2000W 4-in-1 Handheld Laser Welding Equipment
4-in-1 Handheld Laser Welding Equipment Dimensions
4-in-1 Handheld Laser Welding Equipment Features
Compact and Portable Design: Suited for mobility and easy transport.
Key Components: Inclusion of essential parts like safety cables and control handles.
Air-Cooling System: Ensures the stability of the handheld laser welding machine.
User-Friendly Operation: Designed control handles and buttons for effortless usage.
Single Galvo Handheld Welding Gun
Lightweight, small size, simple operation,
multiple safety protection, high safety.
Suitable for continuous welding and spot welding,
All-in-one function, saving cost.
Handheld Laser Welder with 4-in-1 Function
4-in-1 handheld laser welding equipment is equipped with a variety of nozzle selections to meet the welding, cutting, welding seam cleaning, and cleaning functions.
4-in-1 Laser Welding Machine with Optional Customized Cart
You can secure the gas cylinder, wire feeder and laser welding equipment onto our customized cart.
Thanks to its integrated design, this handheld laser welding machine can move easily between workshops for diverse welding tasks.
With its portability and flexibility, the welding effect has improved efficiency.
You can customize the cart according to your needs. For specific pricing details, please consult our sales team.
Assembly rendering of HANTENCNC’s customized cart
Well-organized Internal Wiring
All of HANTENCNC’s laser welding machine’s internal wires are well-organised, which minimizes the risk of electrical shorts or malfunctions, ensuring smooth and reliable operation.
Well-organised wiring simplifies maintenance tasks, making it easier for technicians to identify and address any issues.
4-in-1 Laser Welding Machine Parameters
| Model | HTW700 | HTW1200 | HTW1500 | HTW2000 |
|---|---|---|---|---|
LASER WELDING EQUIPMENT |
||||
| Supply Voltage | Single Phase 110V/220V± 10%, 50/60Hz AC | Single Phase 110V/220V± 10%, 50/60Hz AC | Single Phase 110V/220V± 10%, 50/60Hz AC | Single Phase 110V/220V± 10%, 50/60Hz AC |
| Power | 700W | 1200W | 1500W | 2000W |
| Laser Source | EVERFOTON/RELIABLE | EVERFOTON/RELIABLE | EVERFOTON/RELIABLE | EVERFOTON/RELIABLE |
| Fiber Length | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M |
| Protective lens | 2 protective lens | 2 protective lens | 2 protective lens | 2 protective lens |
| Welder Machine dimensions | 640x268x610mm | 640x268x610mm | 640x268x610mm | 640x268x610mm |
| Gross weight | 55KG | 55KG | 55KG | 58KG |
LASER WELDING GUN |
||||
| Maximum Oscillation Speed | 20000mm/s | 20000mm/s | 20000mm/s | 20000mm/s |
| Clear Aperture | 10mm | 10mm | 10mm | 10mm |
| X-Axis Wobble Size | 0-5mm | 0-5mm | 0-5mm | 0-5mm |
| Y-Axis Wobble Size | 0-5mm | 0-5mm | 0-5mm | 0-5mm |
| Laser Welding Gun Weight | About 1kg | About 1kg | About 1kg | About 1kg |
Sample Display of 4-in-1 Functions

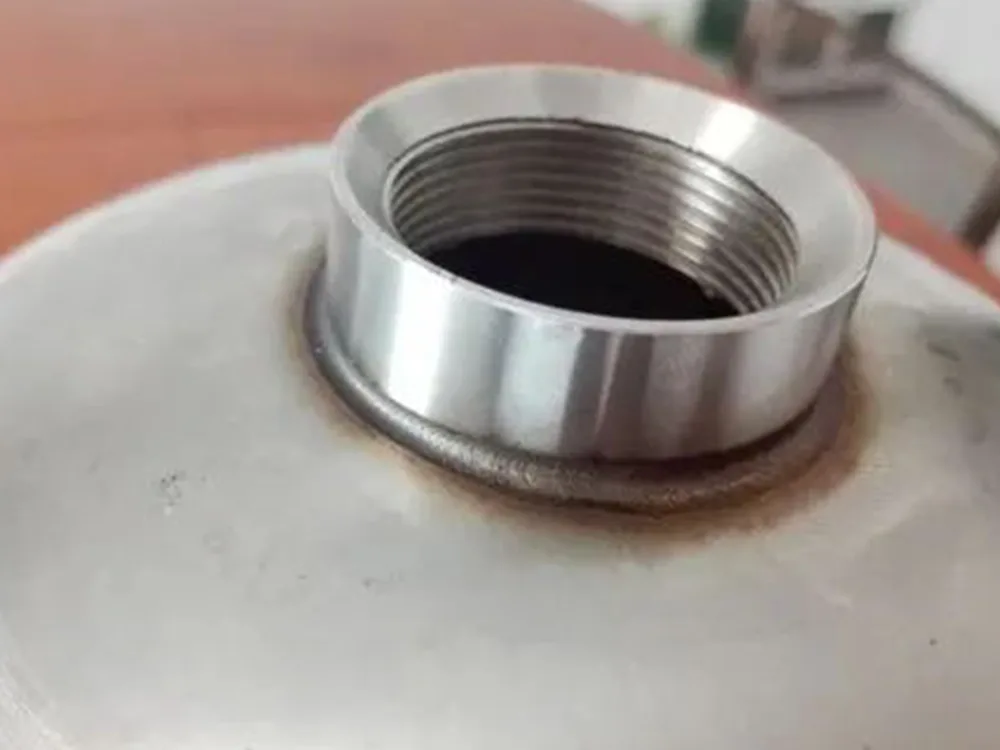

Laser Welding Samples
The powerful welding function is suitable for efficient welding of a variety of metal materials, including stainless steel, carbon steel, aluminum alloy, etc.
HANTENCNC’s 4-in-1 laser welding machine uses a high-power laser beam to achieve deep melting welding, with a firm, smooth and beautiful weld, fast welding speed, and greatly improved production efficiency.
Laser Cleaning Samples
Before welding, the 4-in-1 laser welding machine can be used to clean rust, oxide layers, and oil stains from the metal surface. The cleaning function helps ensure better welding quality.
Laser Cutting Samples
The cutting function is designed for cutting metal sheets within 2-3 mm, and can efficiently complete the precise cutting of thin metals.
We’ve adjusted the cutting power to better suit thin sheet metal rather than thick or heavy materials.
If you need to cut thicker metal materials, we recommend that you use a high-power laser cutting machine to ensure a stronger cutting effect.
Weld Seam Cleaning Samples
After welding, the weld seam cleaning function effectively removes slag and oxidation from the weld seam, resulting in a cleaner and more visually appealing finish.
Customer Visits
Customer Reviews
We are proud to share some genuine feedback from our customers, which is the best proof of our products and services.
Certificates
HANTENCNC owns trademark registration certificates, utility patent certificates, software copyright certificates, etc.
HANTENCNC’s laser welding machines are CE and FDA-certified, ensuring high quality and safety.
You can trust HANTENCNC and HANTENCNC’s fiber laser welding machines backed by these certificates.
HANTENCNC Partnerships
Our Service
HANTENCNC provides free sample testing, a 2-year warranty for the laser source, a 1-year warranty for the whole machine, and ODM services.
