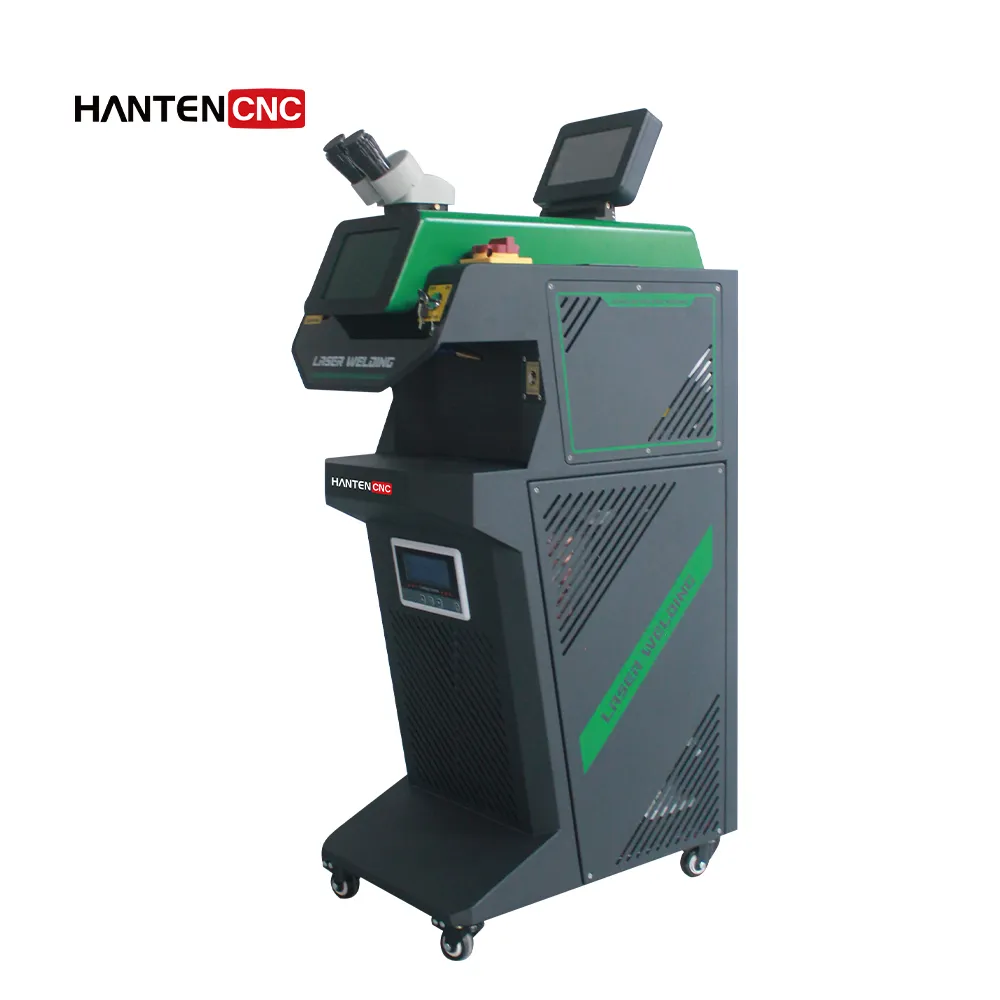

HANTENCNC’s laser welding machine for jewelry specializes in welding jewelry; the welding seam is minimal. After the jewelry is welded, it is perfect, and there are almost no flaws; it is a simple operation, time-saving and cost-effective.

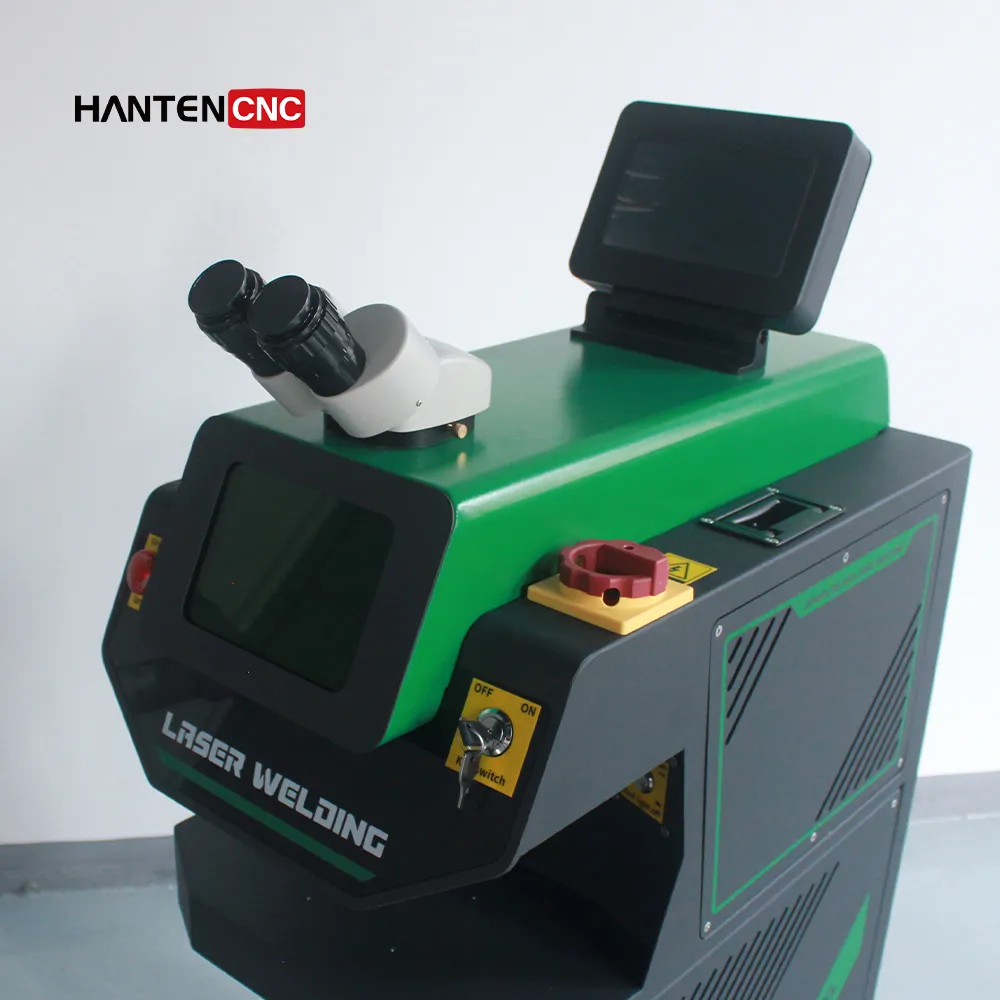

Eyepiece: Through the eyepiece, you can watch the welding situation in the welding machine in real time.
Workbench: Control handle, jet head and welding head; there are water inlets and water outlets behind the machine, which are automatically pumped and cooled.

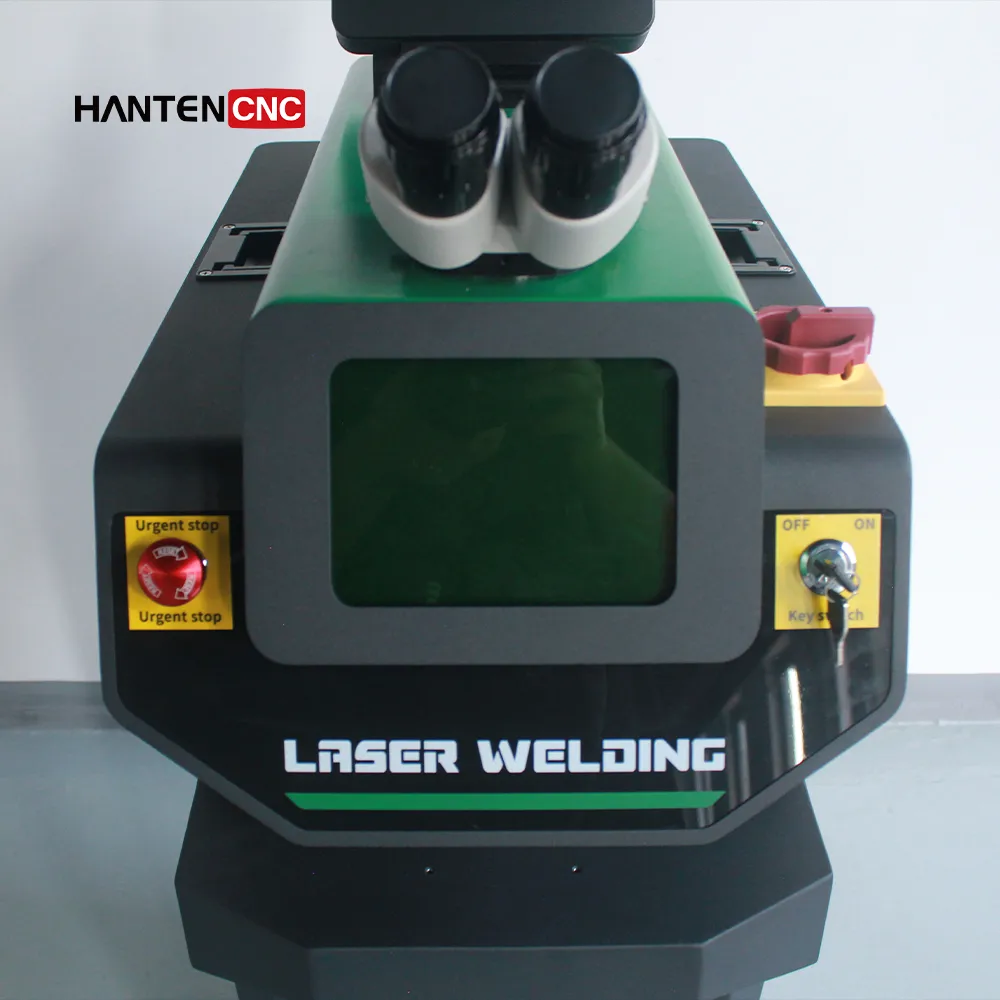

Switch: Water-cooled machine and emergency stop switch; when the machine is used up and shut down, you can press the emergency stop button to cut off the power.
Control handle: Convenient to control selection and modify parameter settings.

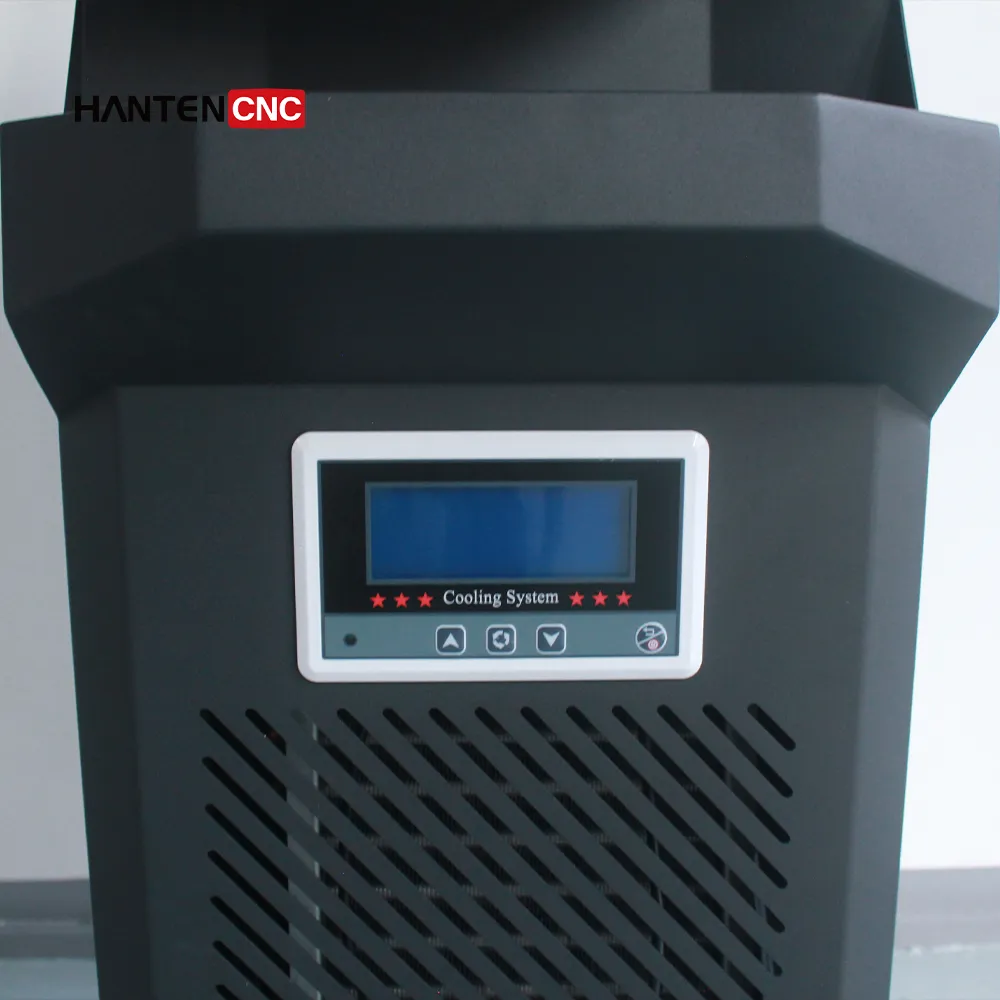

Water cooling box: Plays a cooling role; the control panel can adjust the water cooling temperature and display the real-time temperature of the machine.
Jet head: releases argon or nitrogen to assist welding, providing a protective atmosphere around the welding area to ensure a high-quality weld.
200W Laser Welding Machine For Jewelry Demonstration Video
Jewelry Laser Welder Machine Details
Component Detail Display of Laser Welding Machine For Jewelry
Laser Welding Machine For Jewelry Parameters
| Laser source | 200W fiber laser source |
|---|---|
| Laser wavelength | 1064nm |
| Spotlight Cavity Reflector | Metal Cavity |
| Max Laser Power | 200W |
| Pulse Width | 0.1-20ms |
| Laser Frequency | 1-50HZ |
| Laser energy | 40J |
| Adjusting scope of light spot | 0.6-3mm |
| Aim Operation | Round Point Cursor |
| Cooling System | Built-in |
| Rated Power | 3KW |
| Lifetime | 3,000,000 times |
| Power Supply | 220V 50HZ(option) |
Samples Display
Examples of Laser Jewelry Restoration
Welding Laser Machine Features
Light Shielding System
Automatically shield the laser from stimulating the eyes during work.
Smart Control Panel
The parameters are adjustable, and multiple sets of parameter data can be saved conveniently and quickly.
HD Microscope
Precise welding, built-in protective grating, and long-term welding will not hurt your eyes.
Control Panel
The laser weld machine is easy to operate. It is equipped with an emergency stop button, safe and secure.
Laser Welding Machine For Jewelry Applications
Jewelry Manufacturing
Jewelry laser welding machines can weld rings, pendants, earrings, and other jewelry. Laser jewelry restoration has high precision and non-contact nature. It can maintain the details and beauty of jewelry during the joining process.
Jewelry Restoration
In the jewelry restoration industry, it can restore broken jewelry. Reduce further damage to the jewelry.
Diamond Setting
In diamond jewelry manufacturing, jewelry laser welding machines can secure diamonds to metal mounts. Make sure they are firmly and securely set on the jewelry.
Chain Repair
Chain jewelry, such as necklaces, bracelets, etc., is prone to broken chains or links. Laser welding machines connect the links of the chain with precision, bringing it back together.
Pattern Repair
Some jewelry may have small patterns or patterns that may be lost through damage or wear. Jewelry laser welding machines can help repair these patterns and restore jewelry’s original beauty.
Jewelry customization
Laser welding machines can be used for custom jewelry manufacturing. It can combine different materials and elements. To meet the personalized customization needs of customers.
More Options: Discrete Laser Welding Machine For Jewelry
HANTENCNC’s laser welding machine for jewelry has discrete and integrated laser welding machines that suit diverse manufacturing needs.
Discrete Laser Welding Machine for jewelry:
HANTENCNC offer flexible configurations for you:

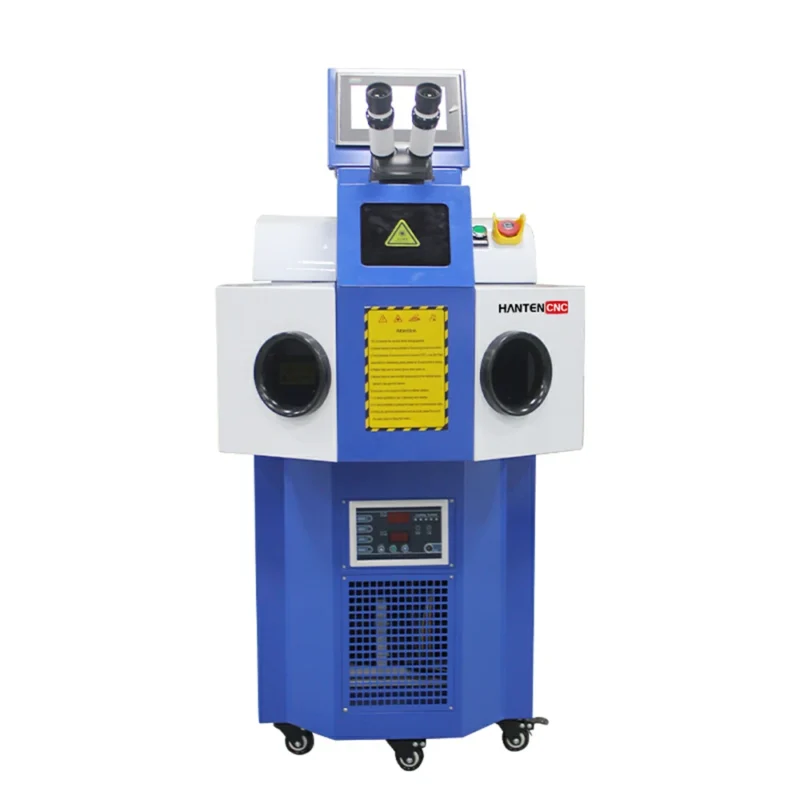

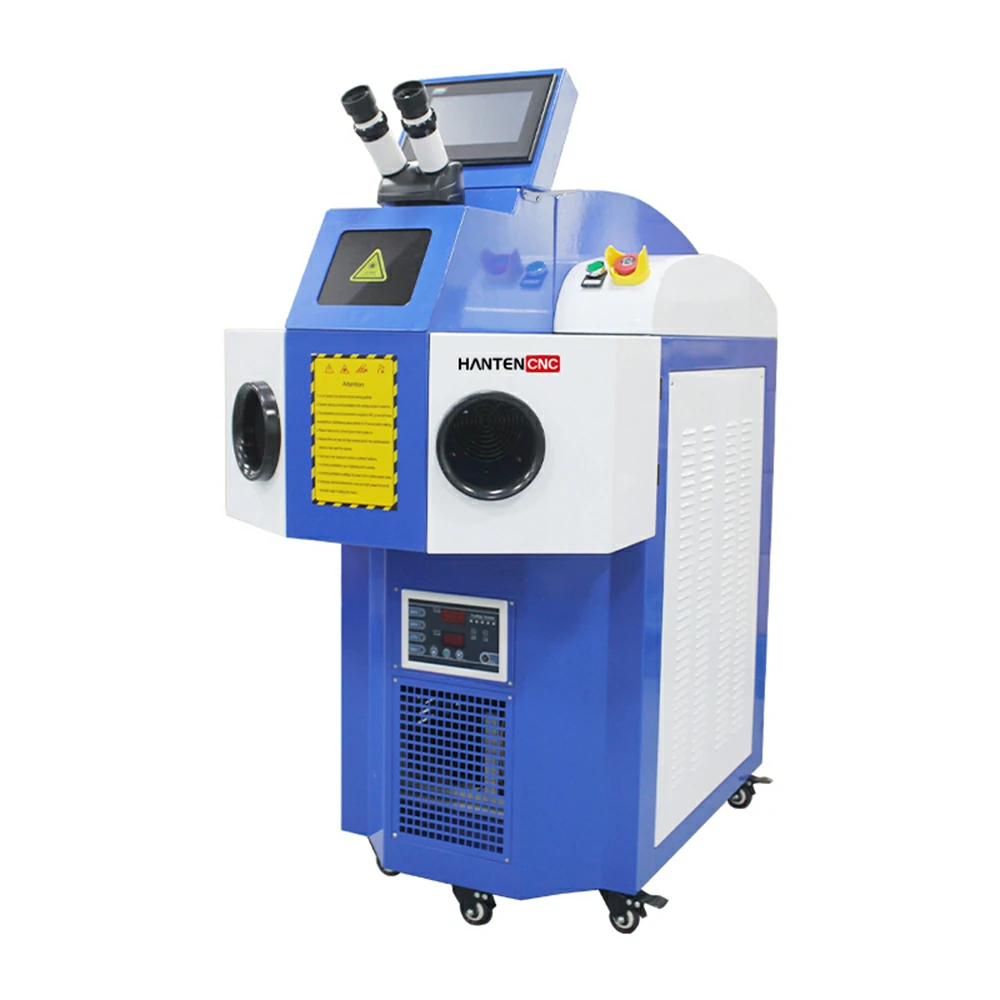

With an individual chiller for customizable configurations, this discrete laser welding machine is perfect for handling a variety of jewelry.
Integrated Laser Welding Machine for jewelry:

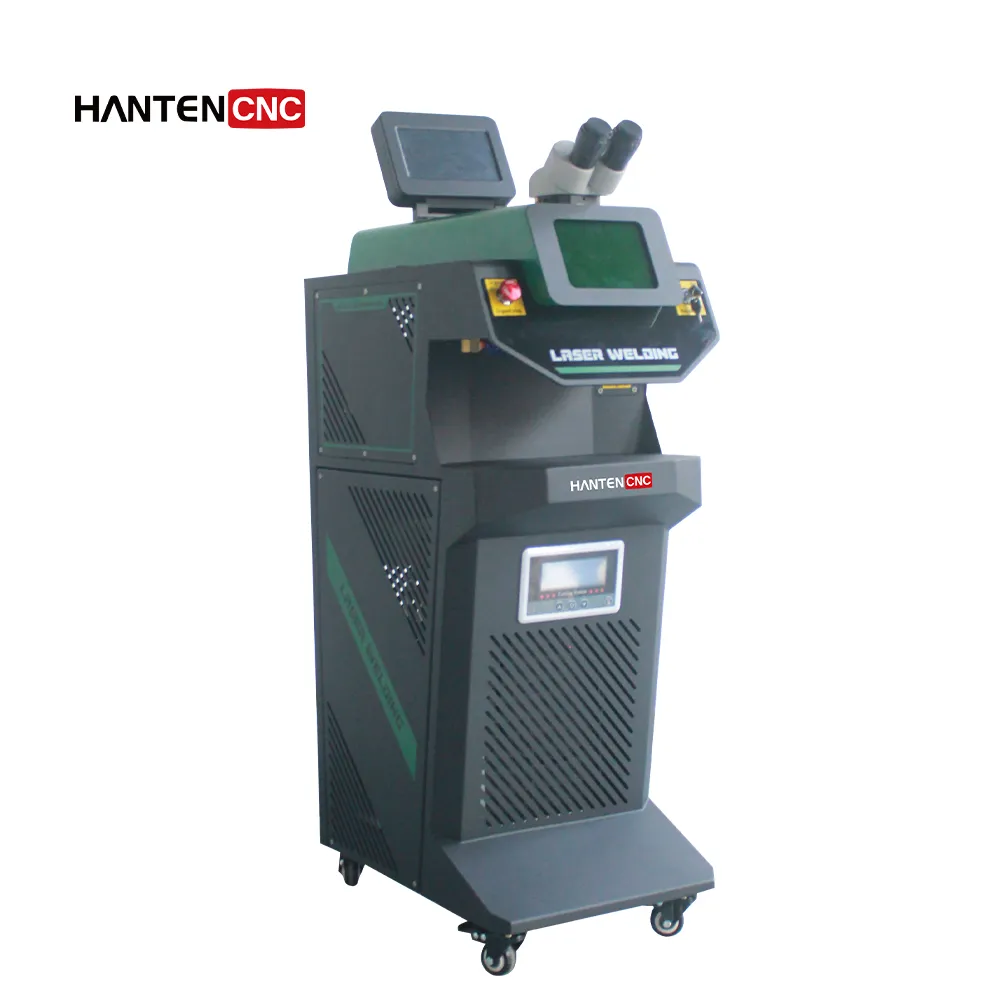

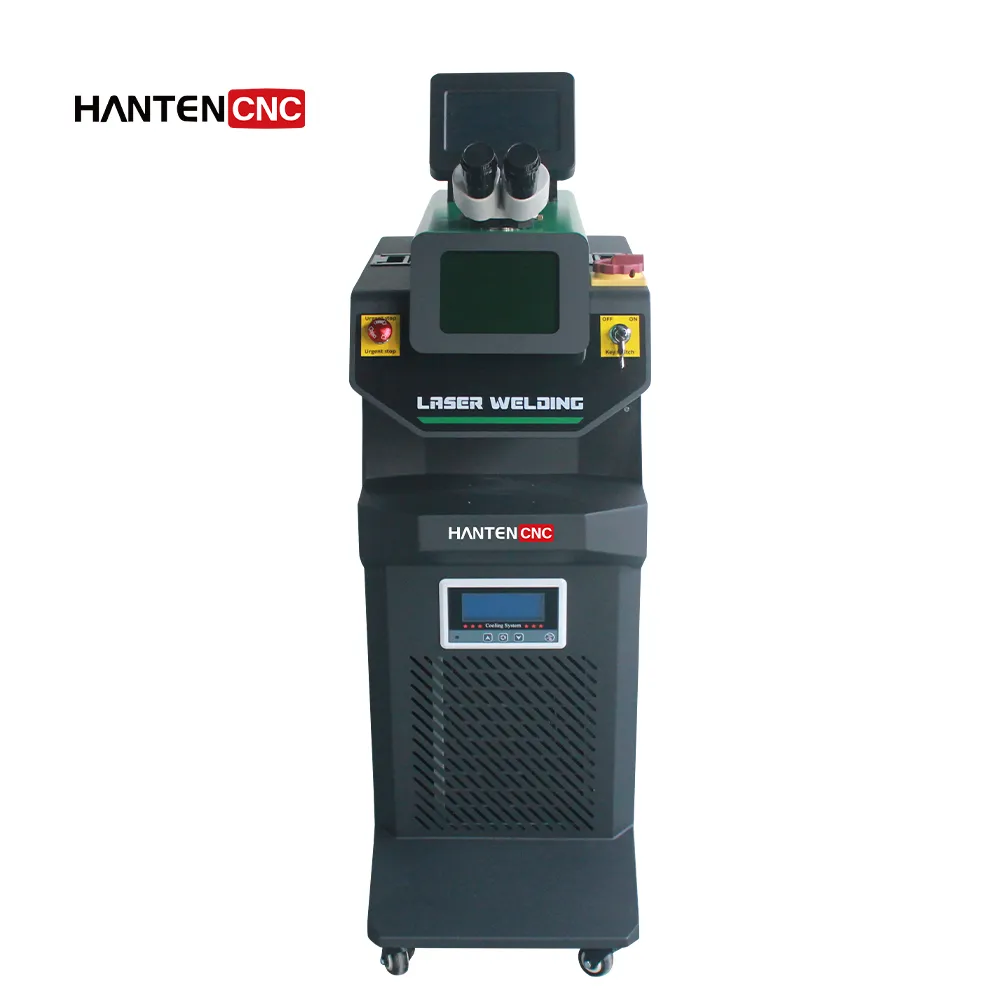

With streamlined efficiency and seamlessly integrated core components, this integrated laser welding machine is ideal for high-volume production and consistent performance.
Our range includes both Disassembled and Integrated models, so you can choose the right laser welding machine that suits your requirements.
