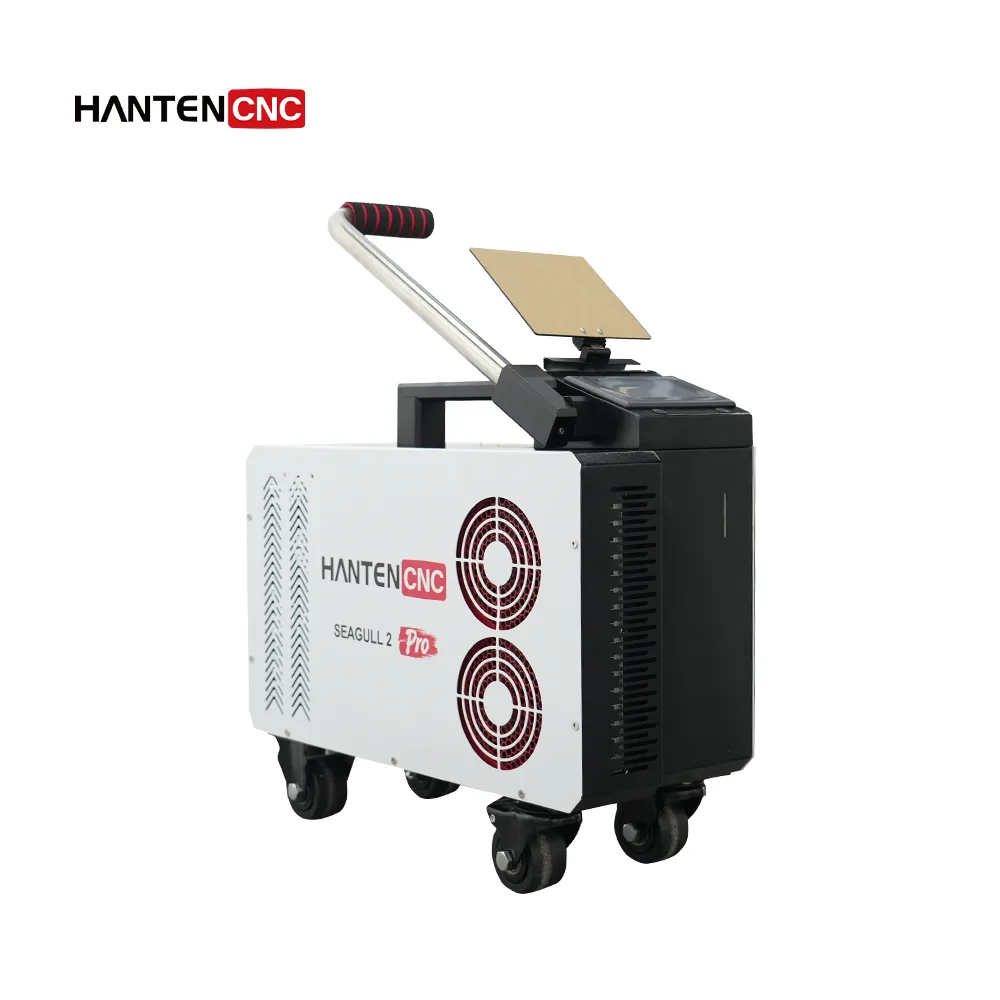

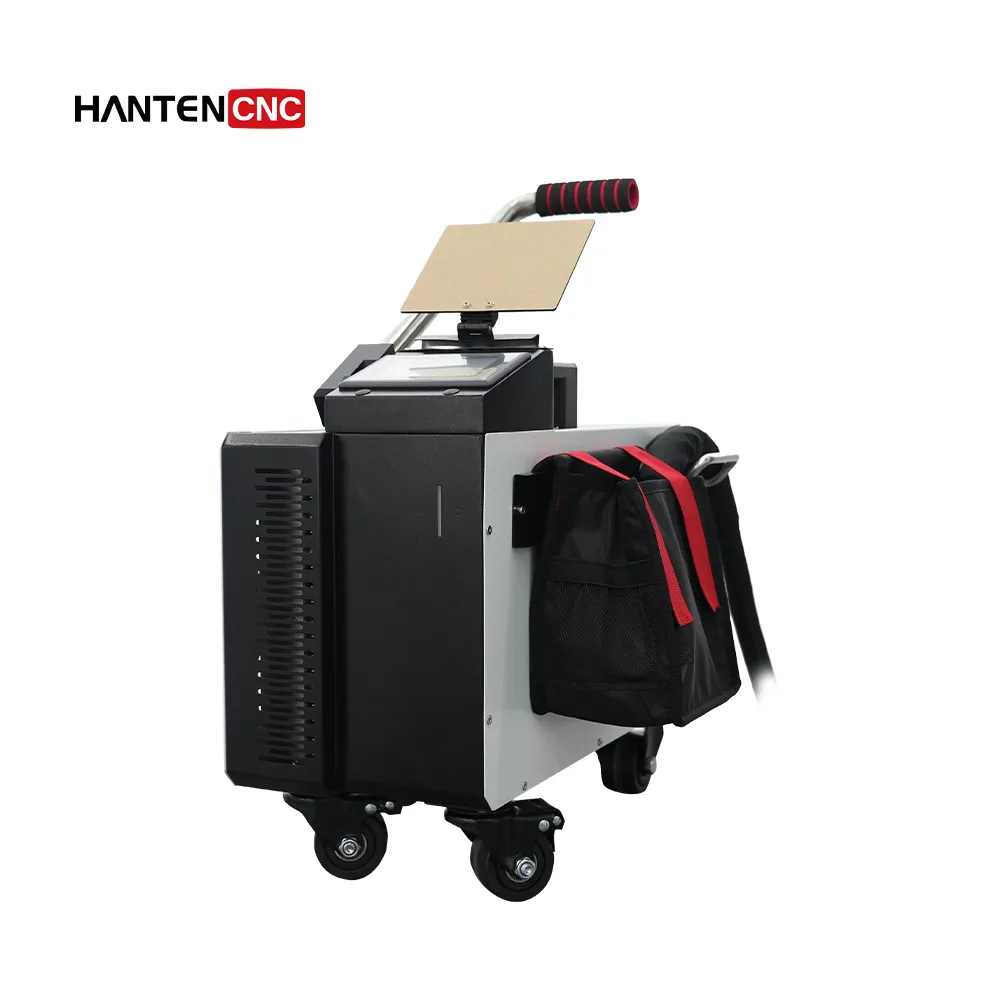

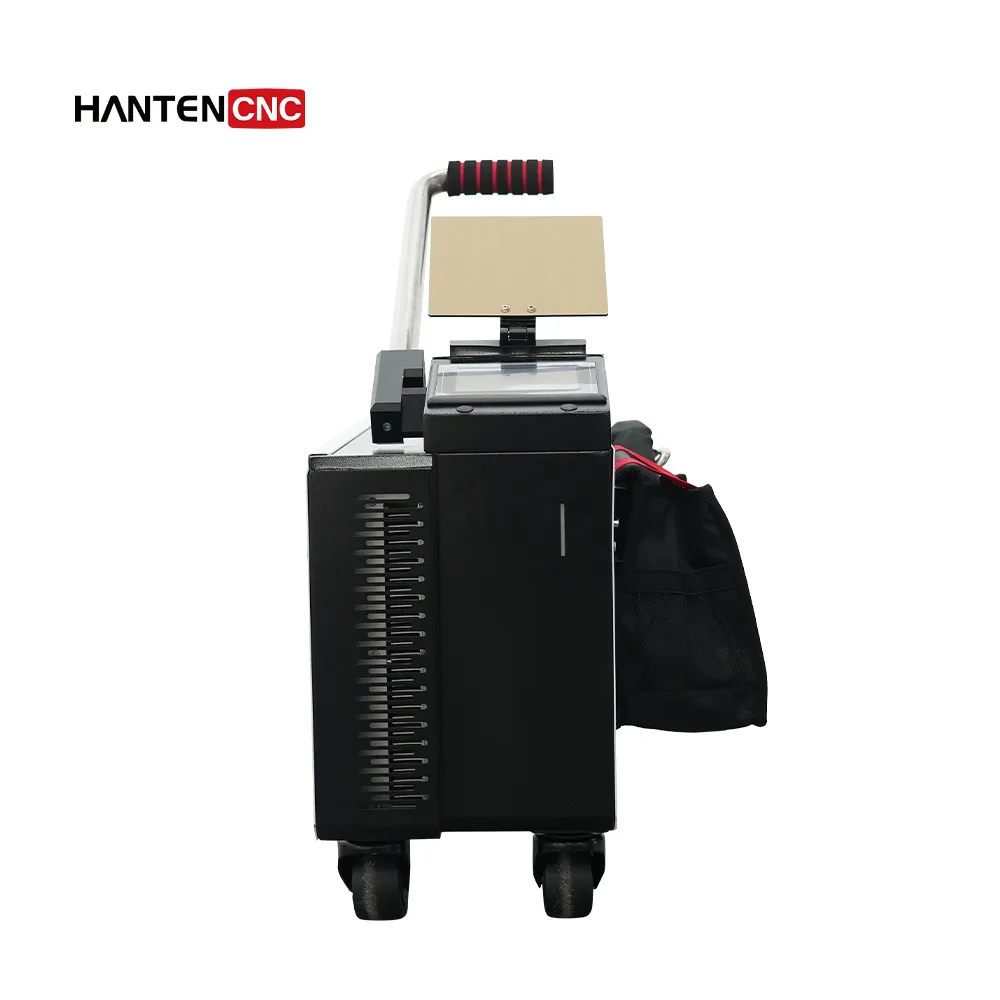

SEAGULL2™ Laser Rust Cleaning Machine
The SEAGULL2™ laser rust cleaning machines are equipped with reliable and effective JPT laser sources. They are suitable for removing rust, oil, paint, coating, and more, including in hard-to-reach areas.
The machine’s luggage-type design, 30° tilted screen, rotating handle, caster wheels, wrist control screen, and 0.8KG cleaning head make it ideal for mobile work in workshops. It is particularly well-suited to various mobile cleaning tasks.
SEAGULL2™ Laser Rust Cleaning Machines Features
Engineered for Mobility & Durability
Our SEAGULL2™ features a luggage-type design, a 30° tilted screen, a rotating handle, four dual-swivel wheels, a control screen on the cleaner’s head, and a 0.75kg laser cleaning gun.
These features make it highly suitable for mobile work in a variety of environments, such as workshops and construction sites, where flexibility and movement are essential.
It is also well-suited for transportation in vehicles, offering durability and stability even during bumpy rides, ensuring safe and secure transit to any worksite.
Enhanced Mobility and Safety Features
SEAGULL2™ has been upgraded with two sets of wheels equipped with brakes. These wheels can rotate in any direction, making the laser rust cleaning machine easy to move and position flexibly and precisely for cleaning.
The wheels with brakes make the wheels stay firmly and safely, ensuring safety and stability during operation.
Non-Damaging Cleaning
Pulse lasers release high energy in a very short time, quickly removing target substances such as rust and paint.
Due to the small heat accumulation, our pulse laser cleaning machine SEAGULL2™ can avoid thermal deformation and changes in materials, and does not damage the substrate.
SEAGULL2™ is ideal for precise cleaning of material surfaces, such as metal and wood.
Enhanced User Experience with SEAGULL2™
Laser rust cleaning machine SEAGULL2™ features a screen relocated to the front of the cabinet with a 30° tilt design, enhancing user experience, which better fits users’ habits.
Pulsed Laser Rust Cleaning Machine SEAGULL2™ Parameters
| Model | SEAGULL2-HTCM200 | SEAGULL2-HTCM300 |
|---|---|---|
| Supply voltage | Single Phase 110V/220V± 10%, 50/60Hz AC | Single Phase 220V± 10%, 50/60Hz AC |
| Laser source | JPT | JPT |
| Laser Power | 200w | 300w |
| Fiber cable length | 5m | 5m |
| Maximum pulse energy | 2mJ / 5mJ | 2mJ / 5mJ 15mj |
| Laser Pulse Frequency adjustable range | 1kHz-3000kHz | Continuous adjustable frequency from 1kHz to 3000kHz (customizable) |
| Pulse Width | 13-500ns | 13-500ns |
| Power regulation range | 0~100% | 0~100% |
| Operating temperature range | 0~40℃ | 0~40℃ |
| Storage temperature range | -10~60℃ | -10~60℃ |
| Central wavelength | 1064nm | 1064nm |
| Incident Beam Diameter | ≤10mm | ≤10mm |
| Focal length | 160mm/(210mm/254mm/330mm/420mm Optional) | 210mm/(160mm/254mm/330mm/420mm Optional) |
| Machine Dimensions | 560*240*485mm | 560*240*485mm |
| Operating mode | Handheld | Handheld |
| Laser pulse width adjustment function | Support | Support |
| Cooling system | Air-cooled | Air-cooled |
| LASER CLEANING GUN PARAMETERS | ||
| Cleaning Head Weight | <0.75Kg | <1.25Kg |
| Scanning Width | 0mm-100mm | 0mm-145mm |
| Scanning Range | 105/140/160/185/300mm Optional | 105/140/160/185/300mm Optional |
| Scanning Frequency | 1-3000Khz | 1-3000Khz |
| Maximum Scan Line Speed | About 30m/s | About 30m/s |
| Maximum Scanning Speed | 20000mm/s | 20000mm/s |

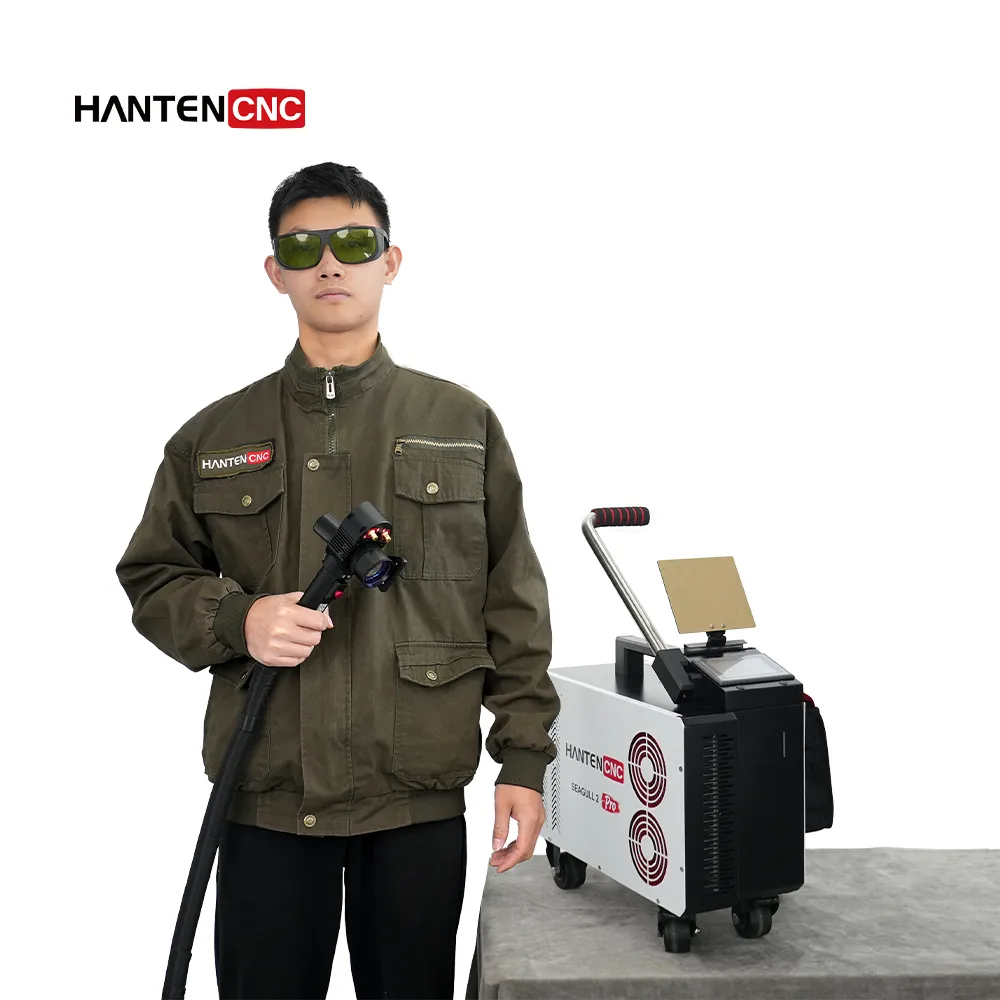

SEAGULL2™ Laser Cleaning Guns
Pulse Laser Rust Cleaning Gun
HANTENCNC‘s laser cleaning head has a lot of advantages, such as non-contact, more precise cleaning, no consumables, safety, environmental protection, etc.
Our portable laser cleaner features a handheld cleaning head and weighs less than 0.75 kg, making it suitable for extended periods of work.
We also adopt a dust-proof sealed design, which effectively prevents dust and maintains a clean working environment.
1. Air-blowing Fixture
The HANTENCNC laser cleaning head is equipped with the Air-Blowing Fixture.
This fixture uses high-pressure airflow to remove dust, dirt, and leftover particles during laser cleaning, helping to improve cleaning results. It also protects the protective lens from dust and extends its lifespan. When used with inert gas, it can reduce oxidation on metal surfaces and keep them smooth. This helpful tool is popular among customers and improves the overall cleaning quality.
- Remove dust and impurities:
During the cleaning process, the air-blowing fixture uses high-pressure airflow to blow away dust, contaminants, and residues to ensure that the surface is clean. This work is crucial to the effect of laser cleaning because if there is any dust or impurities on the surface of the workpiece, it will affect the cleaning and even lead to incomplete cleaning.
- Protect protective lens:
When the laser cleans the materials, the dust generated by the laser beam will stick to the protective lens, which will cause contamination to the protective lens, affect the cleaning effect, and reduce the lifespan of the protective lens. In that case, HANTENCN’s air-blowing fixture can avoid dust contamination during the cleaning process.
- Reduce oxidation reactions:
The air-blowing fixture can reduce oxidation reactions by jetting inert gas, creating a gas-protective film, which is very important for some metal materials that are easily oxidized, preserving the surface’s smoothness and quality. Many customers told us that they are satisfied with the upgraded cleaning machine’s cleaning effect.
SEAGULL2™ Laser Rust Cleaning Machines Components
SEAGULL2™ Laser Rust Cleaning Machine Dimensions
Compared with SEAGULL1™, SEAGULL2™ is 30mm shorter in height and 20mm longer in length, with the width remaining the same.
Pulse Laser Cleaning Effects: Before VS After
Customer Feedback: SEAGULL2™ Laser Cleaning Machines Delivered
Customer Reviews
Certificates
HANTENCNC Partnerships
HANTENCNC Service
HANTENCNC’s laser cleaning machines are CE and FDA-certified. We offer a 2-year warranty for the laser source and a 1-year warranty for the whole machine, sample testing, OEM customization, remote guidance, and lifelong after-sales support.
