Demonstration Video
Machine Details
Fiber Laser Marking Machine Parameters
| Laser wavelength | 1064nm |
|---|---|
| Laser power | 30W/50W |
| Country of origin | Shandong China |
| Controlling software | Qing Yu |
| Resolution | 0.001mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum line width | 0.01mm |
| Minimum character height | 0.1mm |
| Cooling system | air cooling |
| Working voltage | 0.5KW/AC220V/50Hz(option) |
| Working environment | 0~35°C humidity≤90% |
More Details About The Product
- Sheet metal cabinets are not easily deformed.

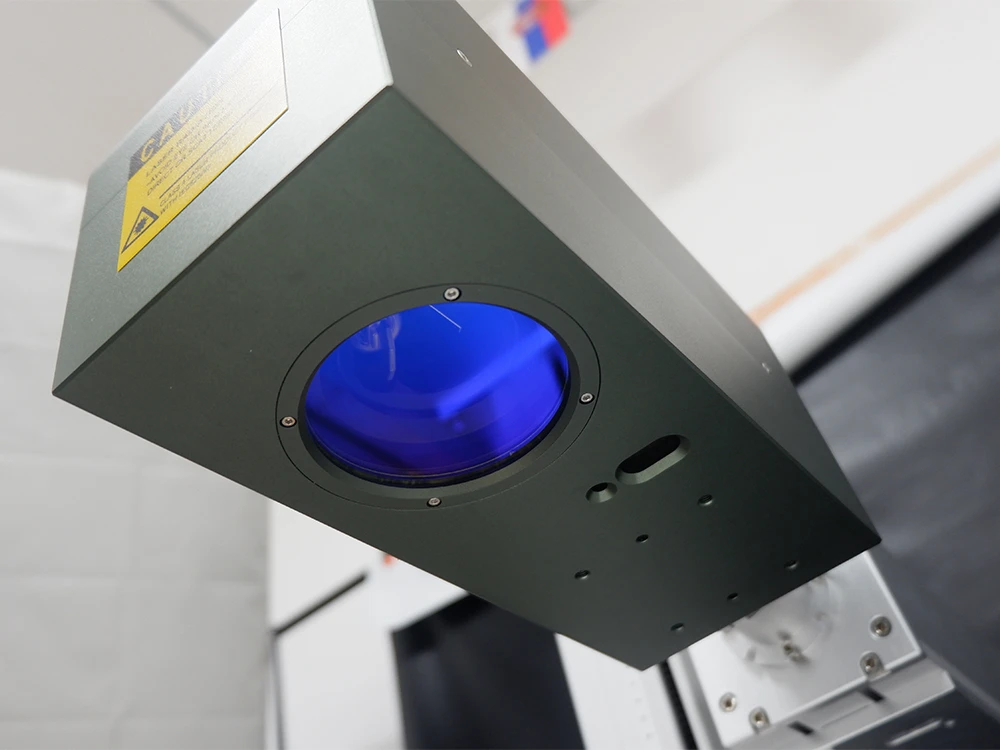

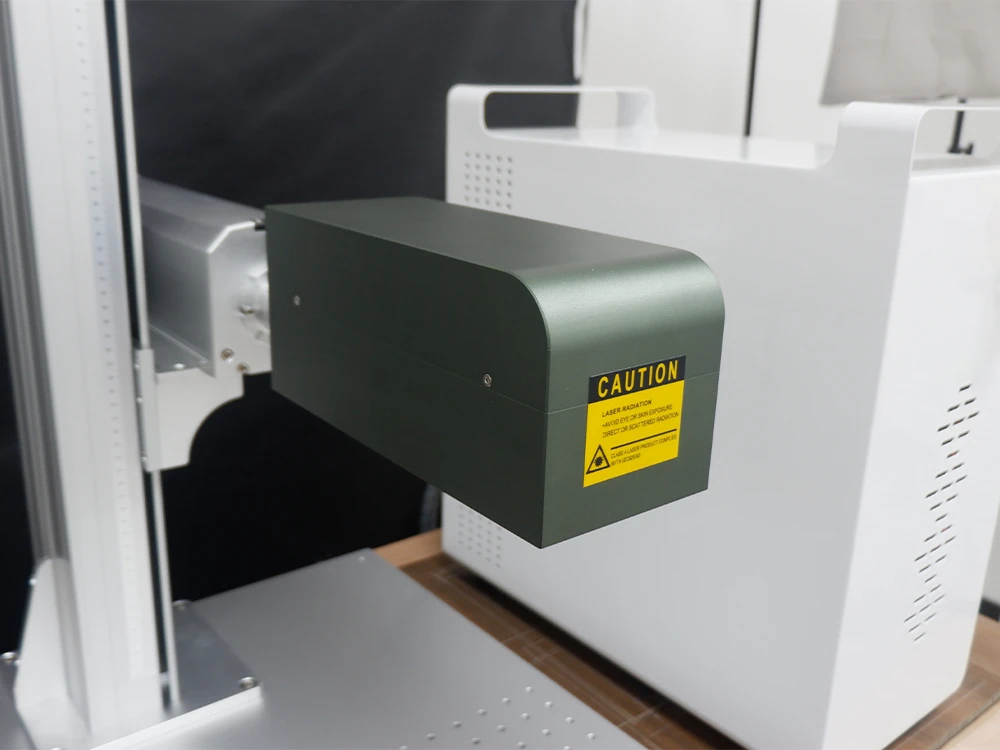

- 3D galvanometer, good beam quality, high positioning accuracy.

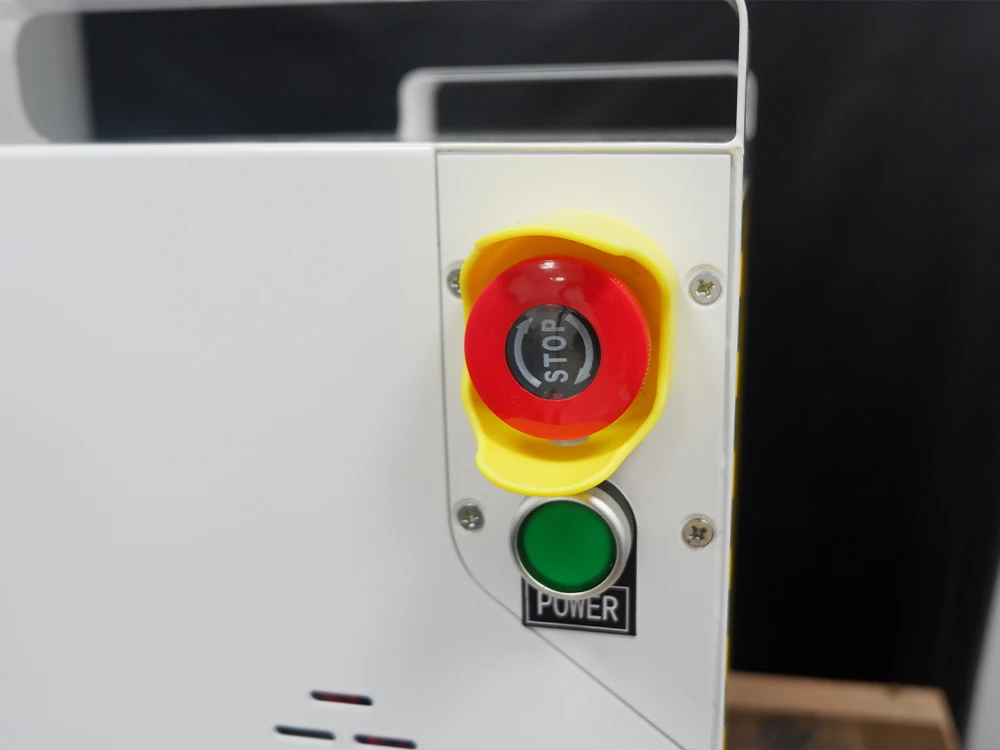

- Emergency stop switch, more secure.
Fiber Laser Marker Machine Advantages
Wide Range of Applications
HANTENCNC laser fiber marking machines can meet the marking needs of different objects. It can mark irregular objects such as curved surfaces, cylinders, and spheres.
More Suitable For Deep Carving
Because there is a dynamic Z-axis in the 3D galvanometer, the focus position of the laser is not fixed like the traditional 2D marking machine. The height of the laser focus can be set by software. So the 3D laser marking machine is more suitable for metal deep carving.
Larger Marking Range
Since there is a dynamic Z-axis in the 3D galvanometer, it will make the focused laser energy more uniform in the entire marking range. So the processing effect of large size is also very good.
Sample Display
Actual Cases And Customer Inspections
