HANTENCNC’s 3-in-1 handheld laser welder integrates three functions into a single laser welding machine, aiming to perform welding, cleaning and cutting by using one machine, which can improve efficiency, enhance productivity and precision, ensure superior quality, save your cost, and save space.
HANTENCNC’s handheld laser welder machine is known for its cost-effectiveness, ease of operation, high precision, high efficiency, and perfect welding effects, which can meet various efficient and precise welding requirements.
3 In 1 Handheld Laser Welder Introduction Video
3 in 1 Laser Welder Components
3 in 1 Laser Welder Machine Functions
Our 3 in 1 handheld laser welder machine offers 3 functions, including welding, cleaning, and cutting functions.
This laser welding machine can function as a 3-in-1 or 4-in-1 laser equipment. You can simply change the nozzle and then change different functions to suit different needs.
For instance, the welding nozzle is used for welding, the cleaning nozzle is used for surface cleaning, and the cutting nozzle is used for metal cutting.
This flexibility makes it an efficient tool for multiple applications.

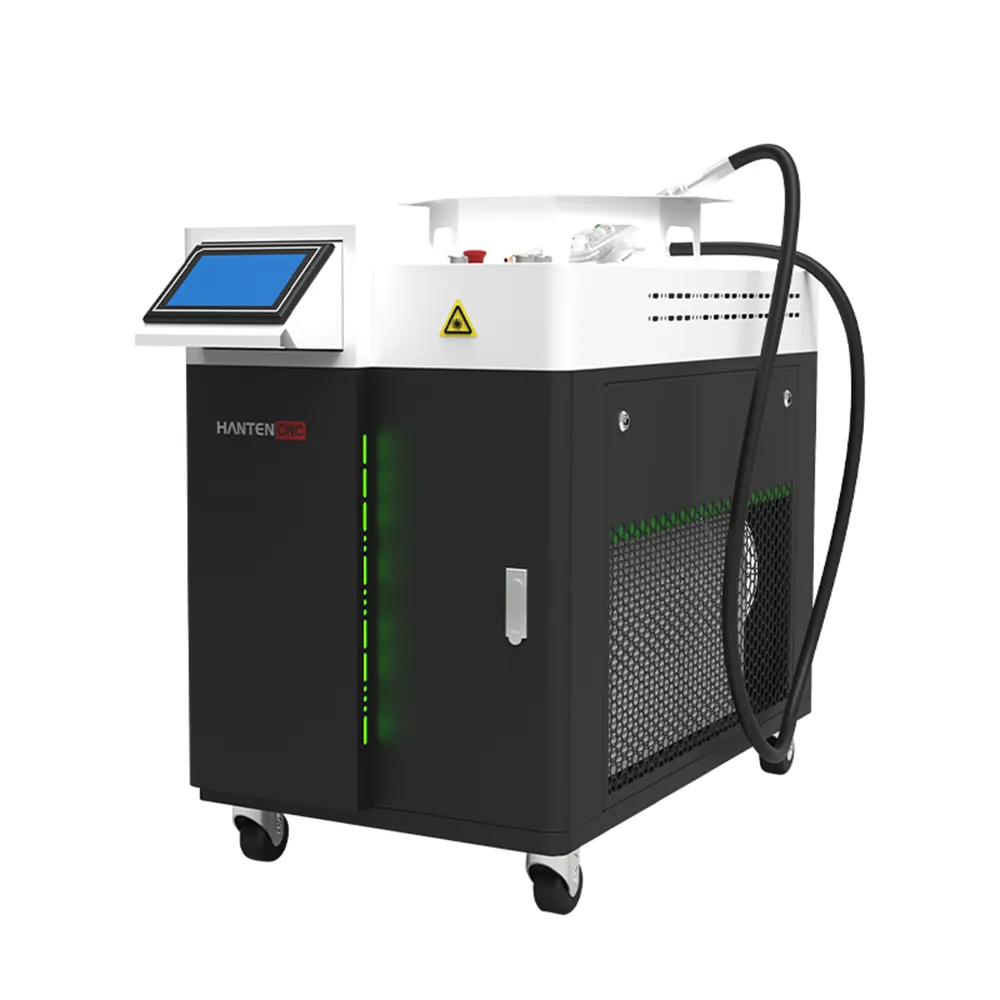

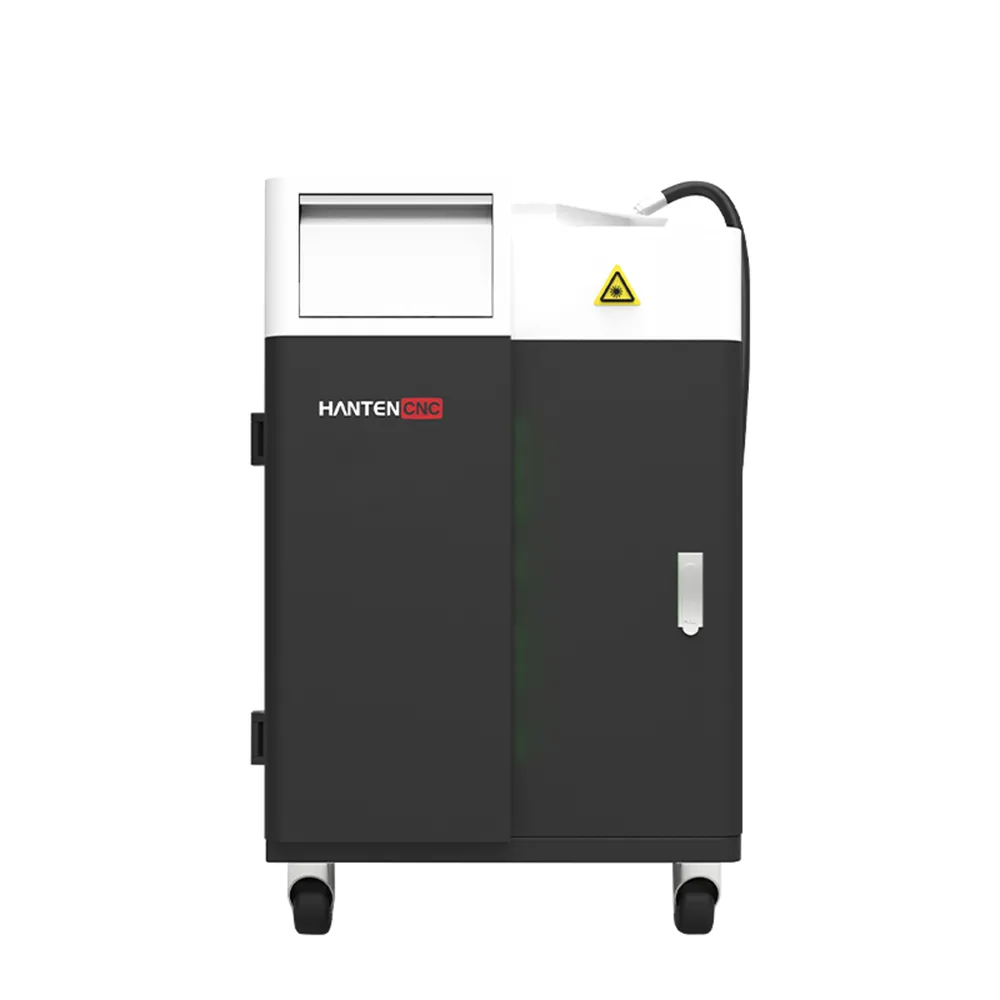

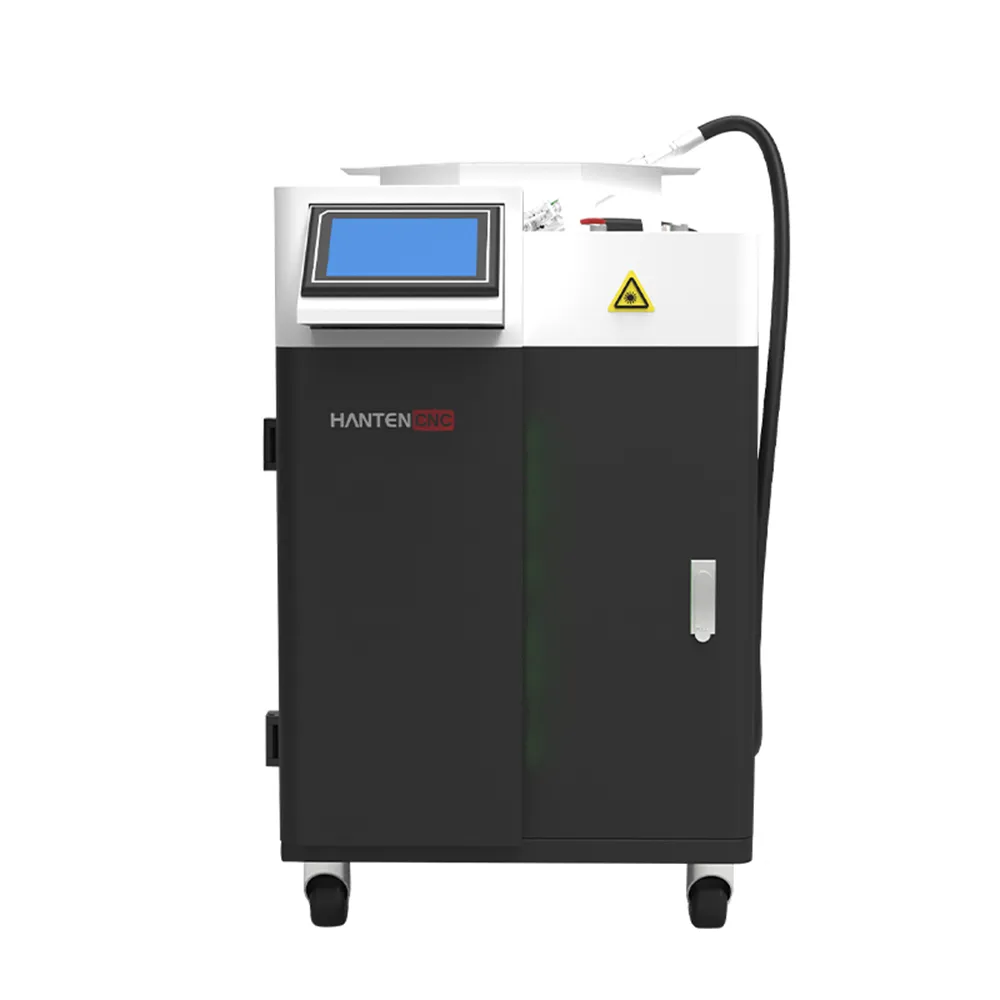

3-in-1 Handheld Laser Welder Machine Details
3 in 1 Laser Welding Gun: Detailed Structure
3 in 1 Laser Welder Machine Features
Compact and Portable Design
HANTENCNC’s newly developed 3-in-1 handheld laser welder machine, with its compact size and portable design, is suitable for various welding tasks.

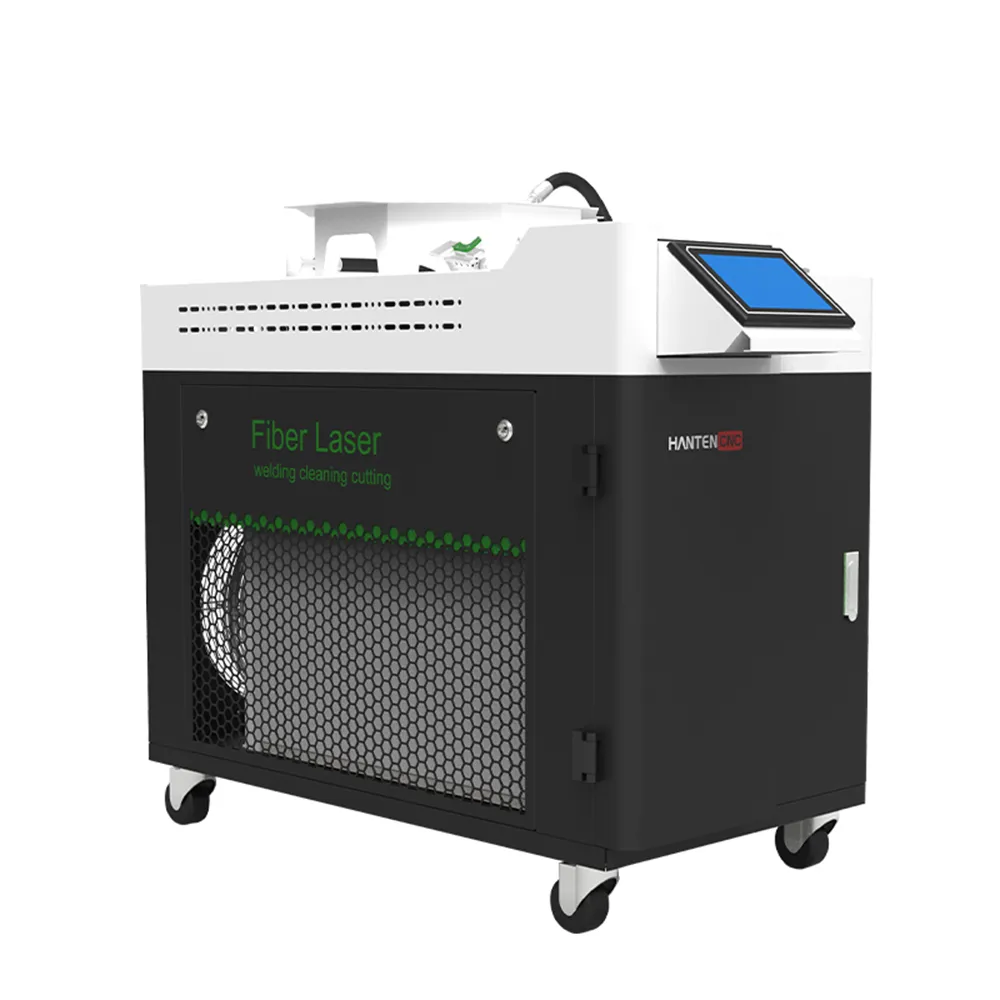

Water-Cooling System
Ensures the stability of the high-power handheld laser welding machine.

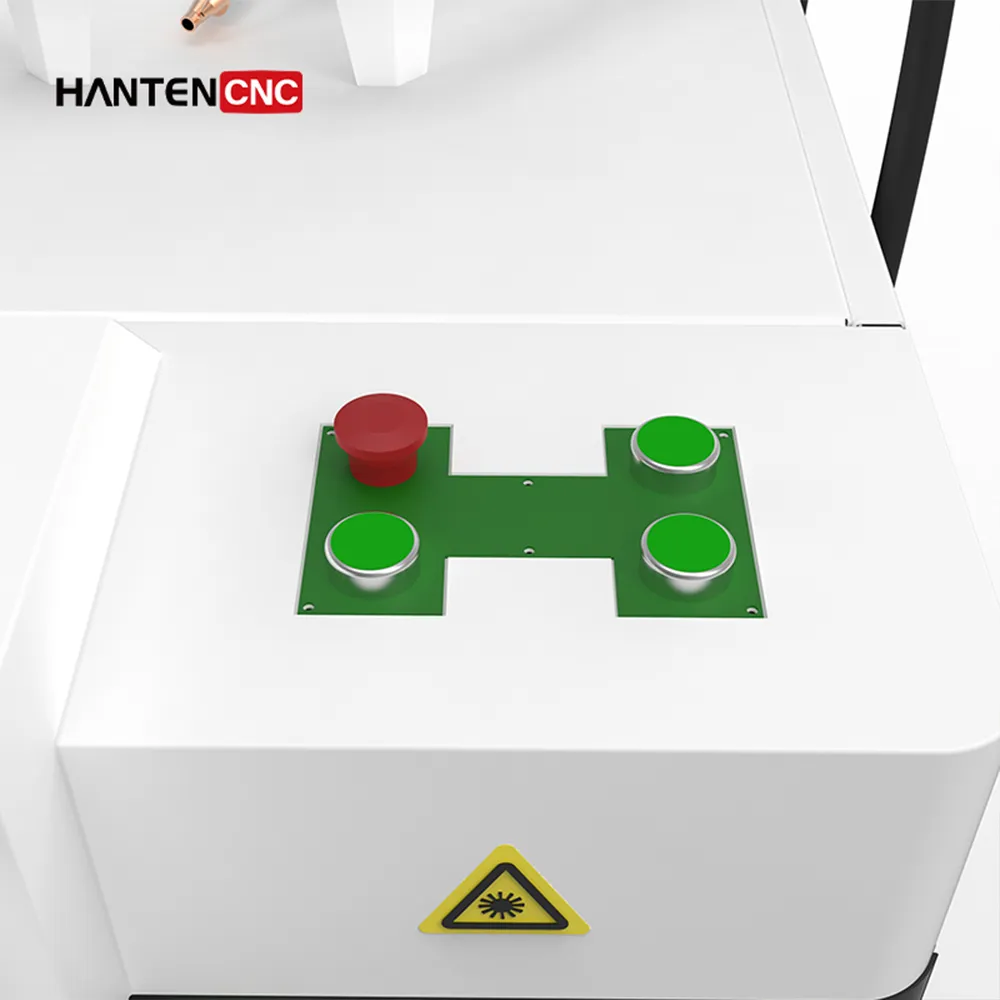

User-Friendly Operation:
Designed control handles and buttons for effortless usage.

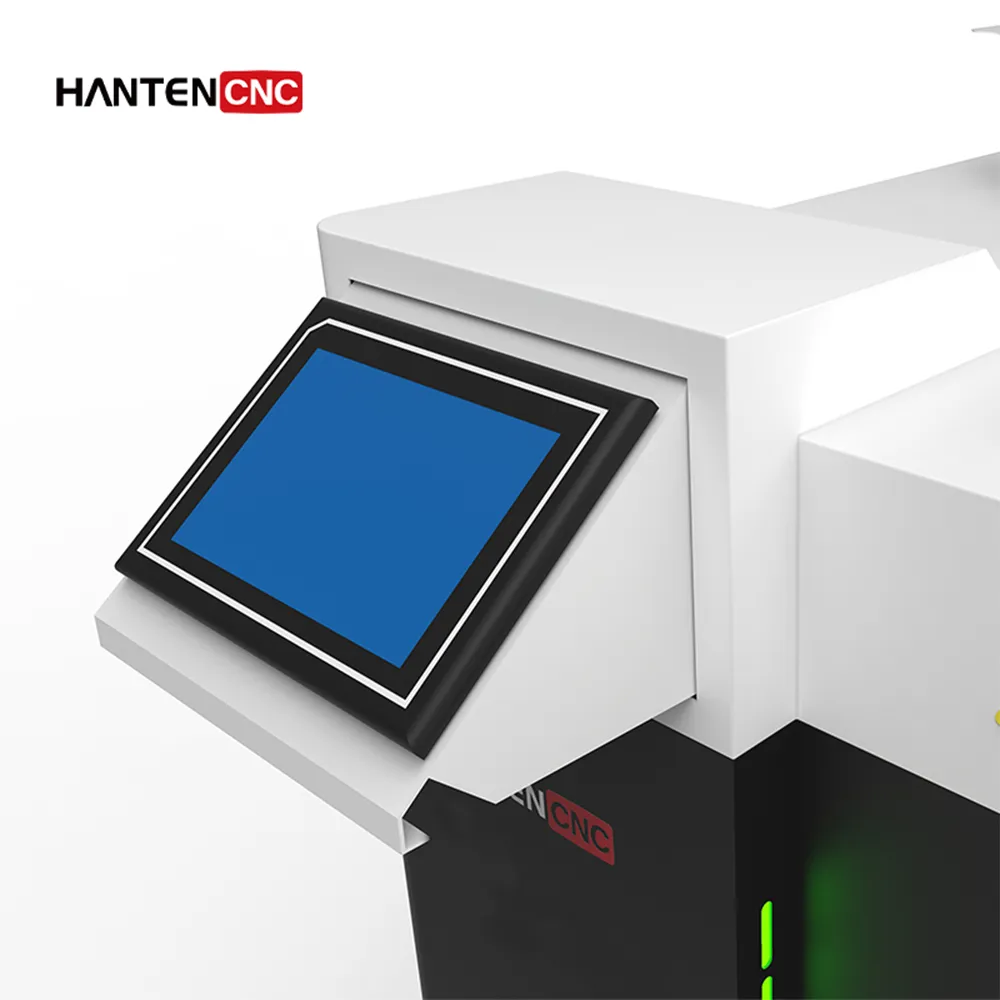

Retractable Touchscreen
HANTENCNC’s versatile 3-in-1 handheld laser welder machine features a protective retractable touchscreen, ensuring durability and reliable performance.
The retractable touchscreen can be safely retracted within the laser welding machine, which can prevent the touchscreen from external environmental impacts and damage, and extend the lifespan of the laser welder machine.
3 in 1 Laser Welder Machine Dimensions
Welding, Cutting and Cleaning Results Display
The 3000W laser welding machine, with its versatility and high performance, has become an indispensable tool in the modern manufacturing and processing industries.
The 3000W 3-in-1 laser welding machine features cleaning, cutting, and welding modes.
In the metal processing and manufacturing sector, it efficiently welds and cuts various types of metals, including stainless steel, aluminum, and copper, to produce a wide range of metal components and products.
Welding Effects
Cleaning Effects
Before welding, the 3-in-1 laser welding machine can be used to clean rust, oxide layers, and oil stains from the metal surface.
The cleaning function ensures better welding quality.
The maximum cleaning width depends on the focal length of the focusing lens.
The maximum cleaning widths of focusing lens with focal lengths of 150mm, 400mm, and 800mm are 30mm, 60mm, and 120mm respectively.
You can choose different lenses based on your cleaning needs—shorter focal lengths for precise work and longer ones for wider coverage.
Cutting Effects
The cutting function of the 3-in-1 laser welding machine is designed for cutting metal sheets within 2-3 mm, and can efficiently complete the precise cutting of thin metals.
Since the 3-in-1 laser welding machine is designed for both welding and cleaning, we’ve adjusted the cutting power to better suit thin sheet metal rather than thick or heavy materials.
If you need to cut thicker metal materials, we recommend that you use a high-power laser cutting machine to ensure a stronger cutting effect.
3 in 1 Handheld Laser Welder Machine Parameters
| Model | HTW1500 | HTW2000 | HTW3000 |
|---|---|---|---|
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Laser power | 1500W | 2000W | 3000W |
| Working voltage | 220V Single Phase | 220V Single Phase | 380V Three Phase |
| Fiber length | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M |
| Operating Mode | Continuous Welding | Continuous Welding | Continuous Welding |
| Operating System | Handheld Welding System | Handheld Welding System | Handheld Welding System |
| Working environment temperature range | 10-40℃ | 10-40℃ | 10-40℃ |
| Welding gap requirements | ≤0.5mm | ≤0.5mm | ≤0.5mm |
| Welding Scan Width | 0–8mm | 0–8 mm | 0–8 mm |
| Cleaning Scan Width | F150：0-30mm F400：0-60mm F800：0-120mm |
F150：0-30mm F400：0-60mm F800：0-120mm |
F150：0-30mm F400：0-60mm F800：0-120mm |
| Maximum Oscillation Speed | 20000mm/s | 20000mm/s | 20000mm/s |
| Maximum Cleaning Width | 120mm | 120mm | 120mm |
| Cooling system | Water-cooling | Water-cooling | Water-cooling |
| Welder dimensions | 1180*570*1080mm | 1180*570*1080mm | 1180*570*1080mm |
| Package dimensions | 1730*770*1380mm | 1730*770*1380mm | 1730*770*1380mm |
| Machine weight | 190kg | 190kg | 200kg |
| Package weight | 280kg | 280kg | 285kg |
| Net Weight (Gun Body) | 0.75kg | 0.75kg | 0.75kg |
Customer Visits
3 in 1 Laser Welder Machine Certificates
HANTENCNC owns trademark registration certificates, utility patent certificates, software copyright certificates, etc.
HANTENCNC’s 3 in 1 laser welder machines are CE and FDA-certified, ensuring high quality and safety.
You can trust HANTENCNC and HANTENCNC’s 3 in 1 laser welding machines backed by these certificates.
