HANTENCNC’s 1000W-2000W pulse laser cleaning machine integrates a high-power nanosecond fiber laser and a water-cooling system. Compared to a 500W pulsed laser cleaner, it offers 3-5 times cleaning efficiency by more than 3-5 times.
Our high-power pulse laser cleaner is particularly suited for industries that demand high efficiency. It offers a faster, more advanced, and highly effective cleaning solution.
Additionally, HANTENCNC’s 1000W-2000W pulsed laser cleaning machine is designed for high-end applications, meeting the stringent cleaning requirements of precision industries, such as mold cleaning and aerospace component maintenance, etc.
For industries with extremely high demands for cleaning quality and efficiency, our high-power pulse laser cleaning is the optimal choice. It ensures damage-free cleaning and provides a high-standard solution for businesses that prioritize top performance over cost.

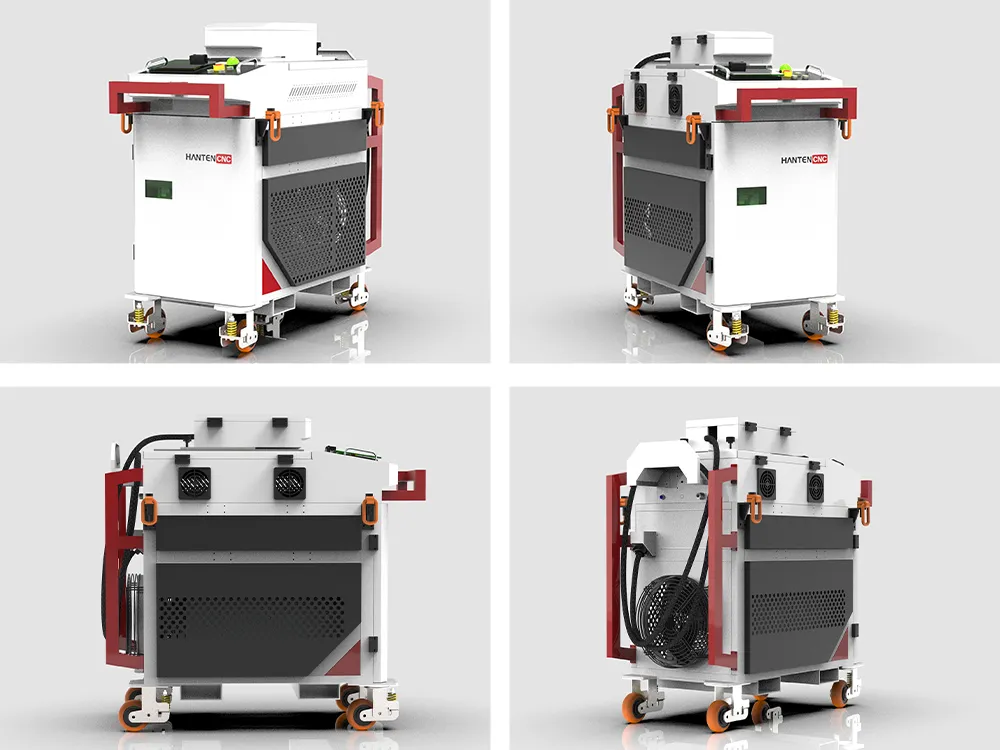

High-power 1000W-2000W Pulse Laser Cleaning Machine Display

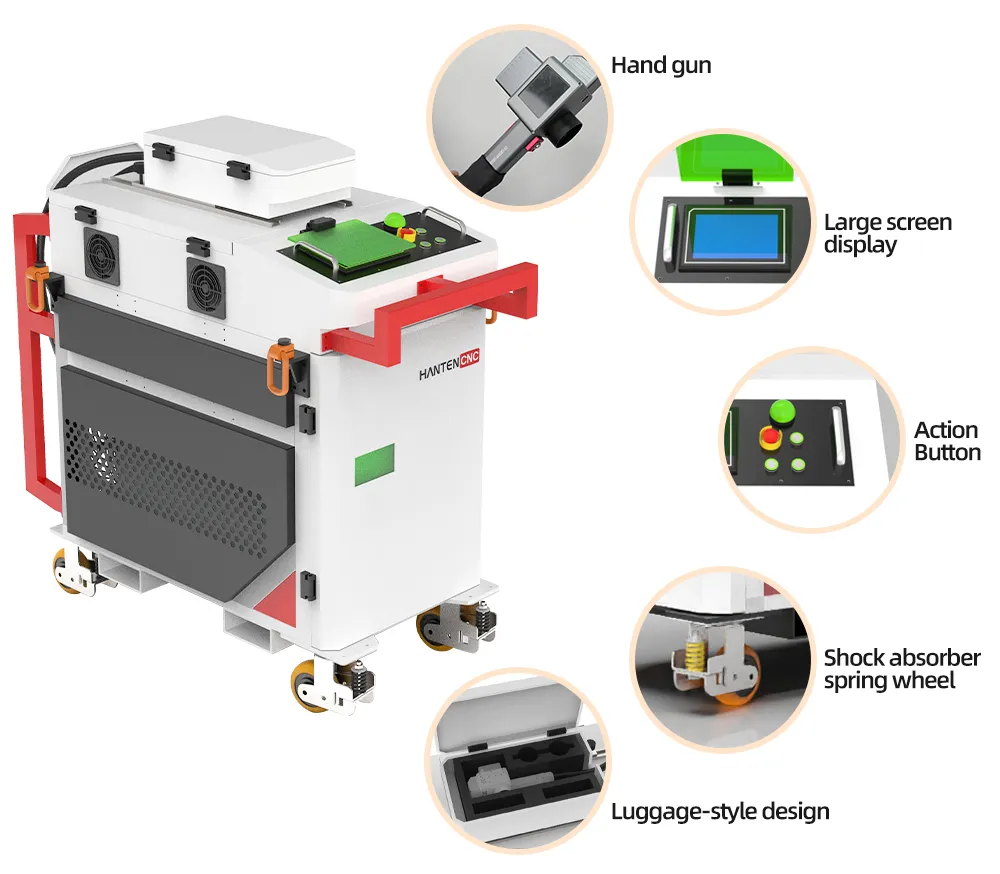

High-power 1000W-2000W Pulse Laser Cleaning Machine Components
High-power 2000W Pulse Laser Cleaner Features

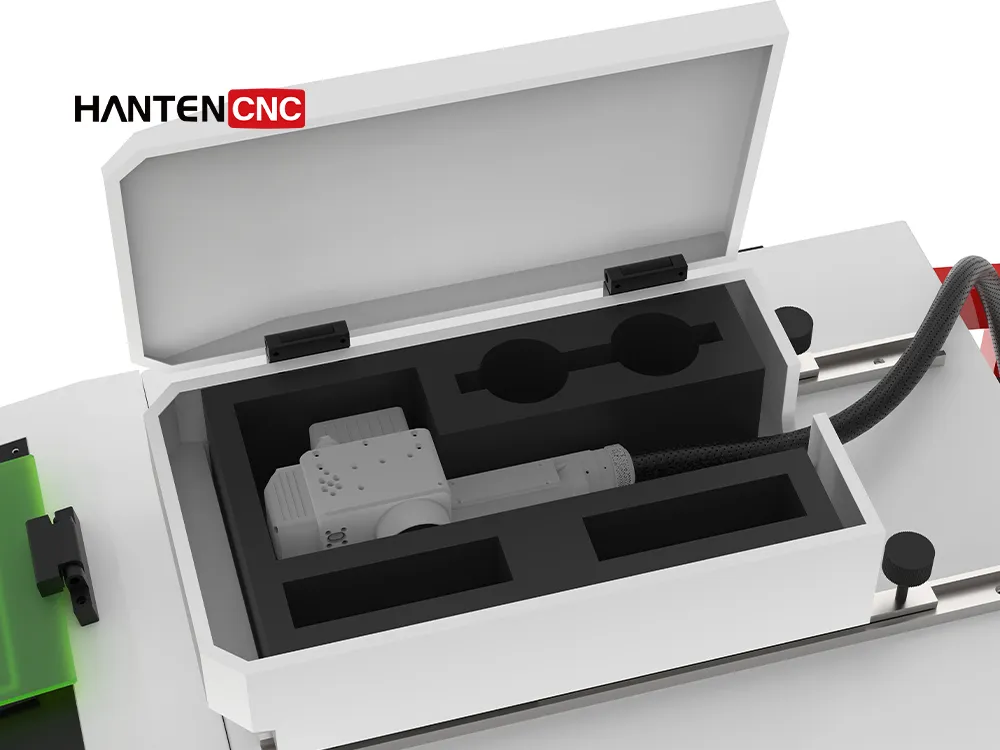

Storage Compartment
This 2000w pulse laser cleaning features a storage compartment, which has a specialized structure to hold the laser cleaning gun securely.
The integrated storage for the laser cleaning gun, with high-density foam inside to hold the head securely. It keeps the equipment safe during transport or when not in use, and enhancing safety and organization.

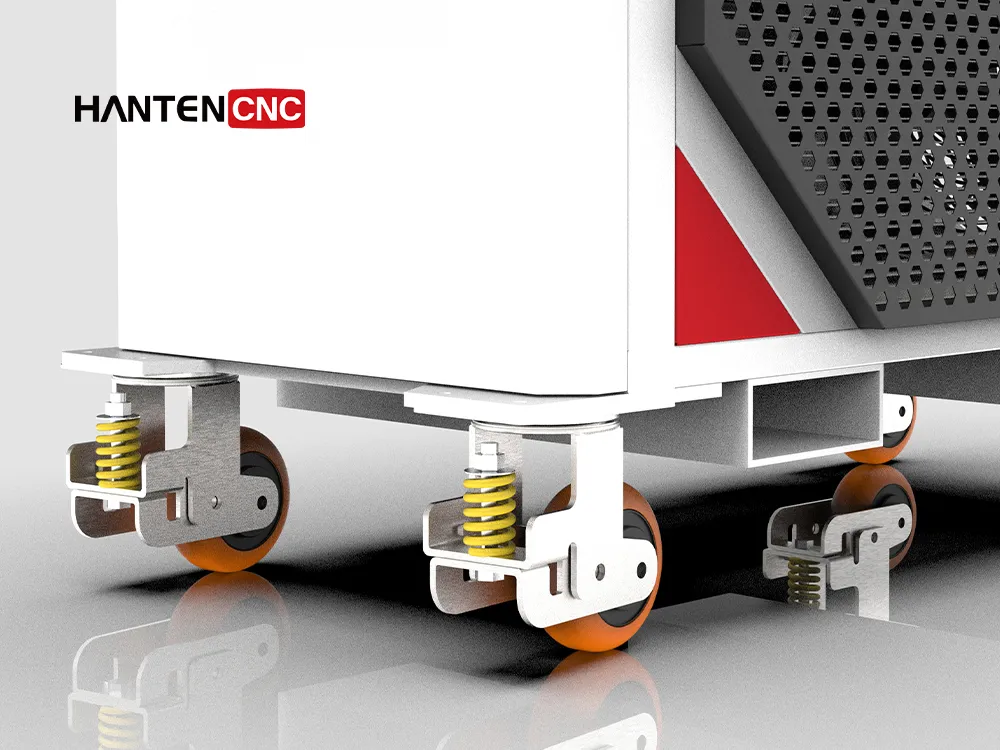

Caster Wheels
The caster wheels feature shock-absorbing springs, which allow the machine to move easily while maintaining stability during cleaning operations, thereby improving on-site work flexibility.
Heat Dissipation
The 2000w pulse laser cleaning machine features a large vent area with a perforated metal panel to maintain proper airflow and cooling.
This large heat dissipation ensures stable, 24 non-stop operation and increases the pulse laser cleaner’s service life.

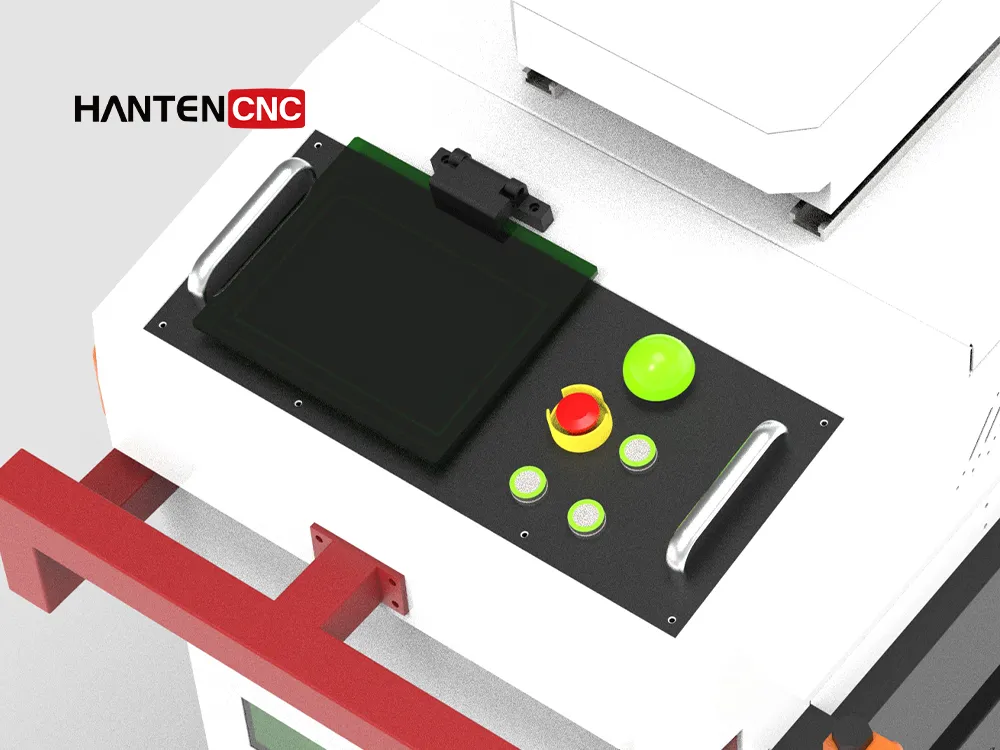

Dual-side Handles
The front and back of the 2000w pulse laser cleaner are equipped with handles for easier positioning.
Large Touchscreen with Acrylic Protection
The pulse laser cleaner features a large touchscreen interface for intuitive and efficient operation. The screen is protected by a durable acrylic cover, which guards against scratches, dust, and impact during industrial use.
High-power Laser Cleaning Gun
Advanced Laser Cleaning Optical Design:
Equipped with high-speed galvanometer scanners, high-transmission optics, and large depth-of-field field lenses, our 1000W-2000W pulse laser cleaning machine is engineered for long-duration operation under high-power laser cleaning conditions.
Dual-Screen Convenience:
Our high-power pulse laser cleaning gun is equipped with a secondary operational screen, allowing for real-time parameter adjustments and enhanced workflow efficiency.
User-Friendly Dedicated Software:
The 1000W-2000W pulse laser cleaning gun features a built-in database system capable of storing and editing up to 50 sets of process parameters. You can adjust laser parameters such as power and repetition frequency to meet diverse cleaning requirements.

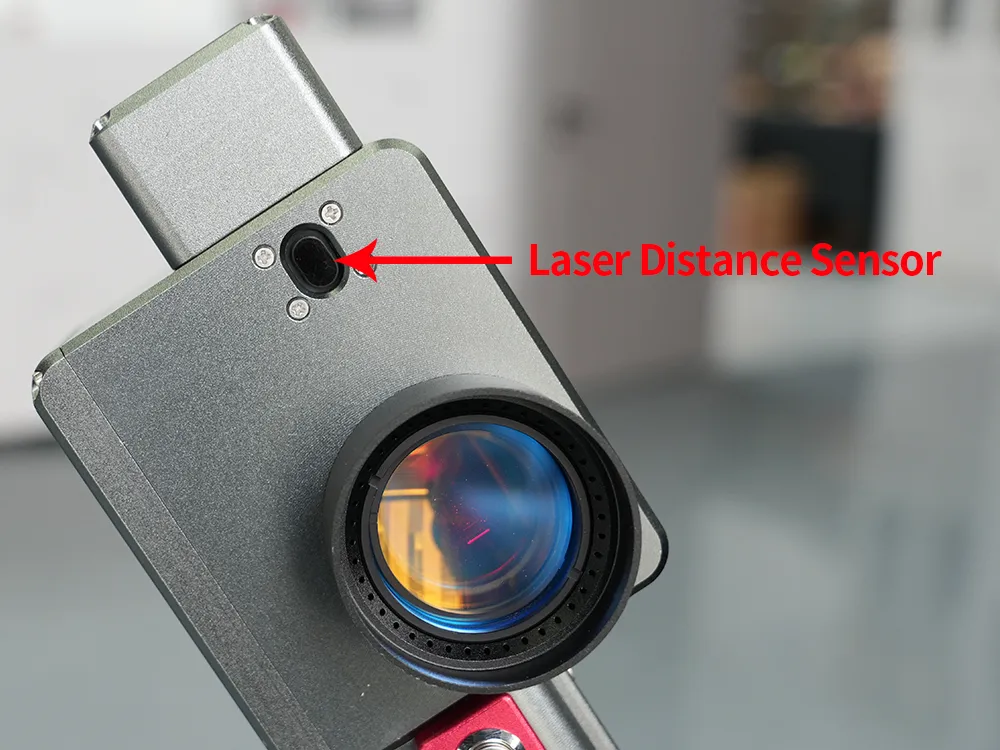

Laser Distance Sensor
The HANTENCNC’s pulse laser cleaning gun features a built-in laser distance sensor. The sensor detects the distance between the laser gun and the workpiece automatically.
When no object is detected in front of the cleaning head, the sensor displays “999”, and the laser will not emit even if the trigger button is pressed, preventing accidental activation and enhancing safety.

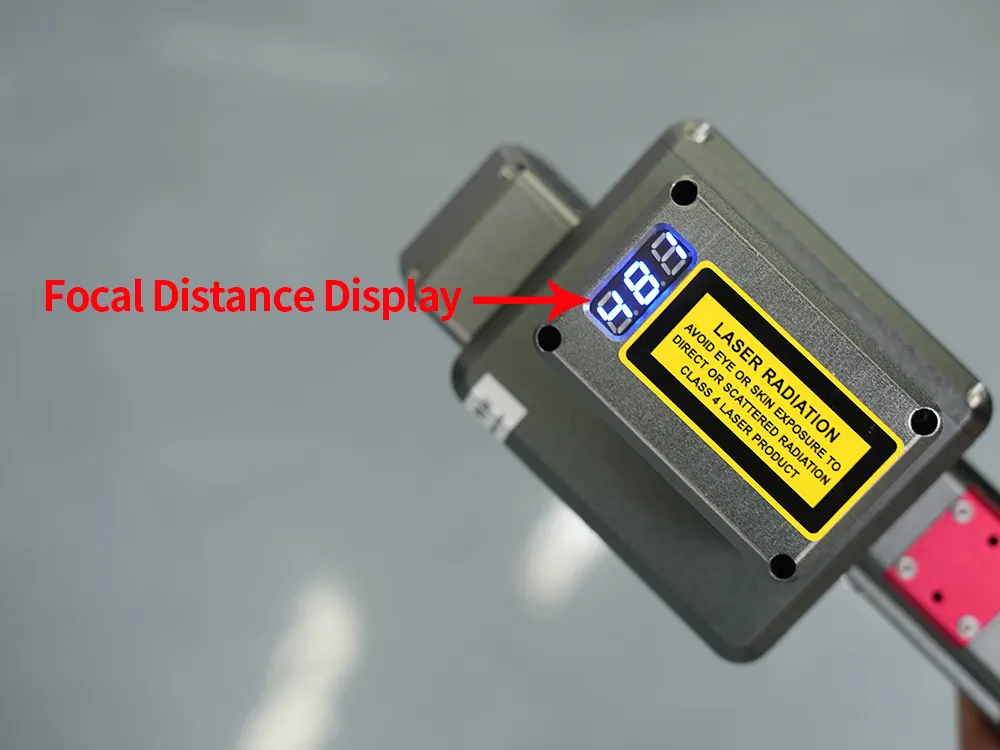

Focal Distance Display
HANTENCNC’s laser cleaning gun equips a digital focal distance display. The focal distance display shows the real-time distance from the laser head to the focal point.
After you place an order, our technicians will measure and provide you with the recommended focal distance before delivery. Once the machine arrives, the focal distance display shows real-time distance via the built-in sensor, helping you find the focus quickly and boost cleaning efficiency.
High-power 2000W Pulse Laser Cleaning Machine Parameters
| MODEL | HTCM1000/HTCM1500/HTCM2000 |
|---|---|
| Power Supply Voltage | Three Phase 380V±10%, 50/60Hz AC Power |
| Average Laser Power | ≥2000W |
| Laser Operation Mode | Pulsed |
| Laser Source | JPT |
| Pulse Width | 10-500ns adjustable |
| Maximum Single Pulse Energy | 15mJ / 50mJ |
| Power Adjustment Range (%) | 0-100% |
| Frequency Adjustment Range (kHz) | 1-4000kHz |
| Cooling Method | Water-cooling |
| Scanning Width | Max 300mm*300mm |
| Maximum Scanning Speed | 20000mm/s |
| Maximum Scanning Frequency | Not Less Than 300Hz |
| Field Lens Focal Length (mm) | 210mm (Optional: 160mm/254mm/330mm/420mm) |
| Depth of Focus | Approximately 20mm |
| Fiber Cable Length | 10 meters (customizable) |
| Machine Dimensions | 1420mm*800mm*1290mm |
| Machine Weight | About 290kg |
| Operating temperature range | 0-40℃ |
| Operating Humidity | ≤80% |

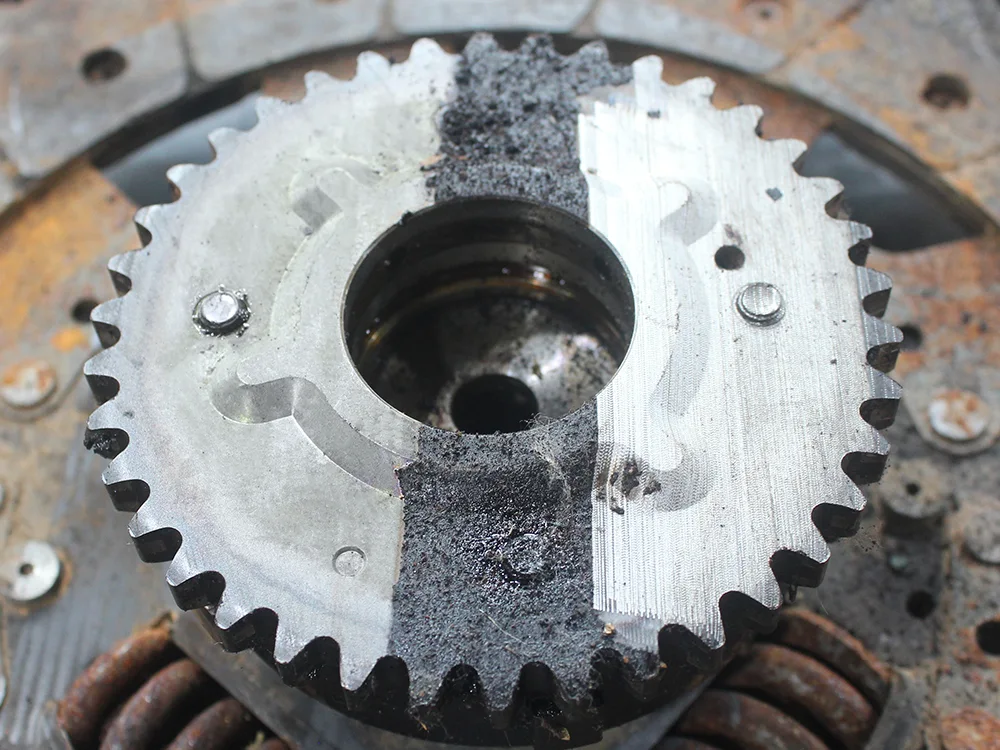

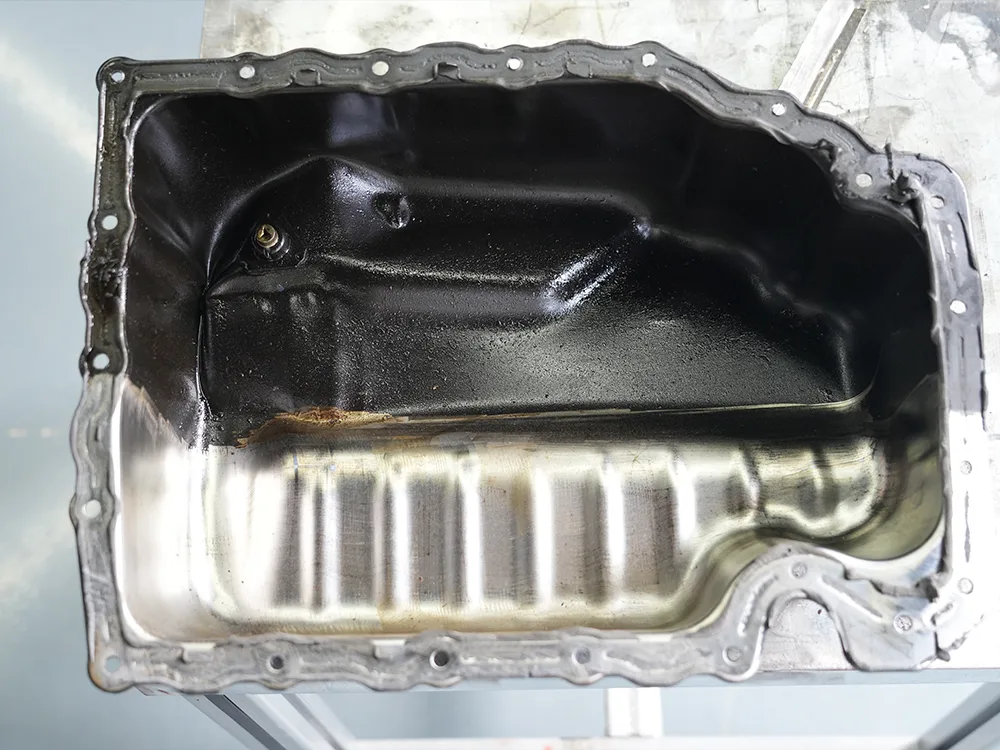

Pulse Laser Cleaning Effects: Before vs. After
