Jewelry Fiber Laser Cutting Machine Parameter
| Description | Parameter |
|---|---|
| Working area | 30*150mm |
| Laser wavelength | 1070nm |
| Light mode | Continuous light |
| Laser power | 1500W |
| Cutting thickness | ≤3.0mm |
| Maximum moving speed | 60m/min |
| Positioning accuracy | ≤0.05mm |
| Working voltage | 220V/50HZ(option) |
| Laser source | MAX/Raycus/JPT |
Machine Detail Description

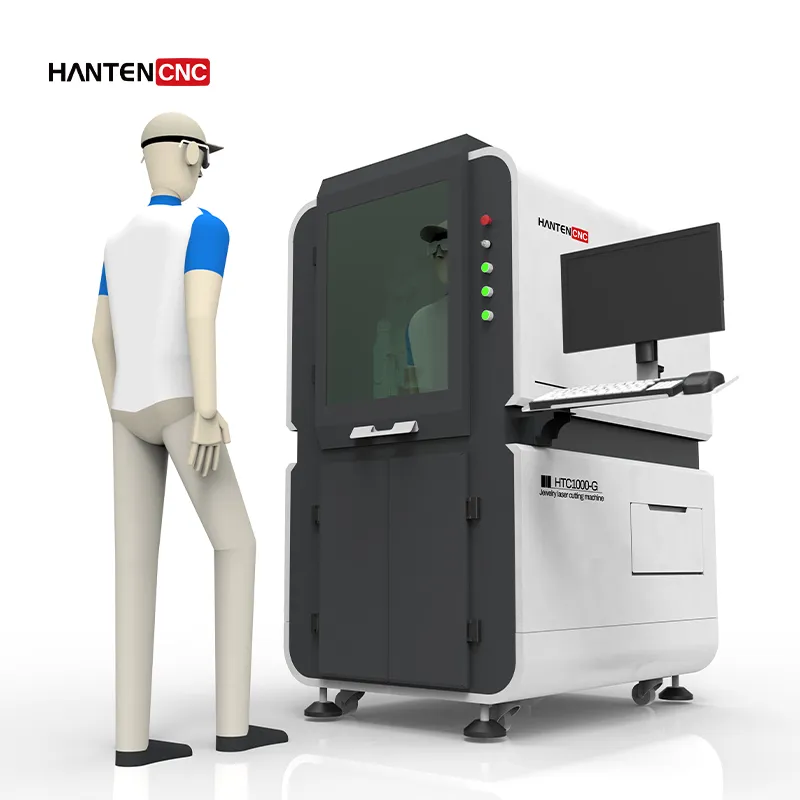

- The whole machine adopts an enclosed outer protection design. So it can protect the work safety of equipment operators. The laser cutting head has capacitive sensing. A variety of nozzle designs are available to match different focal-length lenses. The cutting head focal length adjustment precision is 0.01mm.

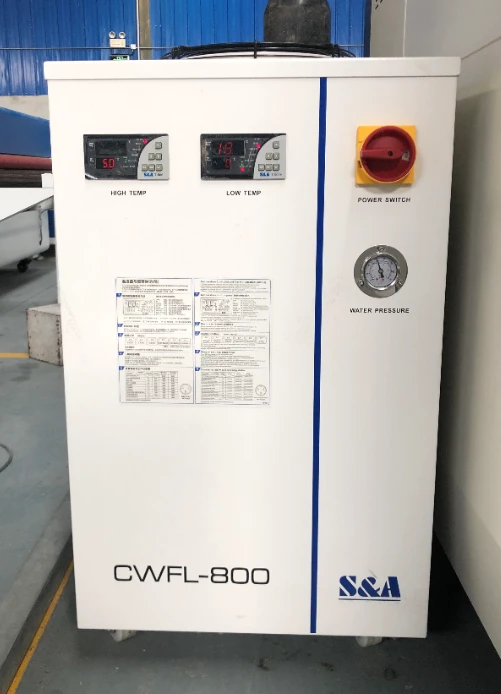

- S&A brand CWFL-800 water chiller is applied to cool the fiber laser and optic lenses. It is used for saving cost, space, and manual moving, quite convenient for the user.

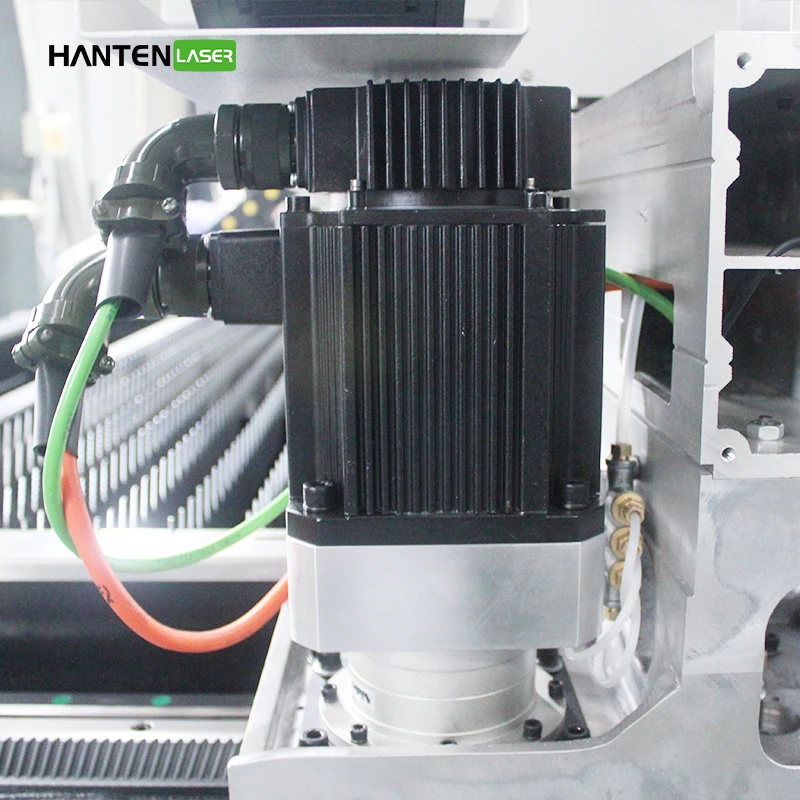

- We use Japanese YASKAWA servo motors and drivers. Machine X is driven by a 400W motor. Y is driven by two 750W motors. And Z (laser head auto focusing) is driven by a 400W motor.

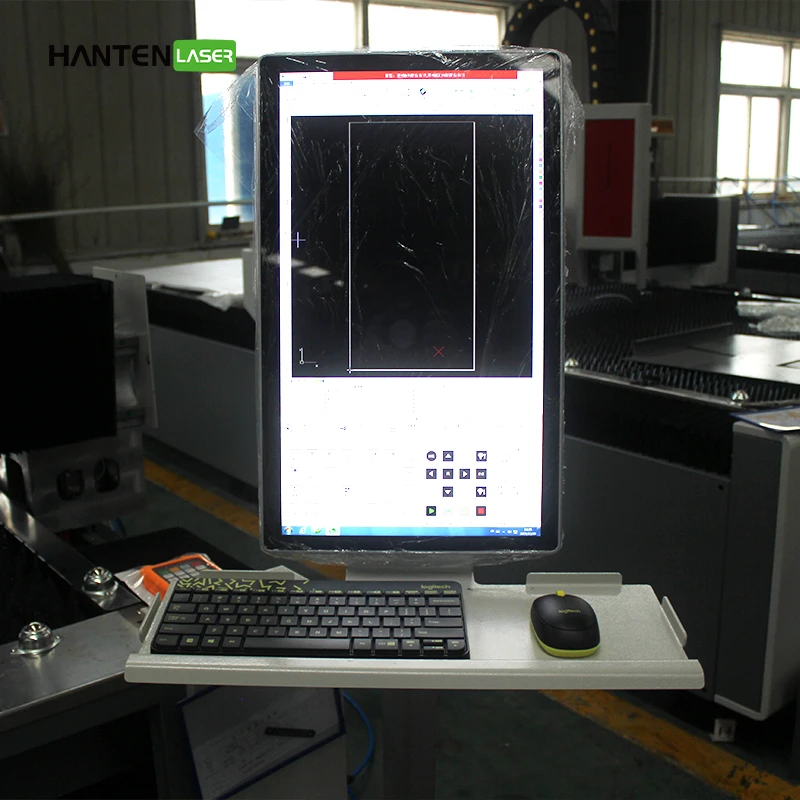

- The operating system is user-friendly. Software is installed on the PC. There are USB flash ports for file import.
Jewelry Laser Cut Machine Features
- Using high-quality fiber laser.
- High-precision linear motor working platform, high positioning accuracy, fast speed,
- Special beam transmission system, high stability.
- The software interface is clear and easy to operate.
- Full-time, high-efficiency, high-quality cutting, high-efficiency cutting. Strong scalability and very flexible.
- Equipped with a filter recovery device to ensure that raw materials are not wasted.
Industry Applications of Fiber Laser Cutting Machine
Application Industry
The fiber laser cutting machine is widely used in various laser processing such as cutting and punching various metal sheets. Such as cutting of hardware, consumer electronic components, and various instruments. Precision machinery, glasses, jewelry, sheet metal processing industry, etc.
Application Materials
For cutting carbon steel, stainless steel, galvanized sheet, and aluminum alloy. And titanium alloy, gold, silver, aluminum, brass, copper, and other metal materials with fast cutting speed.
