HANTENCNC’s portable laser marking machine is small and lightweight, weighing only 35 kg. Because of its compact and space-saving, the fibre laser marker is ideal for home or office use.
Regarding finding focus, our portable laser marking machine features an auto-focus system and no need for testing, which can save you time on setup. You can also adjust the XY axis manually to achieve precise marking and fine-tuning with ease. We could customize the cabinet name and logo that you like. HANTENCNC aims to provide simplicity and efficiency with flexible laser marking solutions for customers.
Our portable laser marking machine has various power options; you can choose 20W, 30W, 50W, 60W, 80W and 100W power:
- 20W and 30W low-power lasers are usually used for shallow marking on flat surfaces of metals, such as bare metals, coated metals, painted metals, plastics, and rubber.
- 50W, 60W, 80W, and 100W high-power lasers are ideal for relief engraving and deep engraving on soft metals such as aluminium, brass, copper, silver, and gold.
HANTENCNC’s portable laser marking machine is suitable for integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace devices, various auto parts, home appliances, hardware tools, moulds, wires and cables, food packaging, jewellery, tobacco and military affairs, etc.

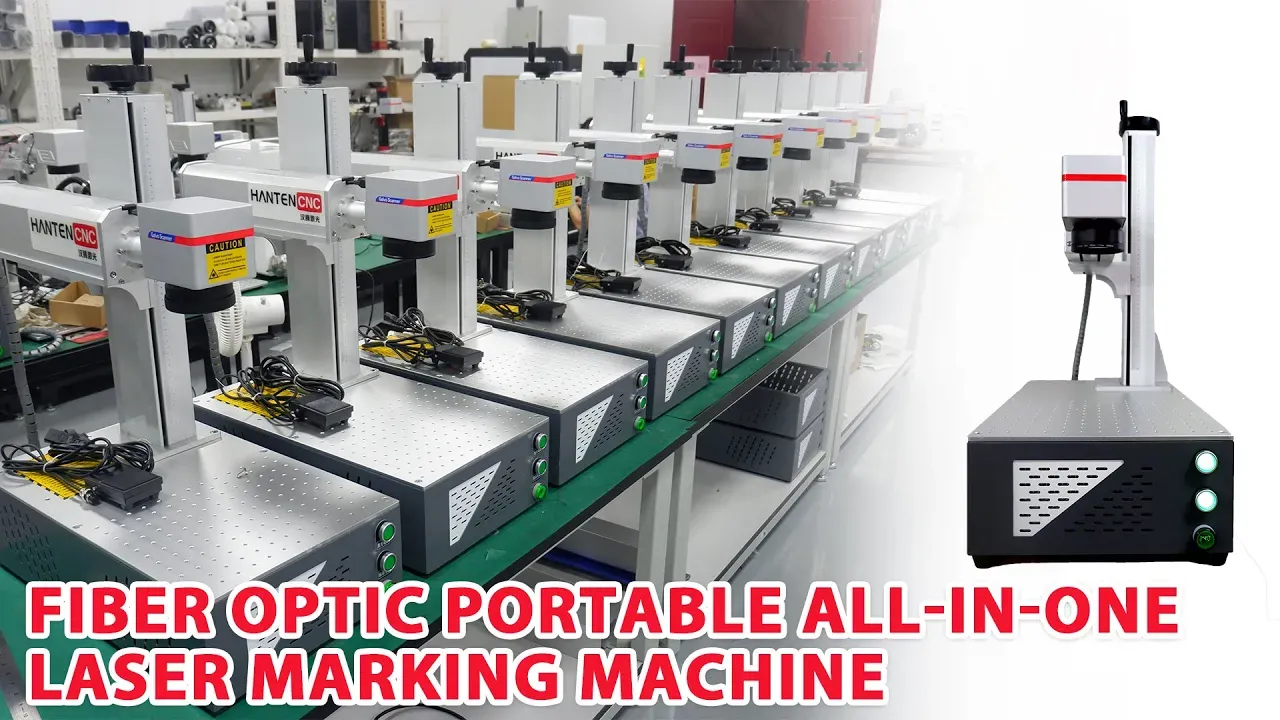

All-in-one Laser Marking Machine Demonstration Video
All-in-one Laser Marking Machine Display
All-in-one Laser Marking Machine Dimensions
Aii-in-one Laser Marking Machine Parameters
| Model | HTF20 | HTF30 | HTF50 | HTF60 | HTF100 |
|---|---|---|---|---|---|
OPERATING ENVIRONMENT |
|||||
| Supply voltage | 110V/220V、50/60Hz | 110V/220V、50/60Hz | 110V/220V、50/60Hz | 110V/220V、50/60Hz | 110V/220V、50/60Hz |
| Overall Power Consumption | 460W | 490W | 550W | 580W | 700W |
OPTICAL PARAMETERS |
|||||
| Output Power | 20W | 30W | 50W | 60W | 100W |
| Galvo Head | Sino RC 1001 | Sino RC 1001 | Sino RC 1001 | Sino RC 1001 | Sino RC 1001 |
| Marking Area | 110mm*110mm | 110mm*110mm | 110mm*110mm | 110mm*110mm | 110mm*110mm |
| Marking Linewidth | 0.025mm | 0.025mm | 0.025mm | 0.025mm | 0.025mm |
| Minimum Character Size | 0.15mm | 0.15mm | 0.15mm | 0.15mm | 0.15mm |
| Power Adjustment Range(%) | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
| Marking Speed | 0-1500mm/s | 0-1500mm/s | 0-1500mm/s | 0-1500mm/s | 0-1500mm/s |
| Fiber Cable Length | 3m | 3m | 3m | 3m | 3m |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
| Control Software | EZCAD2 | EZCAD2 | EZCAD2 | EZCAD2 | EZCAD2 |
| Cooling Method | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
MACHINE PARAMETERS |
|||||
| Machine Dimensions | 350mm*600mm*380mm | 350mm*600mm*380mm | 350mm*600mm*380mm | 350mm*600mm*380mm | 350mm*600mm*380mm |
| Laser Source | MAX/Raycus/JPT | MAX/Raycus/JPT | MAX/Raycus/JPT | MAX/Raycus/JPT | MAX/Raycus/JPT |
| Machine Weight | About 35Kg | About 35Kg | About 35Kg | About 35Kg | About 35Kg |
Component Details Display of All-in-one Laser Marking Machine
More Details of All-in-one Laser Marking Machine
Galvanometer Head
The galvanometer head of a all-in-one fiber laser marker has the advantages of high precision and speed. Our all-in-one laser marking machine adopts a dual red light positioning system on its galvanometer, so there is no need for testing to find the focus.
Lifting Column
The focal distance of our all-in-one laser marking machine can be adjusted precisely up and down after turning the hand wheel. The lifting column of our laser marker is wear-resistant and durable, and the lifting shaft has a long life.
Working Desk
HANTENCNC’s all-in-one laser marking machine has self-contained hole positioning, and multiple workpieces can be easily placed. The fiber laser marker adopts an all-aluminium plate design, making the working desk lightweight, sturdy and easy to clean.
Well-organized Internal Wiring
HANTENCNC’s all-in-one laser marking machine features well-organized internal wiring and minimizes the risk of electrical shorts or malfunctions, ensuring smooth and reliable operation. Secondly, organized wiring simplifies maintenance tasks, making it easier for technicians to identify and address any issues that may arise.
Features of All-in-one Laser Marking Machine
- High Speed And High Efficiency: HANTENCNC’s all-in-one laser marking machine has high marking speed and processing efficiency. It can meet daily production needs.
- High Precision: The laser beam adopted in the all-in-one laser marking machine is of small diameter for distinguishing details. It makes fine marking and engraving by above feature. Meanwhile, the wordings of marking pattern are clear.
- Long Life: The fiber laser of our portable laser marking machine has a long life, stable performance, and reliability, and it can work continuously for a long time.
- Non-contact Processing: Our all-in-one laser marker adopts non-contact processing. Our fiber laser marker will not cause physical damage to the workpiece surface and is suitable for applications with high material surface requirements.
- Strong Adaptability: The all-in-one laser marking machine suits various materials, including metal, hard plastic, stainless steel, etc. Our fiber laser marker has a wide range of application fields.
All-in-one Laser Marking Machine Sample Display
Included Accessories of All-in-one Laser Marking Machine
All-in-one Laser Marking Machine Accessory Selection
