Metal Laser 3D Printer
Laser 3D Printer Features
Laser 3D Printer for Metal Structure Diagram - Key Components
HMP120 integrates efficient powder recoating, fully enclosed safety protection, intelligent dust collection, flexible software, energy-saving gas circulation, high-precision laser control, and explosion-proof protection into one system.
It delivers a stable and reliable metal 3D printing solution for dental labs, medical institutions, industrial manufacturers, designers, makers, and jewelry studios.
- Top-feed unidirectional recoating system has a simpler structure that helps achieve better print quality.
- User-friendly software features an intuitive interface, supports multiple formats, and is compatible with third-party software such as Magics for maximum flexibility.
- Advanced laser control improves precision and anti-interference capability, ensuring stable, long-duration printing.
- Fully enclosed powder handling prevents dust contamination, protects operators, and eliminates explosion risks.
- Explosion Venting System. Compliant with GB/T15605-2008 standard for guaranteed operational safety.
- Permanent filter with back-flush extends service life and reduces replacement frequency.
- Laminar flow gas circulation removes oxide particles and reduces inert gas consumption.
Laser Metal 3D Printer - System Components Overview

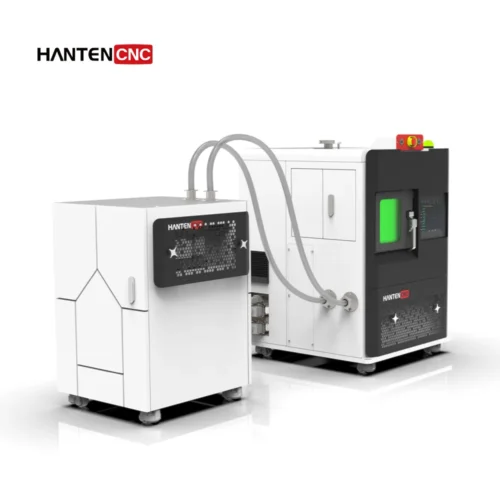

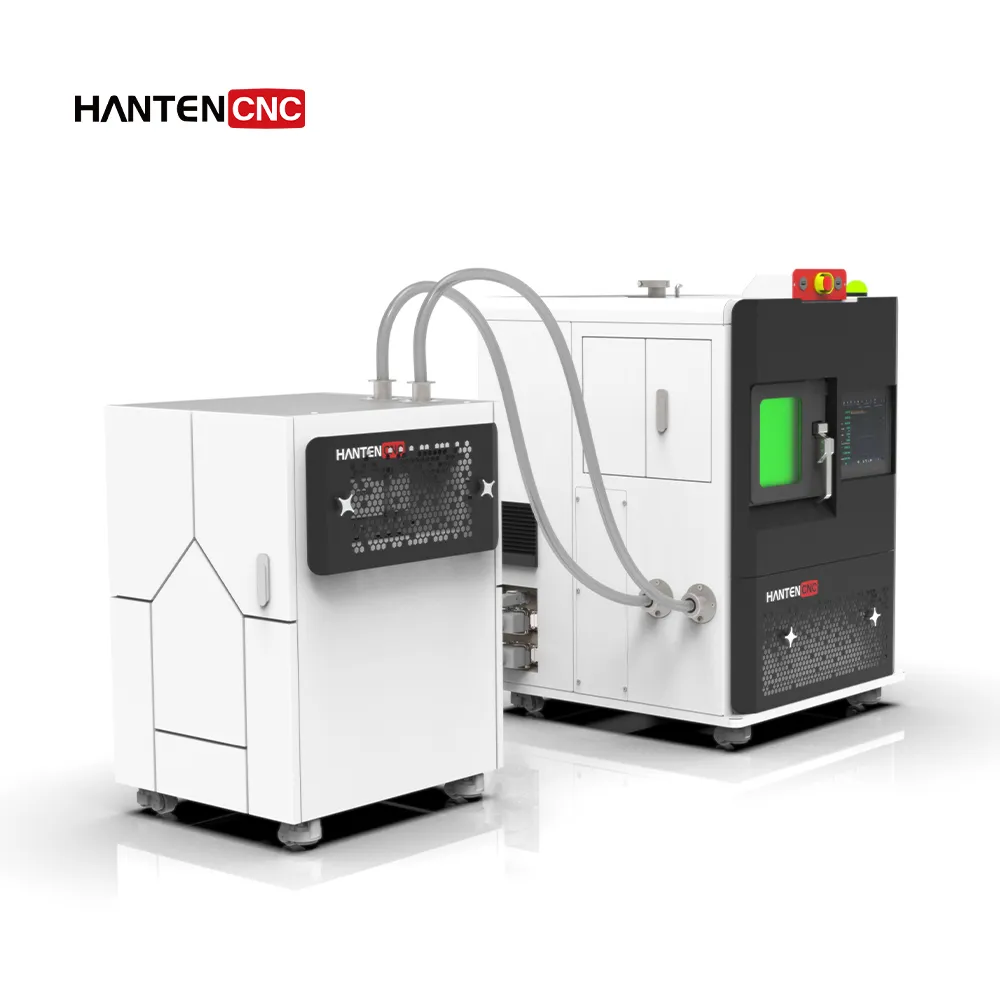

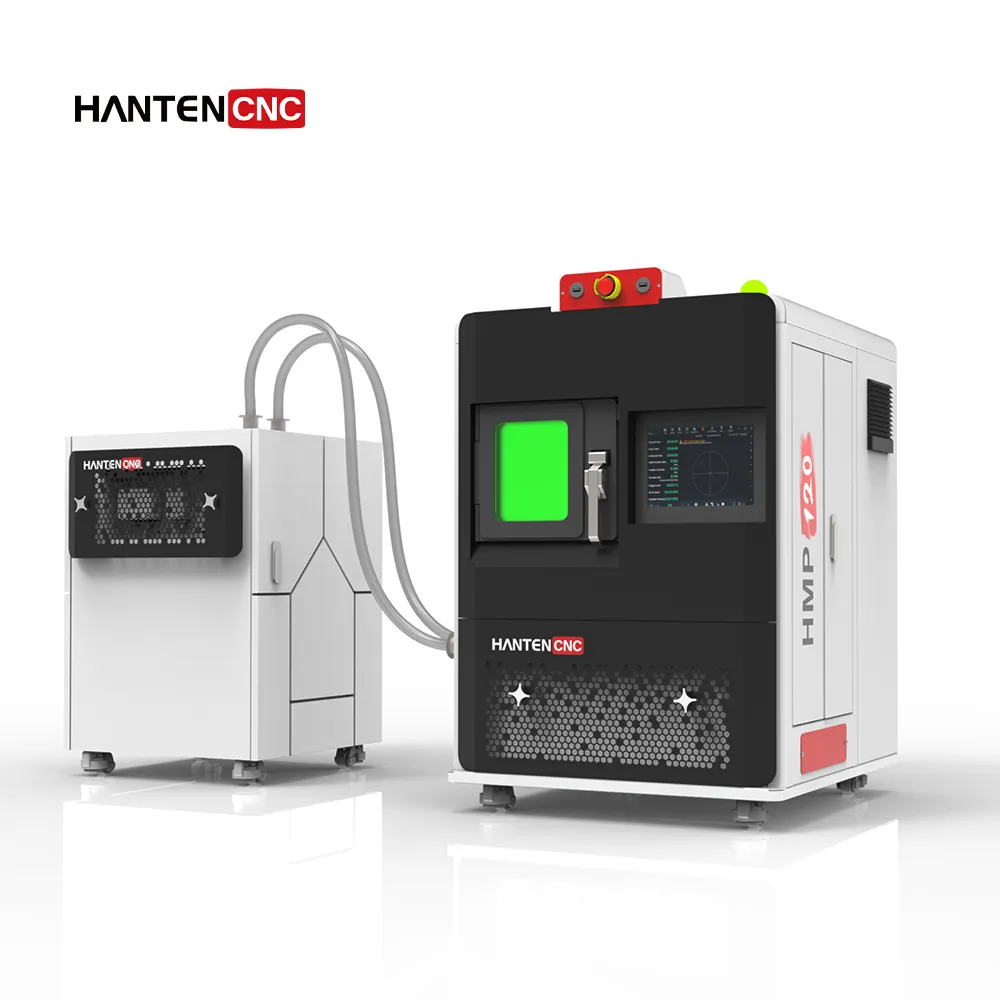

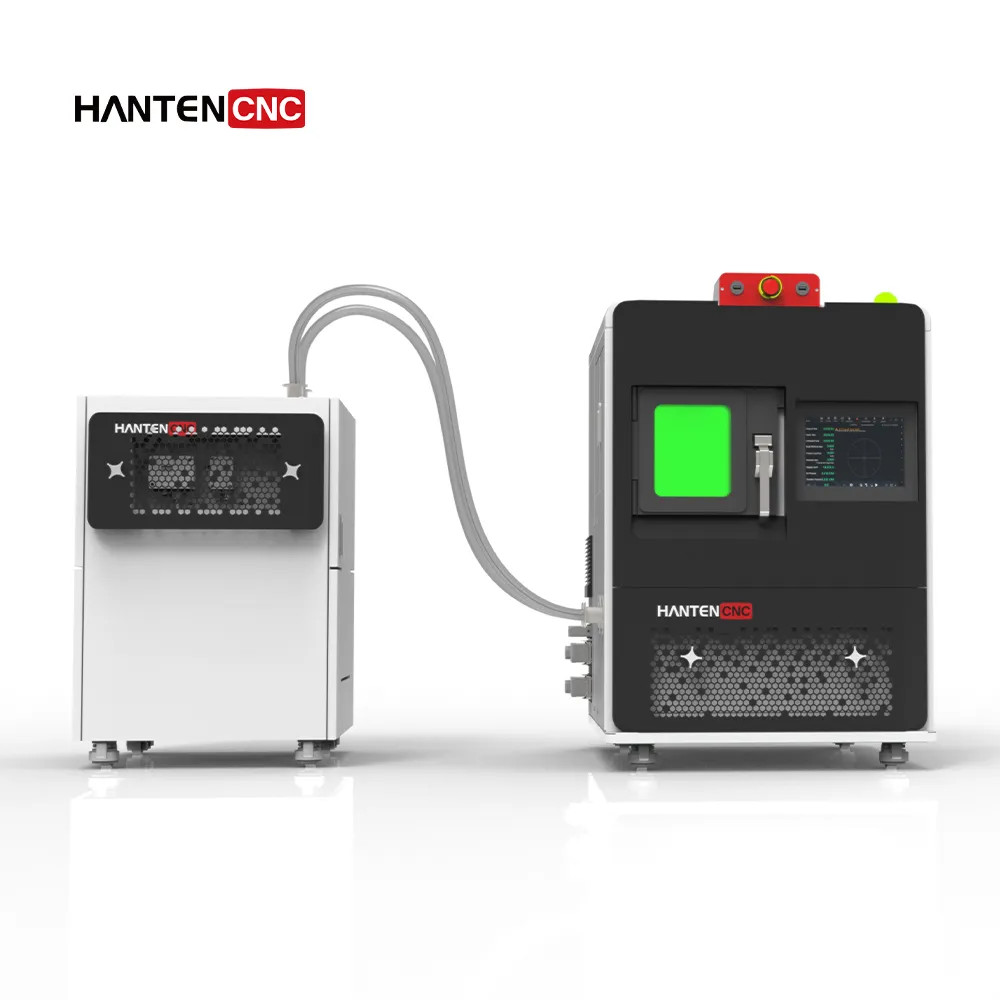

The main components of the 3D laser metal printer system are: the main laser 3D metal printer, a metal dust collection and filtration system, and a chiller.
Additionally, auxiliary equipment is required to support the entire workflow, such as a powder sieving machine, powder drying oven, air compressor, nitrogen generator, refrigerated dryer, and an annealing furnace.
Laser 3D Printer Specifications
| Model | HMP-120 |
|---|---|
| Basic Dimensions | 650mm*600mm*900mm |
| Build Size | Φ120mm*80mm |
| Machine weight | 180kg |
| Layer thickness | 0.02mm~0.06mm |
| Powder feeding Method | Top-feed |
| Spreading method | One-way |
| Scanning speed | 7-12m/s |
| Laser Control Sysrem | RCT4 |
| Data processing software | Vulcan Slice/VoxelDance/Magics |
| Laser spot diameter | 40-60um |
| Laser power | 500W |
| Device power | 3000W |
| Shielding gas | Nitrogen/Argon |
Laser 3D Printing Samples
Laser 3D Printing Applications
