Advanced JPT Pulse Laser Technology
Our SEAGULL3™ laser rust removers use JPT pulse lasers. These lasers are reliable and effective. They offer high beam quality, excellent stability, and a long lifespan.
The pulse laser sends out intense energy in quick bursts. This method cleans effectively and precisely. It won’t harm the material’s surface, making it perfect for cleaning wood and metal.

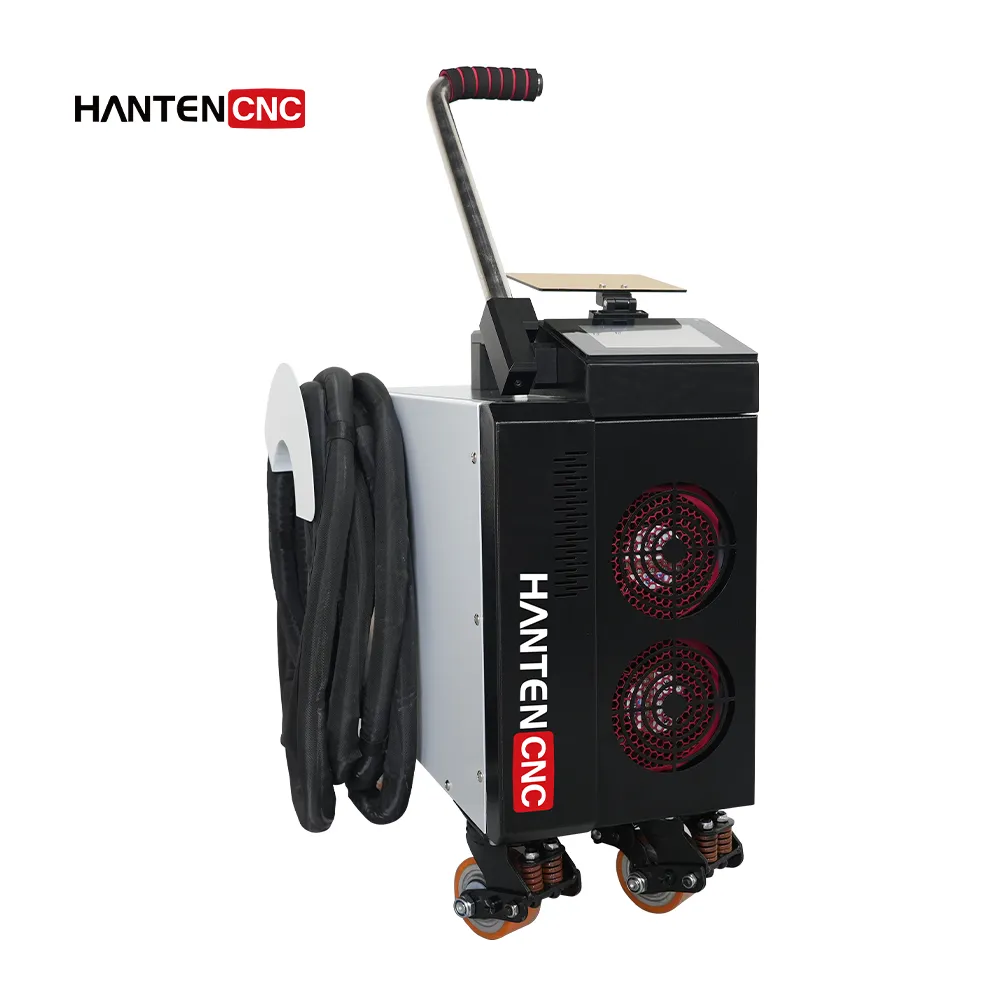

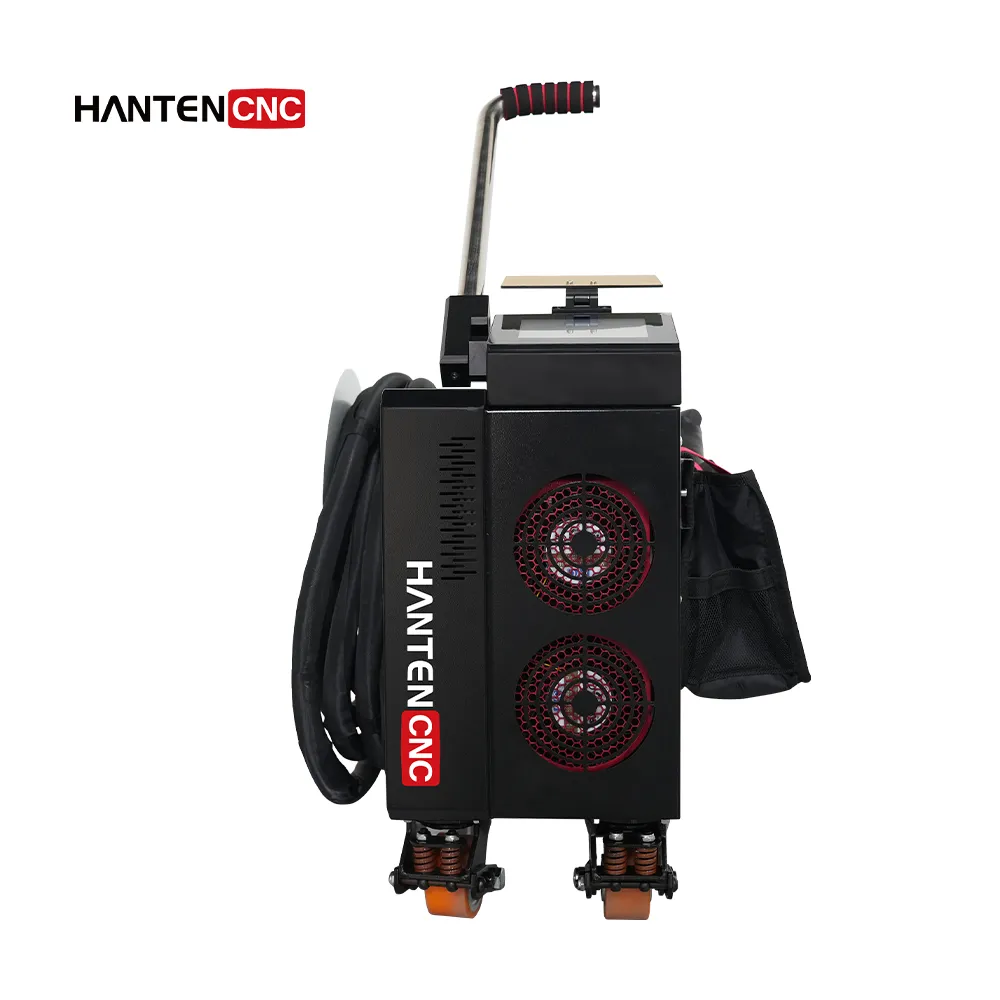

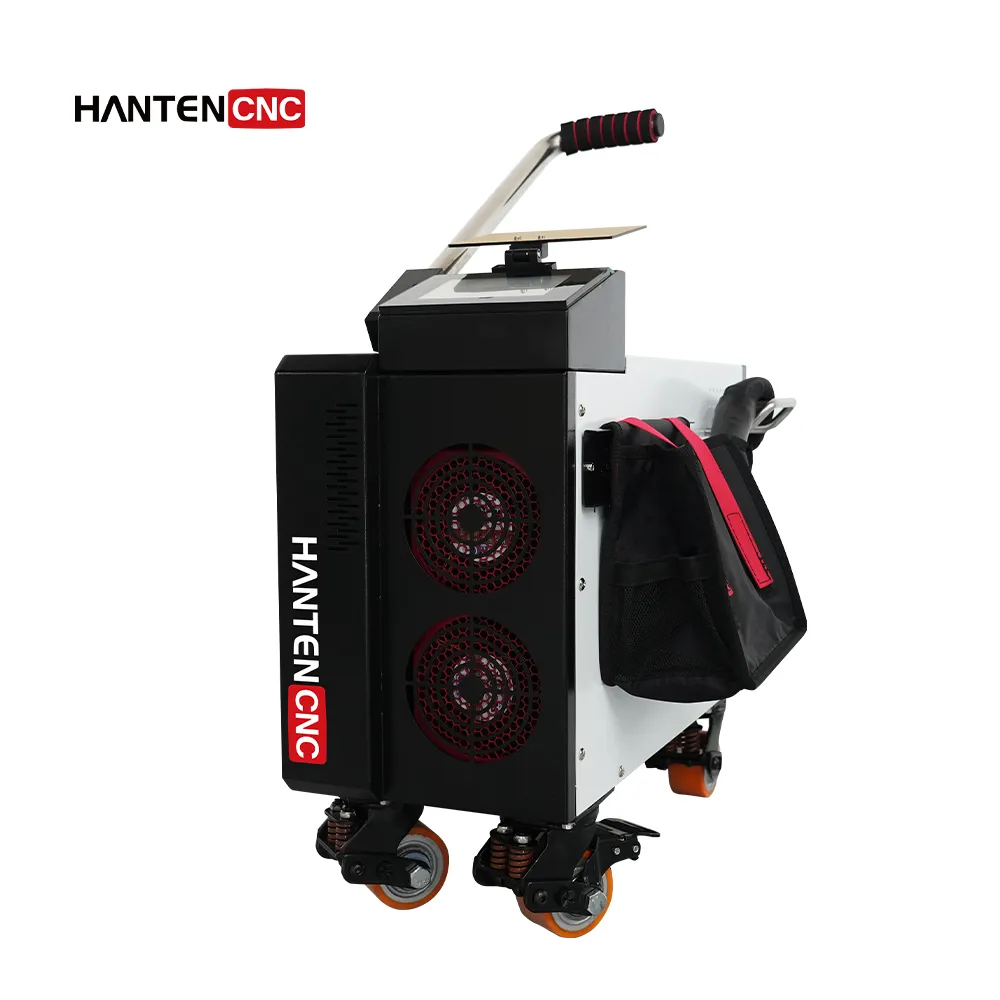

Engineered for Mobility & Durability
Our SEAGULL3™ features a luggage-type design, a 30° tilted screen, a rotating handle, four dual-swivel wheels, a control screen on the cleaner’s head, and a 1.5 kg cleaning gun. These features make it highly suitable for mobile work in a variety of environments, such as workshops and construction sites, where flexibility and movement are essential.
It is also well-suited for transportation in vehicles, offering durability and stability even during bumpy rides, ensuring safe and secure transit to any worksite.
500W High-Power Performance
With its 500W high-power laser system, the SEAGULL3™ delivers faster, more efficient cleaning, allowing it to handle a wider variety of materials and tasks, making it perfect for both heavy-duty and precise cleaning applications on-site.
SEAGULL3™ 500W Handheld Laser Rust Removal Features
Effortless Mobility and Flexible Cleaning Solution
The SEAGULL3 features an air-cooling system instead of a water-cooling system. It’s compact and adaptable. Cabinet ventilation aligned to laser heat dissipation standards delivers even better cooling.
SEAGULL3™ features a luggage-type design, a rotating handle, and four dual-swivel wheels, making it easy and safe to move seamlessly. These features ensure convenient, portable, and flexible cleaning operations without compromising efficiency.
Faster Cleaning | Higher Efficiency | Deeper Cleaning
The higher power, 500W, means faster cleaning of tougher contaminants, such as heavy rust and paint, reducing overall cleaning time.
With 500 watts of power, our laser rust removal can handle larger surface areas more efficiently, which is ideal for large-scale cleaning tasks.
500W portable laser cleaner, SEAGULL3™, enables better penetration. It’s more effective at removing stubborn and deeply embedded contaminants.
Non-Damaging Cleaning
Pulse laser releases high energy in a very short time and quickly removes target substances such as rust, paint, etc.
Due to the small heat accumulation, it can avoid thermal deformation and changes in materials and does not damage the substrate.
Our 500w pulse laser rust removal is very suitable for precise cleaning of material surfaces.
Efficient Air Cooling
To manage heat effectively, the SEAGULL3 features an advanced air-cooling system.
Test data shows that It can operate continuously for 24 hours in temperatures ranging from -10°C to +40°C.
This eliminates the need for bulky water-cooling systems, maintaining both compactness and reliability.
Anti-bumping | High Load Bearing | Strong Stability
SEAGULL3™ is equipped with dual swivel wheels, which can effectively reduce vibrations, ensuring safety and stability during operation.
The dual-wheel design minimizes the turning radius. This allows for easy movement in tight spaces.
Also, 4 dual-swivel wheels can bear the weight of the machine and adapt to long-term bumpy transportation. It is designed to adapt to uneven or rough ground for stable movement.

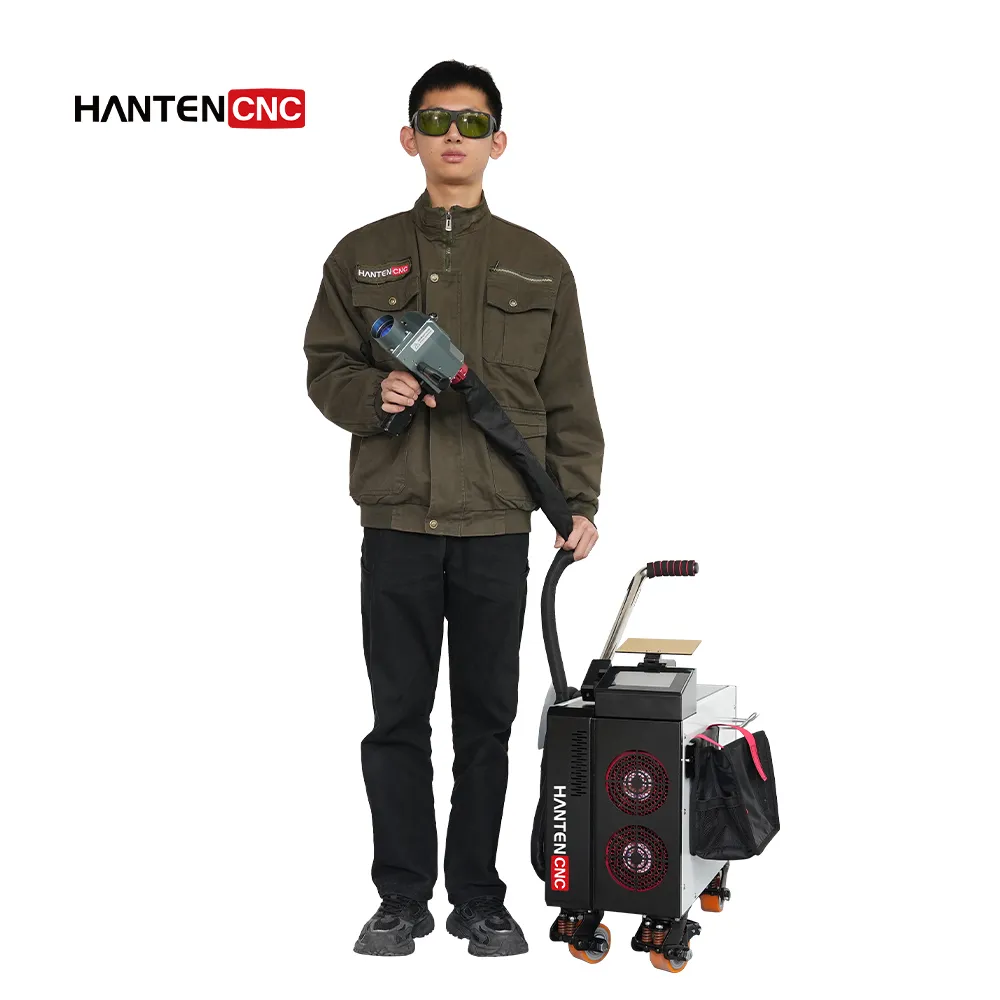

Portable and Lightweight for Long Use
Our 500W laser cleaning Gun is lightweight and portable, under 1.5 kg. It’s perfect for long-term handheld cleaning.
Its portable design lets it fit various shapes, sizes, and workpiece locations easily.
Also, the portable design makes it suitable for on-site cleaning or hard-to-reach areas.
Our laser cleaning machine, SEAGULL3™, features high-damage threshold galvanometer lenses and high-transmittance field lenses.
That ensures reliable long-term operation for high-power laser cleaning applications.
Improved Control and an Easy-to-Use Design
The SEAGULL3™ has two control screens: one on the machine and the other on the laser cleaning gun.
The control screen is at the front of the cabinet. It features a 30° tilt design, which offers an improved user experience that better aligns with user habits.
This screen has a 3 mm acrylic panel, which helps protect against damage and ensure maximum screen safety in complex environments.
Robust Frame Design
The SEAGULL3 features a new frame structure design. This improves stability and allows for easier customization compared to older enclosed models. Its sturdy frame supports heavy loads and vibrations. This ensures reliable performance over time, even in tough conditions. It also provides excellent protection.
Universal Voltage Compatibility (110V/220V)
SEAGULL3™ supports both 110V and 220V universal voltage.
It works seamlessly in most regions worldwide that use 220V and is also compatible with 110V power standards in countries like the United States and Canada.
There is no need additional transformer, it is allows for direct power connection and hassle-free operation.
SEAGULL3™ 500w Handheld Laser Rust Removal Machine Display
SEAGULL3™ Handheld Laser Rust Removal Components
SEAGULL3™ Handheld Laser Rust Removal Dimensions
SEAGULL3™ 500W Pulse Laser Cleaning Gun Features
Our 500w laser cleaning gun adopts a built-in database system; it can save and edit 100 sets of process data.
The process data include parameters like laser power, frequency, pulse duration, cleaning speed, and beam focus, which can tailored to suit different materials (e.g., metal, plastic) or contaminants，such as metal, wood, rust, paint, etc.
For various cleaning tasks, saved process data allows for a quick transition between different jobs without needing to reconfigure the system. For instance, one set of process data can be optimized for laser rust removal, while another can be specifically designed for gentle paint cleaning.
Faster scan speed – 25% improvement
We bumped the max scan speed from 30,000 to 40,000.
Maximum scan speed is now 40,000, which is a 25% increase.
Most other laser cleaning machines in China are still at 30,000.
At 40,000, job time is noticeably shorter.
Same cleaning result. Less time waiting.
Alarm Records for Troubleshooting
HANTENCNC’s laser cleaning system stores alarm records. Users can check historical alarm data at any time.
-
Distance alarm – triggers when the laser distance sensor detects the head is too close or too far from the workpiece.
-
Chiller alarm – high temperature, low flow, compressor not starting, etc.
-
X-axis / Y-axis motor alarm – these two alarm types help HANTENCNC support technicians determine whether the issue is with the motor or the control system, speeding up fault resolution.
Power-on Time Tracking and Reset for Rental Use
The device automatically tracks and displays total power-on time.
This is designed for customers who rent out laser cleaning machines, often charging by the hour or day.
The power-on time serves as a billing reference.
Before renting the machine to the next customer, the user can enter a password to reset the timer to zero.
This makes it easy to track usage for different renters.
Distance Sensor and Focus Display
HANTENCNC’s laser cleaning head includes a built-in laser distance sensor. It constantly measures the distance to the workpiece.
If the distance is too close or too far, the screen shows “8888”. This indicates the distance is invalid for laser firing.
In this state, the laser will not emit — even if the trigger is pulled.
This prevents accidental firing when the head is not at the correct working distance.
The screen also displays the real-time distance to the focal point within the valid range, helping the operator quickly find the correct position.
Screen lock – No More Accidental taps
Tapping the lock icon on the screen darkens and locks the display.
No operations are possible while locked.
This prevents accidental parameter changes or machine operation caused by unintended screen contact during work.
Automatic Laser Shut-off Timer
When the laser fires continuously for a set time (e.g., 30 seconds), the system automatically cuts the laser output.
This happens even if the trigger is still pressed.
This reduces equipment wear and safety risks from prolonged continuous output.
Our laser cleaning head features a dust-sealing design for the external optical path and a ring air nozzle that creates an air curtain at the front end of the field lens.
That effectively prevents dust and impurities generated during the cleaning process from entering the laser cleaning head, reduces equipment downtime caused by impurity interference, and thus enables continuous, efficient cleaning.
Emergency Stop button
HANTENCNC’s 500W laser cleaning gun equips an emergency stop button, which is a safety lock that stops the machine instantly in an emergency to protect people and equipment.
When pressed, it immediately cuts power, forcibly terminating laser output and all operations.
SEAGULL3™ Laser Rust Removal Offers 13 Scanning Modes
SEAGULL3™ laser rust removal offers 13 scanning modes to meet various types of cleaning tasks. Each scanning mode has its unique features and is suitable for different cleaning requirements. These scanning modes include line, rectangle, circle, sine wave, spiral, rotation, etc.
Some scanning modes are gentle and suitable for materials that require a smooth surface with minimal residue after cleaning. Others are more powerful, suitable for removing tough dirt or coatings. You can select the scanning mode by clicking on the “Scanning Mode” option on the interface.
By selecting the appropriate cleaning mode, you can ensure minimal traces and enhance the product’s appearance and quality, especially in industries such as automotive manufacturing, aerospace, electronics, and more.
SEAGULL3™ Supports 15 Different Languages
SEAGULL3™ supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and 15 other languages.
You can switch these languages directly on the machine’s interface. We also provide customized language services if you require any other languages.

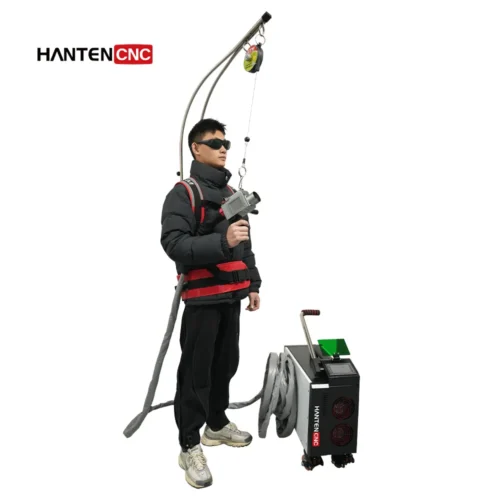

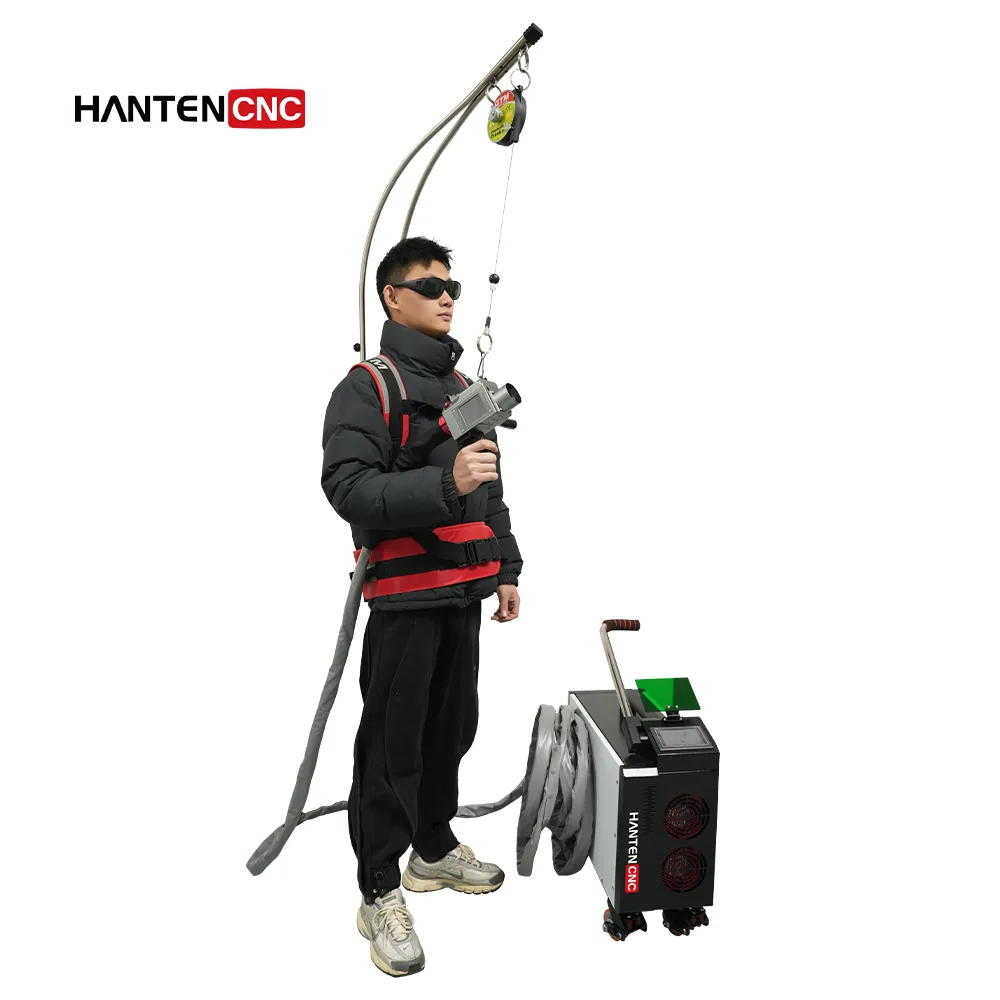

Ergonomic Support Harness for Laser Cleaning Gun (Optional）
This ergonomic harness is designed to eliminate fatigue during prolonged laser cleaning operations, making it ideal for intensive professional use. Based on a backpack principle, it transfers the weight of the laser cleaning gun from your arms and shoulders to your hips, significantly reducing physical strain.
A high-quality pulley bears most of the load, with a pulling force of 3 kg. This effectively counterbalances the weight of the cleaning gun, leaving you to support only about 1.5 kg of force during operation.
The laser cleaning gun attaches securely via a large carabiner. Fully adjustable shoulder and hip straps ensure a comfortable, customized fit for any body type, allowing for greater mobility and focus on the cleaning task at hand.
500W Laser Cleaning Stabilizer Support Bracket (Optional)
This support bracket is designed for steady performance in large-scale, long-term cleaning on flat and regular workpieces, ensuring stable, uniform cleaning quality.
It is compatible with a wide range of focal lenses, including F160 / F210 / F254 / F300 / F330, without extra modification.
Steady Operation for Consistent Batch Cleaning
It effectively solves handheld shaking issues, and the roller design fits closely to workpieces, keeping the laser cleaning gun stable during operation and achieving an even cleaning effect.
Graduated Scale for Precise Control
The built-in scale allows accurate adjustment of the moving distance and cleaning path, making it easy to standardize and repeat cleaning procedures.
50mm Dust & Fume Extraction Interface
The 50mm diameter exhaust port can be directly connected to an industrial vacuum cleaner. It instantly removes smoke, paint mist, and metal dust for a cleaner working environment.
SEAGULL3™ Pulsed Laser Rust Removal Parameters
| Model | HTCM500 |
|---|---|
| Laser source | JPT |
| Supply voltage | AC 110V/220V 50/60Hz, No Transformer Required |
| Laser power | 500W |
| Pulse frequency range | 1-4000khz |
| Maximum pulse energy | 1.5mJ / 5mJ / 15mJ / 50mJ（customizable） |
| Fiber cable length | 5 meters (for 1.5 mJ model) / 10 meters (for 5mJ & 15 mJ models) |
| Laser wavelength | 1064nm |
| Operating temperature | 5℃~40℃ |
| Working environment humidity | ≤80% |
| Laser working mode | Pulse |
| Cooling system | Air cooling |
| Scan speed |
|
| Scan width |
|
| Machine Dimensions | 595mm*248mm*548mm |
| Laser Cleaning Gun Weight | <1.5Kg |
| Machine Weight | 50kg |
| Operation Mode | Handheld |
SEAGULL3™ vs Other Brands in Design & Build Quality
Unlike many entry-level laser cleaning machines on the market, SEAGULL3™ is built with industrial-grade components.
Wider swivel wheels provide better stability and surface protection. The aluminum cable clamp prevents loosening during long-term use. IP68 aviation plugs ensure secure, waterproof connections and consistent power delivery. These design choices directly improve machine lifespan, operational safety, and cleaning consistency — especially for professional users.
Standard Accessories Included with SEAGULL3™
The accessories included with the SEAGULL3™ pulsed laser cleaning machine are listed here. Actual configuration may vary depending on application requirements and order specifications.
Note: Standard accessories may be adjusted based on different markets, safety regulations, customer requirements, or HANTENCNC policy updates. Please confirm the final configuration with our sales team before ordering.
Pulse Laser Cleaning Effects: Before vs. After
Real Customer Cases Show of HANTENCNC
Customer Visits
Customer Reviews
Certificates
HANTENCNC Partnerships
HANTENCNC Service
HANTENCNC’s laser cleaning machines, SEAGULL3™, are CE and FDA-certified. We offer a 2-year warranty for the laser source and a 1-year warranty for the whole machine, sample testing, OEM customization, remote guidance, and lifelong after-sales support.
